Haze Meter YH1100
Haze Meter YH1100
Couldn't load pickup availability
Introduction

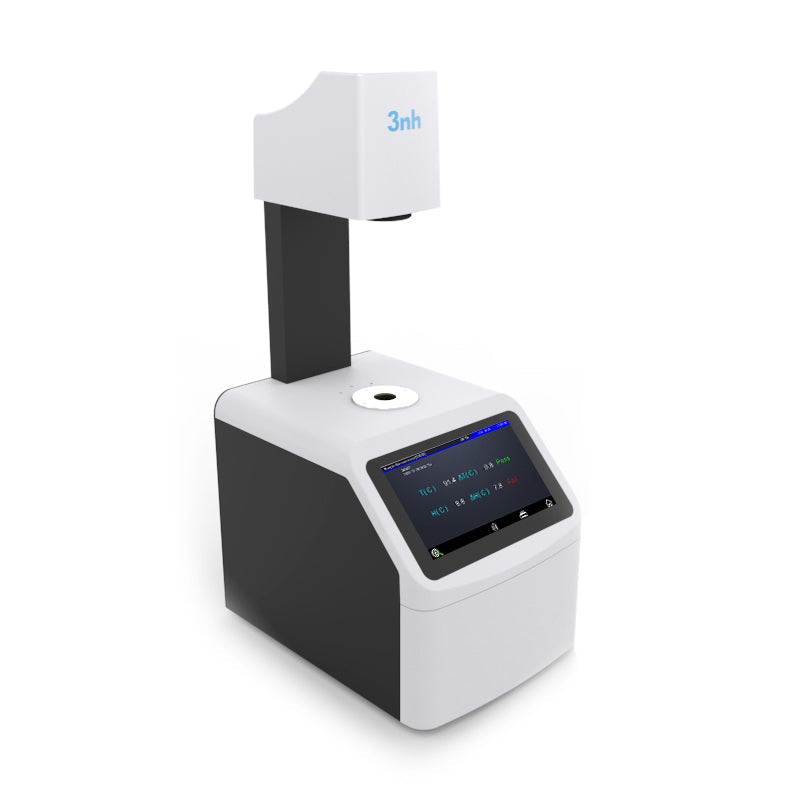

The 3nh YH1100 Haze Meter is an advanced instrument designed to measure haze and total light transmittance with precision and repeatability. This device conforms to ASTM D1003 standards and employs a PD array detector to ensure compliance with the CIE V(λ)2 degree visual response. Its innovative design allows for both vertical and horizontal testing, accommodating a wide variety of samples, making it an essential tool in quality control across multiple industries.
Technical Advantages
-
Conformance to Standards
- Meets the requirements of ASTM D1003/1044, GB/T 2410, JJF 1303-2011, CIE 15.2, JIS K7105, JIS K7361, and JIS K7136.
- Suitable for users needing compliance with international test standards.
-
Precision and Ease of Use

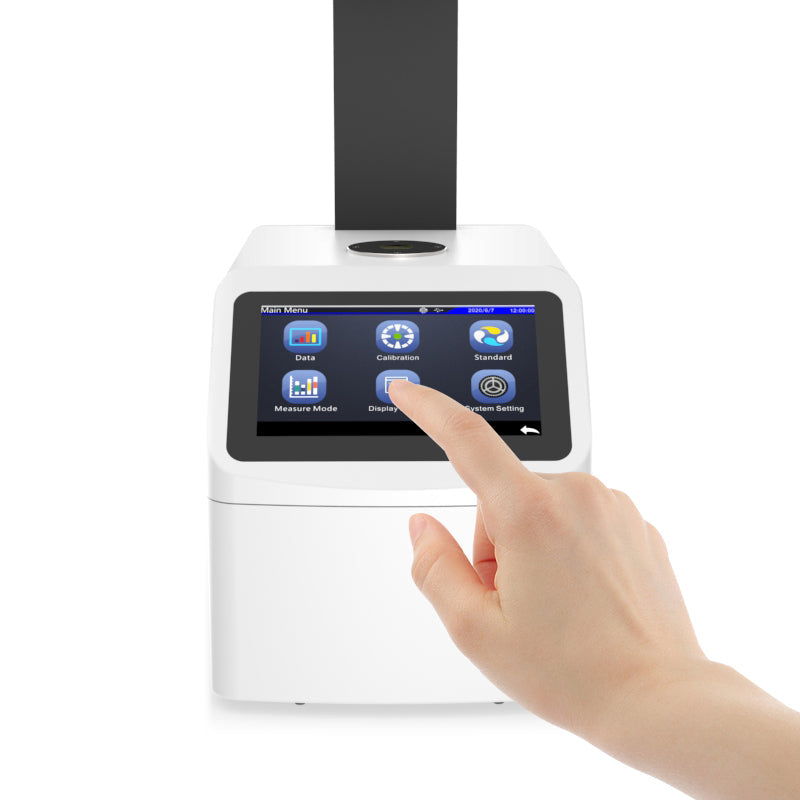

- Equipped with a large touch screen for an intuitive user interface.
- PD array detector provides high precision and repeatability.
- CIE V(λ)2 degree visual response ensures accurate transmittance and haze measurements.
- USB data output facilitates seamless integration with laboratory systems.
-
Dynamic Measurement

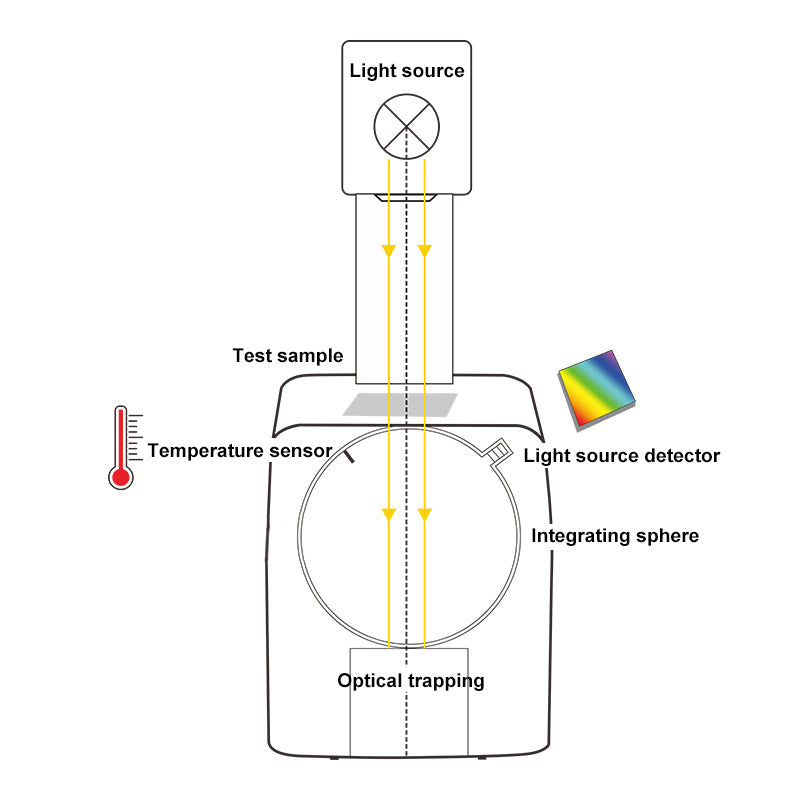

- Independent light source detector and temperature sensor for real-time monitoring of light source and environmental changes.
- Guarantees reliability of test data under dynamic conditions.
-
Flexible and Wide Sample Testing

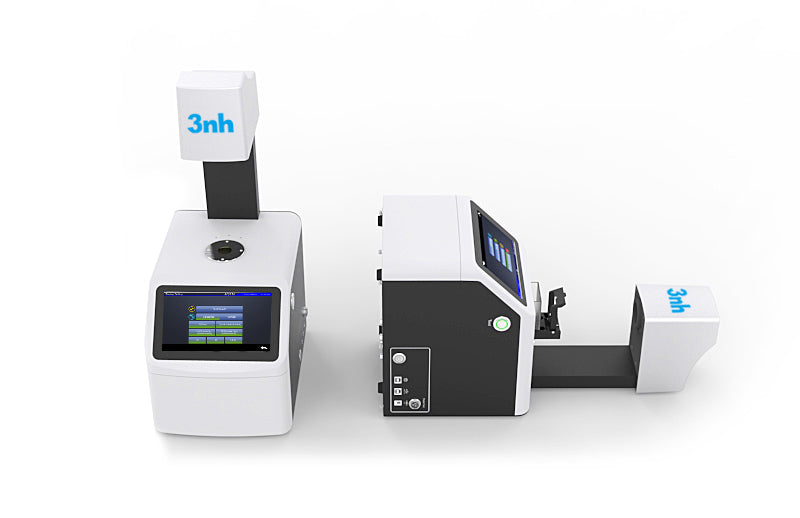

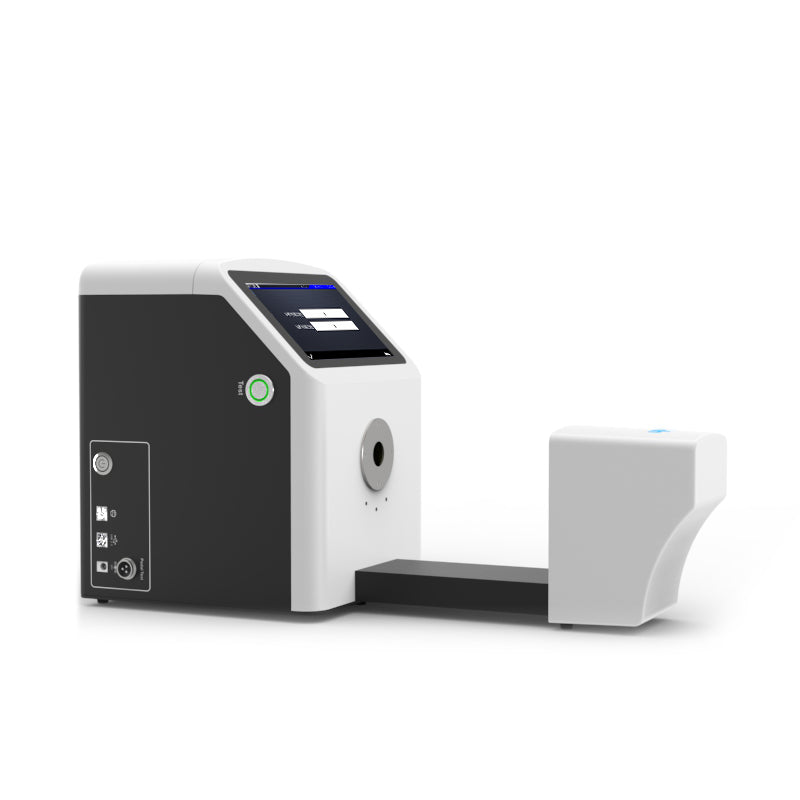

- Open measurement design allows for vertical and horizontal testing, enabling testing of larger or irregular samples.
-
Quality Control Software
- Provides powerful tools for haze and transmittance data measurement and analysis.
- Supports digitized user management, comparative analysis, and customized test reports.
- Facilitates efficient quality monitoring and data management across industries.
Applications
The YH1100 Haze Meter is widely utilized in:
- Glass processing
- Plastic processing
- Film manufacturing
- Screen production
- Packaging industry
- Liquid pharmaceutical analysis
Features
- Conforms to global testing standards.
- High precision and repeatability with dynamic environmental adjustment.
- Open measurement area suitable for diverse sample types.
- Integrated software for data analysis and management.
Specifications
| Product Model | YH1100 Haze Meter |
| Optical Geometry | Transmittance：0/D(Parallel light illumination, diffuse viewing);Conform to the standards: ASTM D1003/1044, GB/T 2410, JJF 1303-2011,CIE 15.2,JIS K7105,JIS K7361,JIS K 7136 |
| Characteristic | The instrument can easily achieve ASTM D1003 non-compensation method, full light transmittance, haze test. Open measuring area for vertical and horizontal testing. In glass processing, plastic processing, film, screen processing, packaging and other industries are widely used in transmittance, haze detection. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 400nm to 700nm, combined LED light |
| Spectrophotometric Mode | / |
| Sensor | The PD array detector, satisfies CIE V(λ)2 degree visual response |
| Wavelength Range | / |
| Wavelength Interval | / |
| Semiband Width | / |
| Measurement range | 0~100% |

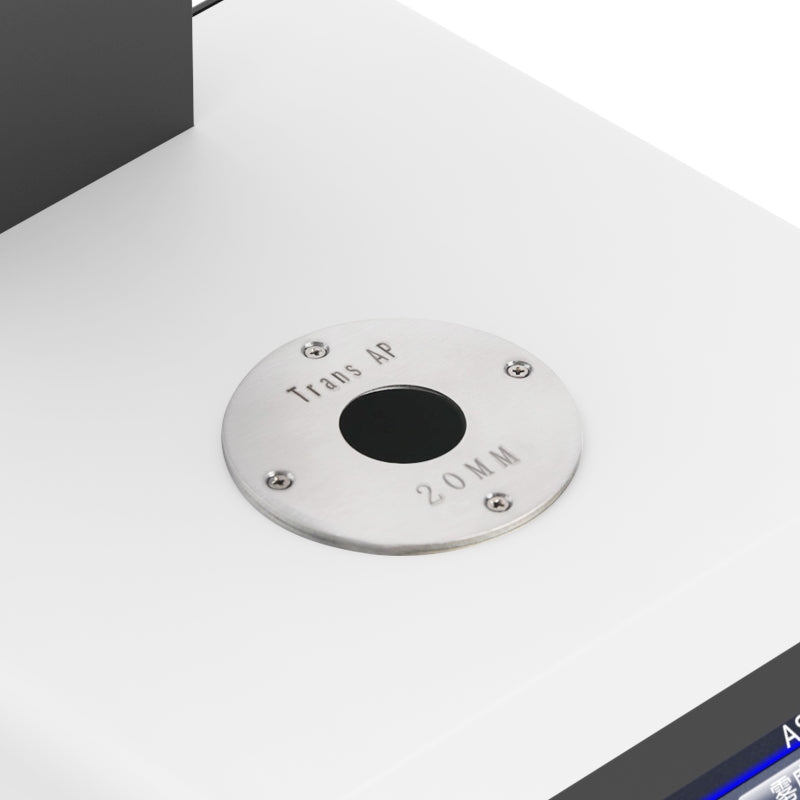

| Measuring Aperture | Φ20mm/Φ15mm/Φ8mm/Φ4mm(Select a single aperture) |
| Sample Size | Thickness ＜170mm |
| Color Space | / |
| Color Difference Formula | / |
| Other Colorimetric Index | Haze(ASTM D1003/1044)，Transmittance T(ASTM) |
| Observer Angle | 2° |
| Illuminant | D65,A,C |
| Displayed Data | PASS/FAIL Result |
| Measuring Time | About1.5s |
| Resolution | 0.01unit |
| Repeatability | Φ20mm,within 0.08（After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 30 for 30 times were taken at intervals of 5s.） |
| Inter-instrument Error | Φ20mm,with 0.4（After the instrument is preheated and calibrated, the standard deviation between the standard haze tablet and the reference value is tested at an interval of 5s.） |
| Dimension | L*W*H=290X211X511mm |
| Weight | About7.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Print serial port |
| Data Storage | Standard 1000 pcs, sample 20000 pcs |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 0~40℃（32~104°F） |
| Storage Environment | -20~50℃（-4~122°F） |
| Standard Accessory | Power Adapter, User Guide, Quality Management Software (download from the official website),USB cable,0% calibration box, measuring aperture. |
| Optional Accessory | Micro-printer, Test fixture, standard haze sheet, foot switch |
| Note: | The specifications are subject to change without notice. |
Alternative Names
- Precision Haze Meter
- Light Transmittance Meter
- Glass and Plastic Haze Analyzer
- Packaging Industry Haze Tester
PDF Specification Sheet - Download Here
