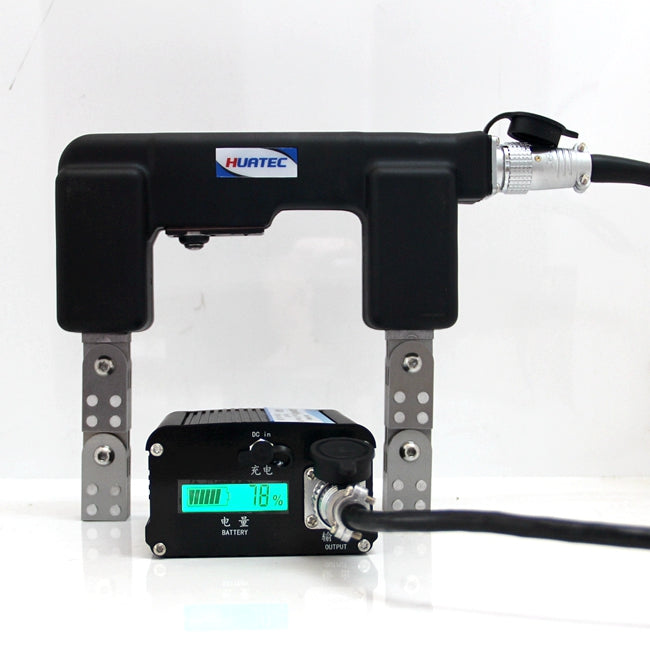

Electromagnetic AC Yoke HCDX-Y9

Product Description:

The HCDX-Y9 Electromagnetic AC Yoke is a premium magnetic particle inspection (MPI) device designed for maximum mobility, durability, and performance in field testing. With support for both AC power and a built-in DC battery pack, this yoke delivers reliable surface flaw detection—even in hard-to-access locations or remote environments.

Engineered with an ergonomic, lightweight design and IP54-rated housing, the HCDX-Y9 reduces operator fatigue while withstanding rugged work conditions. A digital display battery pack, optional UV & white LED lamps, and replaceable components ensure versatility and long service life.

Compliant with ASTM E1444, ASTM E709, ISO 9934, and other global standards, the HCDX-Y9 is trusted by professionals for detecting cracks, seams, and fatigue-related defects in metals.

Key Features:

• Dual Power Supply – Operates on AC or DC (rechargeable battery with display)

• Battery Runtime: Up to 6 hours | Charging Time: 3 hours

• High Magnetic Field Strength: >2kA/m at pole midpoint

• Optional UV & White LED Lamps – Bright, long-lasting illumination

• Field-Replaceable Power Cord, Trigger Switch & Components

• IP54 Dust & Water Resistant Housing

• Supplied with full kit: yoke, power cord, battery, charger, battery bag, and carrying case

• Operating Temp: -10°C to +40°C | Duty Cycle: 50% (Max 90 seconds ON)

• Leg Span: 0–220mm | Lifting Force (DC): ≥22.2kg

• Weight: Yoke – 2.3kg | Battery – 0.6kg

Applications:

Ideal for detecting surface defects like:

• Seams

• Fatigue cracks

• Shrinkage cracks

• Weld flaws

• Quenching cracks

Used in:

• Field inspections

• Spot inspections

• In-service testing

• Hard-to-reach or off-grid locations
