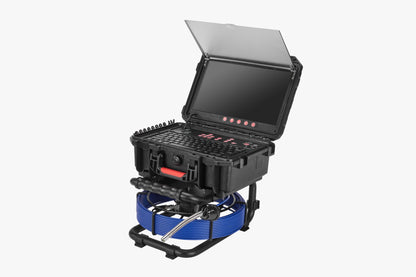

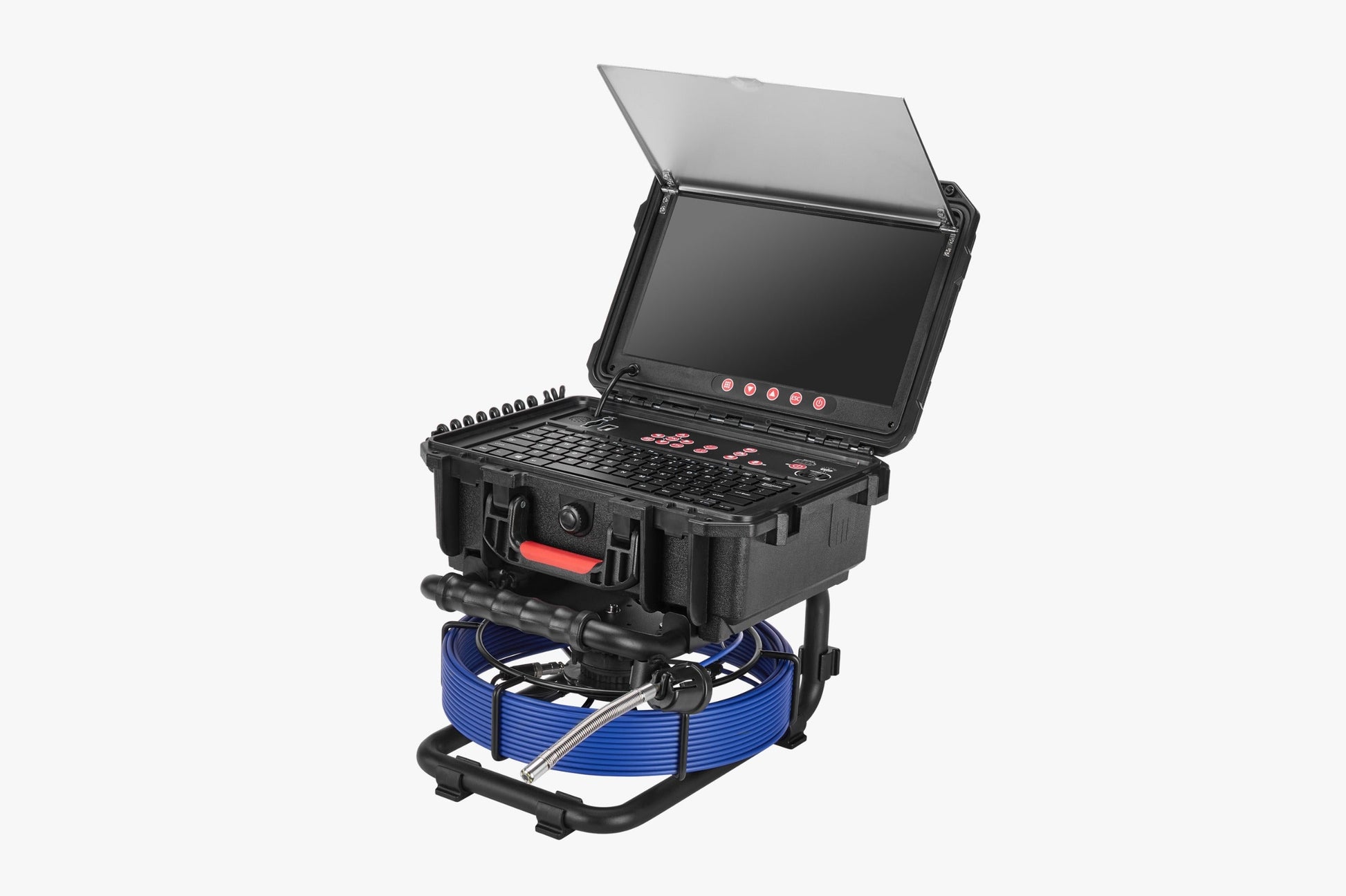

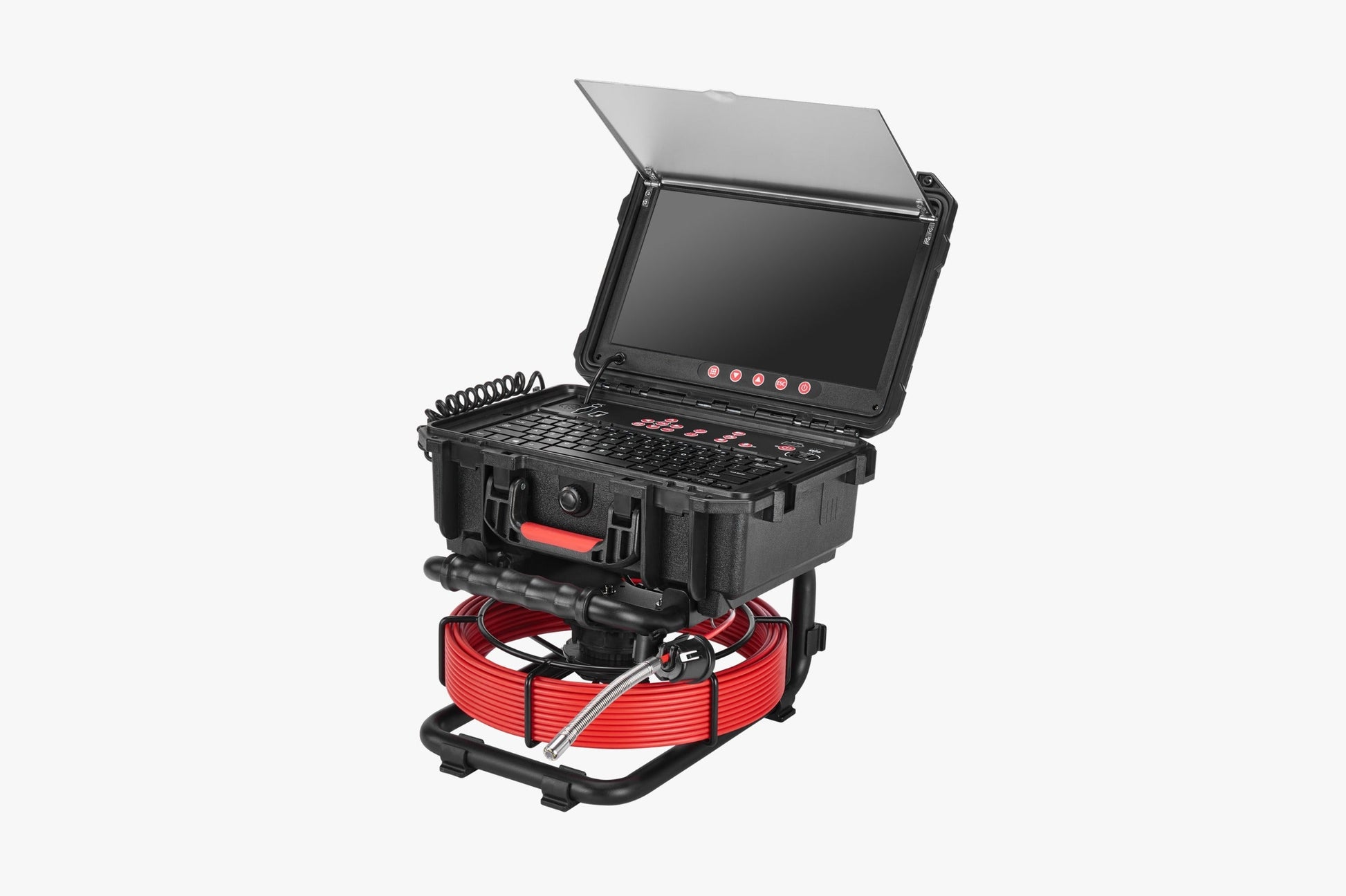

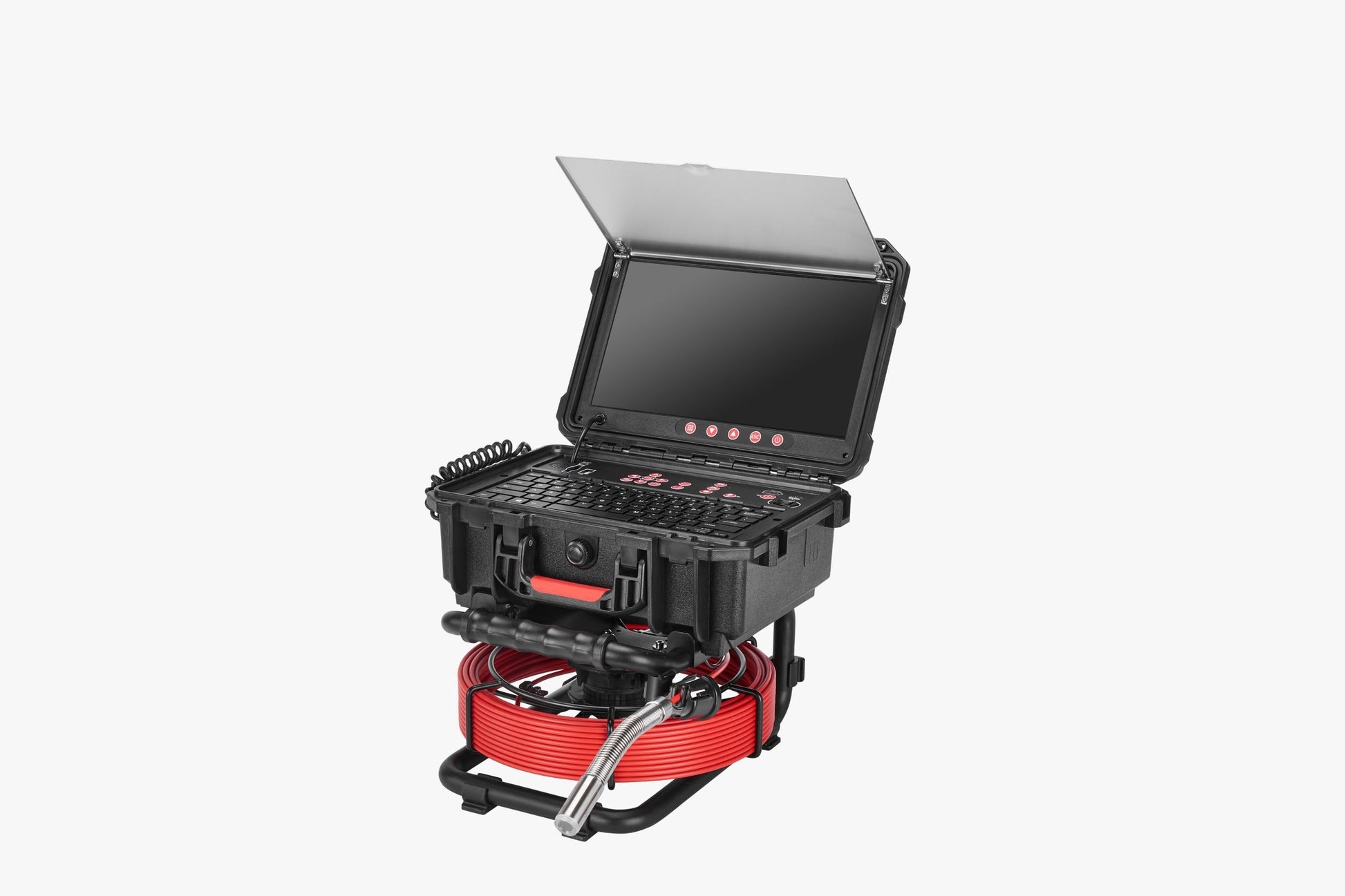

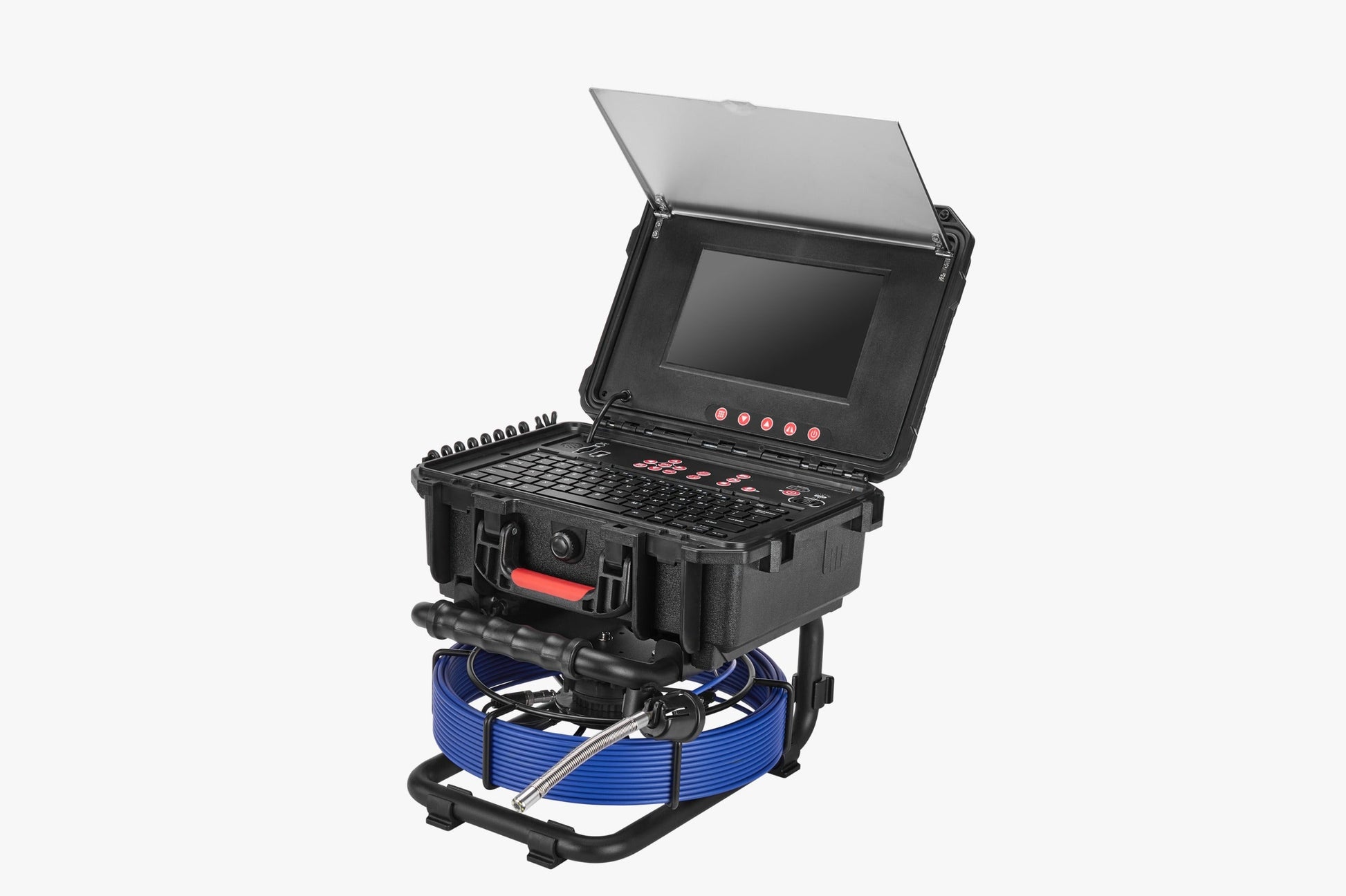

Pipe Inspection Camera Endoscope System 40m – 1080P Sewer & Drain Inspection Tool QY6566-12.8mm(4.8mm)

Description:

QY6566 1080P Pipe Inspection Camera – Professional-Grade Visual Diagnostics

The QY6566 is a high-definition pipe inspection camera system built for pros in plumbing, construction, HVAC, and facility maintenance. Featuring a full 1080P camera head and a large HD screen, this system offers real-time clarity for internal inspections of sewers, drains, ducts, and pipelines.

Whether you're navigating 1.2" milk pipes or 5" sewer lines, this lightweight yet rugged unit offers unmatched visibility, functionality, and reliability.

Key Features:

• High-Definition Screen Options:

  • 13.3” Wide HD Display

  • Full-color 1080P resolution with 8x zoom (2X–8X)

• Dual Camera Head Options:

  • 12.8mm (1080P) with 6 LED lights – Best for 1.2–2.5” pipes (Standard)

  • 21mm (1080P) with 12 LED lights – Ideal for 2–5” pipes (Optional)

  • Built-in 512Hz Sonde & Self-Leveling options available

• Powerful & Portable:

  • 9000mAh rechargeable battery – Up to 7 hours of operation

  • Lightweight 8.1kg (18 lbs) design with a durable carry handle

  • Water- and dust-resistant rugged control box

• Advanced Recording Capabilities:

  • One-touch video/image capture

  • Built-in mic for audio recording

  • Supports SD card or USB up to 1TB

• Reliable Cable Options:

•

  • 40m Blue Cable (4.8mm) for 12.8mm head

  • Integrated cable meter counter & resettable distance counter



• Built to Last:

  • Stainless steel camera head with sapphire lens

  • IP68-rated waterproof camera body

  • Adjustable LED brightness and stainless-steel sunshade

What’s in the Box:

• QY6566 40m Pipe Inspection System

• Camera Head(s) with Skid Attachments (25mm, 46mm, 78mm)

• Rugged Carrying Case

• AV Cable, User Manual, Screwdriver, Pothooks

• Car Charger & 12V DC Power Adapter

Applications:
Perfect for inspecting:
Pipelines • Sewers • HVAC ducts • Chimneys • Water mains • Drainage systems • Milk pipes • Swimming pool plumbing • Central AC vents • Industrial tanks & more.
