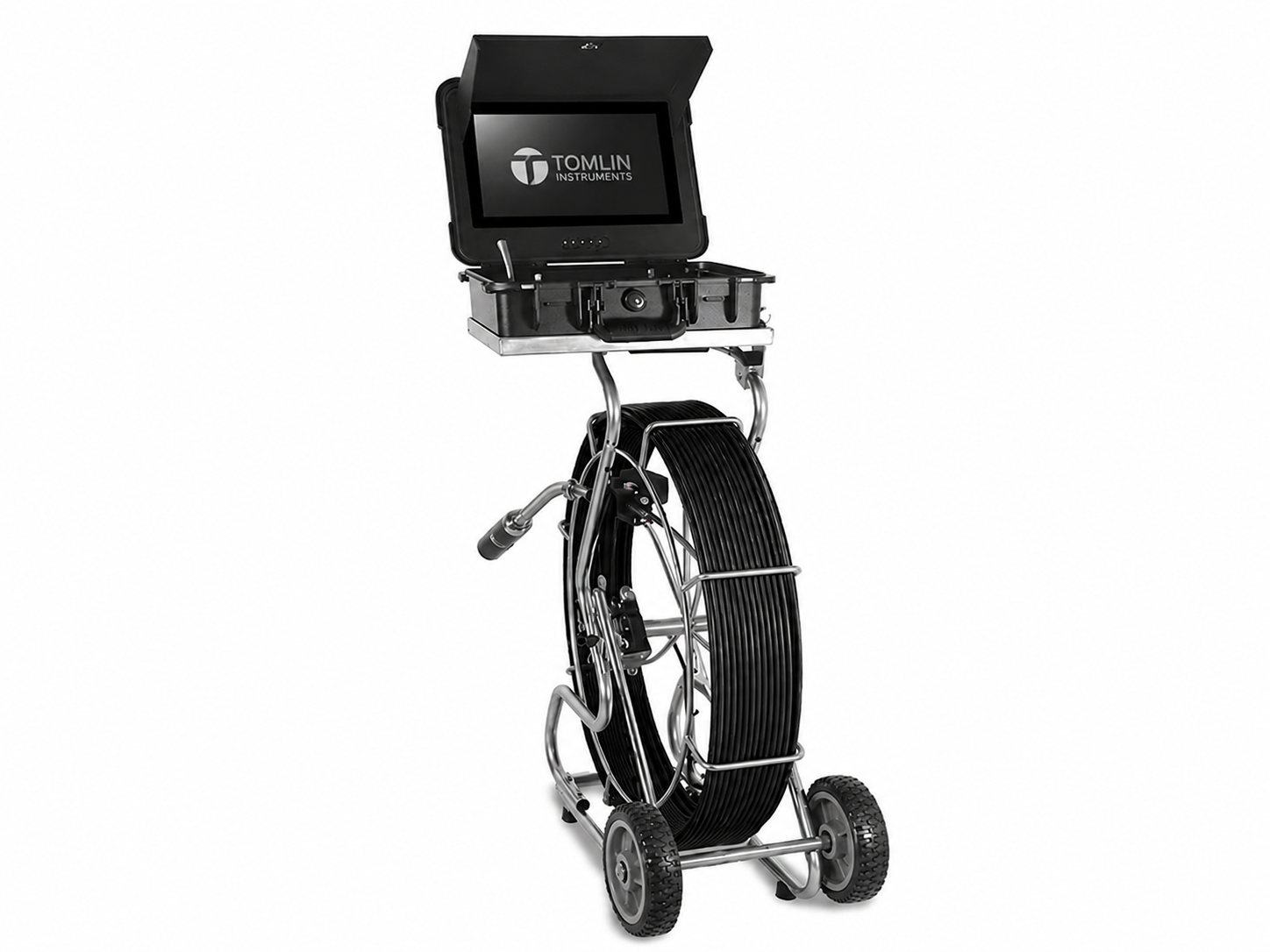

40mm Self-Levelling Heavy Duty Sewer Camera 60–150m – TC-V13-3240AHD

Product Description

The Tomlin TC-V13-3240AHD is a heavy-duty sewer inspection camera engineered for professional contractors, municipal authorities and utility maintenance teams requiring reliable CCTV inspection of large underground pipelines.

Featuring a 40mm HD self-levelling camera head with an integrated 512Hz sonde, the system delivers stable, upright HD inspection footage while allowing the camera head to be accurately located from above ground using a compatible pipe locator.

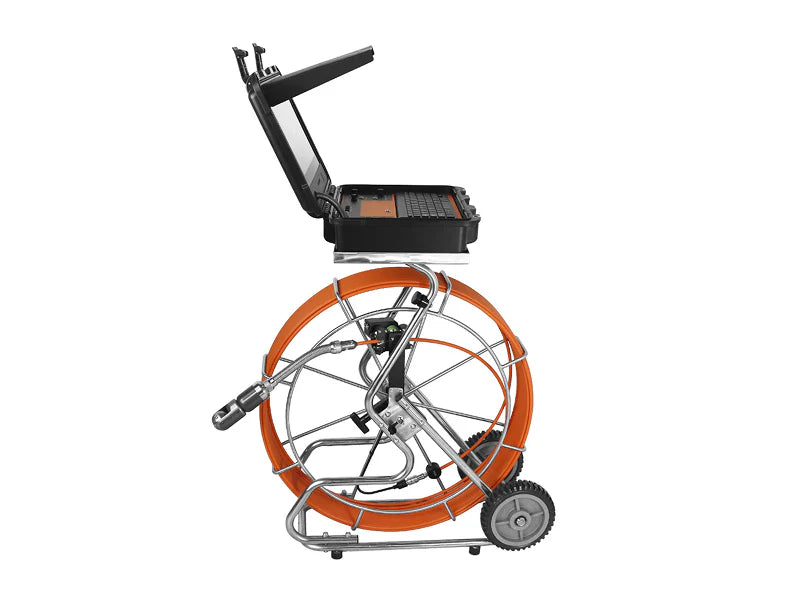

Available with 60m, 100m and 150m fibreglass push rod cable, the TC-SL-13 combines a 13-inch HD IPS DVR monitor, digital metre counter, USB wireless keyboard and heavy-duty wheeled cable reel to provide a dependable solution for professional sewer inspections, stormwater infrastructure and municipal asset management.

---

Key Features

• 40mm HD self-levelling camera head
• Integrated 512Hz sonde transmitter
• Suitable for pipe diameters 100–400mm
• Available in 60m, 100m and 150m cable lengths
• 13" HD IPS LCD monitor
• 1080P MP4 video recording
• Photo and audio recording
• USB wireless keyboard
• Digital metre counter
• Manual focus adjustment
• 16× digital image zoom
• Optional Wi-Fi capability
• Heavy-duty fibreglass push rod reel
• IP68 waterproof camera head

---

Technical Specifications

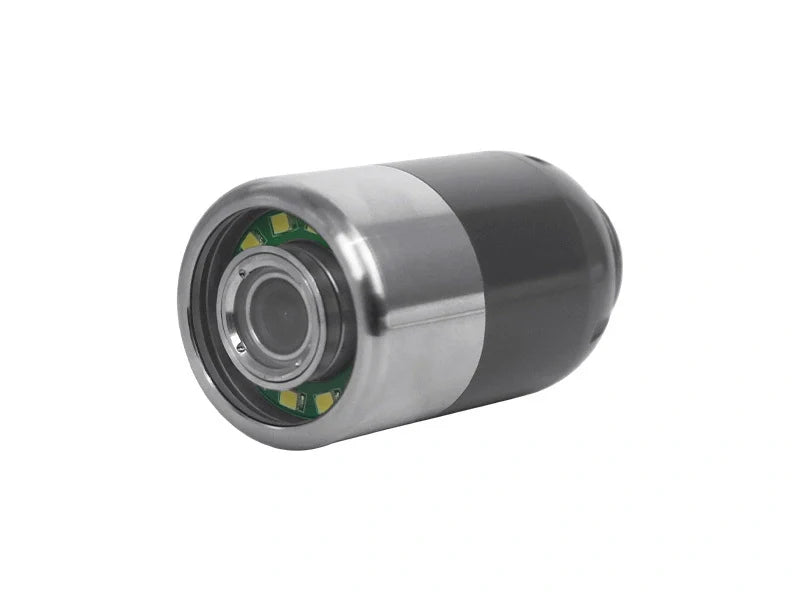

Camera System

Specification	Details
Camera Head Diameter	40mm
Camera Type	Self-Levelling
Camera Length	60mm
Camera with Sonde	40 × 88mm
Camera Sensor	1/3" CMOS
Resolution	1080P HD
Viewing Angle	90°
Sonde	Integrated 512Hz
Waterproof Rating	IP68
Camera Housing	Stainless Steel & Aluminium
Lens Protection	Sapphire Glass
LED Lighting	12 Super Bright Adjustable LEDs

---

Display & Recording

Specification	Details

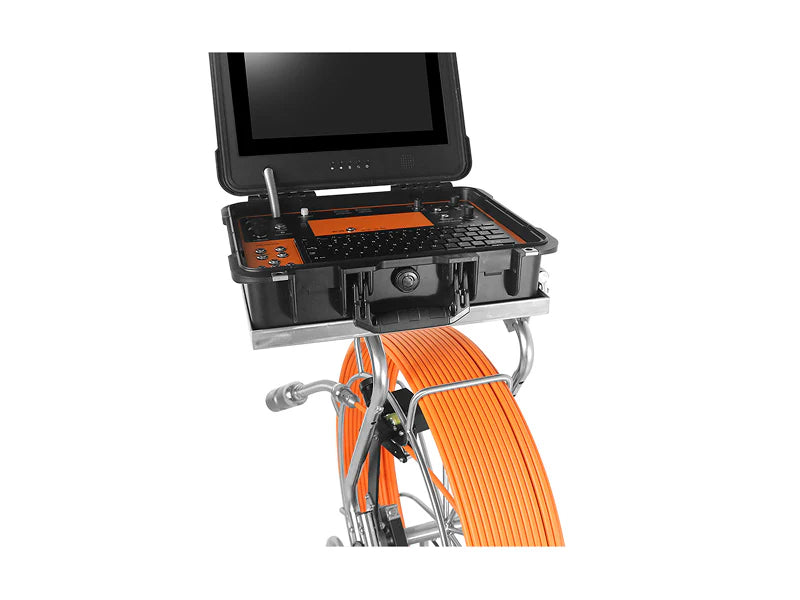

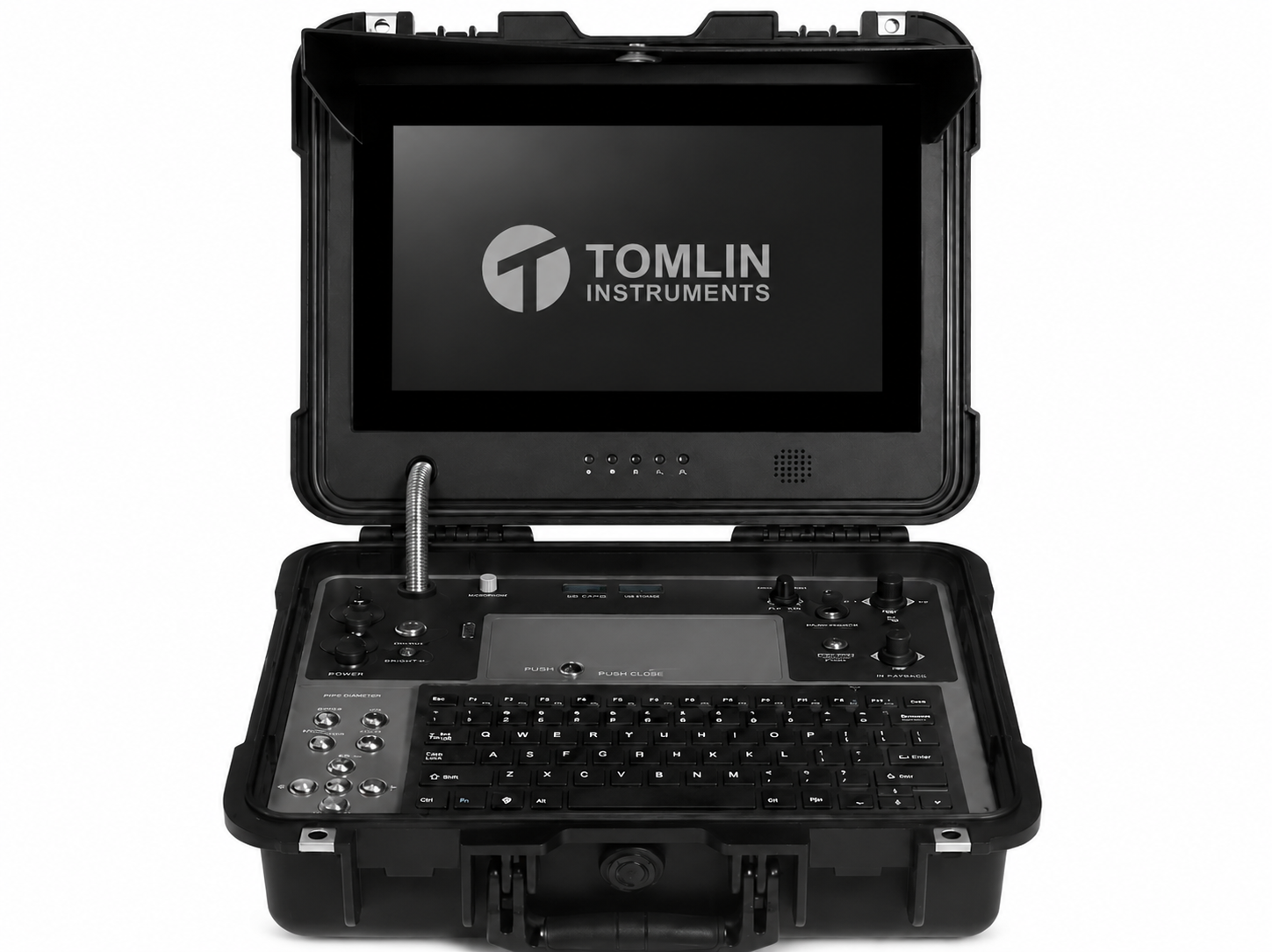

Monitor	13" HD IPS LCD
Video Recording	MP4 (1080P)
Photo Capture	Yes
Audio Recording	Yes
Wireless Keyboard	USB Bluetooth
Digital Metre Counter	Yes
Manual Focus	Joystick Control
Image Zoom	16× Digital
Video Input	Supports Additional Tomlin Camera Heads
Battery	8800mAh Rechargeable Li-ion
Wi-Fi	Optional

---

Cable & Reel

Specification	Details
Push Rod Material	Fibreglass
Cable Diameter	9mm / 11mm
Available Cable Lengths	60m / 100m / 150m

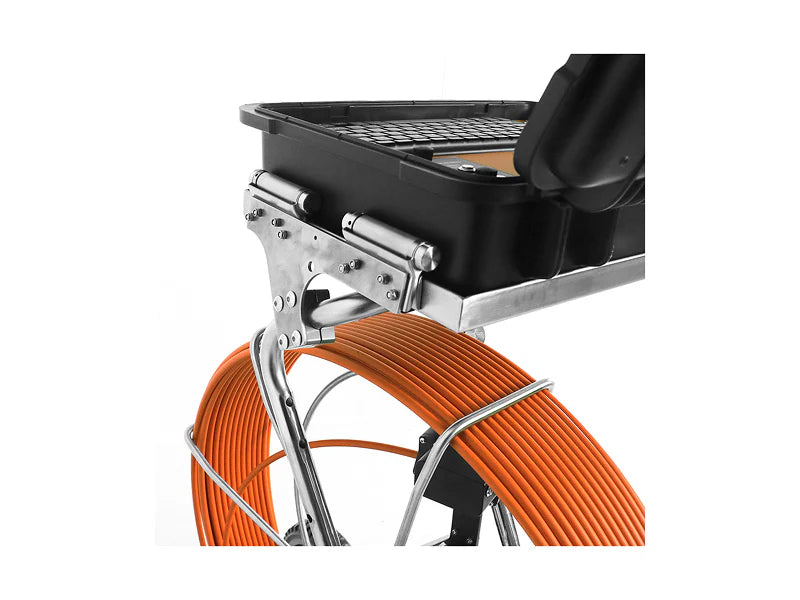

Reel Type	Heavy-Duty Wheeled Reel
Reel Dimensions	70 × 28 × 84cm

---

Power

Specification	Details
Battery	8800mAh Rechargeable Li-ion
Operating Voltage	12V

---

General

Specification	Details
Pipe Diameter	100–400mm
Camera Head	40mm Self-Levelling
Sonde	Integrated 512Hz
Application	Heavy-Duty Sewer Inspection

---

Applications

• Municipal sewer inspections
• Stormwater infrastructure inspections
• Large commercial drainage systems
• Civil construction projects
• Utility maintenance
• Pipeline condition assessments
• Water authority inspections
• Asset management programmes

---

Typical Users

• Municipal councils
• Water authorities
• Civil contractors
• Utility maintenance companies
• Drain inspection specialists
• Pipeline rehabilitation contractors

---

Benefits

Heavy-Duty Inspection Platform

Designed for demanding sewer inspections where long cable lengths, rugged construction and dependable performance are essential.

Self-Levelling Camera

Automatically maintains an upright image throughout the inspection, improving operator efficiency and producing clearer inspection reports.

Integrated 512Hz Sonde

Accurately locate the camera head underground using a compatible locator, reducing excavation time and improving productivity.

Professional Reporting

Capture HD video, photographs and audio recordings for customer reports, compliance documentation and pipeline condition assessments.

Built for Daily Field Use

The heavy-duty wheeled reel, industrial DVR control unit and rugged camera construction are engineered for reliable operation in demanding environments.

---

Delivery Scope

• TC-V13-3240AHD Inspection System
• 40mm Self-Levelling Camera Head
• Integrated 512Hz Sonde
• 13" HD IPS DVR Control Unit
• Heavy-Duty Wheeled Cable Reel
• USB Wireless Keyboard
• 8800mAh Rechargeable Li-ion Battery
• Battery Charger
• 80mm Camera Skid
• 123mm Camera Skid
• 150mm Camera Skid
• User Manual

---

Optional Accessories

• Stainless Steel Work Platform
• Wi-Fi Module
• Additional Camera Skids
• Spare Battery
• 512Hz Pipe Locator
• Replacement Push Rod
• Cleaning & Maintenance Kit

---

Available Models

Model	Cable Length
TC-V13-3240AHD-60	60m
TC-V13-3240AHD-100	100m
TC-V13-3240AHD-150	150m

---

Why Choose the TC-V13-3240AHD Series?

The TC-V13-3240AHD is designed for contractors and municipalities requiring a robust sewer inspection system with long cable lengths, self-levelling technology and integrated locating capability. It offers a significant step up from standard inspection cameras, making it ideal for large diameter sewer networks, stormwater infrastructure and professional CCTV condition surveys.

---

Product Highlights

• 40mm Self-Levelling Camera
• Integrated 512Hz Sonde
• 13" HD IPS Monitor
• 60m, 100m & 150m Cable Options
• 1080P MP4 Recording
• Digital Metre Counter
• USB Wireless Keyboard
• 16× Digital Zoom
• Suitable for 100–400mm Pipes

---

Industries Used In

• Municipal Infrastructure
• Water Authorities
• Civil Construction
• Drainage Contractors
• Utility Maintenance
• Pipeline Rehabilitation
• Wastewater Management
• CCTV Asset Inspection

```

Help Me Choose

Product Family	Tomlin Part No.	Camera Head	Typical Pipe Size	Cable Lengths	Screen	Self Levelling	Sonde	Best For
Micro Drain Camera	TC-V8-20	20mm Forward View	25–75mm	30m	8"	No	No	Household drains, sinks, showers and small waste pipes
Self-Levelling Pipe Inspection Camera Mini	TC-V9-23	23mm Self Levelling	30–150mm	30–40m	9"	Yes	Yes	Residential and commercial drain inspections
Self-Levelling Pipe Inspection Camera	TC-V13-WS29	29mm Self-Levelling	50–200mm	40-50m	13"	Yes	Yes	Professional drain inspections requiring an upright image
Heavy Duty Sewer Camera	TC-V13-3240AHD	40mm Self-Levelling	100–400mm	60–150m	13"	Yes	Yes	Main sewer lines, municipal infrastructure and civil contractors
Pan Tilt Sewer Camera	TC-V13-3250PTF	33mm or 50mm Pan & Tilt	75–1000mm+	60–150m	13"	No	Yes	Large diameter pipelines requiring full directional viewing
Dual View Sewer Camera	TC-V13-3245DU	45mm Dual View	100–600mm	60–150m	13"	No	Yes	Sewer condition surveys, junctions and lateral inspections
Advanced Multi-Camera Inspection System (SL)	TC-V13-DR23SL/17	23mm Self-Levelling + 17mm Camera	25–150mm	30m + 50m	13"	Yes	Yes	One system for domestic and commercial inspections
Advanced Multi-Camera Inspection System (SLPT)	TC-V13-DR33/23SL	23mm Self-Levelling + 33mm Pan & Tilt	20–1000mm+	30m + 50m	13"	Mixed	Yes	Complete inspection solution from household drains to large sewers
