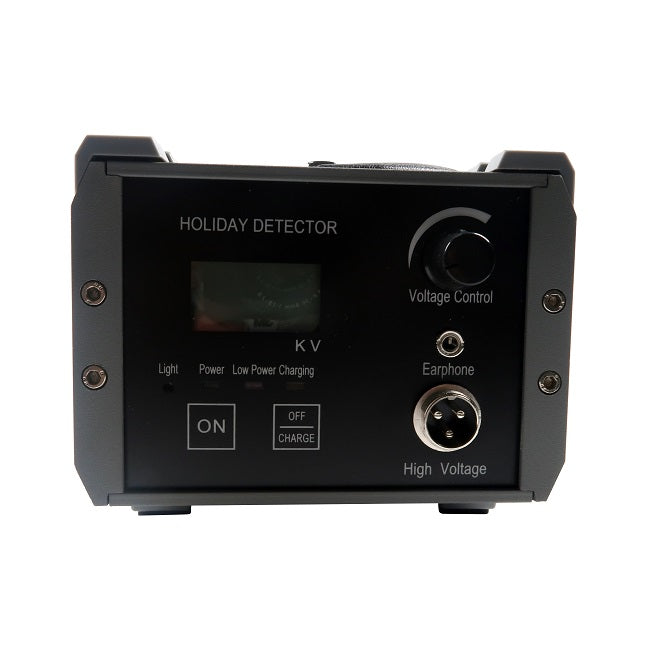

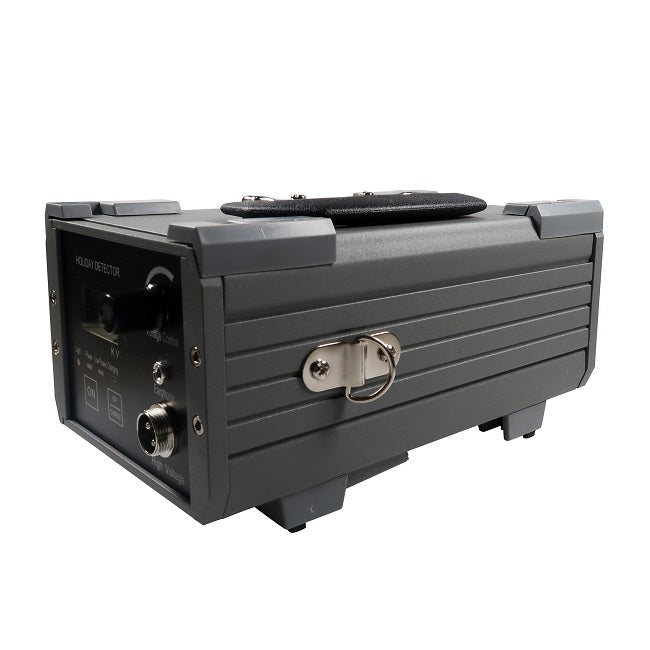

High Voltage Holiday Detector HD Series

Product Name: Holiday Detector (HD-60A; HD-60B; HD-90)

Short Description: The Holiday Detector series including models HD-60A, HD-60B, and HD-90 are advanced inspection tools designed for detecting discontinuities or "holidays" in coatings. Each model caters to different voltage needs and applications, making them suitable for a wide range of industrial uses.

Key Features:

• Direct display of output high voltage on a clear LCD with blue backlight.
• Automatic switch-off function to conserve battery life.
• State of charge indicator to monitor battery status.
• Different models for specific applications:
  • HD-60A: Customized for low voltage applications, ideal for pottery antiseptic processes.
  • HD-60B: High voltage range up to 30KV, commonly used for petroleum pipelines.
  • HD-90: Similar voltage range to HD-60B but includes a leakage count function to record detected leaks.

Technical Specifications:

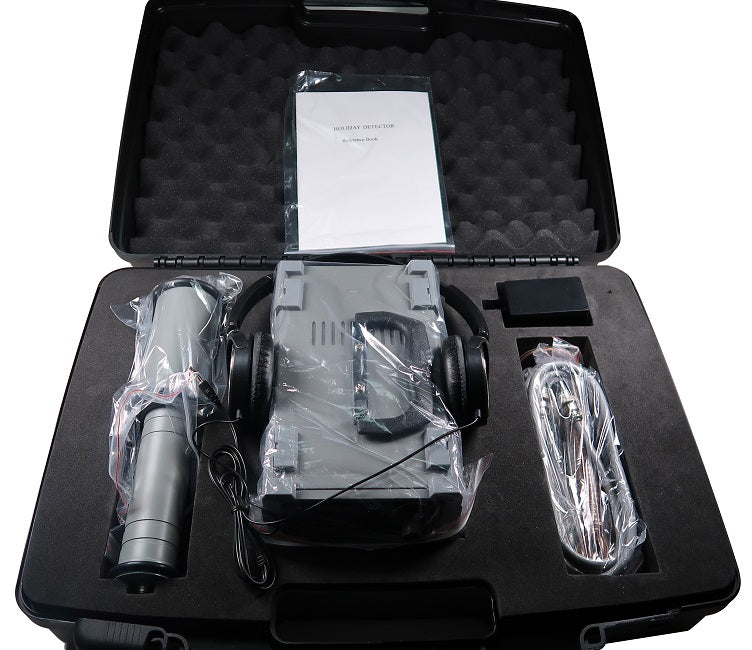

Standard Delivery Includes:

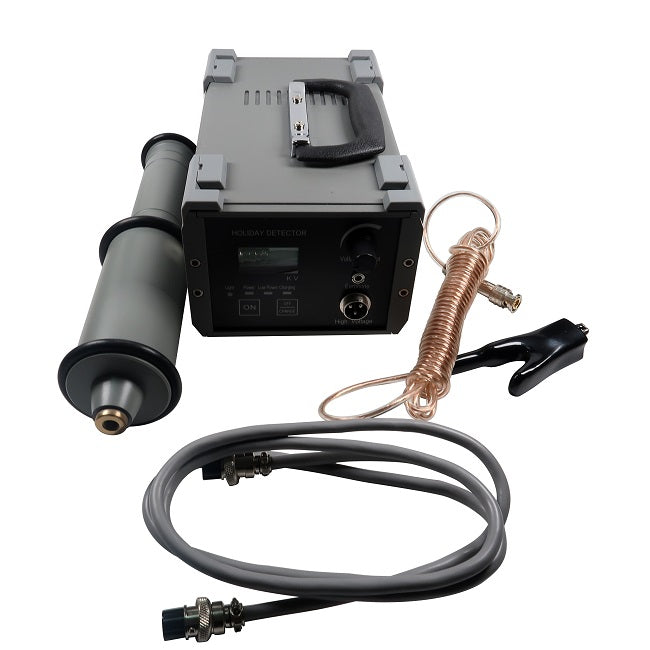

• Main unit, high voltage detector, brush probe, brace rod, earth lead, earphones, power charger, fuses, shoulder strap, instruction manual, certificate, and warranty card.

Optional Accessories:

• Arc-shaped brush, circle probe, ring electrode (The ring electrode can be adjusted to max diameter of 0.4m, suitable for various workpiece diameters.)

With their robust design and versatile applications, the HD series holiday detectors are essential tools for ensuring the integrity of protective coatings in various industries.
