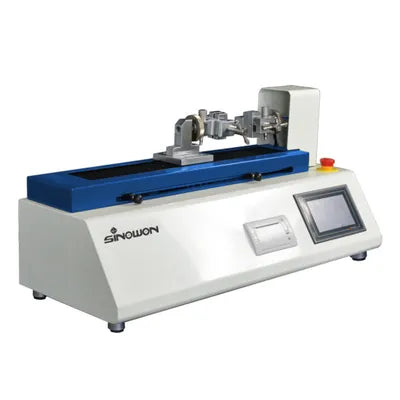

Horizontal Electronic Peel Strength Tester SL-8197
Downloads
Data Sheet Link
Product Introduction:
The SL-8197 horizontal tensile testing machine is the latest economic horizontal testing machine designed and developed by our company. It is suitable for testing tensile, peel, tear, shear, pulling force, fatigue, etc. in industries such as adhesive products, paper products, printing and packaging, food, electronics, buttons, and conveyor belts. This testing machine has high cost-effectiveness, convenient operation, and simple maintenance, making it an ideal equipment for quality testing and production assistance in various factories and enterprises.
Specifications:
| Model | SL-8197 | SL-8197B |
| Code# | 752-302 | 752-302B |
| Capacity | 2,5,10,20,50,100,200kg optional | |
| Display | 5 inch display | |
| Accuracy | Better than ±1.0% | |
| Force resolution | 1/10,000 | |
| Effective force measurement range | 1~100%F.S | |
| Accuracy of deformation indication | Better than ±1.0% | |
| Test speed range | 0.5～500mm/min, optional | |
|
Test maximum stroke |
Maximum300mm | |
| Power unit switching | Kgf, gf, N, kN, Ibf | |
| Stress unit switching | MPa, kPa, kgf/cm2, Ibf/in2 | |
| Transformation unit switching | Mm, cm, in | |
| Stop Method | Left and right limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection | |
| Pointing method | Manual point selection and pre-set point selection (20 points) function during the test process | |
| PC Linked | N/A | Yes |
| Accessary | Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics | Standard Grips 1 pair, printer 1 pics, U disk 1 pics, CD operation manual 1 set, quality pass 1 pics, warranty 1 pics |
| Dimension | Around 700*360*300mm(W×D×H) | |
| Weight | Around 30kg | |
| Motor | Step motor | |
| Power | AC220V, 50/60Hz, 10A or customized | |
Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.
