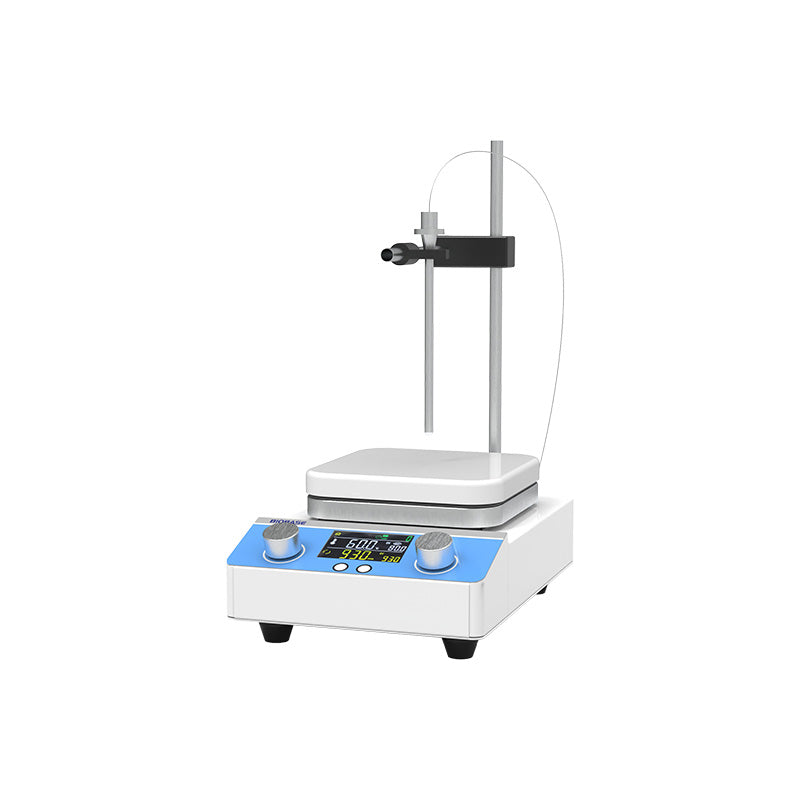

Hotplate Magnetic Stirrer – Digital Heating & Stirring Plate MS-H-10
Hotplate Magnetic Stirrer – Digital Heating & Stirring Plate MS-H-10
Couldn't load pickup availability
Product Description
The BIOBASE Hotplate Magnetic Stirrer MS-H-10 and MS-H-11 are reliable, high-performance laboratory instruments designed for precise heating and uniform stirring. Combining an advanced heating plate with a magnetic stirring system, these units are ideal for chemical, biological, pharmaceutical, and medical laboratories.
Equipped with a built-in temperature control system and digital display, users can accurately set temperature and rotation speed for consistent experimental results. The PT100 temperature sensor ensures precise monitoring, while adjustable overheating protection enhances operational safety.
With stable rubber feet support and durable plate materials, the MS-H series delivers dependable performance for daily laboratory applications.
Delivery within 7 days. Factory direct supply.
Key Features
-
Built-in Temperature Control System – Precise and stable heating performance
-
Digital Display Control – Easy and accurate setting of temperature and stirring speed
-
Wide Temperature Range – Up to 360°C for versatile applications
-
PT100 External Temperature Sensor (Standard) – High-accuracy temperature monitoring
-
Adjustable Over-Temperature Protection – 360–400°C safety range
-
Stable Rubber Feet Support – Enhanced operational stability
-
DC Brushless Motor – Quiet operation and long service life
-
Timing Function (0–9999 min) – Flexible experiment control
-
IP21 Protection Class – Reliable laboratory-grade safety
Applications
Suitable for:
-
Chemical analysis
-
Biological research
-
Pharmaceutical laboratories
-
Medical testing
-
Educational laboratories
-
Industrial research
Technical Specifications
| Model | MS-H-10 | MS-H-11 |
|---|---|---|
| Working Plate Size | 180 × 180 mm | φ150 mm |
| Platform Material | Ceramic | Aluminum |
| Motor Type | DC Brushless Motor | DC Brushless Motor |
| Stirring Points | 1 | 1 |
| Maximum Stirring Volume (Water) | 5 L | 5 L |
| Max Stir Bar Size | 50 mm | 50 mm |
| Rotation Range | 20–2000 rpm | 20–2000 rpm |
| Speed Control Accuracy | ±10 rpm | ±1 rpm |
| Display | LED | LCD |
| Timing Range | 0–9999 min | 0–9999 min |
| Heating Temperature Range | Room Temp. – 360°C | Room Temp. – 360°C |
| Overheating Protection | 360–400°C Adjustable | 360–400°C Adjustable |
| Temperature Display Accuracy | ±0.1°C | ±0.1°C |
| External Temperature Sensor | PT100 (±0.6°C Accuracy) | PT100 (±0.6°C Accuracy) |
| Motor Power | 20 W | 20 W |
| Heating Power | 800 W | 400 W |
| Protection Class | IP21 | IP21 |
| Power Supply | 220V, 50/60Hz (Standard) / 110V, 50/60Hz (Optional) | |
| External Size (L×W×H) | 222 × 320 × 135 mm | 222 × 320 × 122 mm |
| Net Weight | 4.2 kg | 3.9 kg |
| Packing Size | 300 × 410 × 210 mm | 300 × 410 × 210 mm |
| Gross Weight | 7.6 kg | 6.0 kg |
Downloads
Data Sheet Link
