Hygrometer Kit PCE-EV-KIT 3

Hygrometer Kit PCE-EV-KIT 3

Regular price $1,870.00
Regular price $0.00 Sale price $1,870.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

This hygrometer kit includes gauges for demanding applications with advanced functionality. The hygrometer kit has been specially formulated to meet all requirements with regard to the assessment of the environment. With these devices, the recorded values are saved and can then be evaluated on a PC or laptop.

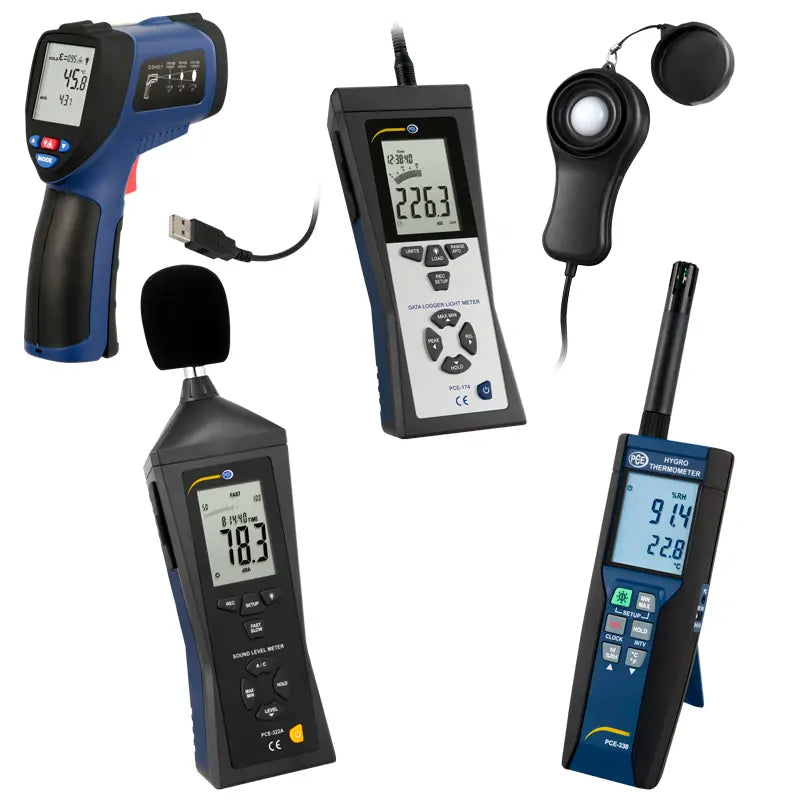

The hygrometer kit consists of the following devices:

- P1 / PCE-322A
- P2 / PCE-890U
- P3 / PCE-174
- P4 / PCE-330

Highlights

- PCE-322 A
The Noise Meter PCE-322 A is particularly suitable for measurements of sound nuisance in the field of industrial, health, safety and environment monitoring. The noise meter has a log function, which allows storage of up to 32,700 measurement values.


- Automatic range: 30 ... 130 dB
- Manual range: 30 ... 80 dB / 50 ... 100 dB / 80 ... 130 dB
- Resolution: 0.1 dB
- Accuracy: ±1.4 dB


- PCE-890U
The IR Thermometer PCE-890 U has a very good price / performance ratio. The IR thermometer is a professional device with a measuring range up to +1150 ° C for contactless measurement of surface temperatures. By the very good distance / spot ratio of 50: 1,small objects can also be measured at a distance.


- Measuring range: -50 ... +1150 °C
- High precision
- USB interface
- Adjustable emissivity


- PCE-174
The Light Meter PCE-174 with a data memory for 16,000 readings is used to measure the lighting conditions in industry, agriculture and research. The light meter is increasingly used also for testing the lighting at workplaces, in the decoration of shop windows and by designers.


- Range: 400.0 / 4000 / lux / 40.00 / 400.0 klux / 40.00 / 400.0 / 4000 / fc / 40.00 kfc
- Resolution.: 0.1 / 1 / 10 / 100 Lux / 0.01 / 0.1 / 1 / 10 FootCandle
- Accuracy: ±5 % of range ±10 Digits (<10,000 Lux) / ±10 % of range ±10 Digits (>10,000 Lux)


- PCE-330
The Hygrometer PCE-330 is well suited for the rapid measurement of room temperature and humidity. The precise hygrometer also allows the dew point (dew point temperature) to be determined. The hygrometer is equipped with a clear display and has a large memory (16000 values) to save the readings.
- high precision
- large memory (16,000 values)
- rapid measurement


Specification

Technical Specification PCE-322A
Noise levels Low 30 ... 80 dB
Medium 50 ... 100 dB
High 80 ... 130 dB
Auto 30 ... 130 dB
Dynamic range 50 dB
Resolution 0.1 dB
Accuracy ±1.4 dB
Frequency 31.5 Hz ... 8 kHz
Storage capacity 32700 values
Frequency evaluation A and C
Time evaluation fast (125 ms)
slow (1 sec.)
Technical Specification PCE-890U
Measuring range -50 ... +1150 °C
Accuracy -50 ... 0 °C: ±4 °C
0 ...+500 °C: ±1.5 % / ±2 °C
>500 °C: ±2 % / ±2 °C
Resolution < 1000 °C: 0.1 °C
> 1000 °C: 1 °C
Measuring spot 50:1
Emission level 0.1 ... 1
Spectral range 8 ... 14 µm
Technical Specification PCE-174
Measuring range 400.0 / 4000 / lux
40.00 / 400.0 klux
40.00 / 400.0 / 4000 / fc
40.00 kfc
Resloution 0.1 / 1 / 10 Lux
0.01 / 0.1 / 1 / 10 FootCandle
Accuracy ± 5% of reading ± 10 digits (<10,000 lux)
± 10% of reading ± 10 digits (<10,000 lux)
Storage 16,000 values
Display update 1.5 per second
Technical Specification PCE-330
Measuring range
Relative humidity 0 ... 100%
Temperature -20 ... +60 °C
Dew point temperature -20 ... +60 °C
Resolution 0.1 °C / 0.1 % r.H.
Accuracy (at 23 ° C) < 10 % r.H. , > 90 % r.H.: ±4 % r.H.
10 % ... 90 % r.H.: ±3 % r.H.
-20 °C ... +60 °C: ± 0,8 °C
Sampling rate 2 times per second

Delivery Scope

Delivery PCE-322A
1x Sound Level Meter PCE-322A, 1x Wind noise suppressor, 1x Interface cable, 1x Software, 1x Mini tripod, 1x Calibration screwdriver, 1x Battery, 1x Power adapter, 1x Carrying case, 1x User manual
Delivery PCE-890U
1x Digital Thermometer PCE-890U, 1x USB cable, 1x Software, 1x User manual
Delivery PCE-174
1x Lux Meter PCE-174, 1x Light sensor, 1x Software, 1x USB cable, 1x Battery, 1x Device bag, 1x User manual
Delivery PCE-330
1x Hygrometer PCE-330, 1x USB cable, 1x Software, 1x Battery, 1x User manual
