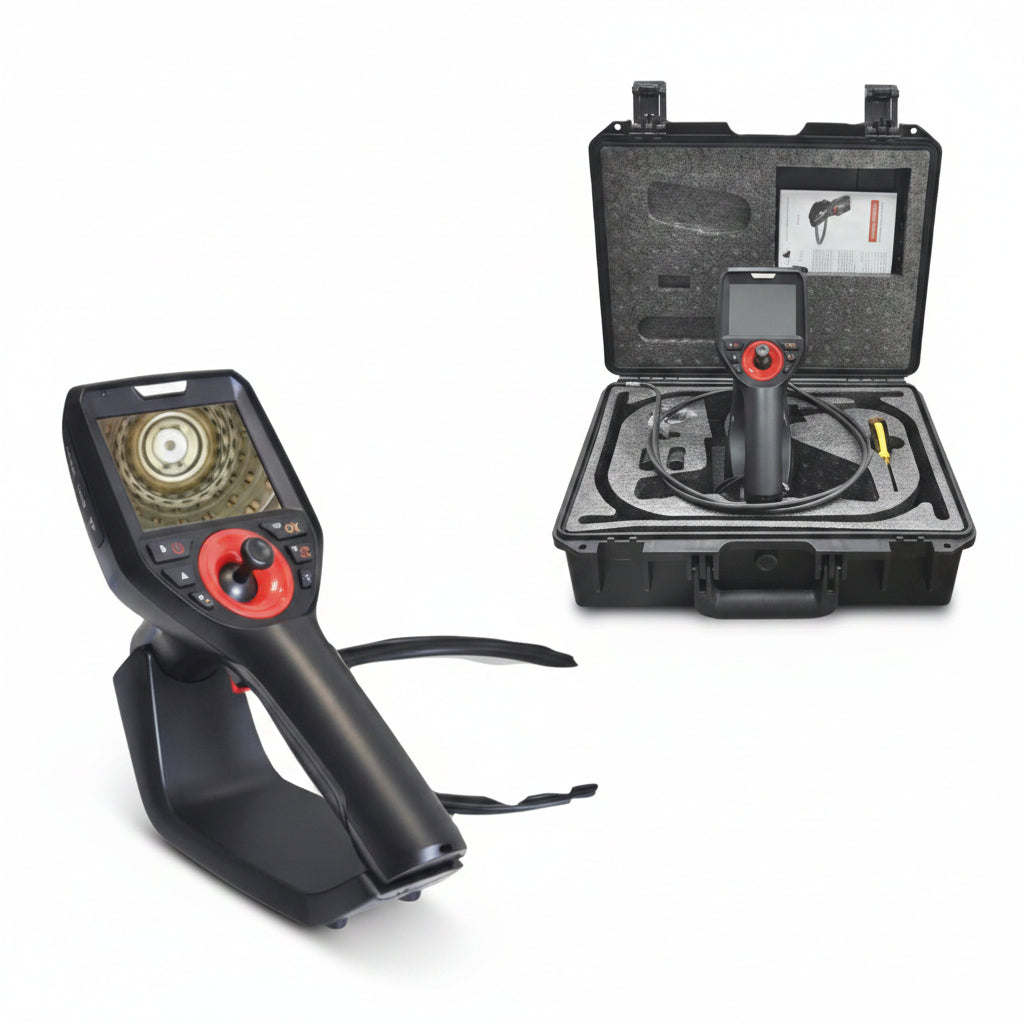

10m Endoscope Articulating 360° Industrial Videoscope 6.2mm Dual Direction Inspection Camera V40-S

Description

The V40-S Ultra HD Industrial Videoscope is a professional-grade articulating borescope designed for advanced industrial inspection, automotive diagnostics, pipeline analysis, and confined-space visual inspection. Featuring a 3.5-inch HD display, 360° all-way articulation, and a 2-megapixel HD camera, the V40-S delivers high-definition imaging with exceptional maneuverability in hard-to-reach areas.

Built for demanding environments, the system includes a durable 10m insertion tube, IP67 waterproof probe, and powerful LED illumination for clear visibility inside pipes, engines, turbines, machinery, and industrial systems. The mechanical joystick articulation system allows precise probe control for accurate defect detection and inspection efficiency.

Designed for industrial reliability and portability, the V40-S supports image and video capture directly to the included TF card for reporting and analysis.

Features

• 360° all-way articulating probe with mechanical joystick control
• 2MP ultra HD forward-view inspection camera
• 3.5-inch high-definition display
• 6.2mm probe diameter for industrial inspections
• 10m insertion tube for extended reach applications
• Front LED light guide with 7-level brightness adjustment
• IP67 waterproof probe for wet and harsh environments
• Real-time image and video recording
• HDMI video output support
• 8GB TF card included
• Portable handheld industrial design
• Replaceable insertion tube system
• Long working distance with infinite depth of field

Specifications

Host System

• Display: 3.5-inch non-touch HD display
• Display Resolution: 640 × 480
• Image Magnification: Supports 4× zoom
• Video Output: HDMI
• Storage: 8GB TF card
• Battery Type: 18650 rechargeable lithium battery
• Working Time: Approx. 4 hours
• Host Protection: IP55

Probe System

• Probe Diameter: 6.2mm
• Camera Resolution: 2,000,000 pixels
• Viewing Direction: Forward-view
• Articulation: 360° all-way articulation
• Bending Angle: 90°
• Depth of Field: 15mm – infinite
• Tube Length: 10m
• Illumination: Front LED light guide
• Brightness Adjustment: 7 levels
• Probe Protection: IP67 waterproof

Delivery Scope

• V40-S Industrial Videoscope
• 10m Articulating Probe
• Rechargeable 18650 Battery
• Battery Charger
• 8GB TF Memory Card
• USB Reader
• Carry Case
• User Manual

Industries Used In

• Industrial Maintenance
• Pipeline Inspection
• Automotive Diagnostics
• Aerospace Inspection
• Power Generation
• Mechanical Engineering
• Manufacturing Plants
• Turbine Inspection
• HVAC Inspection
• Quality Control

Downloads

Data Sheet - Click Here
