Description

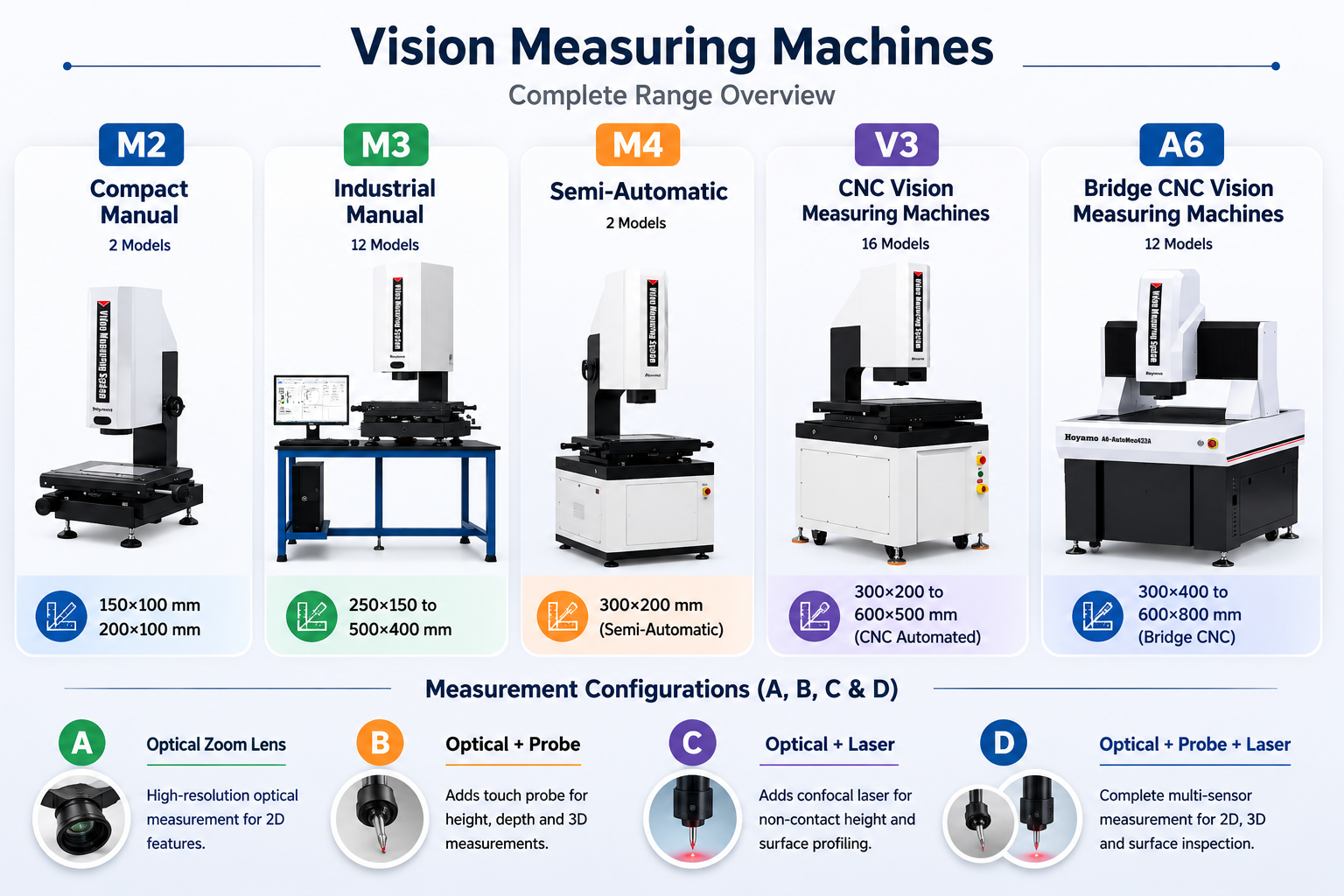

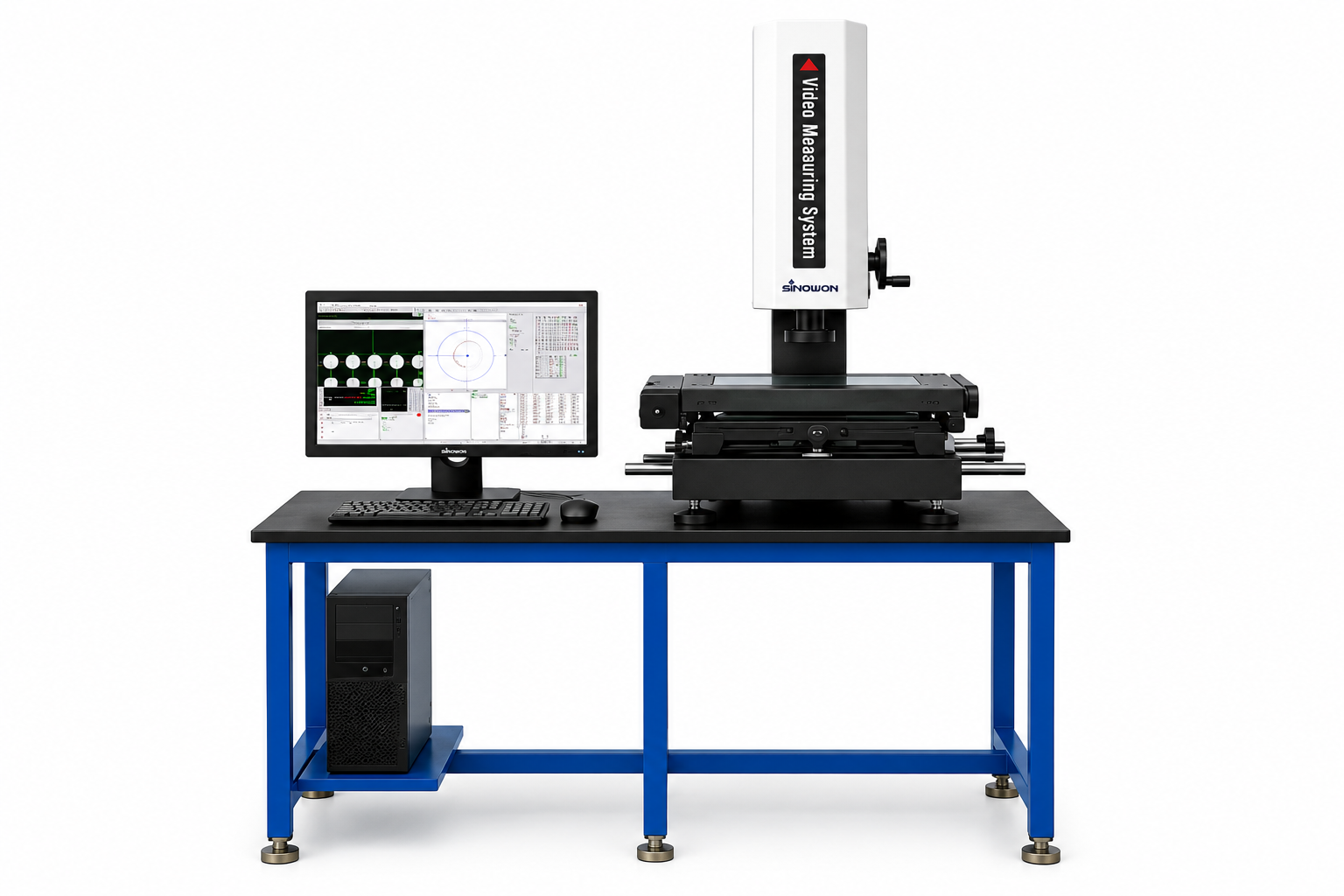

The M3 Series Industrial Manual Vision Measuring Machines are designed for precision dimensional inspection in manufacturing, engineering and quality control environments. Built on a precision granite structure and equipped with high-resolution optics, the M3 Series delivers reliable and repeatable measurement performance for a wide range of industrial applications.

Available in measuring capacities from 250 × 150mm through to 500 × 400mm, the M3 Series supports both standard 2D optical measurement and advanced 3D touch probe measurement through configurable A and B platforms.

The M3 Series is ideal for manufacturers requiring accurate dimensional verification, first article inspection, incoming goods inspection and process quality control. Optional touch probe technology expands measurement capability to include heights, depths, step heights and complex geometric features.

With powerful iMeasuring software, programmable LED illumination and a precision measuring stage, the M3 Series provides an excellent balance between affordability, flexibility and industrial-grade measurement capability.

Features

• Precision granite base and column construction
• Measuring capacities from 250 × 150mm to 500 × 400mm
• High precision optical scales with 0.5μm resolution
• Repeatability up to 2μm
• Measurement accuracy up to 3.0 + L/200μm
• 6.5X high-resolution zoom lens
• Optical magnification 0.7X – 4.5X
• Video magnification 26X – 172X
• High-resolution digital camera
• Programmable 4-ring 8-zone LED surface illumination
• LED contour illumination
• Optional coaxial lighting
• iMeasuring metrology software included
• Supports geometric dimension and tolerance inspection
• Optional touch probe for 3D measurement

• Compatible with Windows 10 and Windows 11

Available Models

Available Configurations

Standard 2D Optical Measurement

• M3-VMS-2515
• M3-VMS-3020
• M3-VMS-4030
• VMS-5040

A – Camera + Zoom

Enhanced optical measurement capability with zoom lens technology for advanced dimensional inspection.

• M3-VMS-2515A
• M3-VMS-3020A
• M3-VMS-4030A
• VMS-5040A

B – Camera + Probe (3D)

Combines optical measurement with touch probe technology for height, depth and 3D measurement applications.

• M3-VMS-2515B
• M3-VMS-3020B
• M3-VMS-4030B
• VMS-5040B

Applications

• First Article Inspection (FAI)
• Quality Control Inspection
• Incoming Goods Inspection
• Precision Machining
• Toolmaking
• Mould Manufacturing
• Automotive Components
• Aerospace Components
• Medical Device Manufacturing
• Electronics Manufacturing
• Production Verification
• Engineering Workshops
• Research & Development

Specifications

Standard Accessories

• M3 Series Vision Measuring Machine
• High Resolution Digital Camera
• 6.5X Zoom Lens
• Surface LED Illumination System
• Contour LED Illumination System
• iMeasuring Software
• Calibration Certificate
• User Documentation

Downloads

• M3 Datasheet


Alternative Names

• Industrial Vision Measuring Machine
• Manual Video Measuring System
• Optical Measuring Machine
• Optical Coordinate Measuring Machine
• Video Measurement System
• Dimensional Inspection Machine
• Vision Inspection System
• Non-Contact Measuring Machine
• 2D Measuring Machine
• 3D Measuring Machine
• Touch Probe Measuring System
• Industrial Metrology System

Why Choose the M3 Series?

The M3 Series bridges the gap between entry-level optical measurement and advanced dimensional metrology. With larger measuring capacities, optional touch probe technology and industrial-grade construction, it provides manufacturers with a scalable platform capable of handling everything from routine dimensional inspection through to advanced 3D measurement applications.

The combination of high accuracy, flexible configurations and future upgrade capability makes the M3 Series an excellent choice for dedicated quality departments, manufacturing facilities and engineering workshops seeking reliable, long-term measurement performance.
