Belt Tension Tester AT-180H

Description

The TOMLIN Infrared Belt Tension Tester is an advanced device designed to quickly and accurately measure the belt tension of motors and machinery. Equipped with laser sensor technology, it measures the natural vibration frequency of the belt, using the input belt mass and free belt length to calculate precise tension values. Its compact design and versatility make it ideal for various industrial applications, especially in tight spaces.

Features

• Laser Sensor Technology: Provides direct, accurate measurements, eliminating the need for traditional mechanical sensors.
• Compact Split Sensor: Designed for easy access to narrow and confined spaces.
• Metric and Imperial Units: Offers the flexibility to display readings in either metric (m, kg/m, N) or imperial (inch, lbs/foot, lbf) units.
• Automatic Power Off: Conserves battery life by powering off automatically after a period of inactivity.

Specifications

AT-180H5

• Measurement Range: 10 to 500 Hz
• Input Range:
  • Free Belt Length: Max 99.99 m
  • Belt Mass: Max 9.999 kg/m
• Errors:
  • Digital Sampling Error: < 1%
  • Display Error: ±1 Hz
  • Total Error: < 5%
• Temperature Range:
  • Operating: +10°C to +50°C
  • Transportation: -5°C to +70°C
• Optical Path Distance: 3 to 20 mm

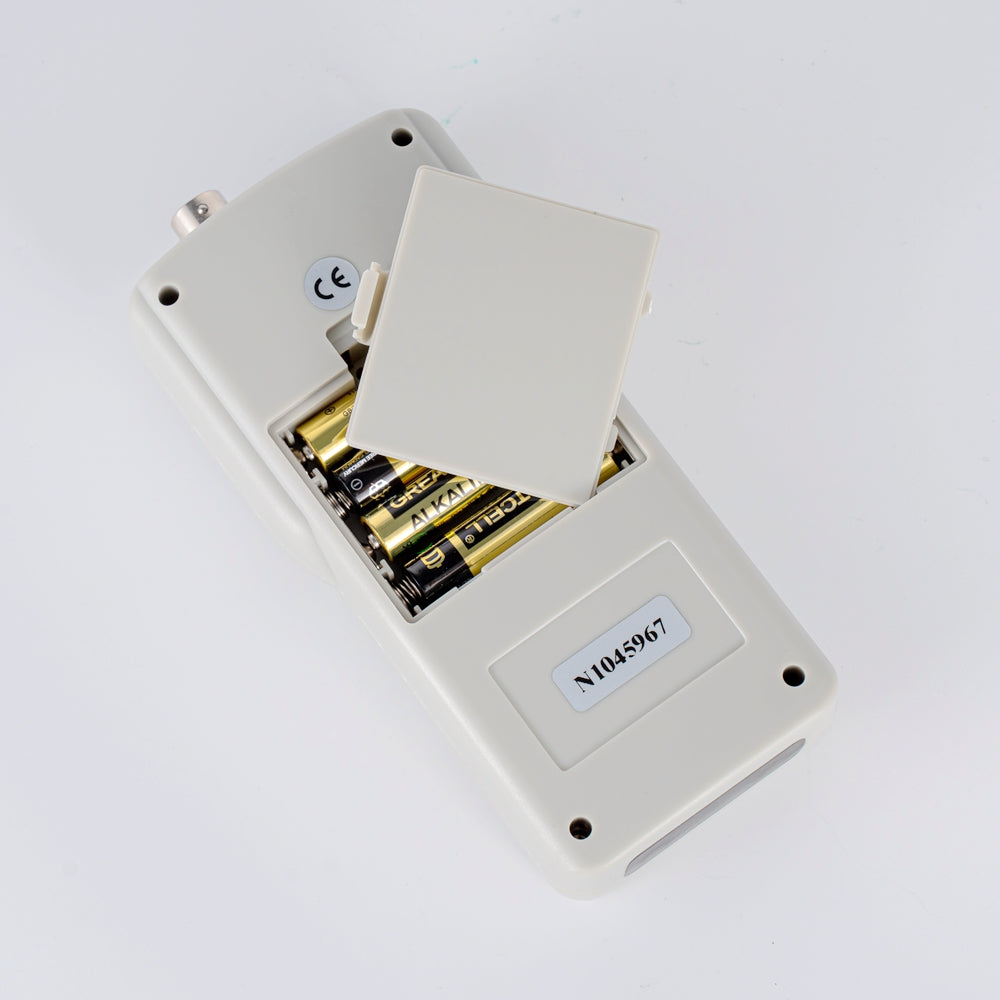

• Power Supply: 4 x 1.5V AAA UM-7 Batteries
• Dimensions:
  • Main Unit: 140 x 70 x 31 mm (5.5 x 2.8 x 1.2 in)
  • Sensor: 124 x 21 x 12 mm (4.9 x 0.8 x 0.5 in)
• Weight (Including Batteries): 130 g (4.59 oz)

AT-180H8

• Measurement Range: 10 to 800 Hz
• Input Range:
  • Free Belt Length: Max 99.99 m
  • Belt Mass: Max 9.999 kg/m
• Errors:
  • Digital Sampling Error: < 1%
  • Display Error: ±1 Hz
  • Total Error: < 5%
• Temperature Range:
  • Operating: +10°C to +50°C
  • Transportation: -5°C to +70°C
• Optical Path Distance: 3 to 20 mm
• Power Supply: 4 x 1.5V AAA UM-7 Batteries
• Dimensions:
  • Main Unit: 140 x 70 x 31 mm (5.5 x 2.8 x 1.2 in)
  • Sensor: 124 x 21 x 12 mm (4.9 x 0.8 x 0.5 in)
• Weight (Including Batteries): 130 g (4.59 oz)

Standard Accessories

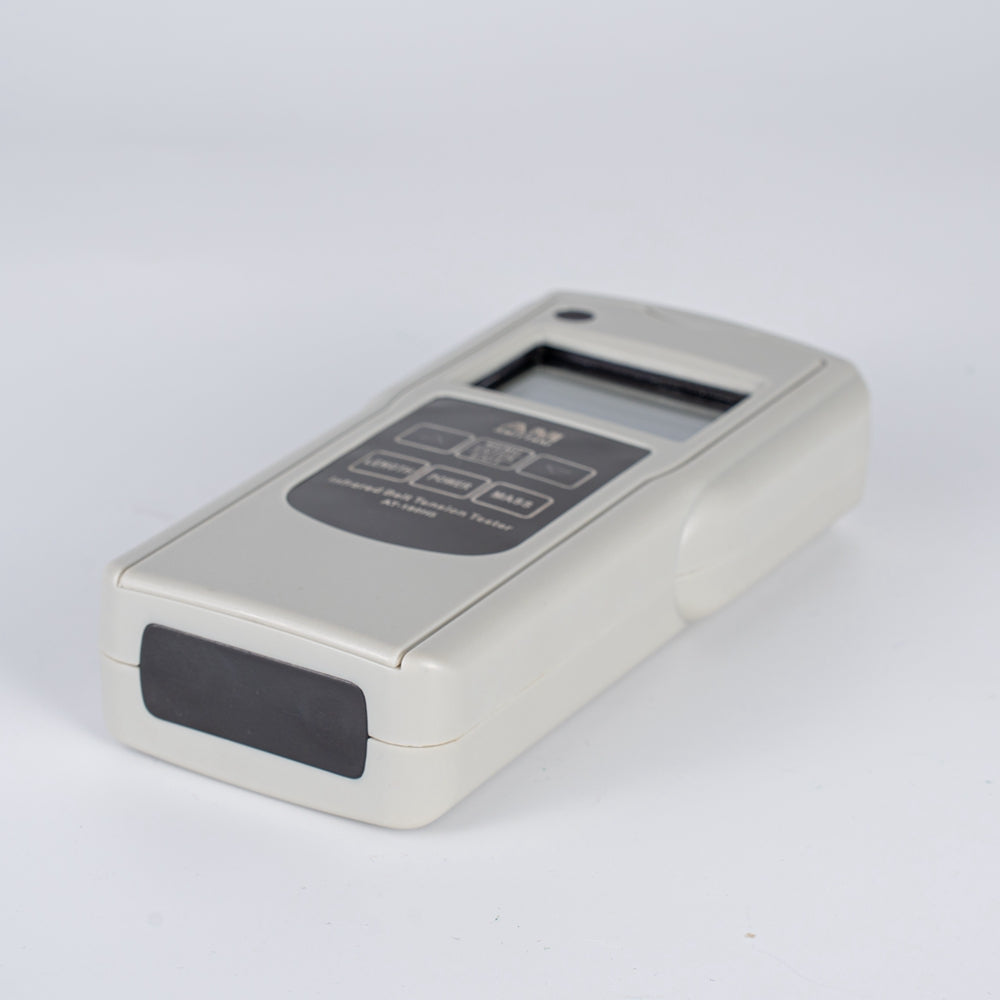

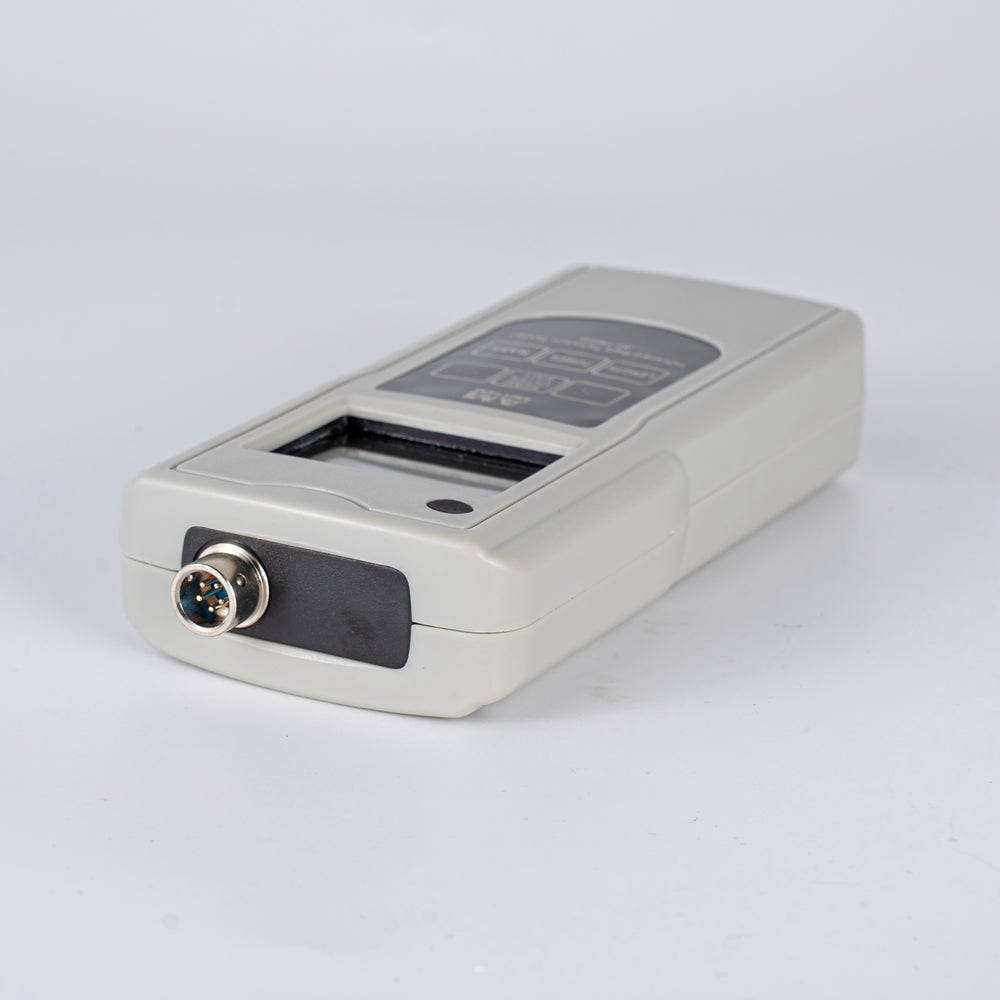

• Main Unit (Infrared Belt Tension Tester)

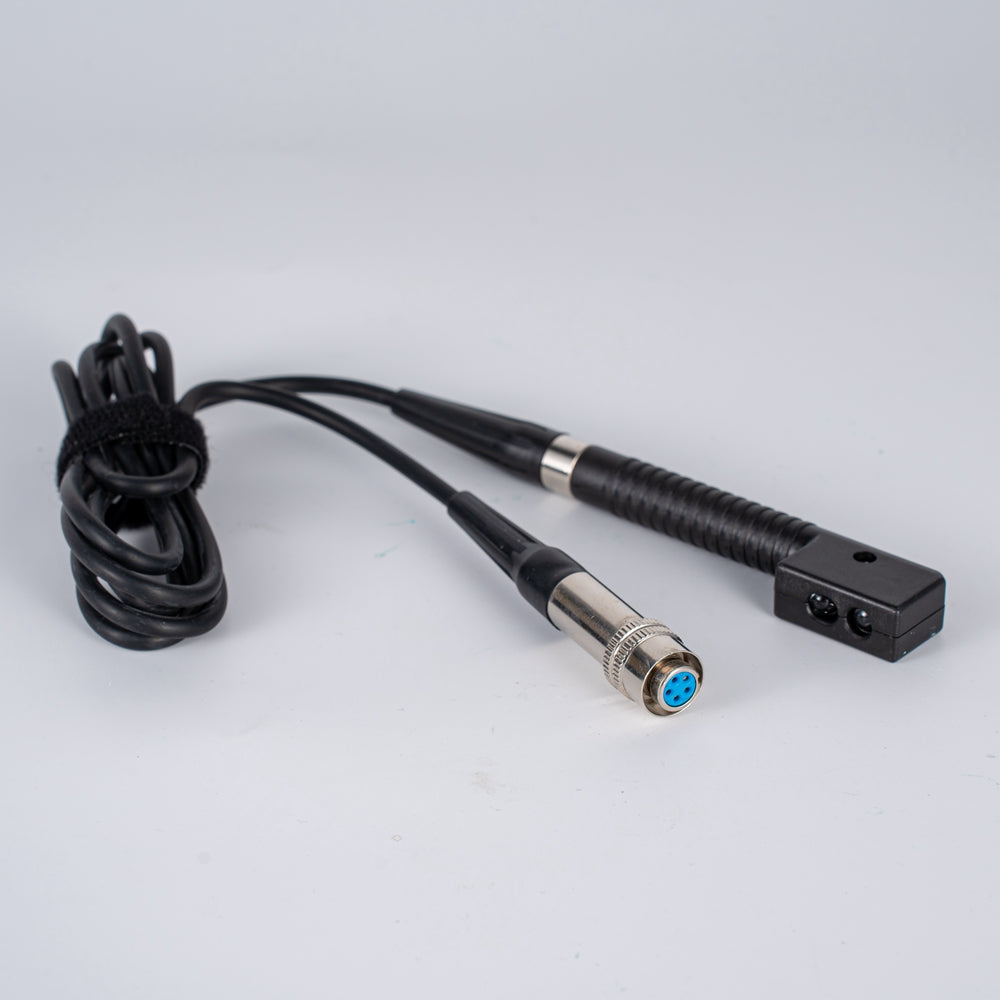

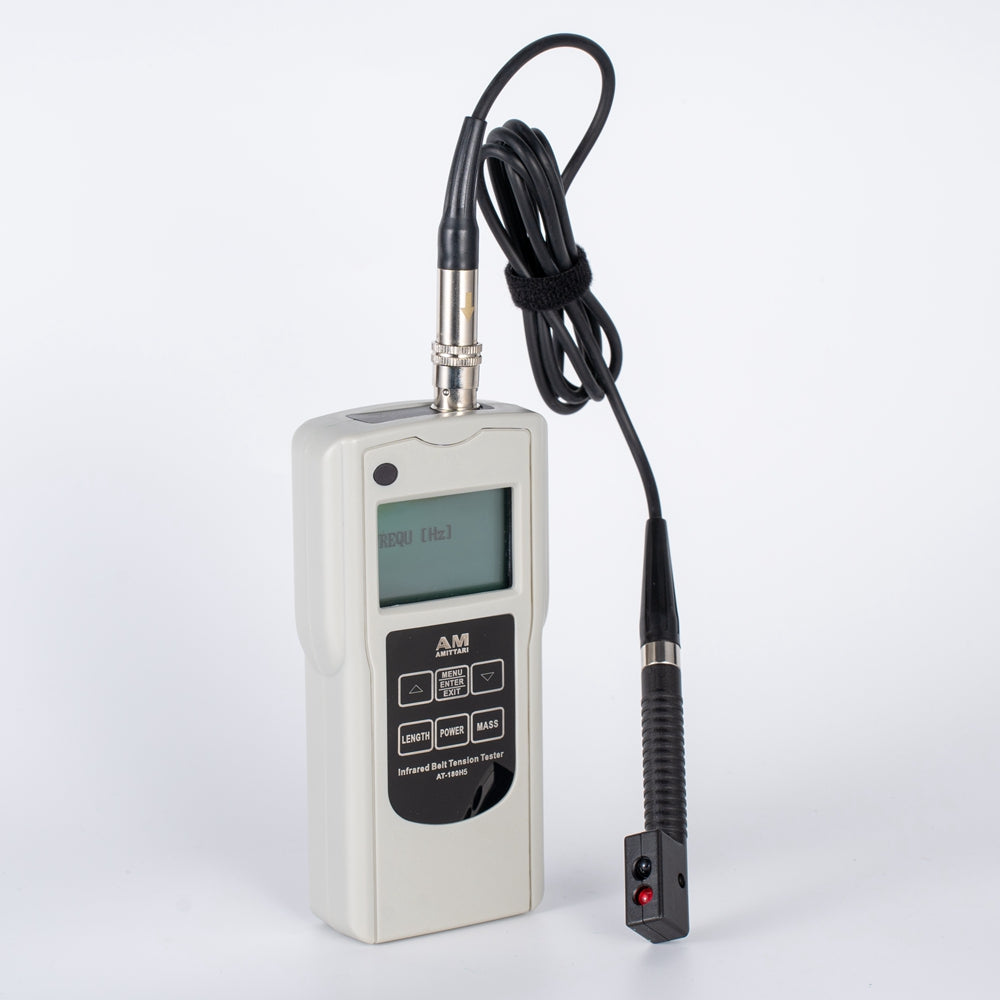

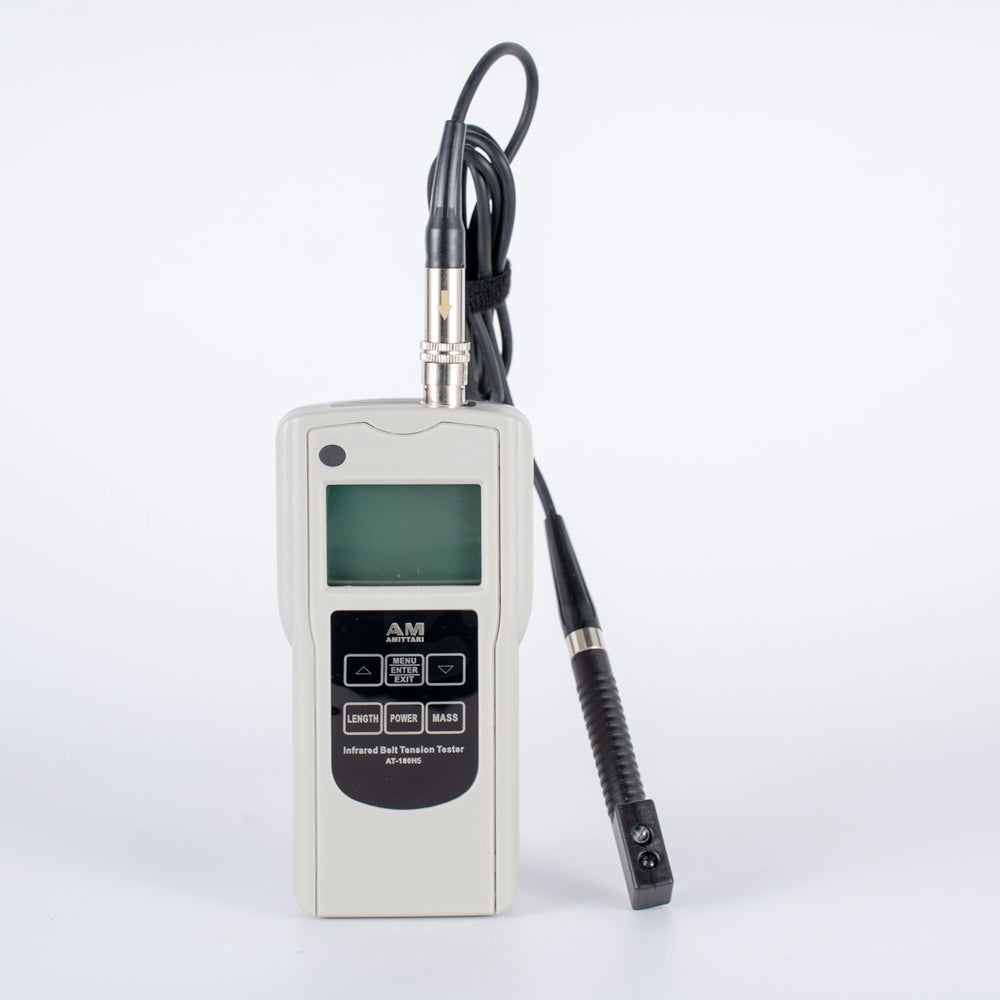

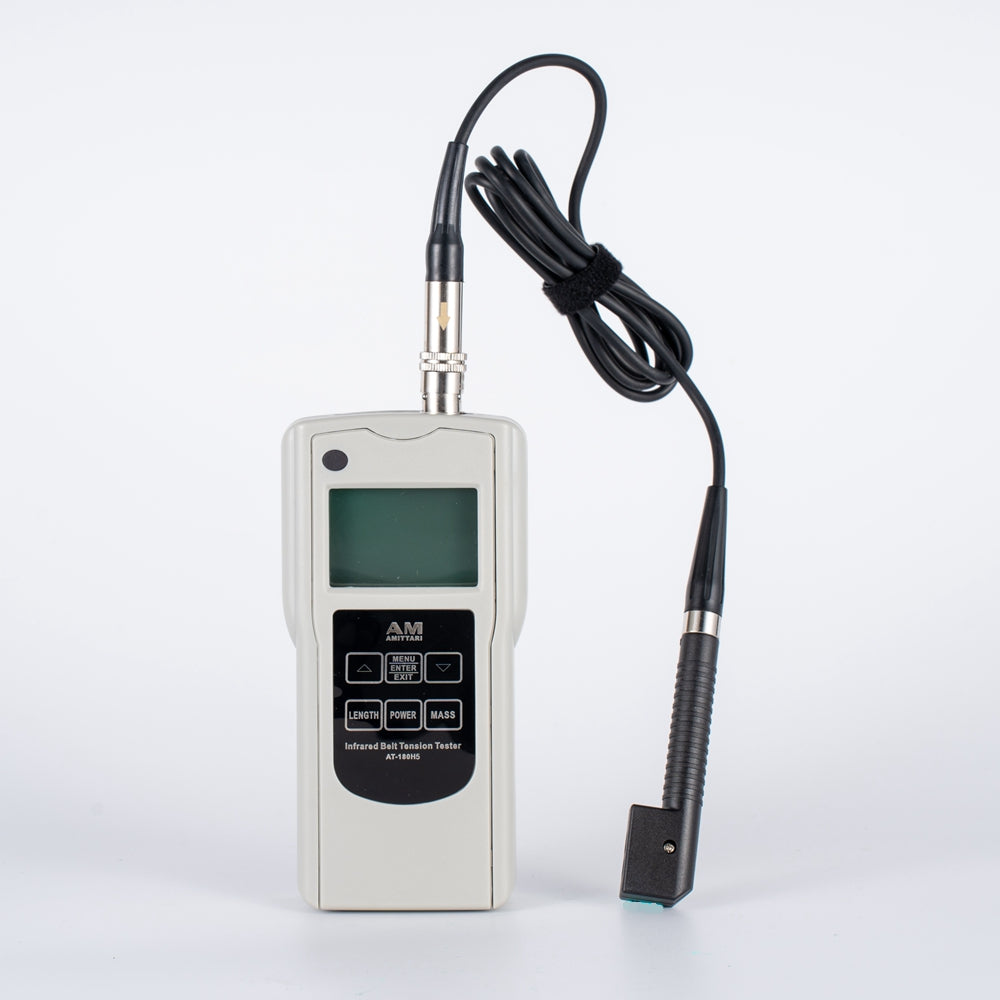

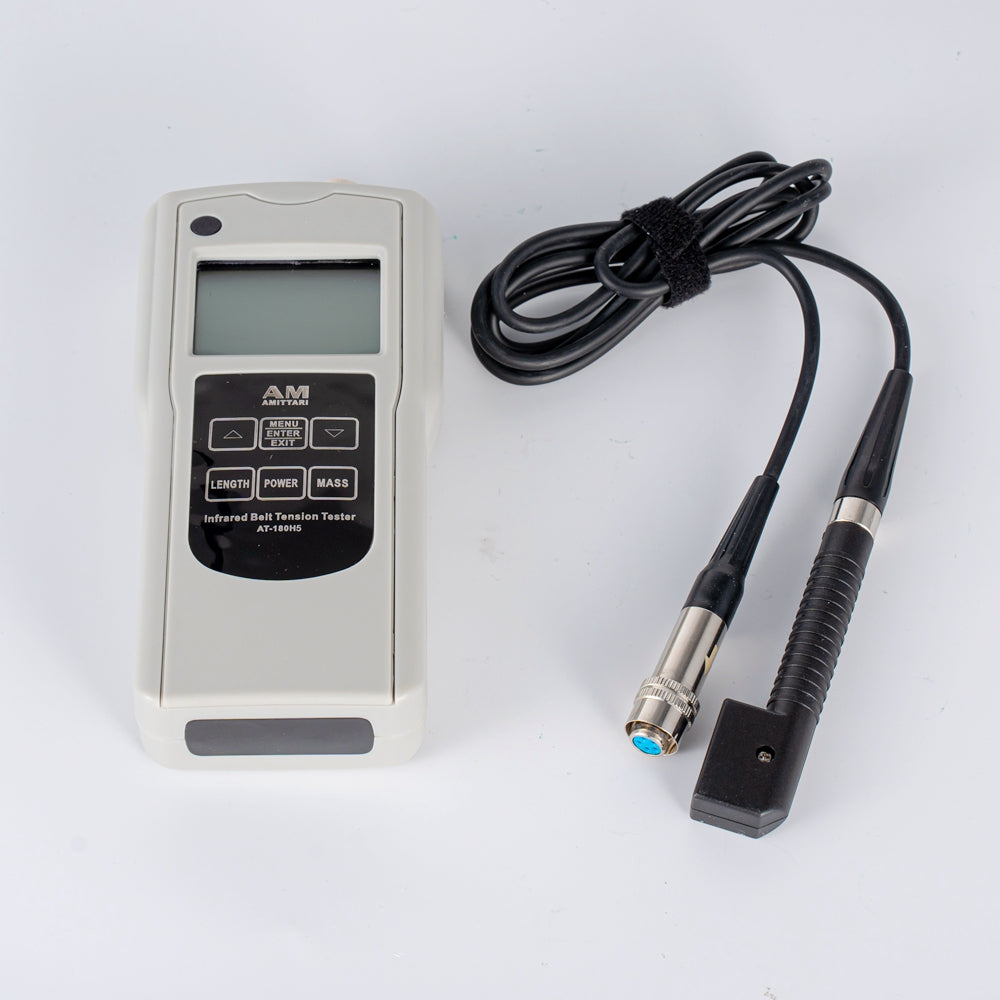

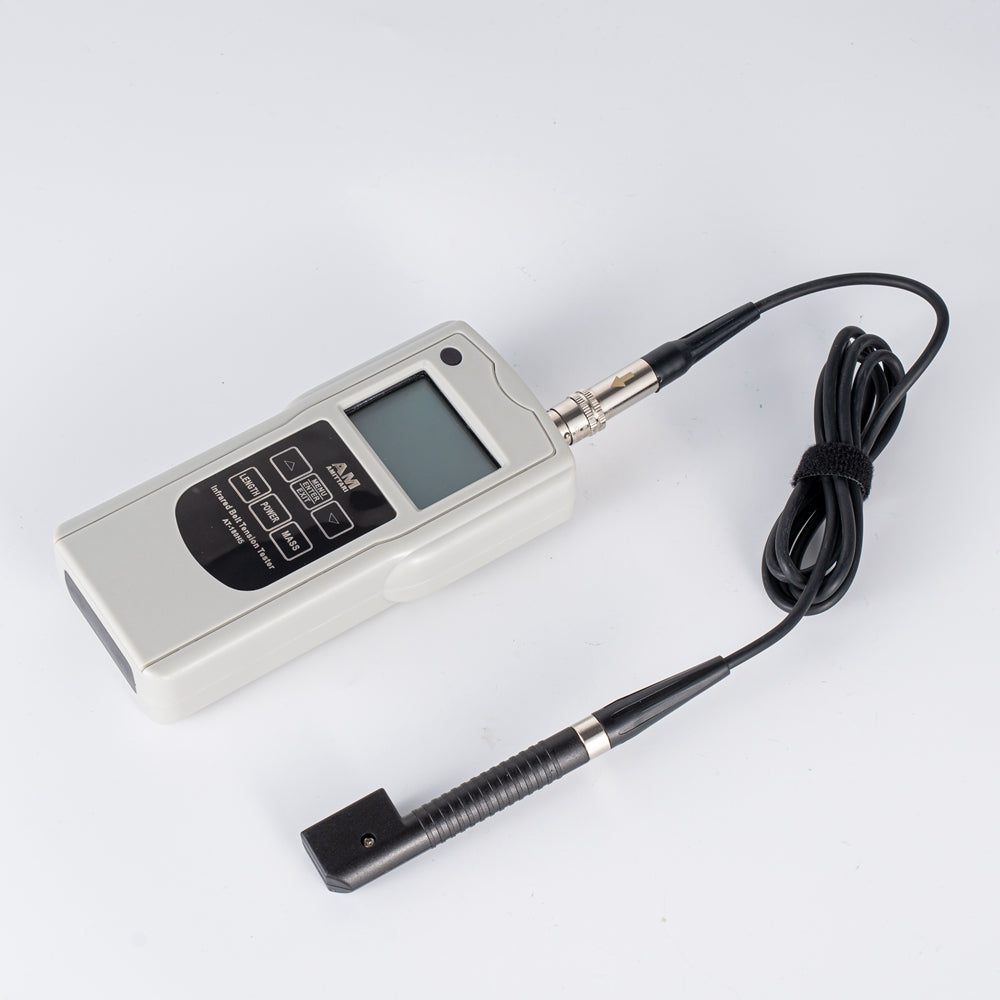

• Split Sensor

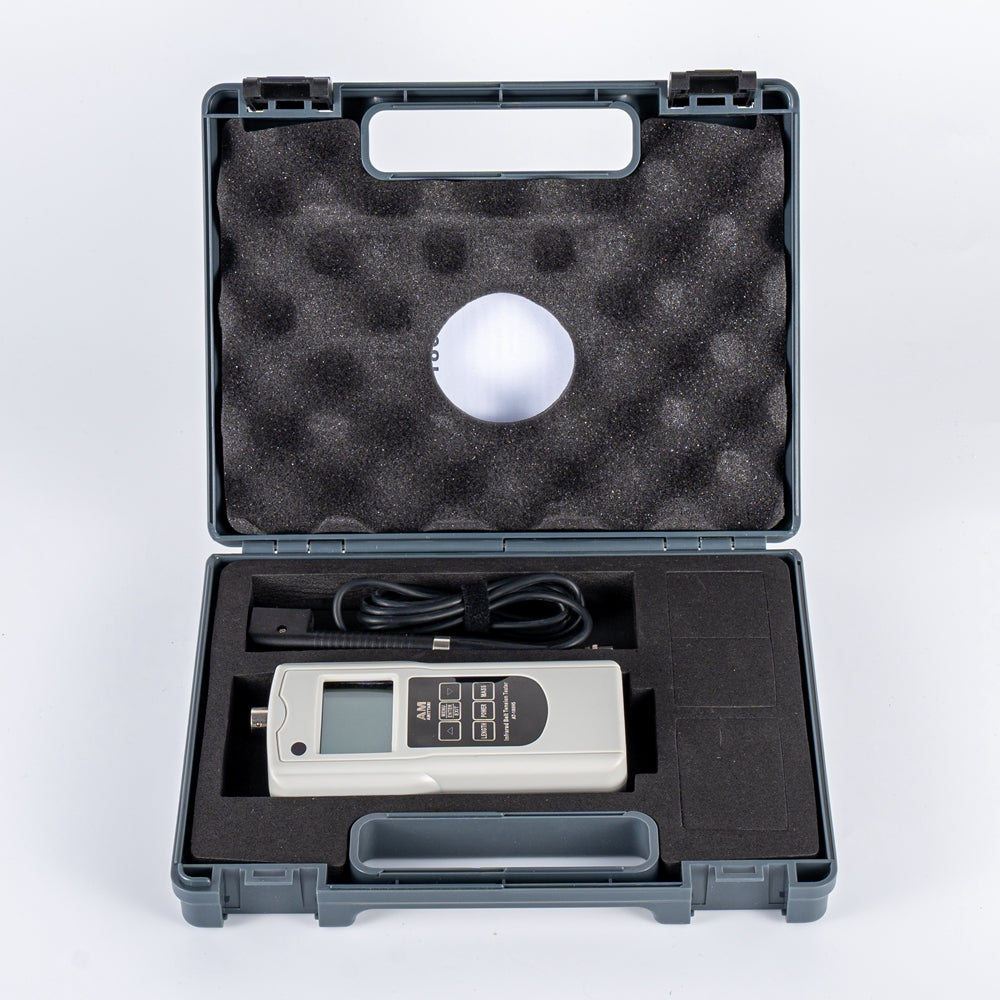

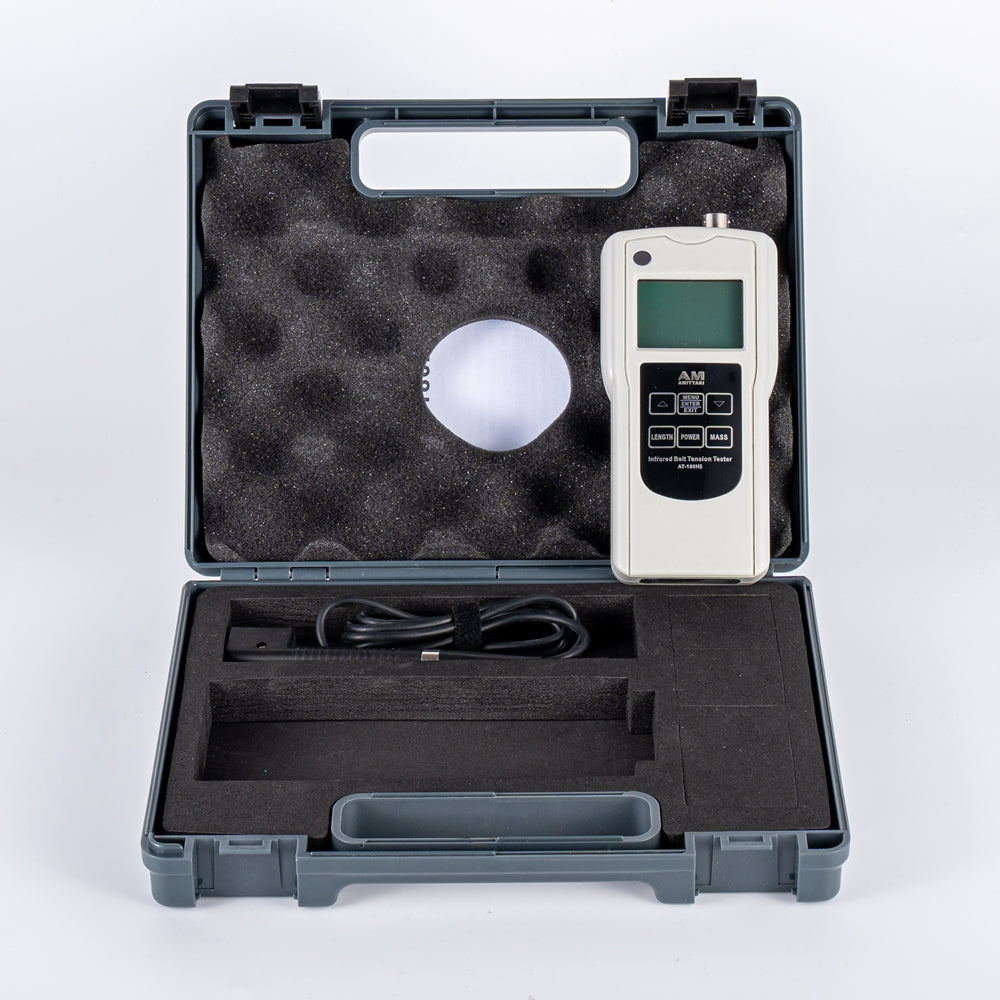

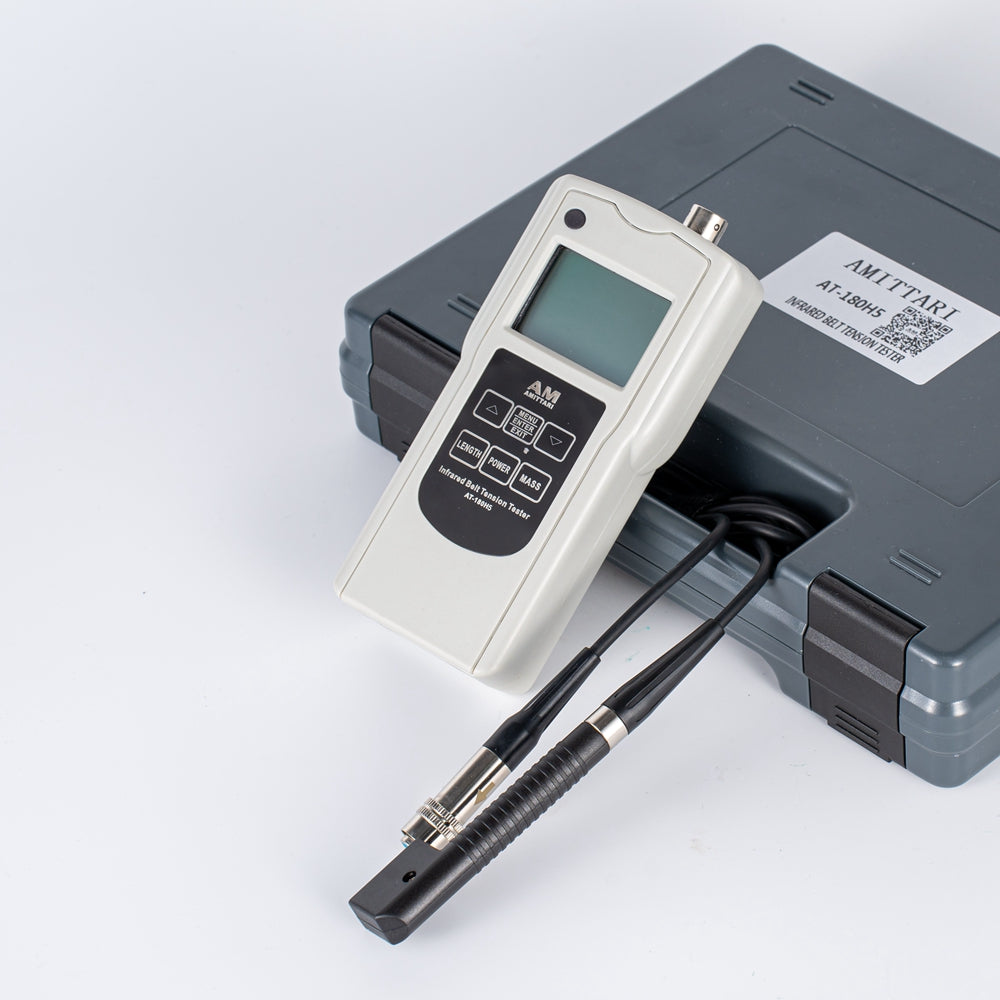

• Carrying Case
• Operation Manual

Alternative Names

• Infrared Belt Tension Tester
• Laser Belt Frequency Meter
• Belt Tension Gauge
• Frequency Tester
• Belt Tension Meter

Downloads

PDF Specification Sheet - Download Here
