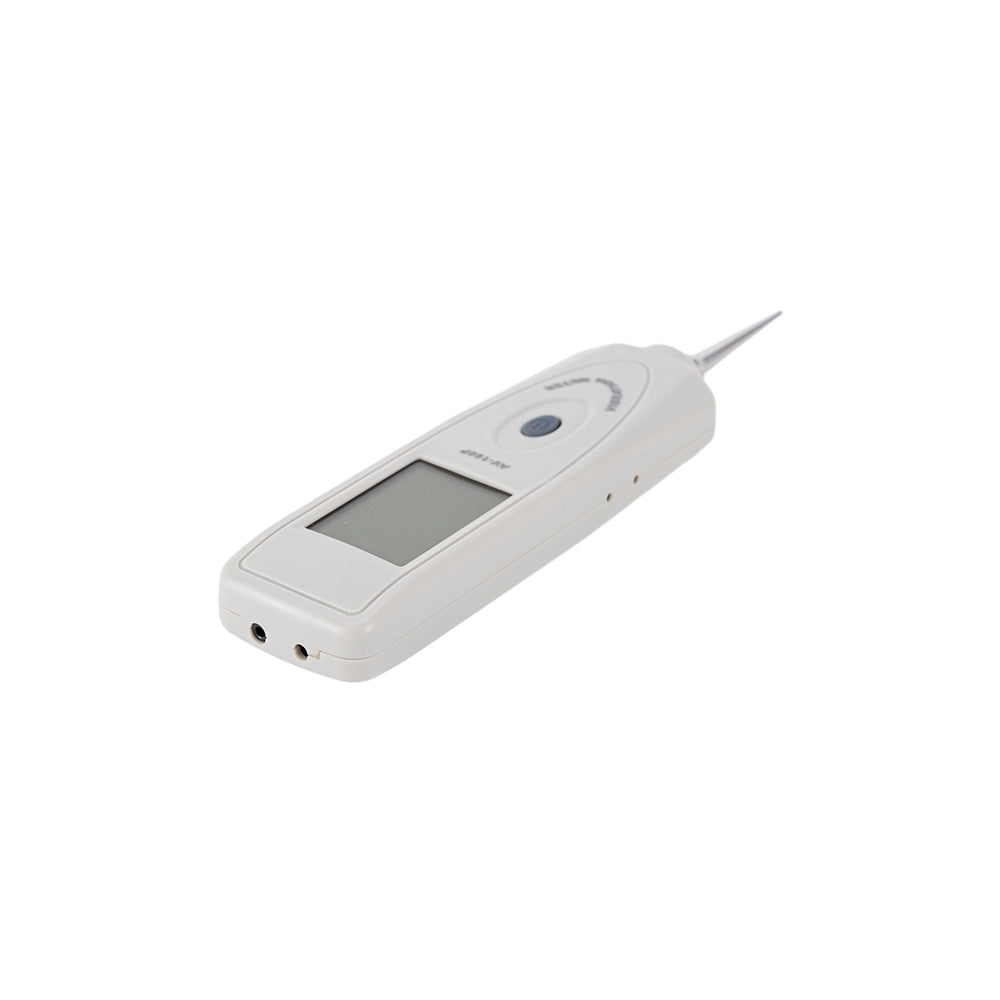

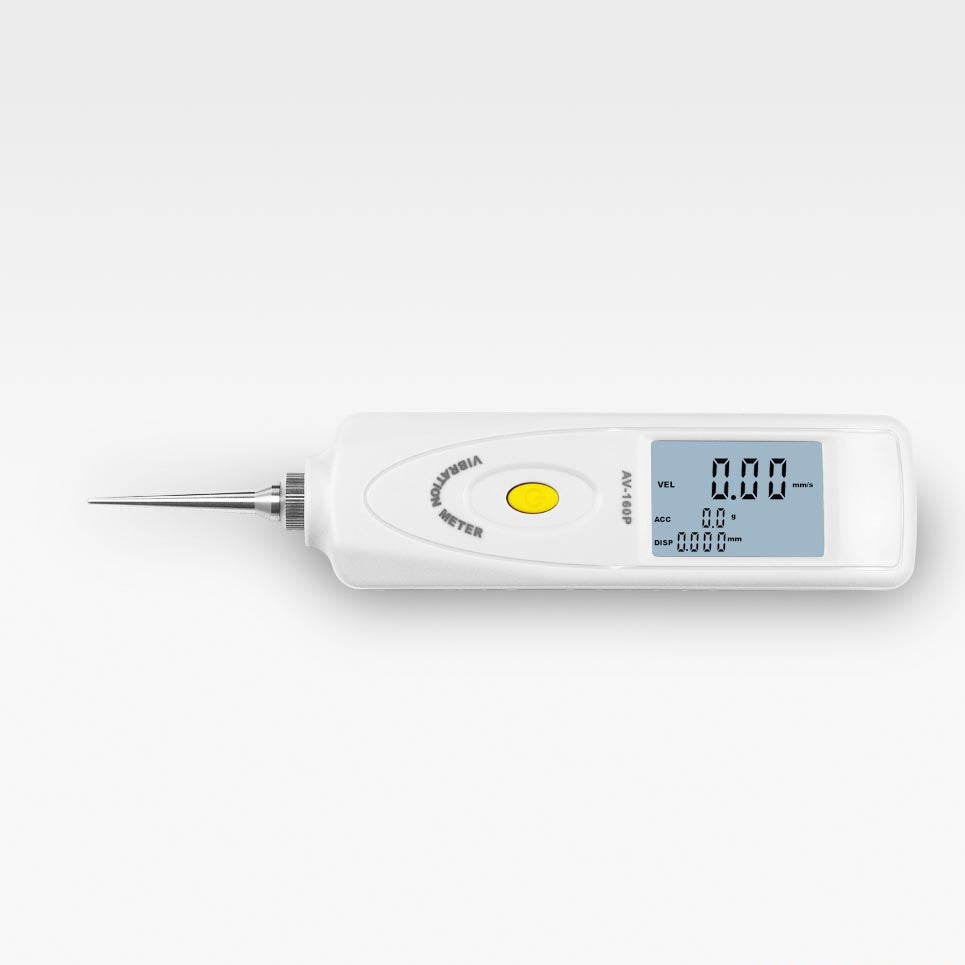

Pen-Type Vibration Meter AV-160P

TOMLIN Pen Vibration Tester (Model AV-160P)

Description:
The TOMLIN Pen Vibration Tester AV-160P is a compact, portable device designed for on-the-spot vibration measurement in hard-to-reach areas. This lightweight tool displays displacement, velocity, and acceleration simultaneously, ensuring comprehensive vibration analysis for maintenance, troubleshooting, and quality control. It is ideal for compact, hand-held operations in industrial environments.

Applications:

• Hard-to-Reach Areas: Perfect for compact operations requiring precise measurements.
• On-Site Checks: Facilitates quick and easy diagnostics in industrial settings.

Key Features:

• Simultaneous display of displacement, velocity, and acceleration.
• Wide frequency range: 10Hz to 10kHz (acceleration mode).
• Compact, lightweight, and portable for convenient use.
• Backlight display for clear readings in low-light conditions.
• Computer connectivity for data transfer and analysis.

Specifications

• Sensor Type: Piezoelectric Sensor
• Measurement Parameters: Displacement, Velocity, Acceleration
• Frequency Range: 10Hz–10kHz
• Power Supply: Lithium battery
• Size: 202 x 43 x 23 mm (8.0 x 1.7 x 0.9 in)
• Weight: 130 g (with battery)

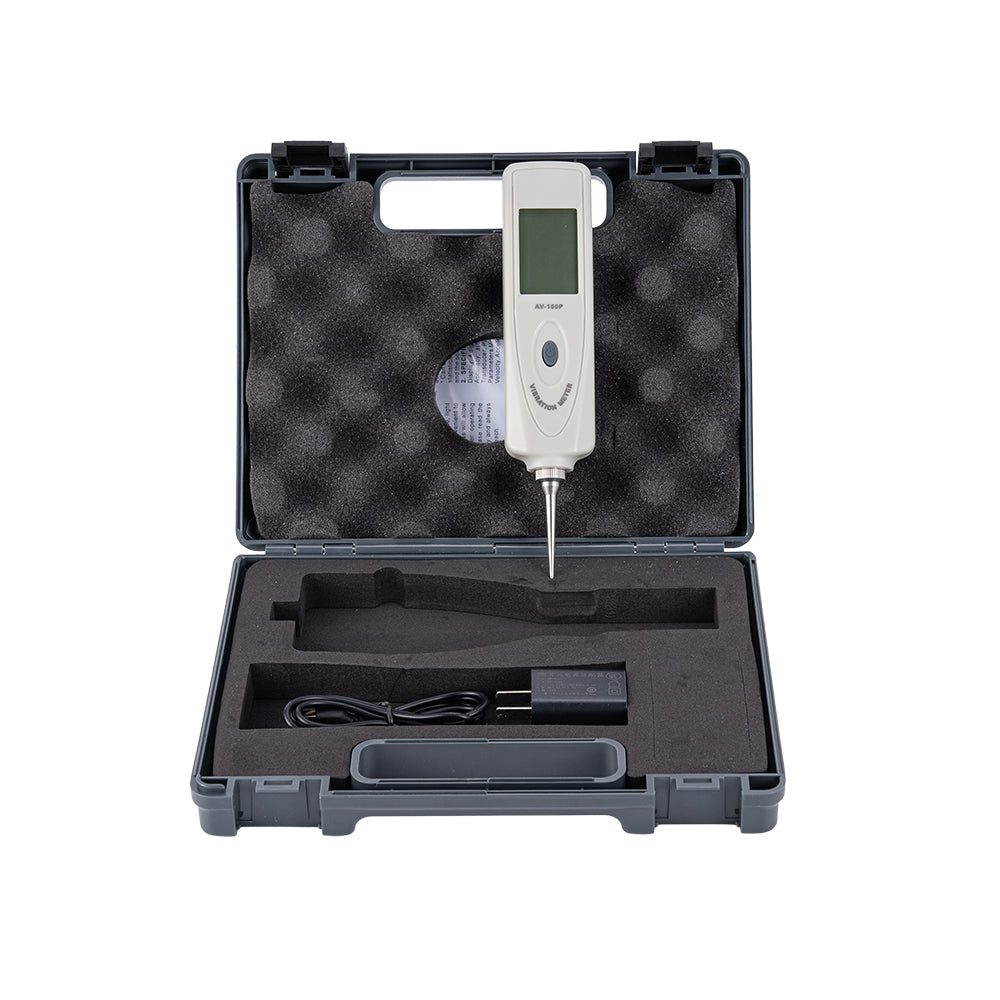

Standard Accessories:

• Main Unit
• Stinger Probes (Cone and Ball)
• Powerful Rare Earth Magnet
• Carrying Case
• Operation Manual

Optional Accessories:

• USB Cable & Software
• Bluetooth Adapter & Software

Alternative Names:

• Portable Pen Vibration Tester
• Compact Vibration Analyzer
• Digital Industrial Vibration Measurement Tool

Downloads

PDF Specification Sheet - Download Here
