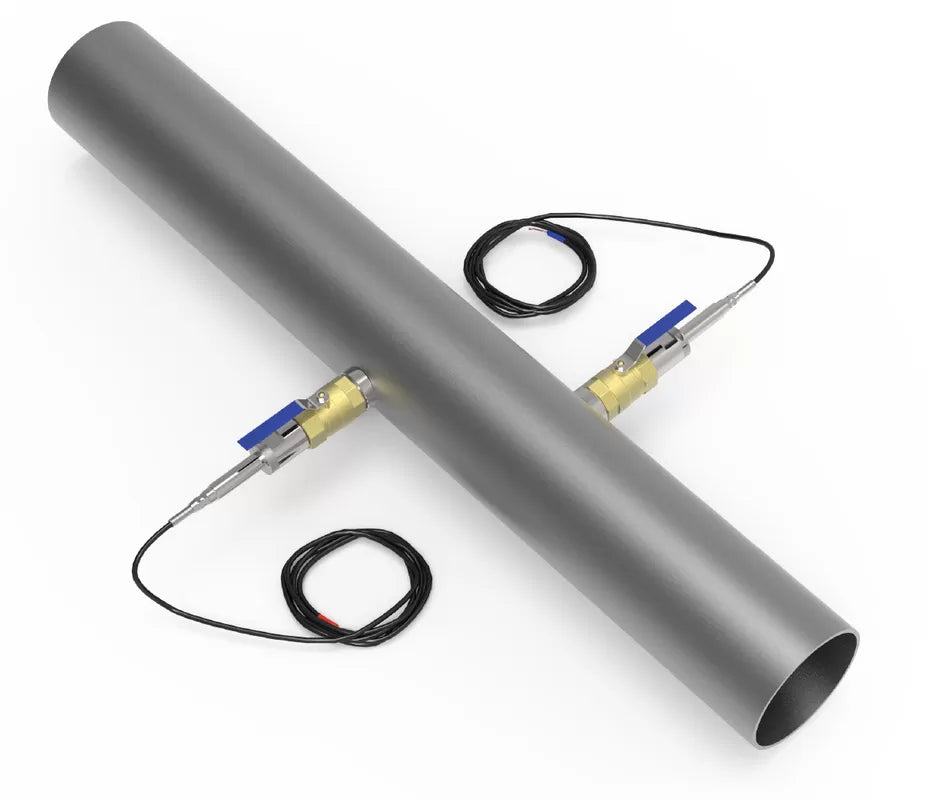

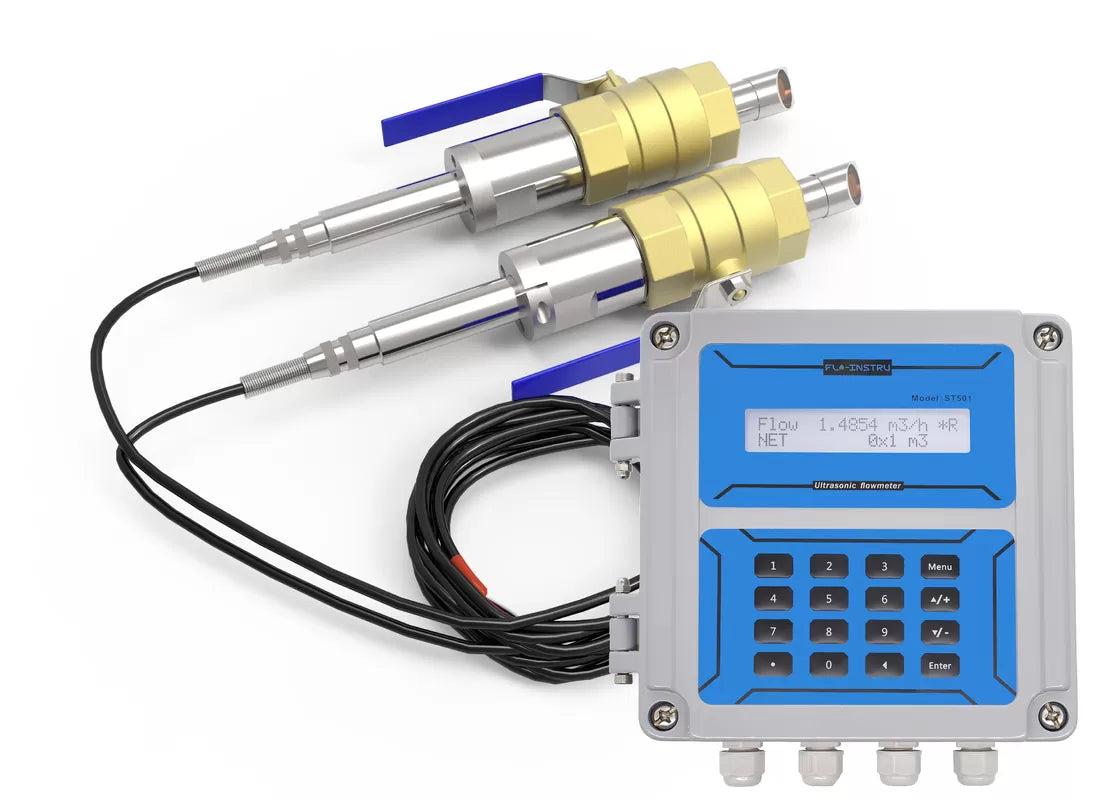

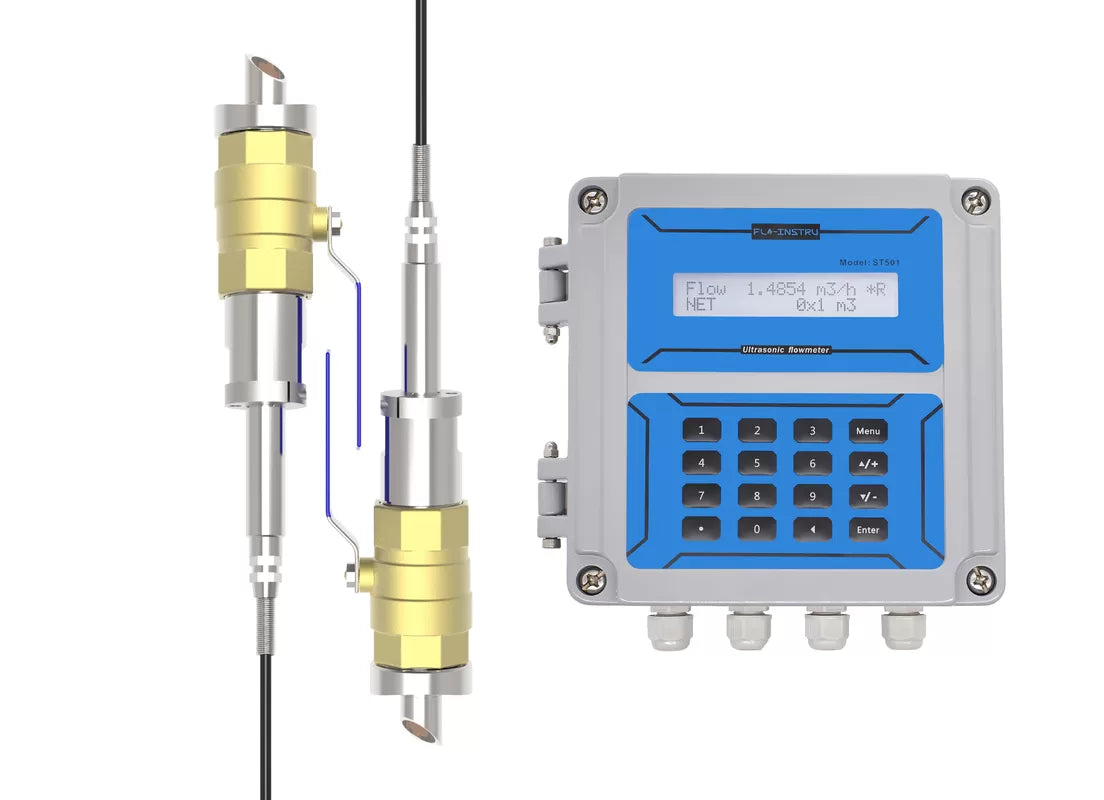

Insertion Ultrasonic Flow Meter ST501

Product Description:

Accurate. Reliable. Industrial-Grade.
The ST501 Insertion Type Ultrasonic Flowmeter leverages advanced Transit-Time (TVT) technology to deliver precise flow measurement across a wide range of liquids and pipe sizes (1"–48"). Designed for easy installation and long-term reliability, this flowmeter is ideal for industrial environments requiring real-time, non-intrusive flow monitoring.

Crafted with high-grade materials and housed in a robust metal case, the ST501 is built for harsh environments. Its IP68-rated transducer can withstand immersion and high humidity conditions, making it an excellent choice for rugged industrial settings.

Key Features & Benefits:

• High Accuracy Measurement:
  Transit-Time and TVT technology ensure consistent and precise flow readings, even in turbulent or variable flow conditions.

• Non-Intrusive Installation:
  Insertion-style transducer minimizes pressure loss by preserving the integrity of the pipe wall.

• Versatile Application:
  Suitable for conductive liquids, slurries, and highly corrosive fluids such as acids, alkalis, and salts.

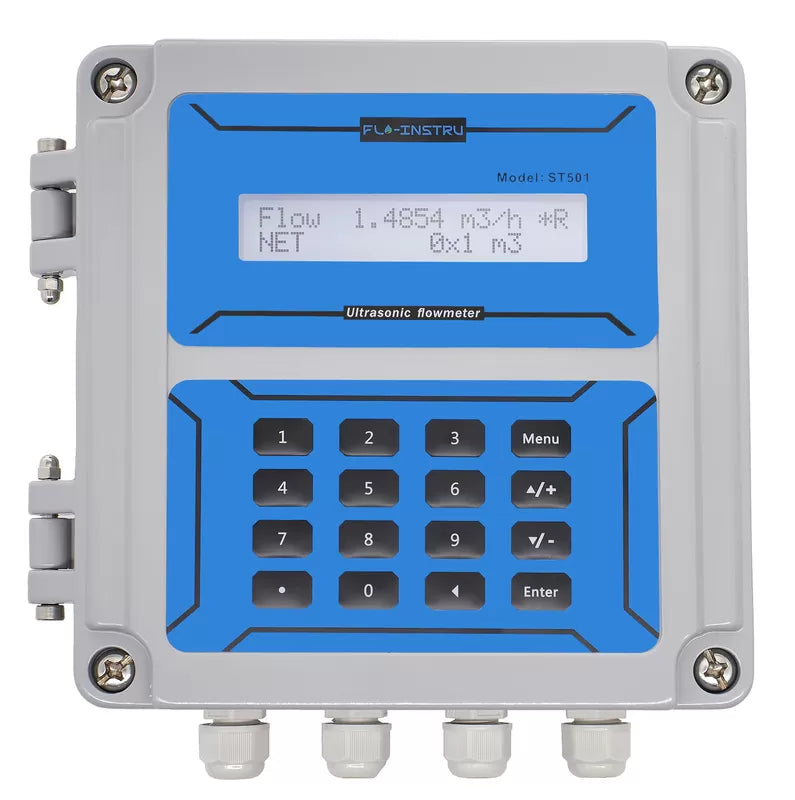

• User-Friendly Interface:
  Built-in keypad, intuitive menu navigation, and a clear LCD screen with alarm functionality make setup and monitoring straightforward.

• Advanced Data Logging:
  Store and analyze historical flow data to optimize system performance and efficiency.

• Wide Pipe Compatibility:
  Works with pipe diameters from 1" (25mm) up to 48" (1200mm), covering most industrial needs.

• Rugged & Durable:
  Industrial-grade components ensure long-lasting performance in demanding conditions.

Technology Overview:

TVT (Transit-Time Vortex) Technology
This innovative hybrid approach combines transit-time ultrasonic methods with vortex shedding detection to enhance measurement accuracy across various flow regimes—especially useful in applications with fluctuating or turbulent flows.

Ideal For Use In:

• Chemical and Petrochemical Industries

• Water Treatment and Municipal Utilities

• Environmental Monitoring

• Food and Beverage Processing

• Pharmaceutical and Textile Industries

• Metallurgy and Paper Production

Specifications

Downloads

Data Sheet Link
