80m Dual Reel Pipe Inspection Camera 30m Inner, Sewer Camera System Self-Leveling 512Hz Sonde Compatible QY6689D

Description:

Advanced Dual Reel Sewer Camera System – QYTeco QY6689D

The QY6689D from QYTeco is a cutting-edge, compact dual reel sewer inspection camera designed for professionals in plumbing, HVAC, and municipal inspections. With dual camera heads, extended reach, and multiple smart features, this system enhances visibility, improves efficiency, and ensures precise diagnostics.

Key Features:

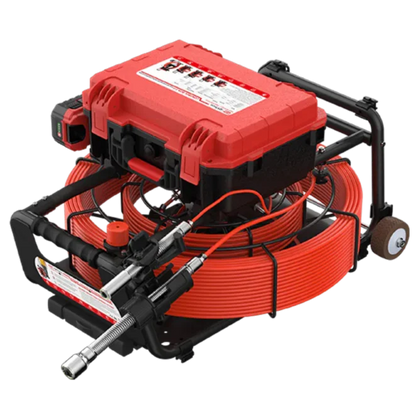

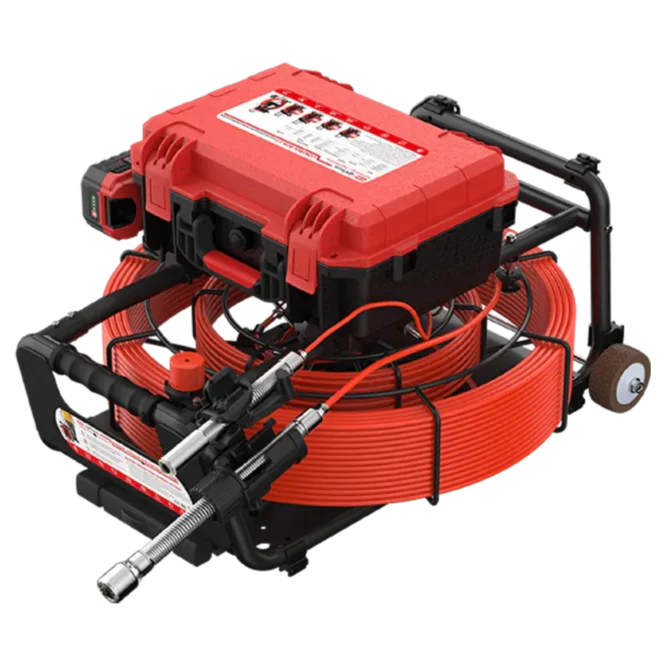

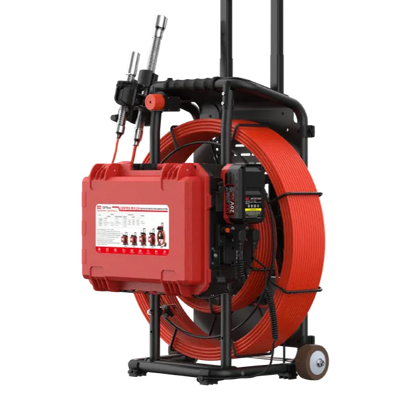

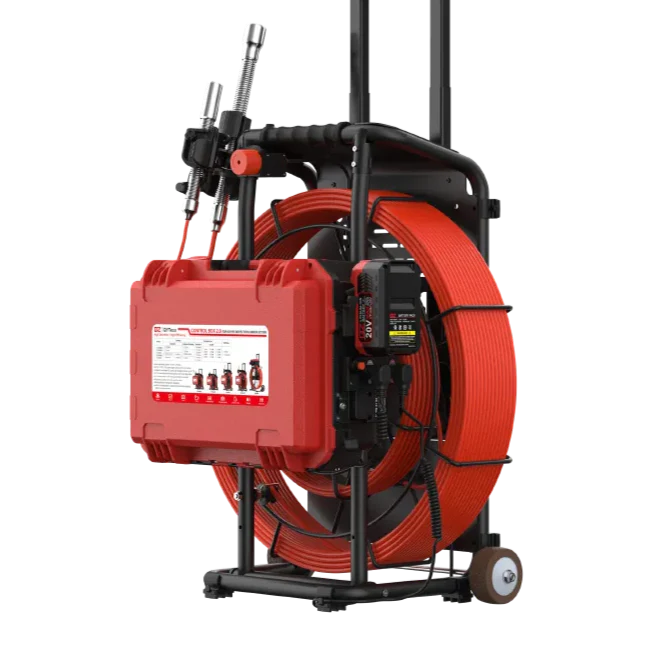

• Dual Reel System
  Includes two independent cable reels and camera heads for greater flexibility and coverage:

  • Inner Cable: 30M (5.3mm) with 21mm camera head – ideal for 2”–5” (50–125mm) pipes

  • Outer Cable: 80M (7.2mm) with 29mm camera head – ideal for 3”–8” (80–200mm) pipes

• High-Definition Camera Heads

  • 21mm head: 120° wide viewing angle

  • 29mm head: 150° ultra-wide viewing angle

  • Built with durable 304 stainless steel

  • CMOS sensor, 1920×1080 resolution

• Optional Features

  • 512Hz Sonde Transmitter

  • Self-Leveling Camera Head

  • Removable and replaceable camera head for easy maintenance

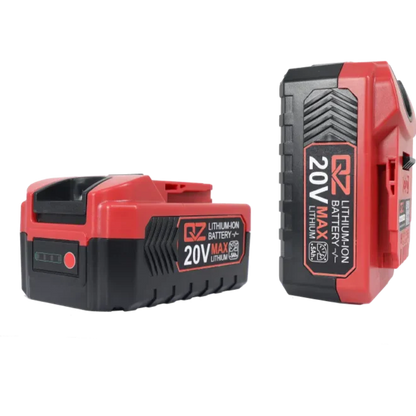

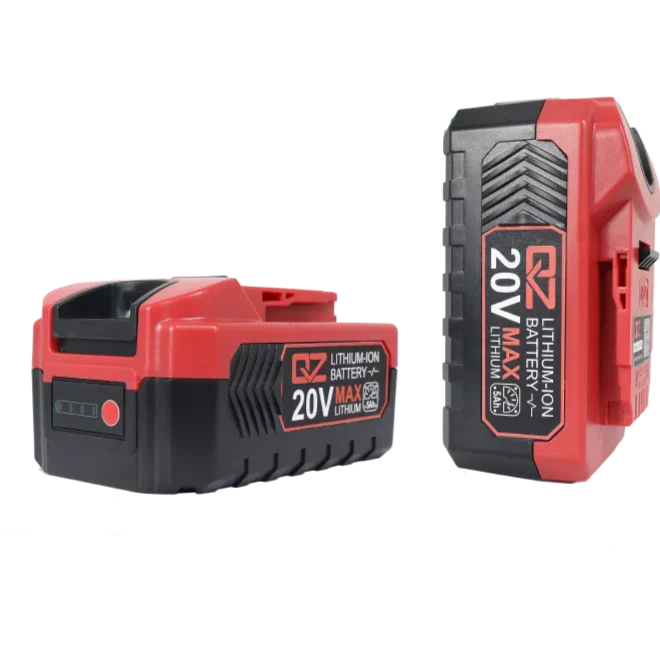

• External Battery Pack (Optional)

  • 4-level power indicator

  • Fast charging: 2 hours

  • Long-lasting use: up to 9 hours

  • Voltage: 18.5V–20.5V | Capacity: 4.5Ah | Energy: 92.5Wh

• Super Charger (Optional)

  • Input: AC110V–240V | Output: DC-21V / 4A

  • Power: 84W

• Built-in Brake System

  • Turntable design

  • Easy reel control to prevent unintentional spinning

Ergonomic & Portable Design:

• Dual Spinner Wheels: Anti-slip, shock-absorbing, corrosion-resistant

• Telescopic Handle: Two height settings (25cm / 50cm)

• Multi-Functional Camera Holders: Protect and manage camera heads with ease

• Automatic Lock Padlock: No need for manual locking

• User-Friendly Plastic Handle: For easy cable control

Applications:

Perfect for inspecting:

• Sewer lines

• Water mains

• HVAC systems

• Industrial and municipal pipelines
