80m Pipe Inspection Camera – Sewer Drain Endoscope System with Sonde Self Levelling High Low Beam QY6689
80m Pipe Inspection Camera – Sewer Drain Endoscope System with Sonde Self Levelling High Low Beam QY6689
Couldn't load pickup availability
Product Description

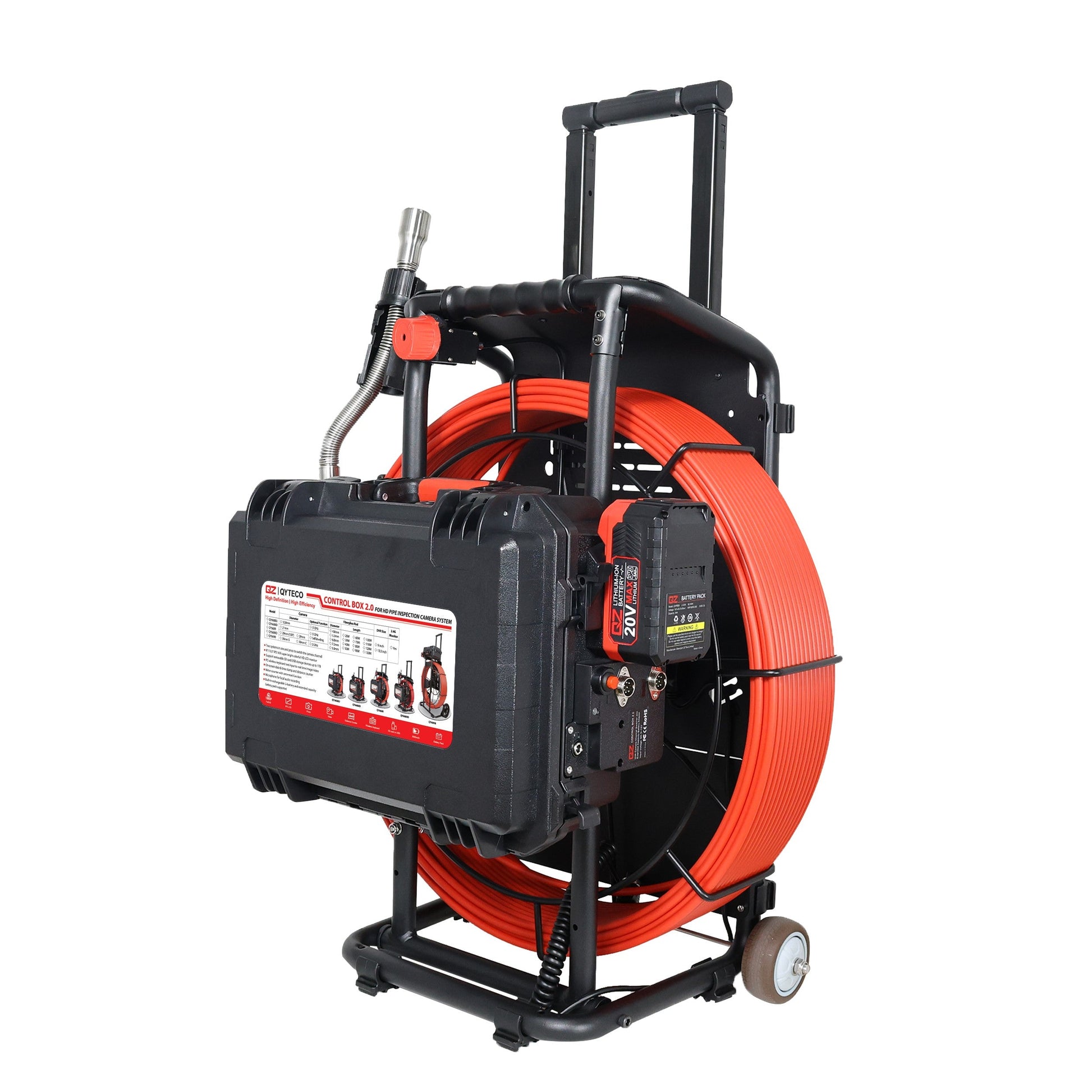

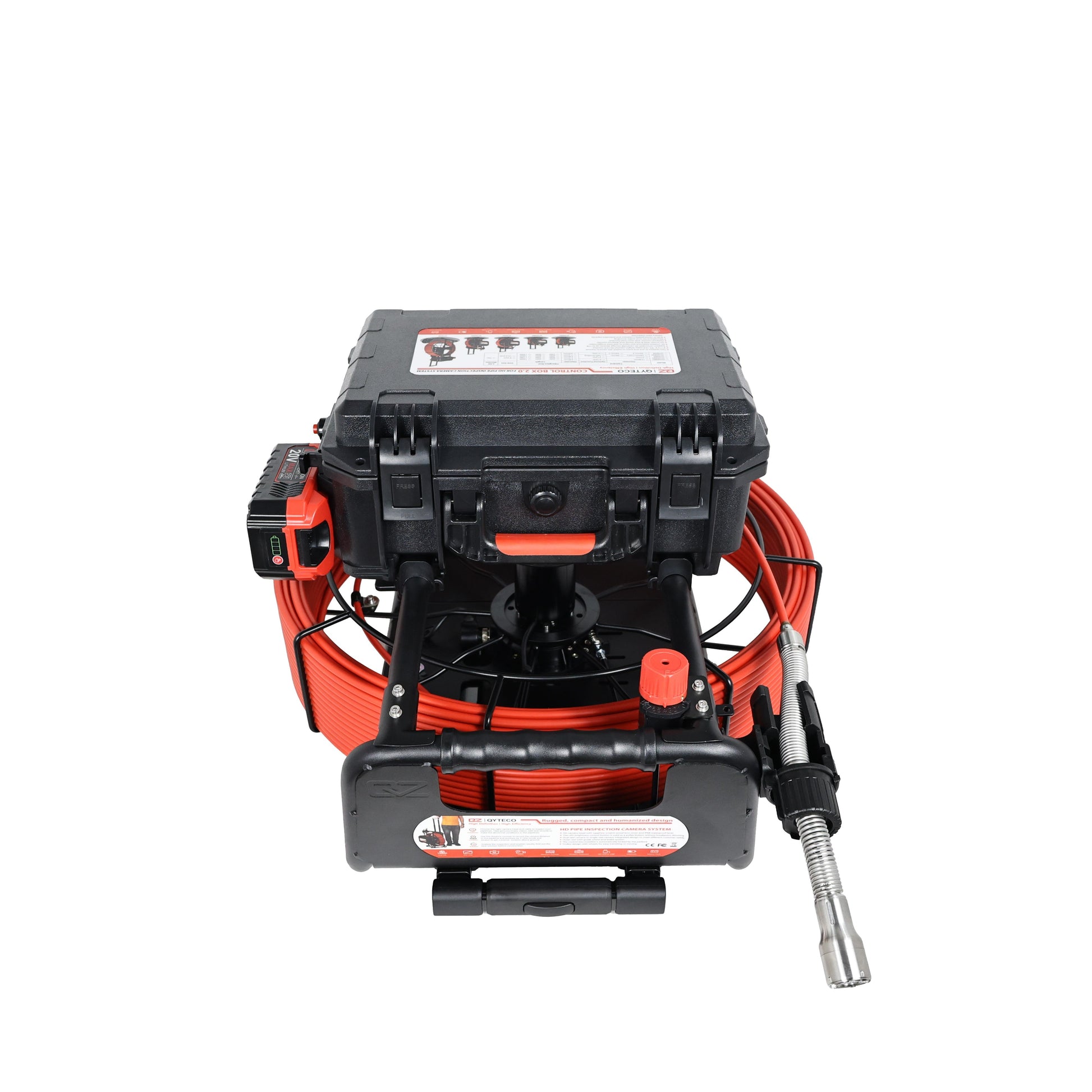

Experience high-performance QY6689 inspection with this advanced sewer camera system. Designed for professionals, it offers high-resolution imaging, waterproof design, long cable options, and up to 7 hours of operation. With multiple camera head sizes and lighting configurations, it’s perfect for pipe inspection, drain diagnostics, and underground infrastructure maintenance.
Key Features
-
Available in 21mm, 29mm, and 39mm camera sizes (standard and customized)
-
Full HD 1080P video resolution with photo capture
-
Waterproof rating: IP68 (for underwater inspections)
-
Up to 80M reinforced cable with 7.2mm diameter
-
9-inch or 13.3-inch DVR screen with optional mirror and flip functions
-
Built-in white LEDs (standard and dual-mode high/low beam on customized models)
-
Durable stainless steel shell with sapphire lens
-
Supports up to 256GB SD card or 1TB USB flash drive
-
Battery runtime up to 7 hours (expandable to 9 hours with optional pack)
Specifications Table
| Category | Details |
|---|---|
| Camera Sizes | 21mm, 29mm (Standard/Customized), 39mm (Standard/Customized) |
| Resolution | 1080P (1920×1080) |
| View Angle | 120° (21mm), 150° (29mm/39mm) |
| Focus Distance | 10–15 cm |
| Depth of Field | Up to 150 cm |
| Front Lens Material | Sapphire |
| Shell Material | 304 Stainless Steel |
| Lighting | 12 to 18 White LEDs (Standard); Dual Low & High Beam LEDs (Customized) |
| Waterproof Level | IP68 |
| Self-Leveling | Optional |
| 512Hz Sonde | Optional |

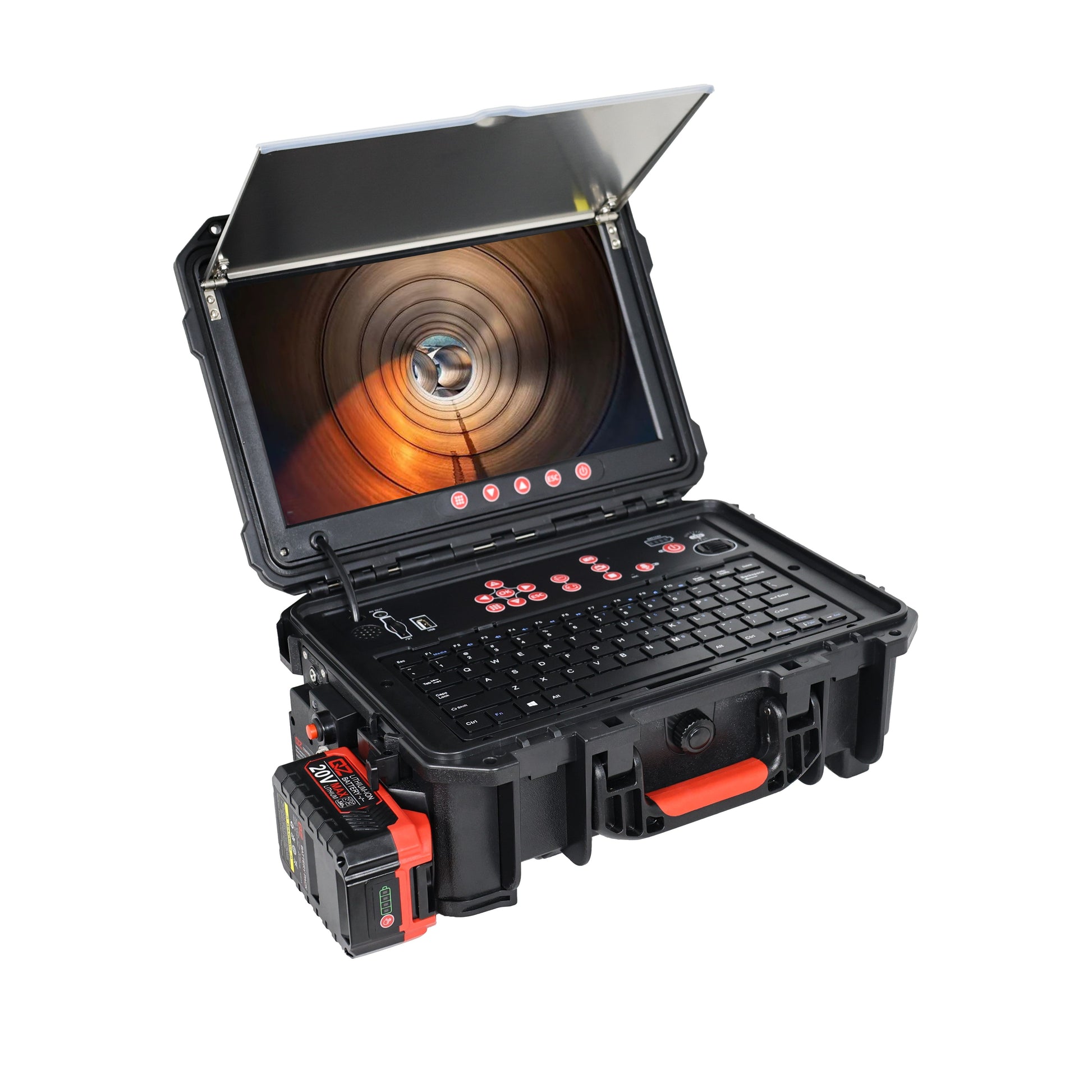

Display & DVR
| Feature | Details |
|---|---|
| Screen | 9" IPS LCD (1024×600) / 13.3" LCD (1920×1080) |
| Video/Photo Format | MP4 / JPEG |
| Mirror & Flip | 9" DVR: Mirror, Flip, Rotate; 13.3" DVR: Flip Only |
| Audio Recording | Local Sound |
| Video Output | CVBS |
| Playback | Photo + Video with Audio |
| External Memory Support | 256GB SD Card / 1TB USB Flash Drive |

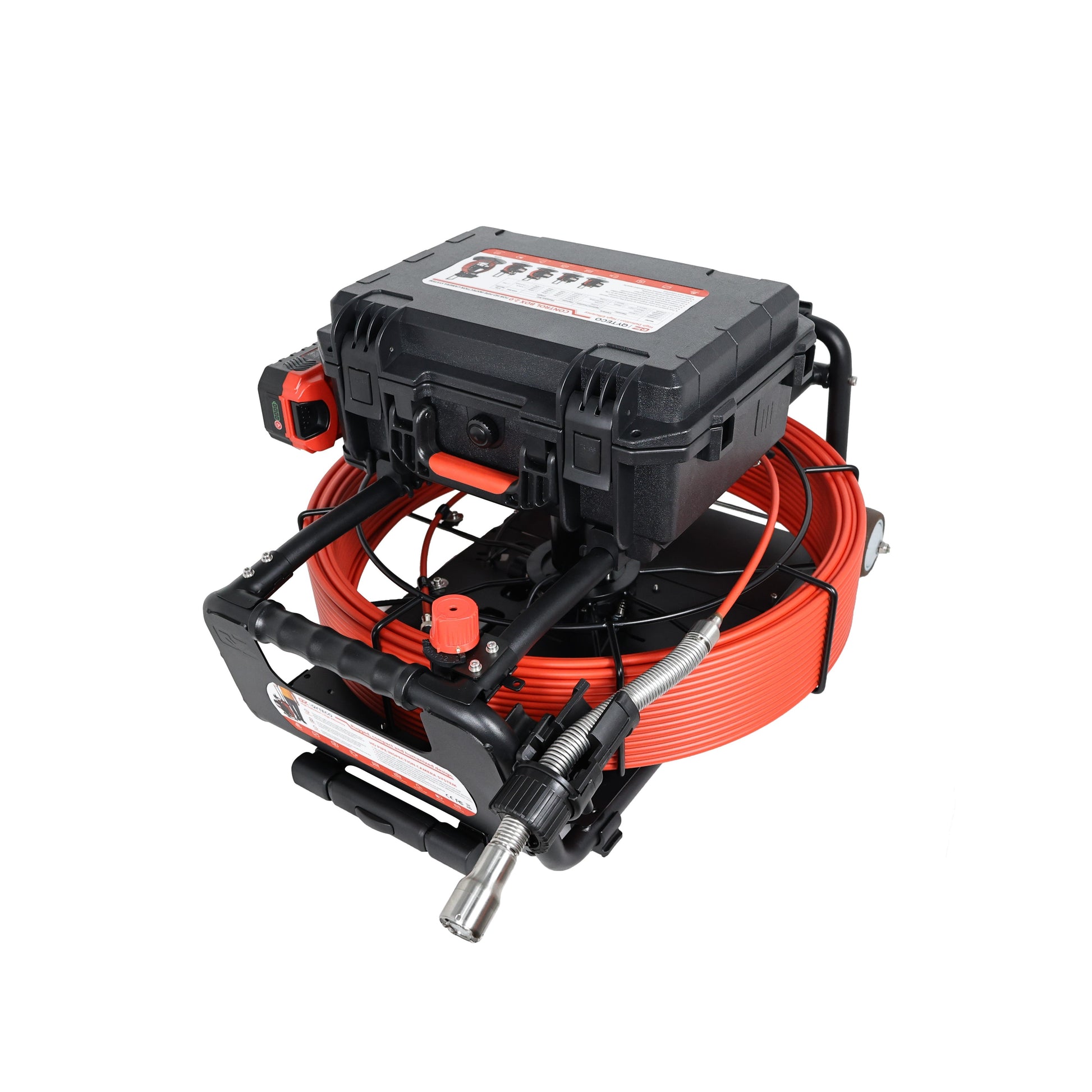

Cable Reel
| Feature | Details |
|---|---|
| Cable Diameter | 7.2mm |
| Cable Length Options | 50M / 60M / 70M / 80M |
| Cable Color | Red |
| Footage Counter | Standard on all models (Dual Reel: 2 counters) |
| Brake System | Standard (Single Reel System) |
Battery & Power
| Feature | Details |
|---|---|
| Battery Type | 9000mAh Li-ion (66.6Wh) |
| Single Charge Work Time | Up to 7 hours (9" DVR), 3–5 hours (13.3" DVR) |
| Charge Time | 6 hours |
| Extended Battery Pack | QYBP59: 5Ah, Full Charge in 2 hrs, 9 hr runtime |
| Super Charger (QYBC59) | Input: AC110V–240V; Output: DC 21V, 4A |
| Energy | 92.5Wh |
Control Box & Compatibility
| Feature | Details |
|---|---|
| Control Box Size | 440×330×235 mm |
| Control Box Color | Black + Red |
| Display Languages | English, Chinese, French, German, Spanish, Portuguese, Russian, Korean, Japanese |
| Keyboard Compatibility | Supports specific wireless keyboards |
| Typing Language | English |
| Meter/Feet Switch | Yes |
What's Included
-
Chosen Camera Head (21mm / 29mm / 39mm – Standard or Customized)
-
DVR Unit (9" or 13.3" screen)
-
Cable Reel (length selected)
-
Control Box
-
Battery Pack
-
Charger
-
User Manual
-
Optional Add-ons (512Hz Sonde, Self-Leveling Camera)
