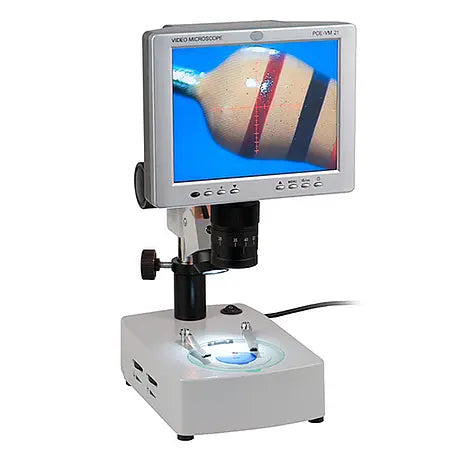

Inspection Camera PCE-VM 21

Inspection Camera PCE-VM 21

$4,720.00
$4,720.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

PCE-VM 21 Inspection Camera
Multipurpose microscope ideal for electronics repair, quality assurance testing, medical instrument reprocessing inspections and more

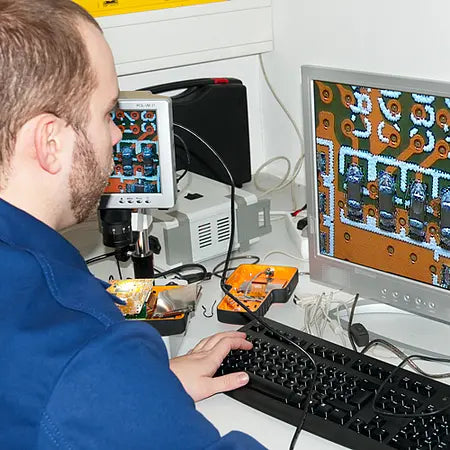

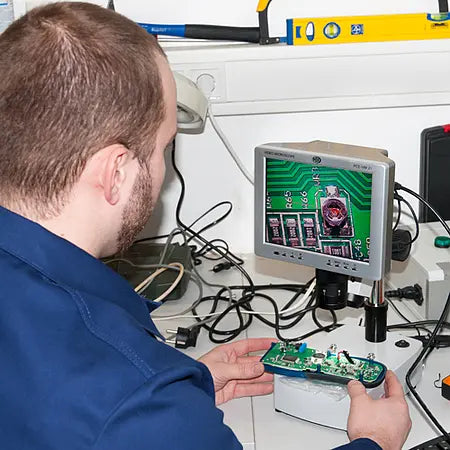

The PCE-VM 21 consists of an optical microscope, CCD camera and LCD screen. Due to the 75-fold magnification, it is possible to view very small parts, electronics and even medical instruments very clearly. The PCE-VM 21 inspection camera reduces eye strain during soldering of printed circuit boards (PCBs), investigating of material defects on metal surfaces, and inspecting surgical implements for reprocessing, making the PCE-VM 21 industrial, healthcare or food / hygiene microscope a vital addition to your plant, shop, production line, quality assurance laboratory or instrument reprocessing clean room.


Highlights

- Continuous magnification from 10 ... 75 times
- Adjustable height for viewing of larger objects
- Transmitted light and incident light illumination
- Data transfer to PC via USB 2.0 connection
- User-friendly menu in 8 different languages
- Screen resolution of 800 x 600 pixels
- Fixed-increment, crossed-scale reticle for orientation purposes
- Direct viewing on the LCD display
- Image recording functionality
- Aluminum carrying case




Specification



Total unit
Display 8'' LCD
Resolution 800 x 600 pixels
Magnification 10 ... 75 times, continuous
The magnification is the ratio between the object as observed on the screen and the actual size of the object. Relevant parameters are the enlargement of the lens / CCD eyepiece and size of the CCD lens / display.
Field of view 13.5 mm x 10 mm / 2.1 mm x 1.5 mm
0.5 in x 0.4 in / 0.08 in x 0.06 in
Power supply 100 ... 240V AC, 50/60 Hz
Optical object lens of the microscope
Focus of the CCD eyepiece 0.5 times
Focus the main optical lens 0.7 times ... 4.5 times
Focus of the total optical lens 0.35 times ... 2.25 times
Working distance 95 mm / 3.7 in
CCD camera
Display chip Sony
Horizontal resolution 700 TVL
Light source Reflected and transmitted light, lighting adjustable
Video output 1.0Vp-p, 75 Ω
Video mode PAL
Operating voltage 12V DC

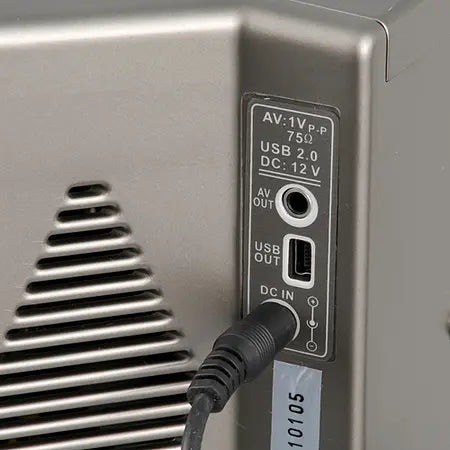

Connections USB 2.0, AV out
System requirements Windows 2000
Working height Min. 40 mm, max. 210 mm / Min. 1.6 in,  max. 8.3 in
Power supply 100 ... 240V AC, 50/60 Hz
Dimensions Baseplate: 235 mm x 155 mm x 64 mm  / .3 in x 6.1 in x 2.5 in
Height of the vertical axis 250 mm / 9.8 in
Weight Approx. 4.8 kg / 10.6 lbs
Halogen lamp
Operating voltage 100 ... 240V AC, 50/60 Hz
Upper lamp 10W / 12V
Lower lamp 10W / 12V

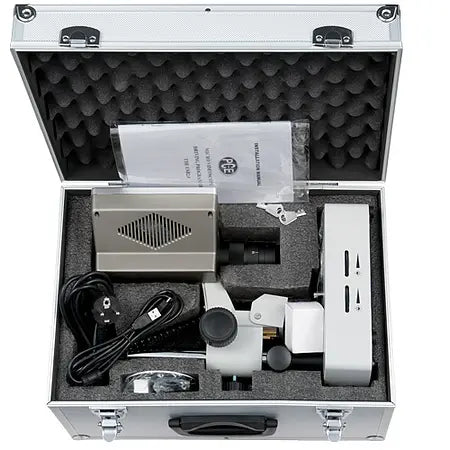

Delivery Scope

1 x PCE-VM 21 microscope
1 x USB interface cable
1 x Video cable
1 x Power cable
1 x Dust cover
1 x Aluminum carrying case with key
1 x Object plate, glass
1 x Contrast plate, black / white
1 x Spare bulb for incident light illumination
1 x Spare bulb for transmitted light illumination
1 x Spare fuse
1 x Cleaning cloth
1 x User manual
