Rebar Scanner TMRS-710

Detect rebar position, spacing, diameter, and protective layer thickness with the TMRS-710 Integrated Rebar Detector. High precision, fast data output, compact design, and user-friendly interface for efficient concrete testing.

Product Description

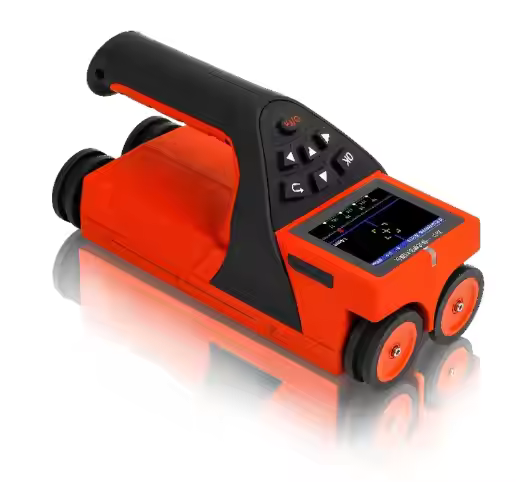

TMRS-710 Integrated Rebar Detector

The TMRS-710 is a high-precision integrated rebar detector designed to accurately locate rebar within concrete structures, measure protective layer thickness, and estimate rebar diameter and spacing. Its advanced multi-coil design ensures fast detection, high accuracy, and superior resolution, making it ideal for construction quality inspections and structural assessments.

Key Features

• High-Resolution Display: 2.8-inch color LCD screen (320 x 240 pixels) for clear data viewing indoors and outdoors.

• Accurate Measurements: Measures protective layer thickness from 1–185mm with high accuracy and estimates rebar diameter (6–50mm).

• Fast Detection: Multi-coil structure design enhances detection speed and precision.

• Integrated Design: Compact host with built-in sensor coil for easy carrying and field operations.

• Long Battery Life: Built-in high-capacity lithium battery with up to 16 hours of standby time.

• Data Management: Stores up to 200,000 measurement points with options to view, delete, and transfer via USB.

• Real-Time Analysis: Displays rebar position, spacing, and protective layer thickness simultaneously for intuitive testing.

• Advanced Software: Generates two-dimensional and 3D visual reports for professional data analysis on PC.

• Durable Construction: Equipped with high-strength wear-resistant tires and a shockproof carrying bag with waterproof cover.

Functions

• Accurately measures protective layer thickness.

• Locates rebar position, trend, and distribution.

• Estimates rebar diameter.

• Stores, views, and transfers detection data.

• Provides JGJ mode for 1–6 repeated tests with automatic average calculation.

Technical Specifications

• Model: TMRS-710

• Applicable Rebar Diameter: 6–50 mm

• Protective Layer Thickness Range: 1–80 mm (small range), 5–185 mm (large range)

• Maximum Allowable Error: ±1 mm (1–60 mm), ±2 mm (60–100 mm), ±3 mm (101–120 mm), ±5 mm (121–160 mm), ±8 mm (161–185 mm)

• Scanning Modes: Thickness model, JGJ testing

• Data Transmission: USB wireless

• Power Supply: Built-in lithium battery

• Operating Time: ≥16 hours

• Storage Capacity: 200,000 measuring points

• Dimensions: 219 × 92 × 106 mm

• Weight: 0.60 kg (battery included)

• Operating Temperature: -10℃ ~ +42℃

Standard Package Includes

1. Product Host x1

2. Charger x1

3. USB Cable x1

4. User Manual x1

5. Producer Certificate x1

6. Warranty Card x1

7. Packing List x1

8. Software CD x1 (model-specific)

9. Product Box x1

10. Crayon x1

11. Standard Block x1 (optional accessory)
