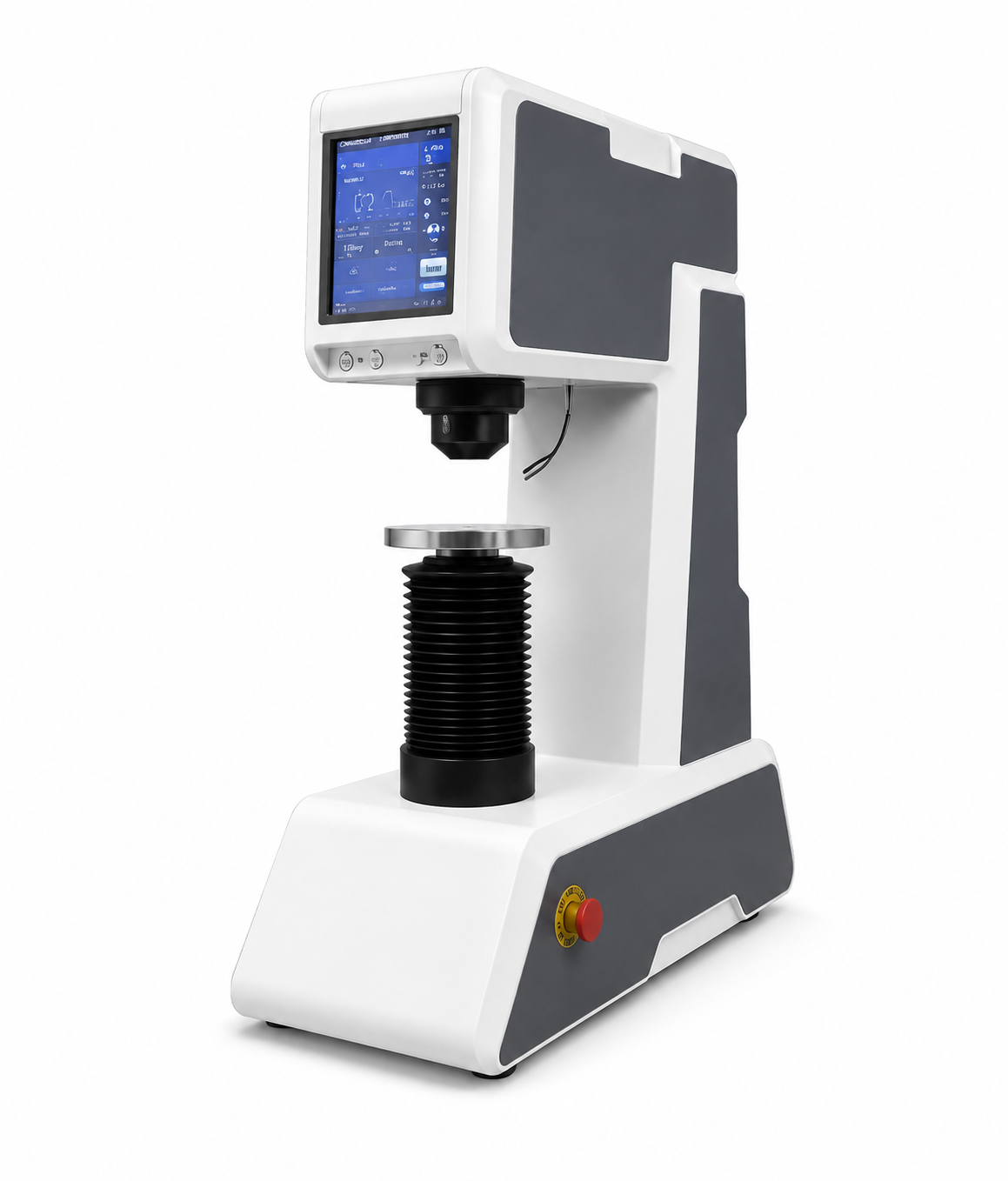

Advanced Universal Hardness Tester – DigiRock BRV5

Advanced Universal Hardness Tester – DigiRock BRV5

$32,540.00
$32,540.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The DigiRock BRV5 Advanced Universal Hardness Tester is a high-performance multi-scale hardness testing system designed for advanced laboratory environments, industrial quality control, research facilities, and precision engineering applications.

Built around a closed-loop force feedback system and advanced depth measurement technology, the BRV5 delivers highly accurate Rockwell, Superficial Rockwell, Brinell, and Vickers hardness testing within a single integrated platform.

The industrial touch screen interface, automated force control, advanced workflow functions, and digital data management capabilities make the BRV5 ideal for demanding testing environments requiring repeatability, precision, and modern digital operation.

Designed for advanced materials analysis and production quality assurance, the DigiRock BRV5 bridges the gap between standard universal testers and fully optical automated systems.

Features

  • Advanced universal hardness tester
  • Supports Rockwell, Superficial Rockwell, Brinell and Vickers testing
  • Closed-loop force feedback system
  • Advanced depth measurement technology
  • Industrial touch screen interface
  • Automatic testing workflow
  • High precision load control
  • Digital data storage and reporting
  • USB, LAN, WiFi and Bluetooth connectivity
  • Multi-scale testing capability
  • Stable industrial frame structure
  • Advanced laboratory and industrial QC suitable
  • ASTM, ISO and JIS compliant

Variants

Model Type Main Difference
DigiRock BRV5 Advanced Universal Hardness Tester Closed-loop depth measurement and advanced automation

Specifications

Specification DigiRock BRV5
Measurement Methods Rockwell / Superficial / Brinell / Vickers
Display Type 8" Industrial Touch Screen
Loading System Closed-Loop Force Feedback
Operation Type Automatic
Resolution 0.02μm Sounding Resolution
Data Storage Advanced Data Storage
Data Output USB / LAN / WiFi / Bluetooth
Integrated Software HD SPIRIT Software
Optical System Digital Depth Measurement
Test Force Control Closed-Loop Force Feedback
Max Specimen Height 300mm
Throat Depth 200mm
Typical Applications Advanced QC laboratories and precision testing
Main Differentiator Depth method testing and advanced automation
Standards ASTM / ISO / JIS

Delivery Scope

  • DigiRock BRV5 Universal Hardness Tester
  • Standard Indenters
  • Test Blocks
  • Measuring Microscope
  • Anvils and Accessories
  • USB/Data Accessories
  • Power Cable
  • User Manual

Industries Used In

  • Aerospace
  • Automotive
  • Heavy Engineering
  • Steel Processing
  • Manufacturing
  • Toolmaking
  • Heat Treatment
  • Research Laboratories
  • Universities
  • Industrial Quality Control
  • Advanced Materials Testing
  • Research & Development



Downloads

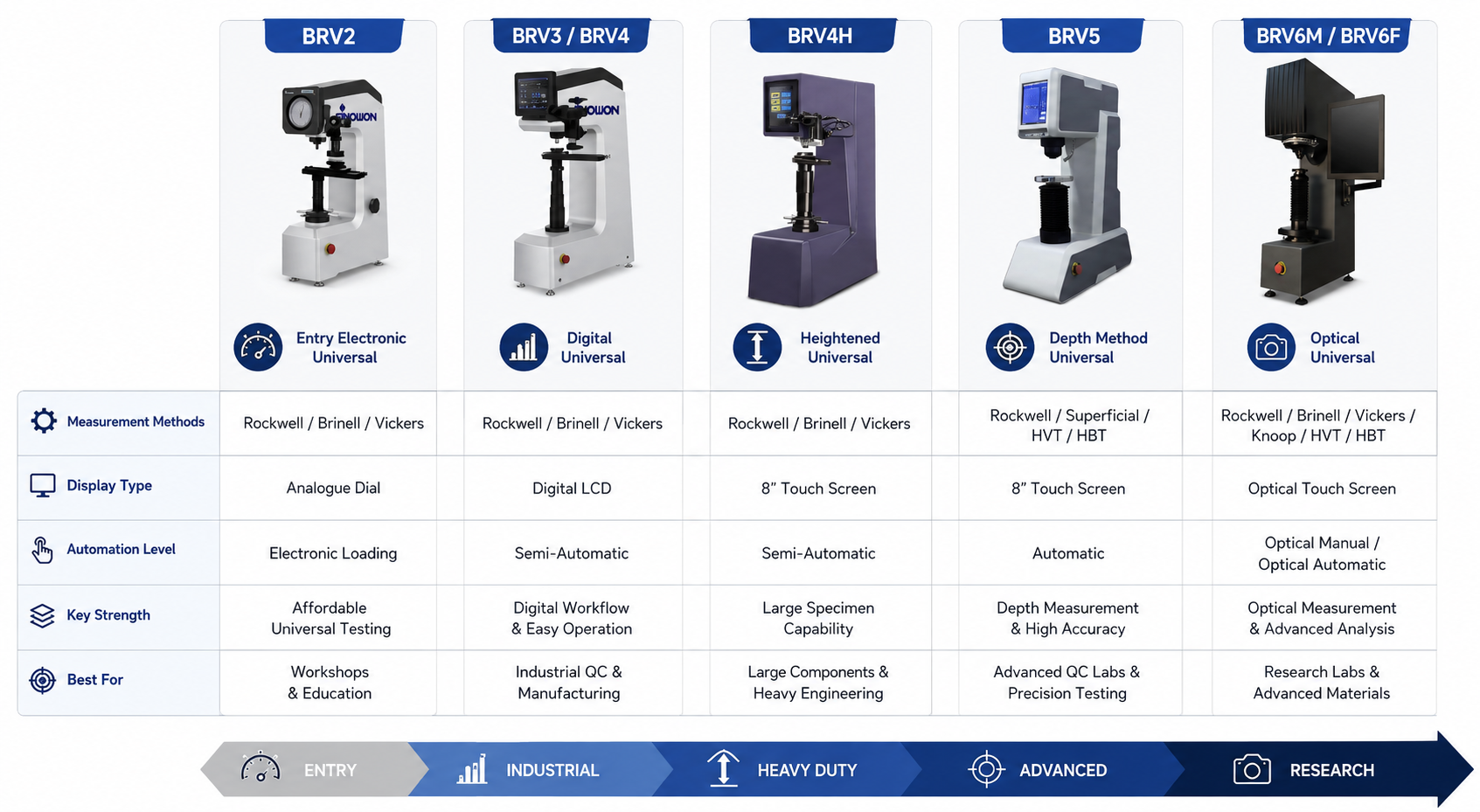

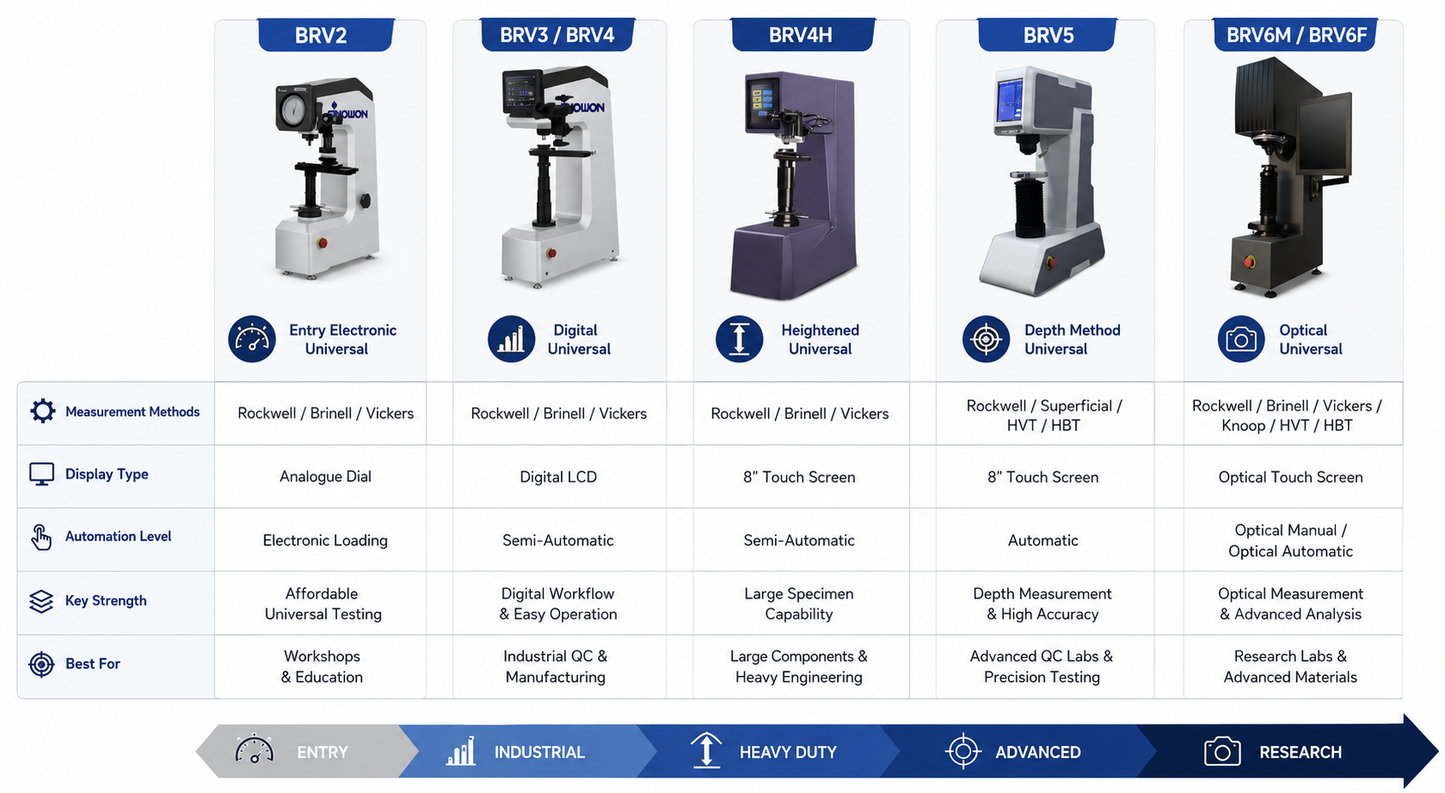

Compare the Universal Range

Universal Hardness Tester Range Comparison Table

Series Positioning Measurement Capability Display Type Automation Level Best For Variants
BRV2 Entry-Level Universal Rockwell / Brinell / Vickers Analogue Gauge Electronic Loading Workshops, education and basic QC BRV2
BRV3 Digital Touch Screen Universal Rockwell / Brinell / Vickers Touch Screen Display Semi-Automatic Industrial QC and manufacturing BRV3
BRV4H Large Component Universal Rockwell / Brinell / Vickers Industrial Touch Screen Semi-Automatic Large components and heavy engineering BRV4H
BRV5 Advanced Universal Advanced Multi-Scale Testing Industrial Touch Screen Closed-Loop Automatic Advanced laboratories and precision testing BRV5
BRV6 Series Optical Measurement Universal Optical Multi-Scale Testing HD Optical Touch Screen Optical Manual / Optical Automatic Research laboratories and advanced material analysis BRV6M / BRV6F

Universal Hardness Tester Range Specification Table

Specification BRV2 BRV3 BRV4H BRV5 BRV6M / BRV6F
Product Position Entry-Level Universal Digital Touch Screen Universal Large Component Universal Advanced Universal Optical Measurement Universal
Measurement Methods Rockwell / Brinell / Vickers Rockwell / Brinell / Vickers Rockwell / Brinell / Vickers Rockwell / Superficial / Vickers / Brinell Rockwell / Superficial / Brinell / Vickers / Knoop
Display Type Analogue Gauge Touch Screen Display 8" Industrial Touch Screen 8" Industrial Touch Screen Industrial Optical Touch Screen
Loading System Electronic Automatic Automatic Closed-Loop Closed-Loop Force Feedback Closed-Loop Load Cell
Operation Type Electronic Manual Semi-Automatic Semi-Automatic Automatic Optical Manual / Optical Automatic
Resolution 0.5HR 0.1HR Digital High Resolution 0.02μm Sounding Resolution Optical Digital Resolution
Data Storage No Yes Yes Advanced Data Storage Advanced Optical Data Storage
Data Output No USB Output USB / RS232 USB / LAN / WiFi / Bluetooth Integrated Optical Software
Integrated Software No Basic Digital Functions Built-In Printer & Digital Functions HD SPIRIT Software Optical Measurement Software
Optical System Basic Microscope Digital Measuring Eyepiece Microscope 25x / 50x / 100x Digital Depth Method 5MP Camera + Optical Zoom
Test Force Control Electronic Motor Automatic Closed-Loop Closed-Loop Force Feedback Closed-Loop Force Feedback
Max Specimen Height 175mm 240mm 280mm 300mm 300mm
Throat Depth 165mm 170mm 200mm 200mm 150mm
Typical Applications Workshops & Education Industrial QC Large Components Advanced QC Laboratories Research & Advanced Laboratories
Main Differentiator Affordable Universal Testing Digital Touch Screen Workflow Large Specimen Capability Depth Method & Automation Optical Measurement & Automation
Standards ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS
