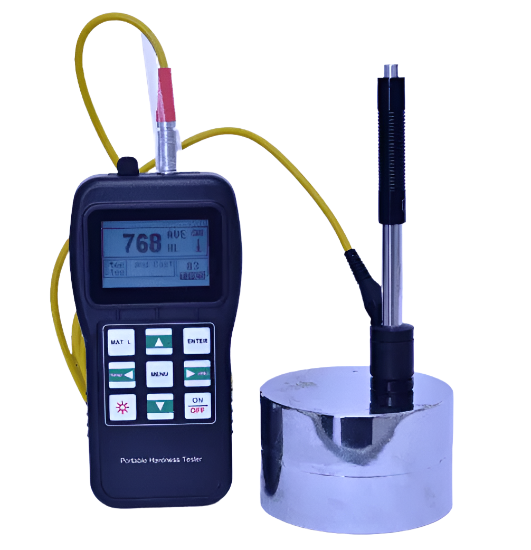

Leeb Hardness Tester THL210

Features

• LCD display of 128×64 matrix with back-light, showing all functions and parameters.
• Converts to all common hardness scales (HV, HB, HRC, HRB, HRA, HS).
• English display and easy and convenient menu operation.
• Powerful PC software available and USB 1.0 interface with protective membrane.
• Seven types of impact devices optional, which don't need to be recalibrated when changing them.
• Memory of 600 groups of data (impact times: 32～1).
• Lower limit setting and sound alarm. Material of "cast steel" is added; HB values can be read out directly when D/DC impact device is used to measure "cast steel" workpiece.
• Printer separated from the main unit; copies of testing results can be printed as required.
• Normal AAA battery and big power store while USB connected and charging controlling circuit.
• Inbuilt function of software calibration.
• NDT certificate.

Specifications

• Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS
• Memory: 48～600 groups (impact times: 32～1)
• Measuring range: HLD (170～960) See table 1 and table 2 below
• Accuracy: ±6HLD (760±30HLD) error of displayed value
• Standard Impact Device: D
• Optional Impact Devices: DC/D+15/G/C/DL
• Min. Radius of Workpiece: Rmin = 50mm (with special support ring Rmin= 10mm)
• Min. Workpiece weight:
  • 2~5kg on stable support
  • 0.05~2kg with compact coupling
• Min. Workpiece thickness:
  • 5mm (Impact Devices D/DC/DL/D+15)
  • 1mm (Impact Device C)
  • 10mm (Impact Device G)
• Min. thickness of hardened surface: 0.8mm
• Power: Normal AA Battery
• Continuous Working time: approx. 100 h (no back light off)
• Operating temperature: 0~40℃
• Relative humidity: ≤90%
• Overall dimensions: 1256731mm (main unit)
• Weight: 0.3kg (main unit)

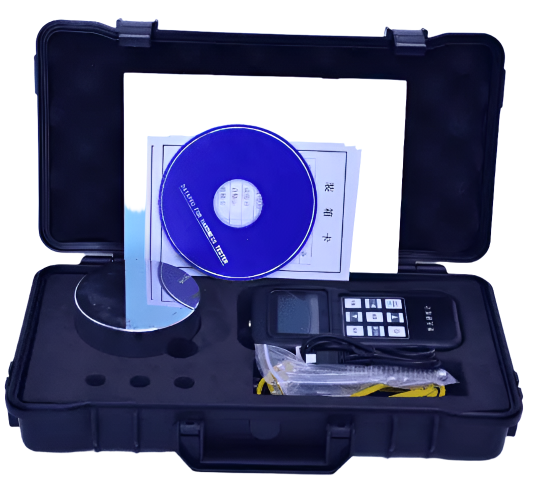

Standard Configuration

Datapro for Hardness Tester THL210

The THL210 hardness tester offers a compact, versatile, and efficient solution for various hardness testing needs. With its easy-to-read LCD display, multiple measurement scales, and extensive data storage capabilities, it is ideal for use in automotive, aerospace, manufacturing, and other industries. The optional mini-printer and various impact devices enhance its functionality, making it a comprehensive tool for quality control and material testing.
