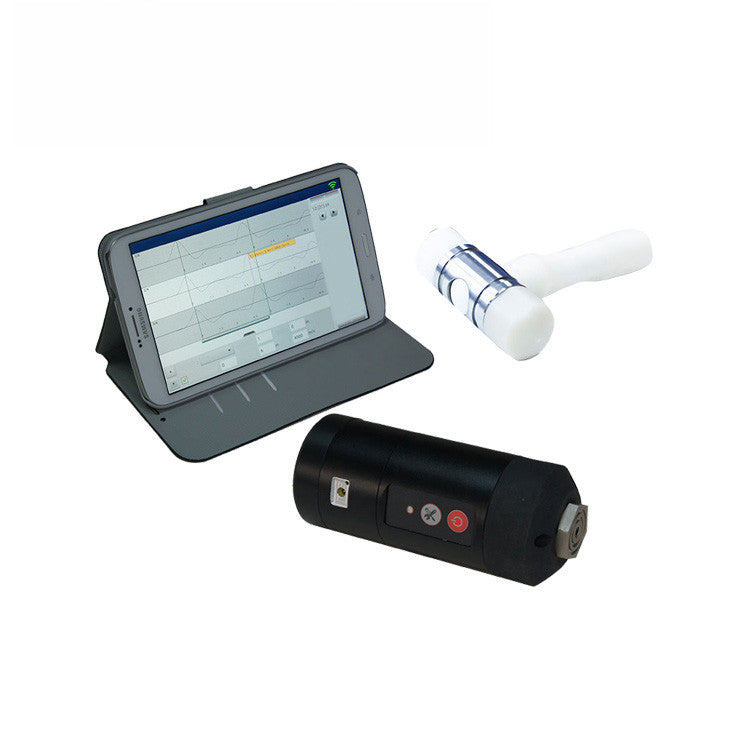

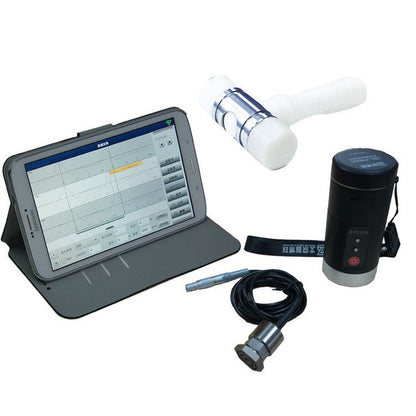

Wireless Pile Integrity Tester for Concrete Structure Evaluation – ZBL-P8000

Product Description

Overview
The ZBL-P8000 Wireless Pile Integrity Tester is a high-performance NDT device designed to assess the integrity of concrete piles using the reflected wave method. This fully wireless system features a smart sensor that independently collects and transmits data via Wi-Fi to a tablet or PDA with a sunlight-viewable touchscreen, enabling accurate detection of pile defects, depth, and integrity in real-time.

Suitable for both drilled and hammer piles, it offers exceptional precision, fast signal processing, and a user-friendly interface for field engineers and structural inspectors.

Key Features

• Wireless data transmission via Wi-Fi to a tablet or PDA

• Intelligent sensor system for automatic data collection

• High signal clarity with 24-bit A/D sampling and wide dynamic range

• Fast and accurate pile integrity judgment, even in complex conditions

• Adjustable gain value based on pile length and surface condition

• Supports fixed magnification points for wave analysis

• Long battery life (over 5 hours of continuous use)

• Compact, portable design for on-site testing

Technical Specifications

Application

• Evaluate the integrity of drilled or hammer piles

• Identify pile length, defects, and top surface conditions

• Suitable for testing columns, foundations, and pile caps

• Ideal for complex job sites with minimal signal interference

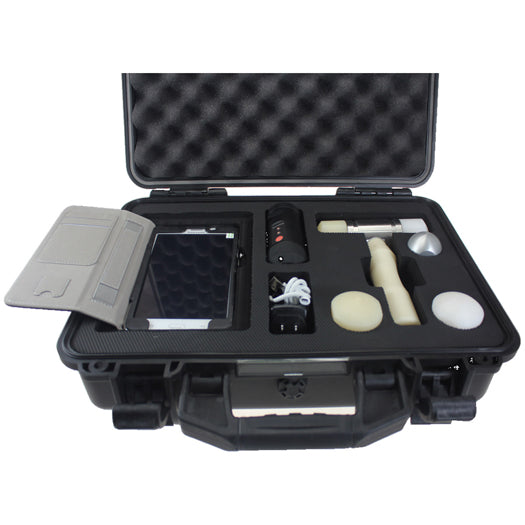

Standard Delivery Includes

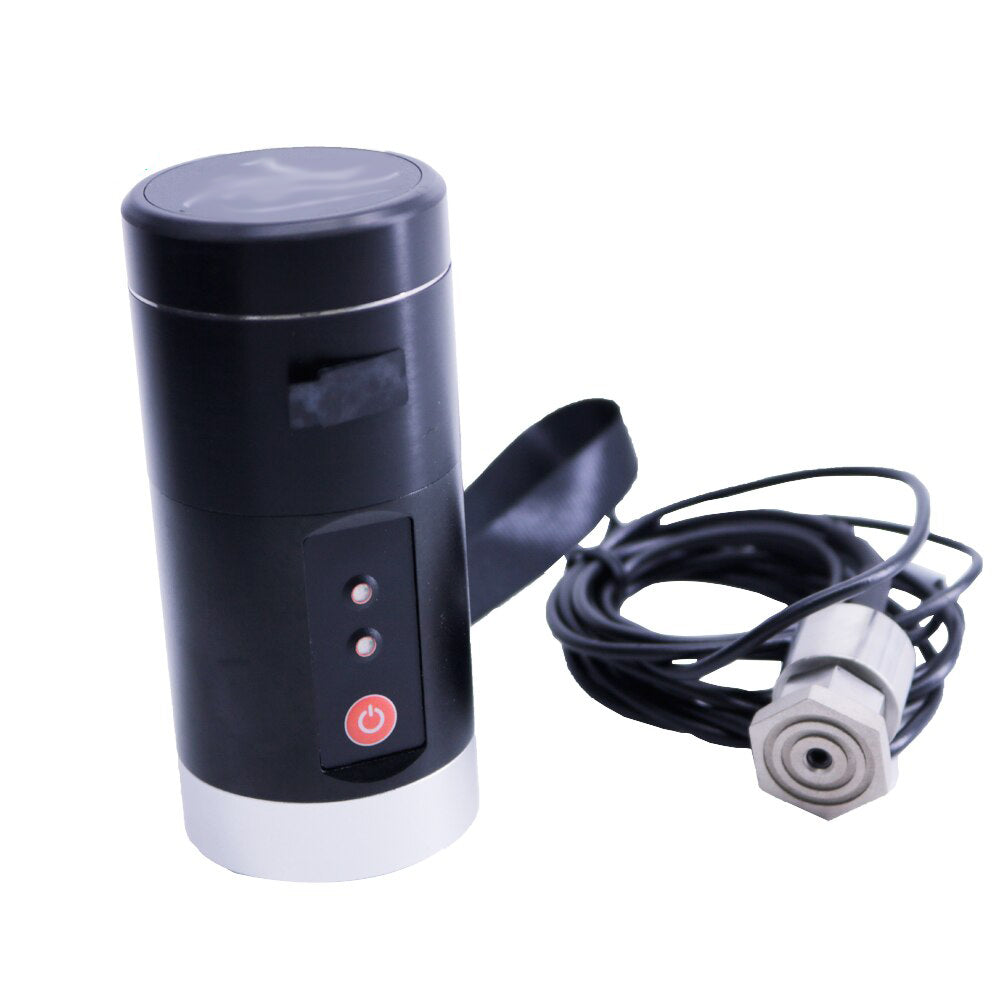

• Main Sensor Unit

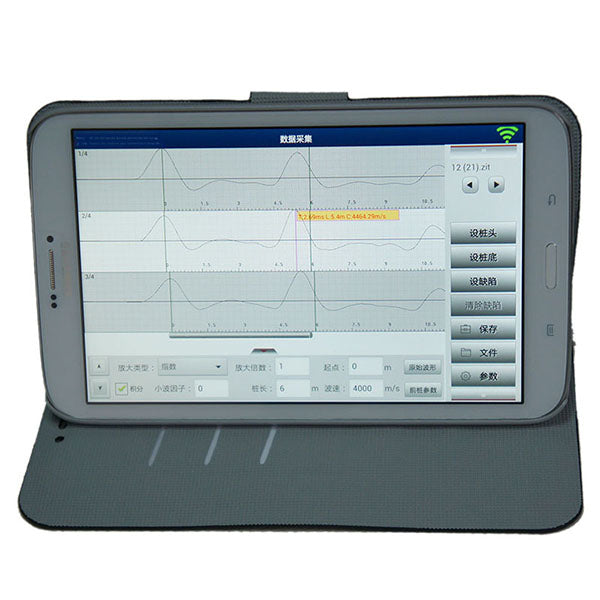

• PDA/Tablet Controller

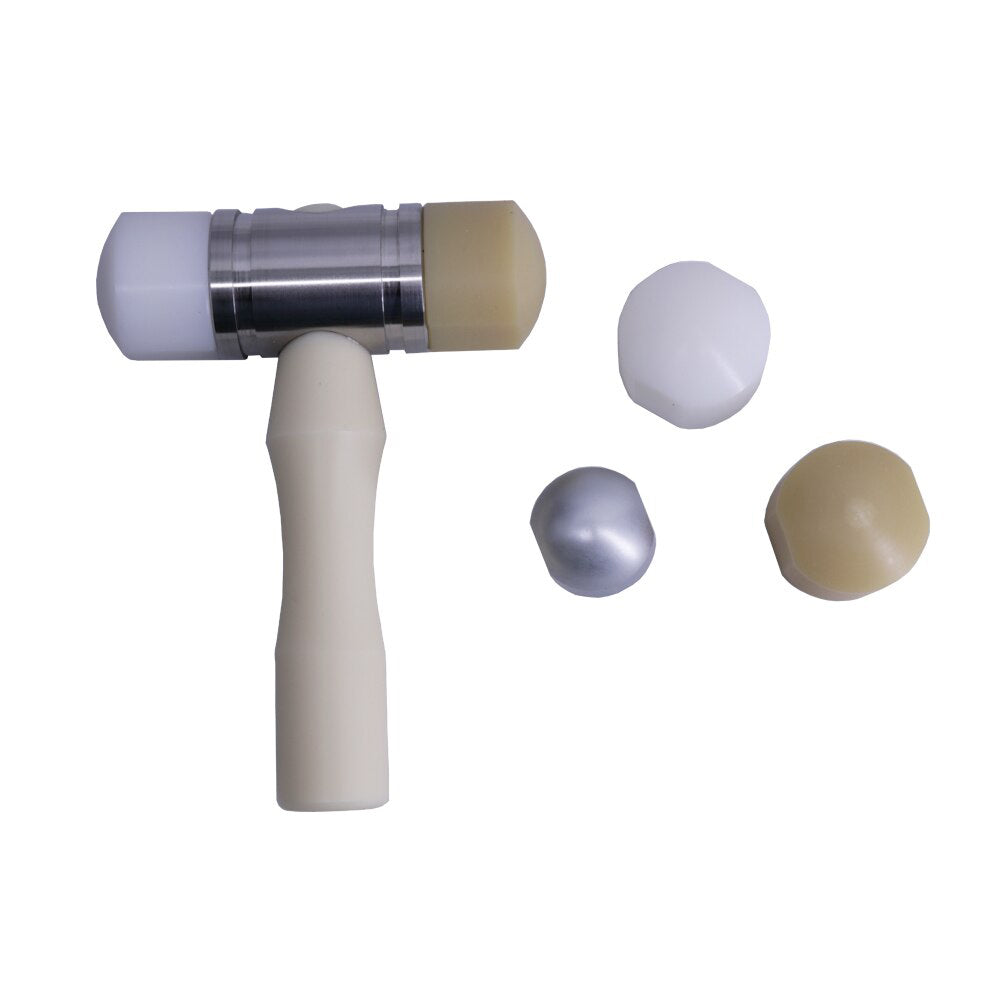

• Accelerometer or Hammer Probe

• Charging Cable

• Carrying Case

• User Manual

Downloads

PDF Data Sheet Link
