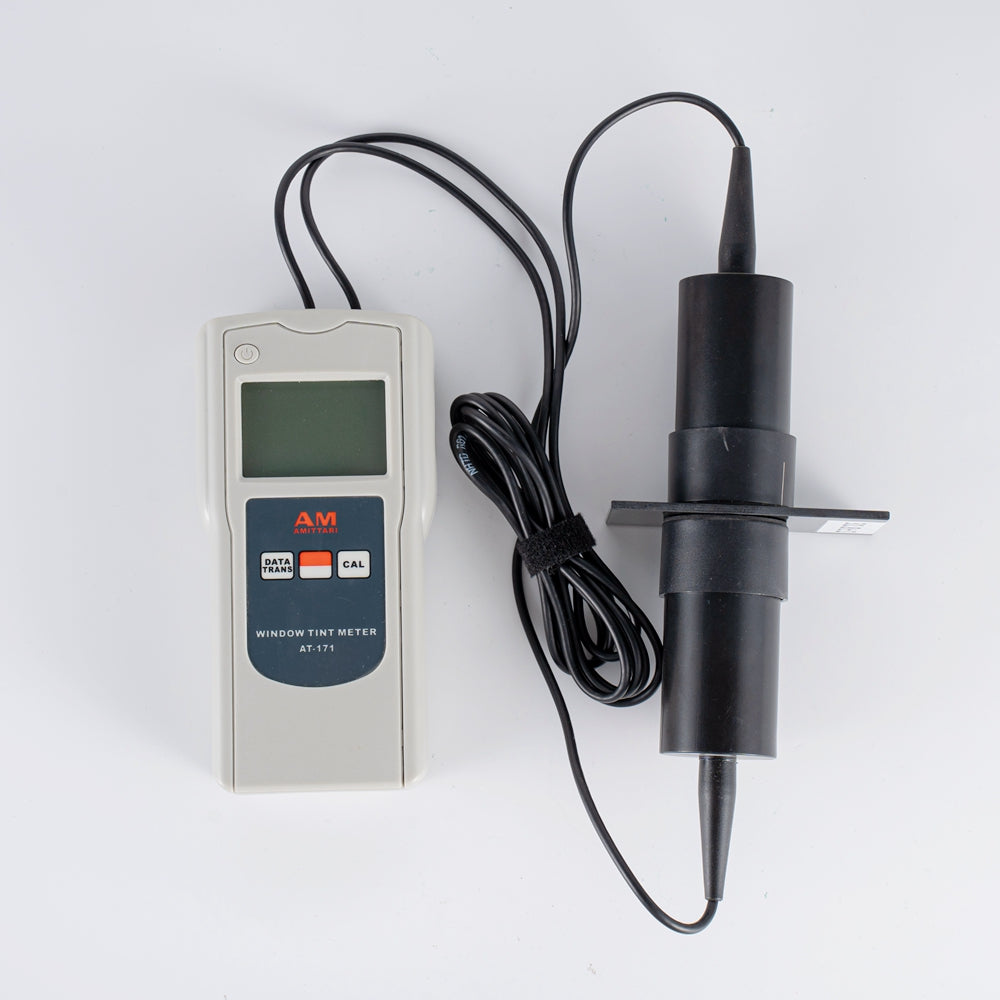

Window Tint Meter AT-171

• TOMLIN Window Tint Meter (Model AT-171)

  Description:

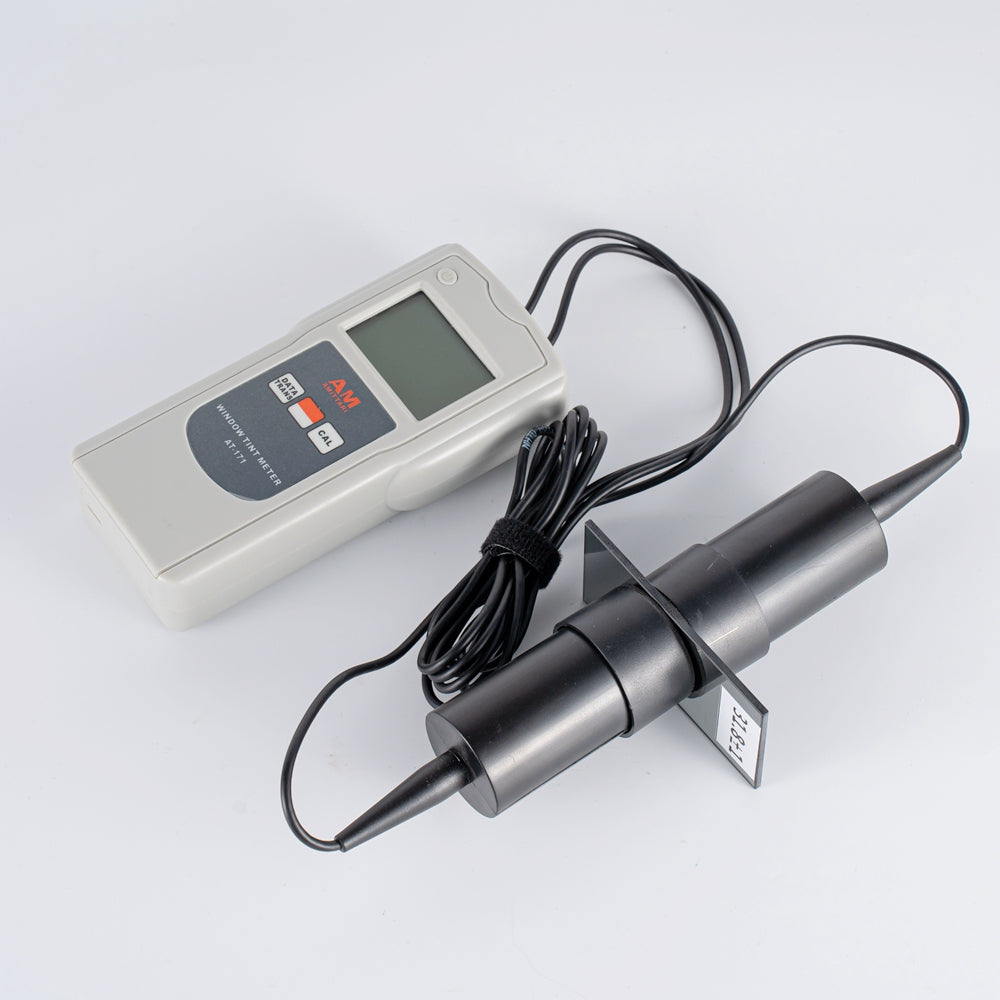

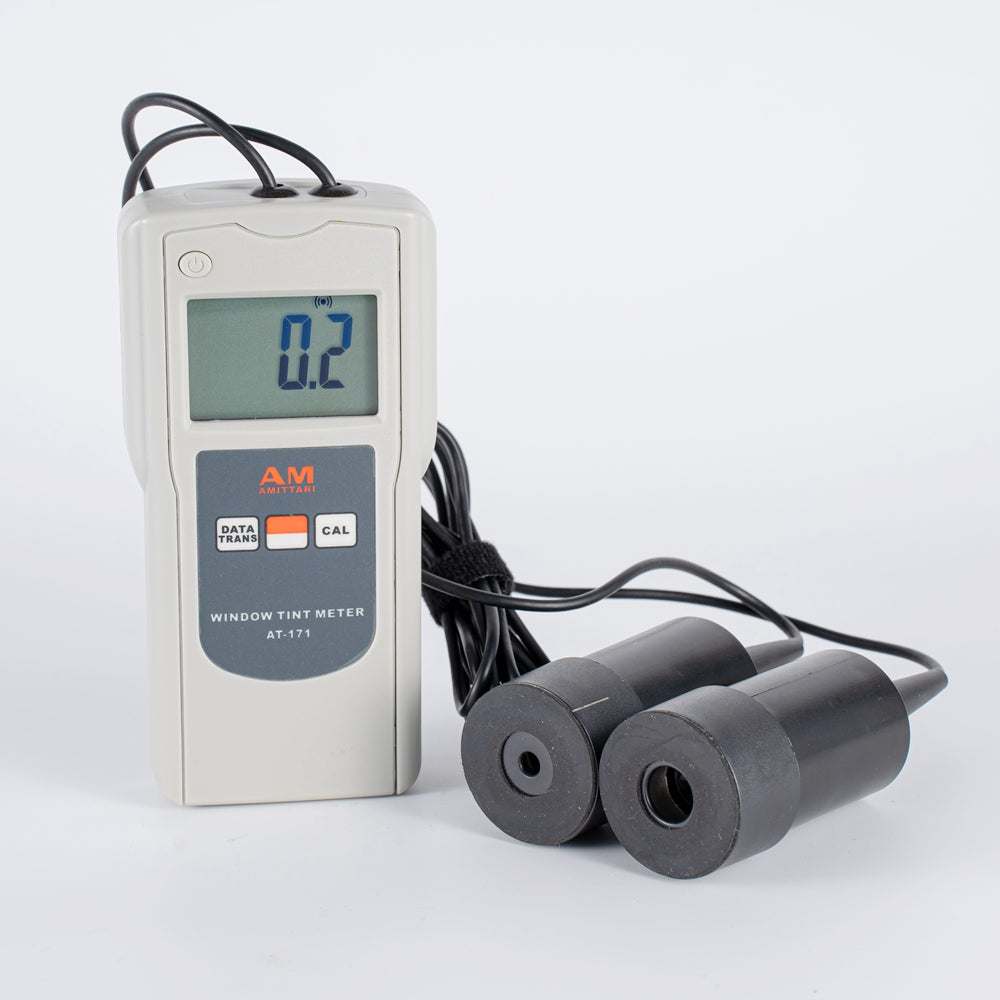

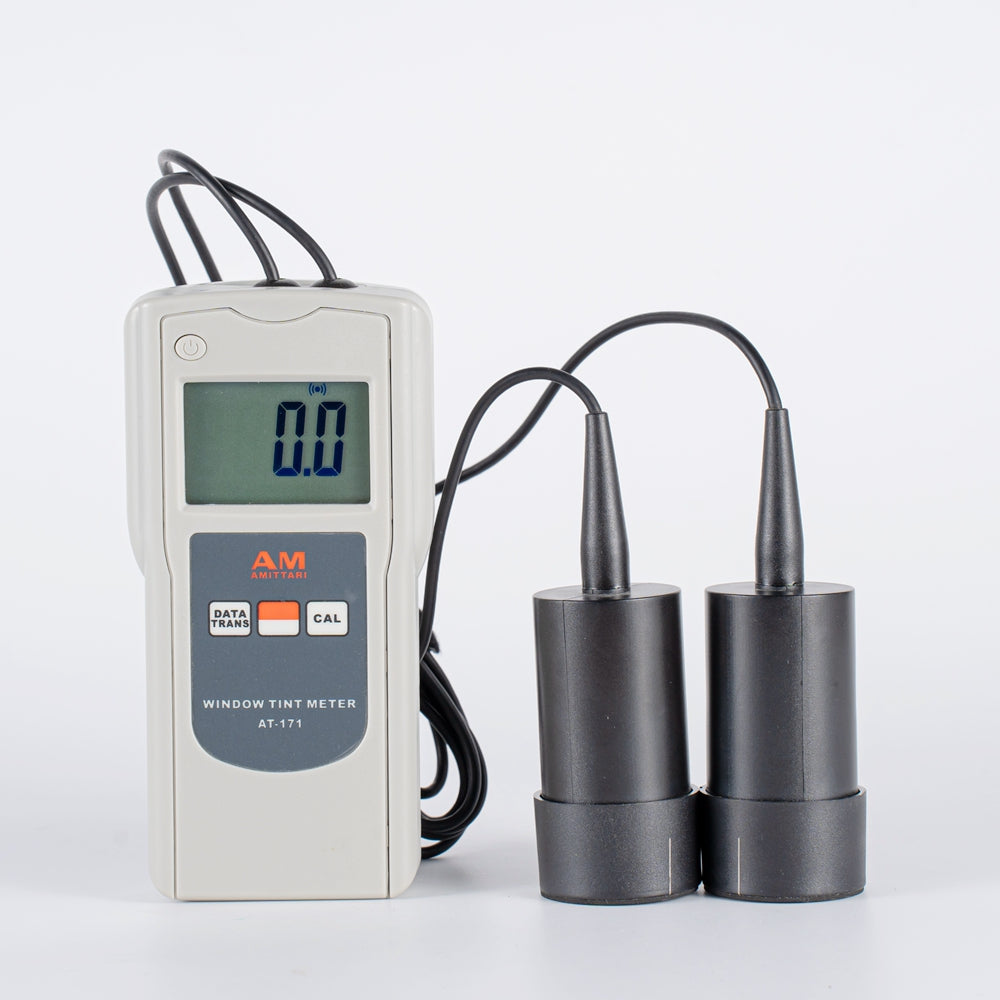

  The TOMLIN Window Tint Meter AT-171 is a reliable instrument designed to measure visible light transmittance through transparent and translucent materials with parallel surfaces. This compact, wired device is suitable for use in automotive manufacturing, glass production, and plastic sheet quality control. With compliance to GB 2410-80 and other relevant standards, it ensures precise and consistent results for industrial and professional applications.

  Applications:

  • Automotive Industry: Measuring window tint and light transmittance in car windows.
  • Glass Manufacturing: Ensures quality in glass production.
  • Plastic Sheets: Measures transmittance of plastic and similar materials.
  • Liquid Clarity: Suitable for assessing water and beverage turbidity.

  Key Features:

  1. Wired Sensor: Ensures stable and reliable data transmission during measurement.
  2. Visible Light Measurement: Measures light transmittance with high accuracy.
  3. Backlight Display: Provides easy readability in various lighting conditions.
  4. Buzzer Sound Reminder: Alerts users during measurement operations.
  5. Manual/Auto Power Off: Conserves battery life.
  6. Low Battery Indicator: Notifies when battery replacement is required.
  7. Computer Connection: Allows for data export and analysis.

  Specifications

•

  Parameter	Details
  Measurement Range	0~100%
  Resolution	0.1
  Light Source	LED
  Sample Thickness	Less than 18 mm (0.7")
  Accuracy	±2%
  Wavelength	550 nm
  Operating Temperature	050°C (32122°F)
  Operating Humidity	<90%

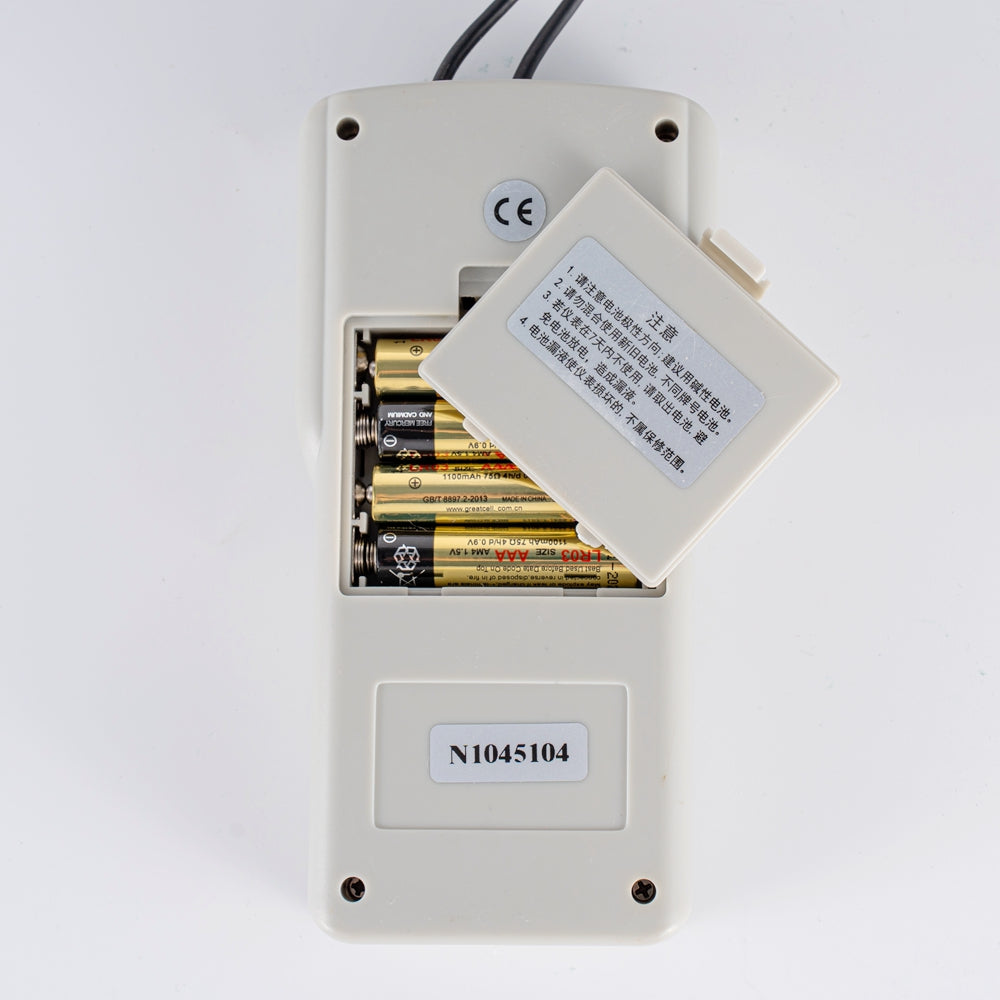

  Power Supply	4 × 1.5V AAA batteries
  Size (Main Unit)	140 × 70 × 30 mm
  Weight (Without Battery)	130 g (4.59 oz)

  Standard Accessories:

  • Main Unit

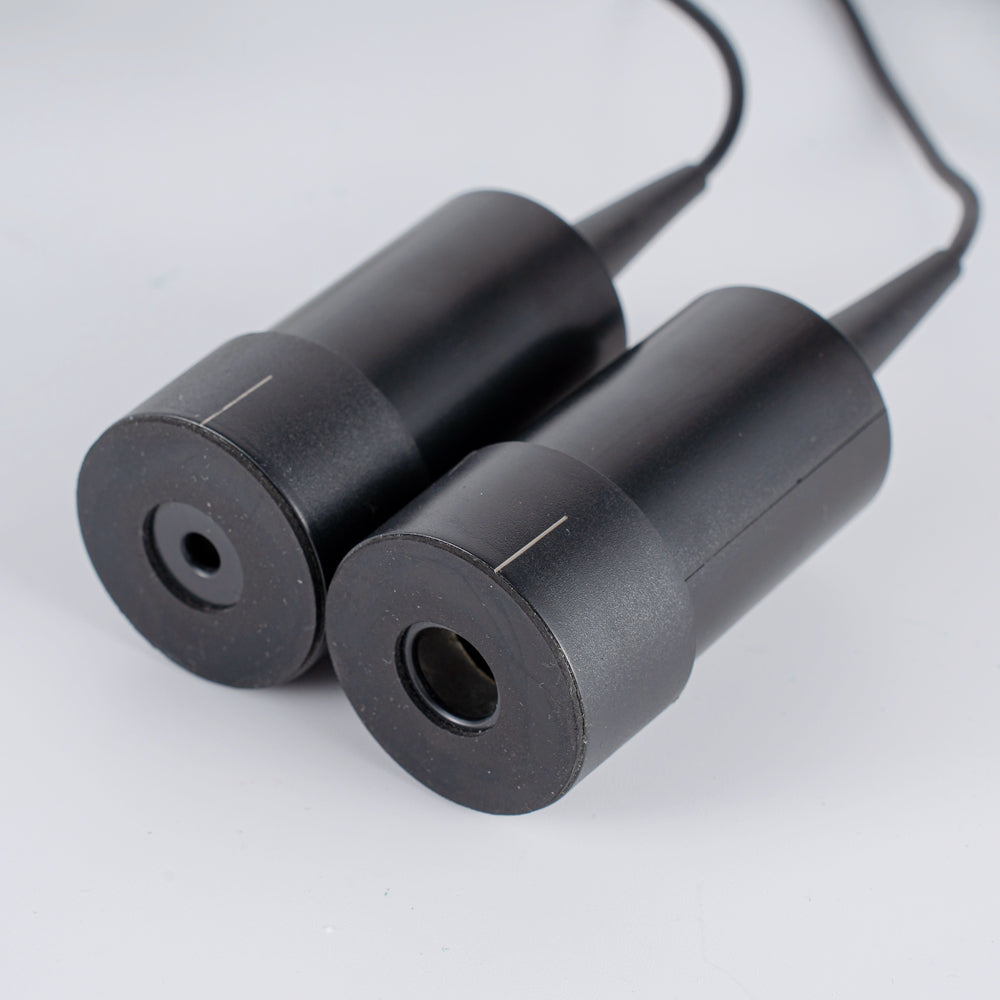

  • Light Emitter

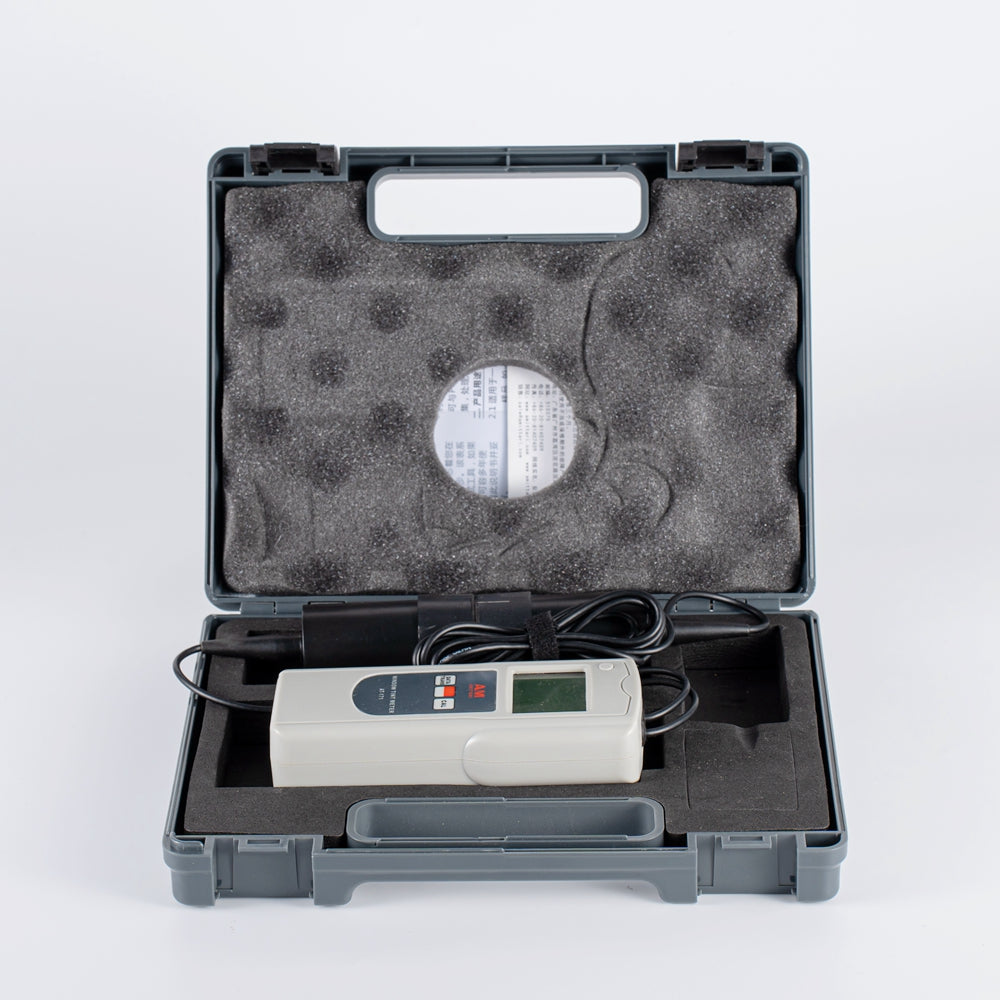

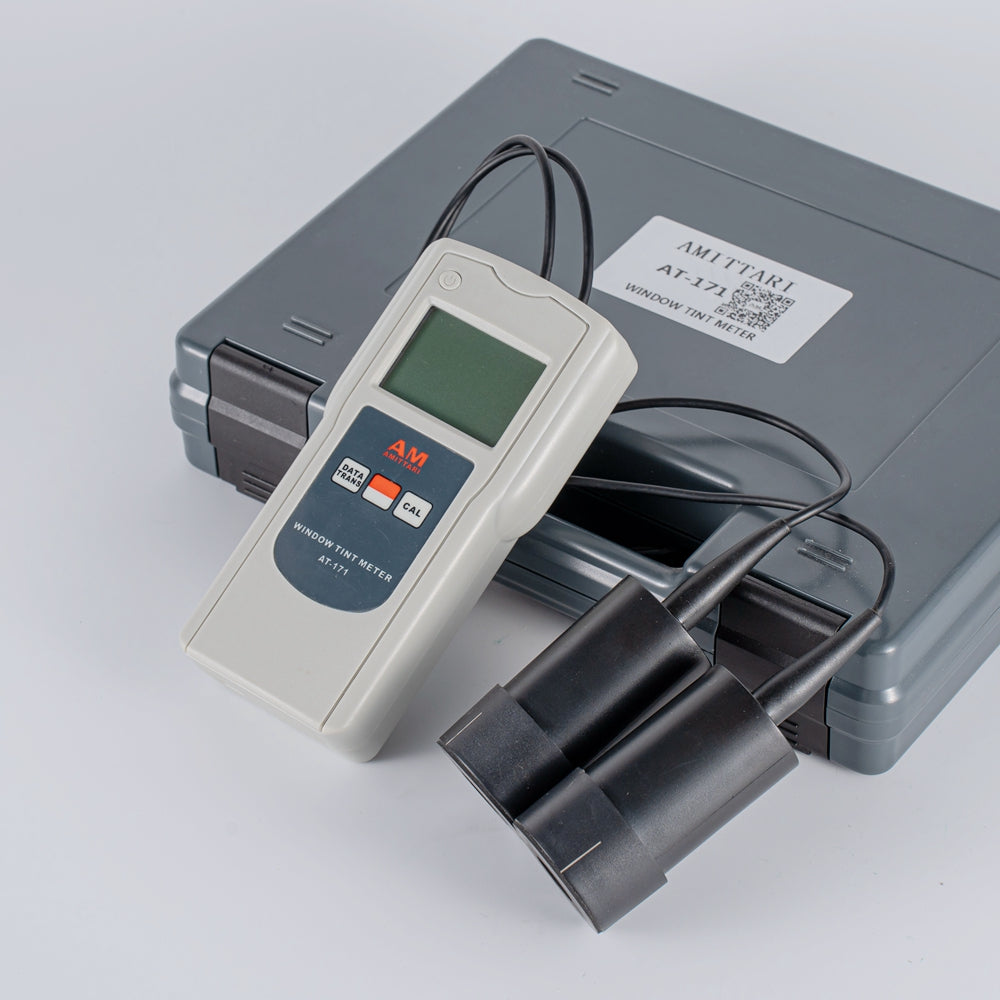

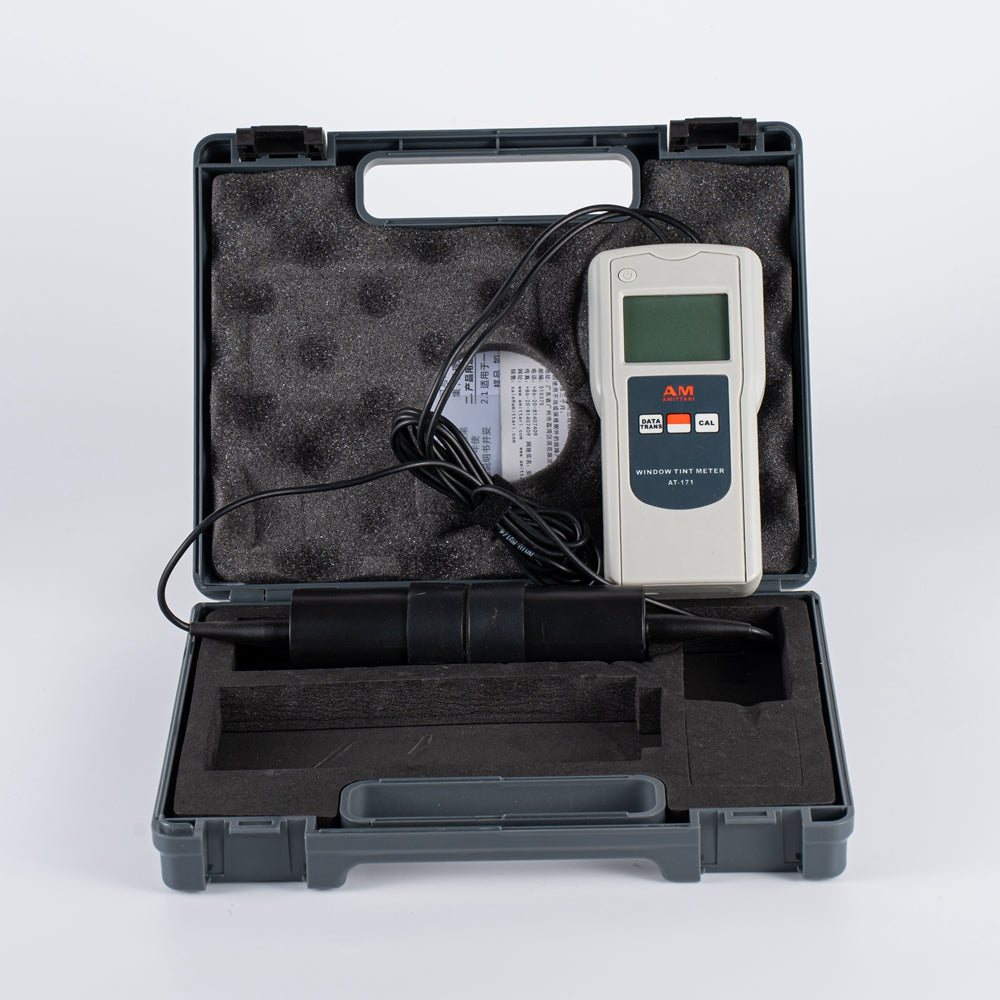

  • Carrying Case
  • Operation Manual

  Optional Accessories:

  • USB Cable & Software
  • Bluetooth Adapter & Software

  Alternative Names:

  • Portable Window Tint Meter
  • Visible Light Transmittance Tester
  • Digital Tint Tester for Glass and Plastic

Downloads

PDF Specification Sheet - Download Here
