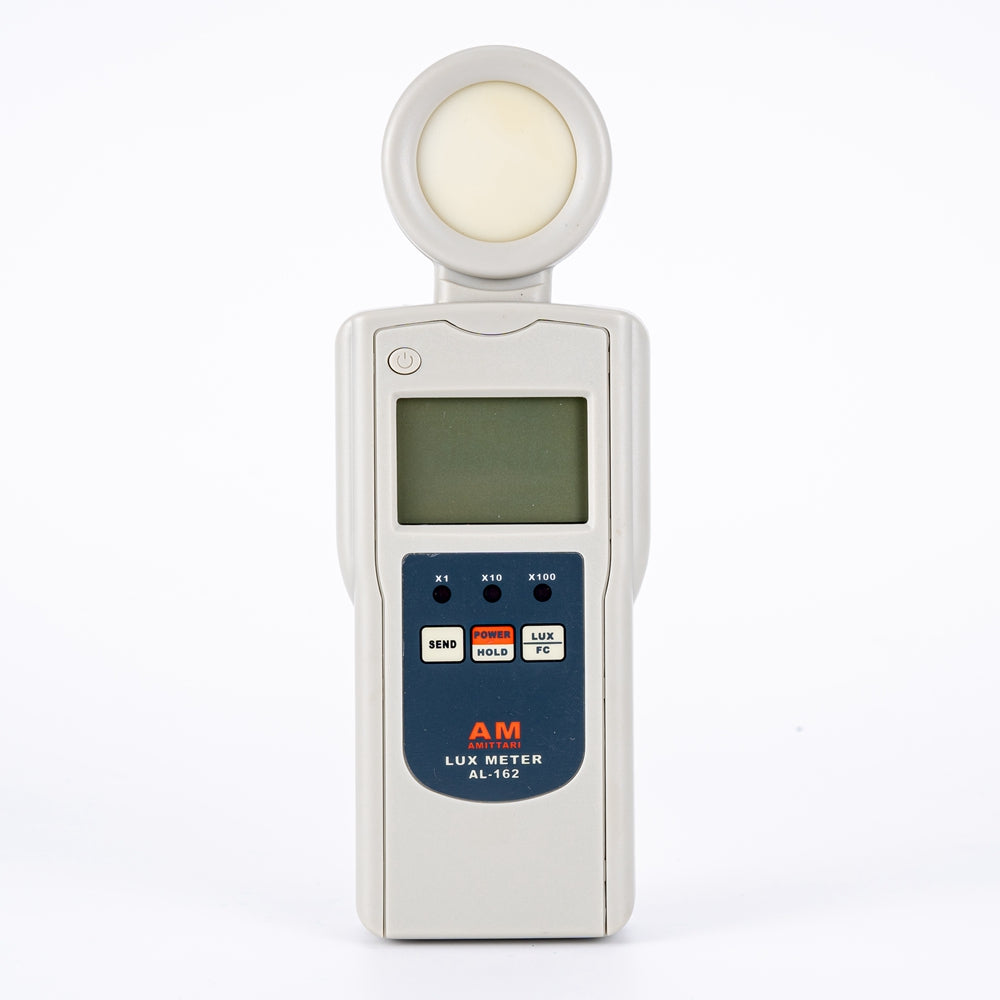

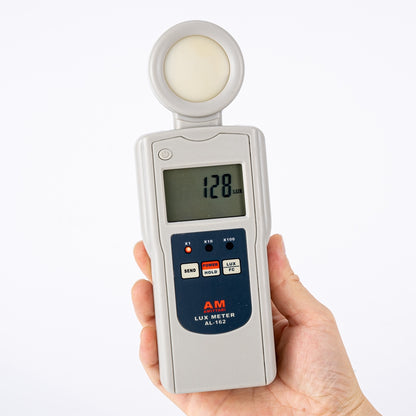

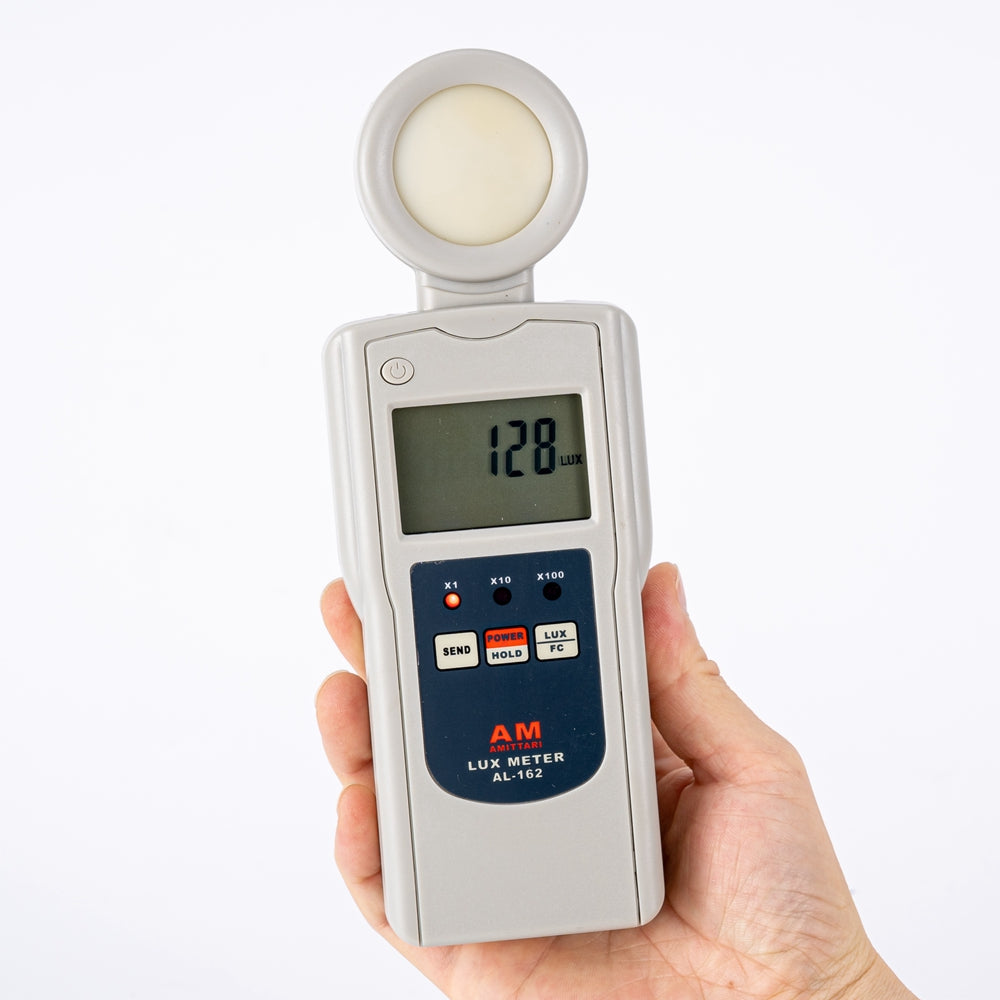

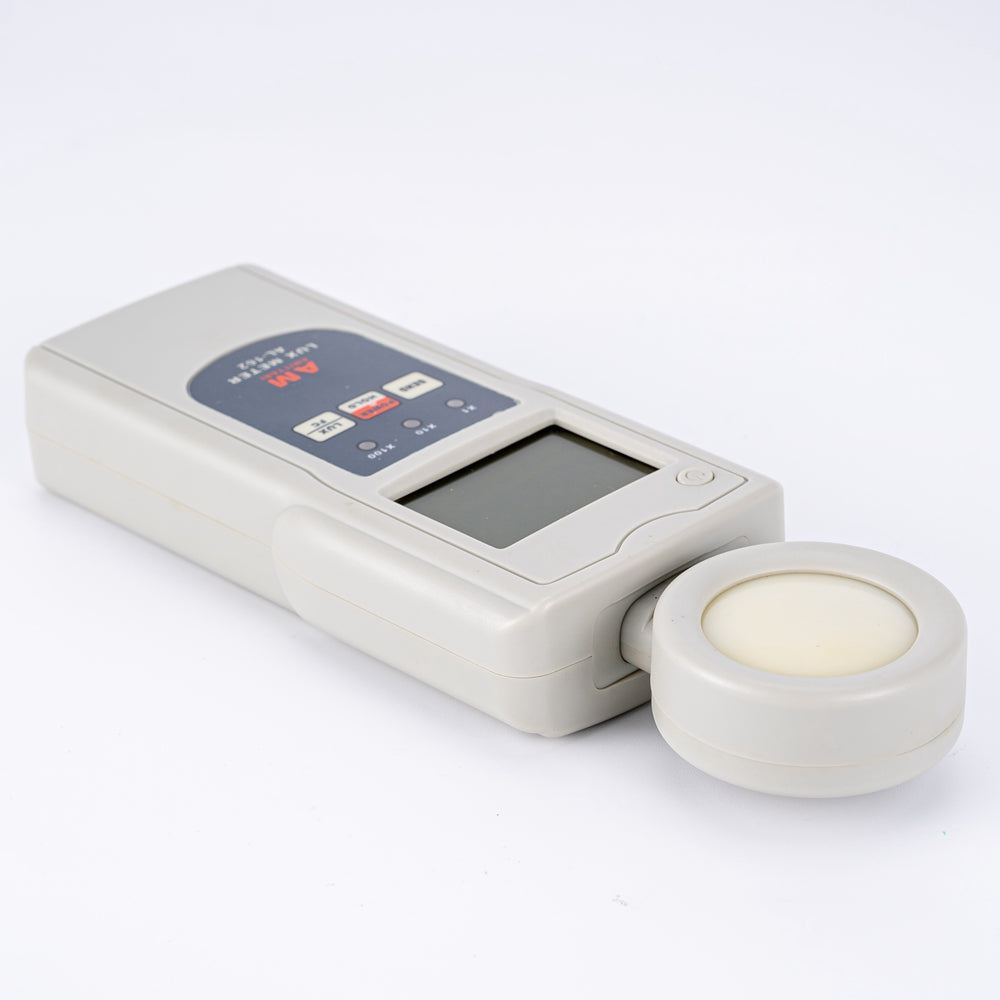

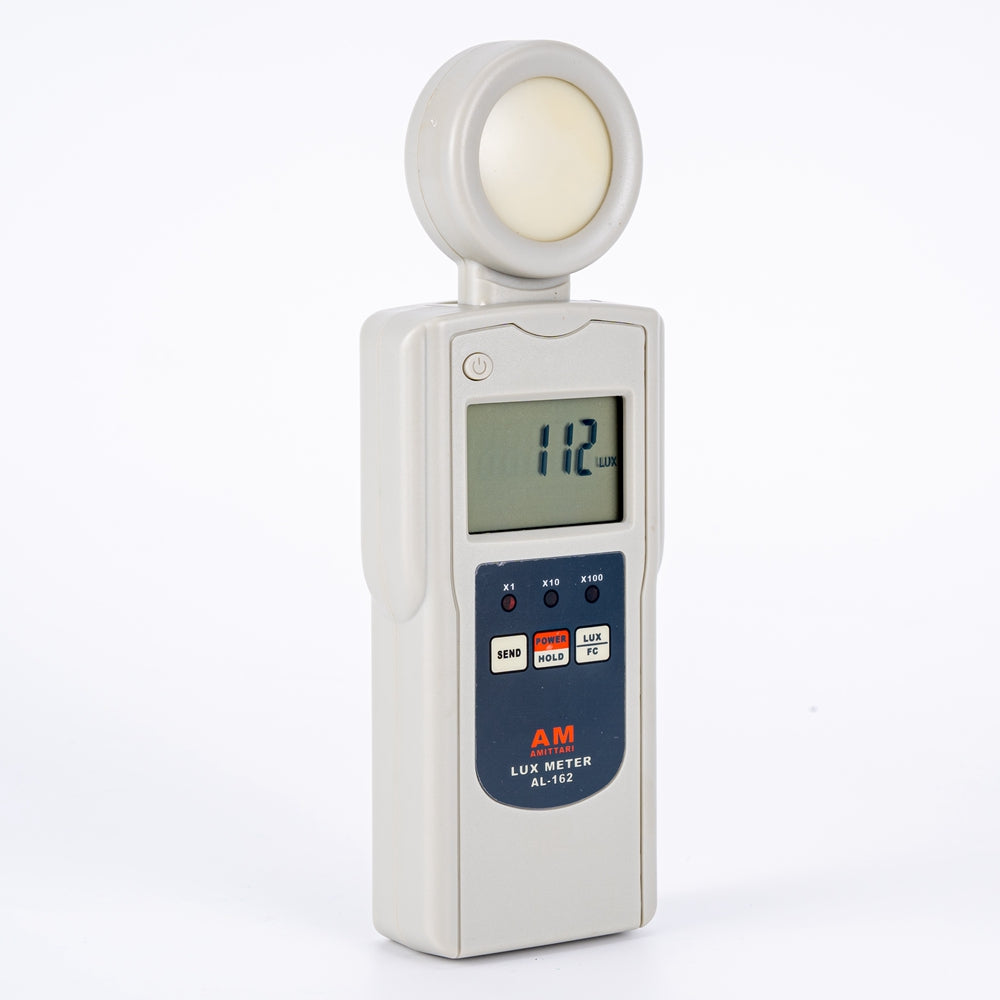

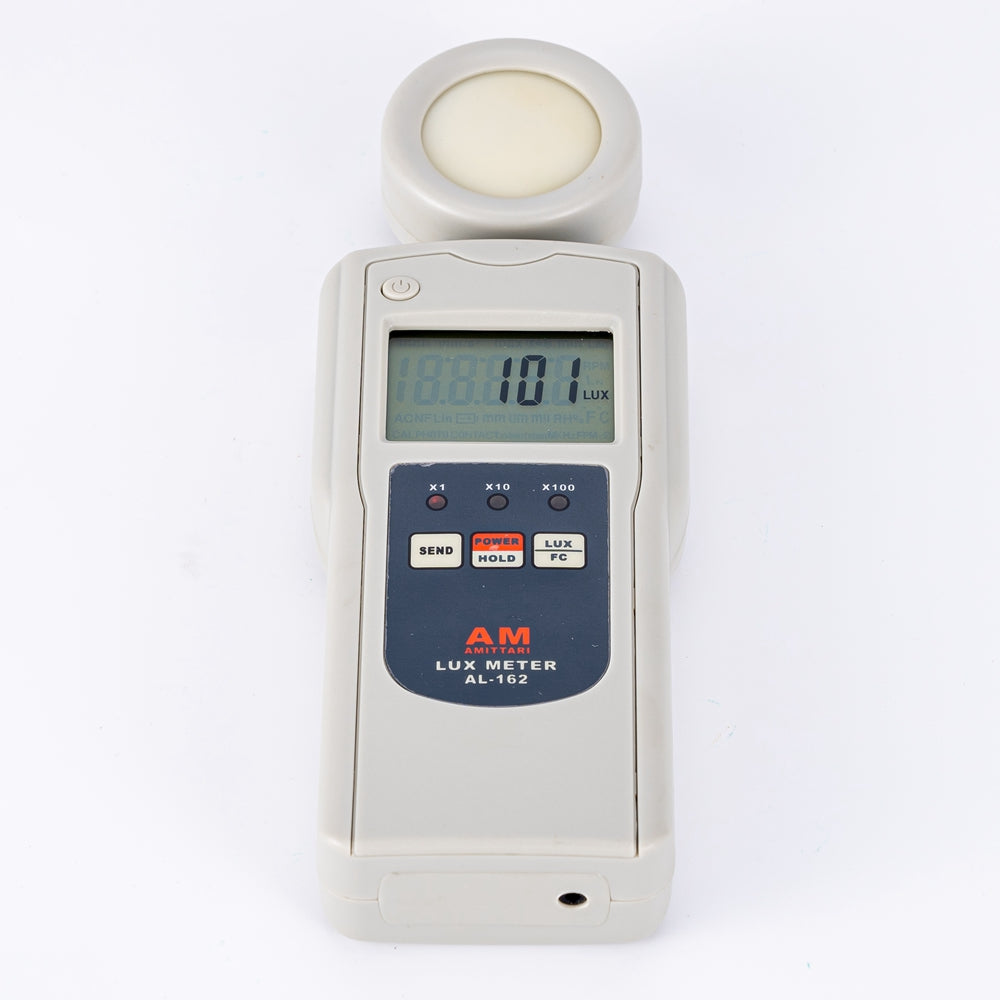

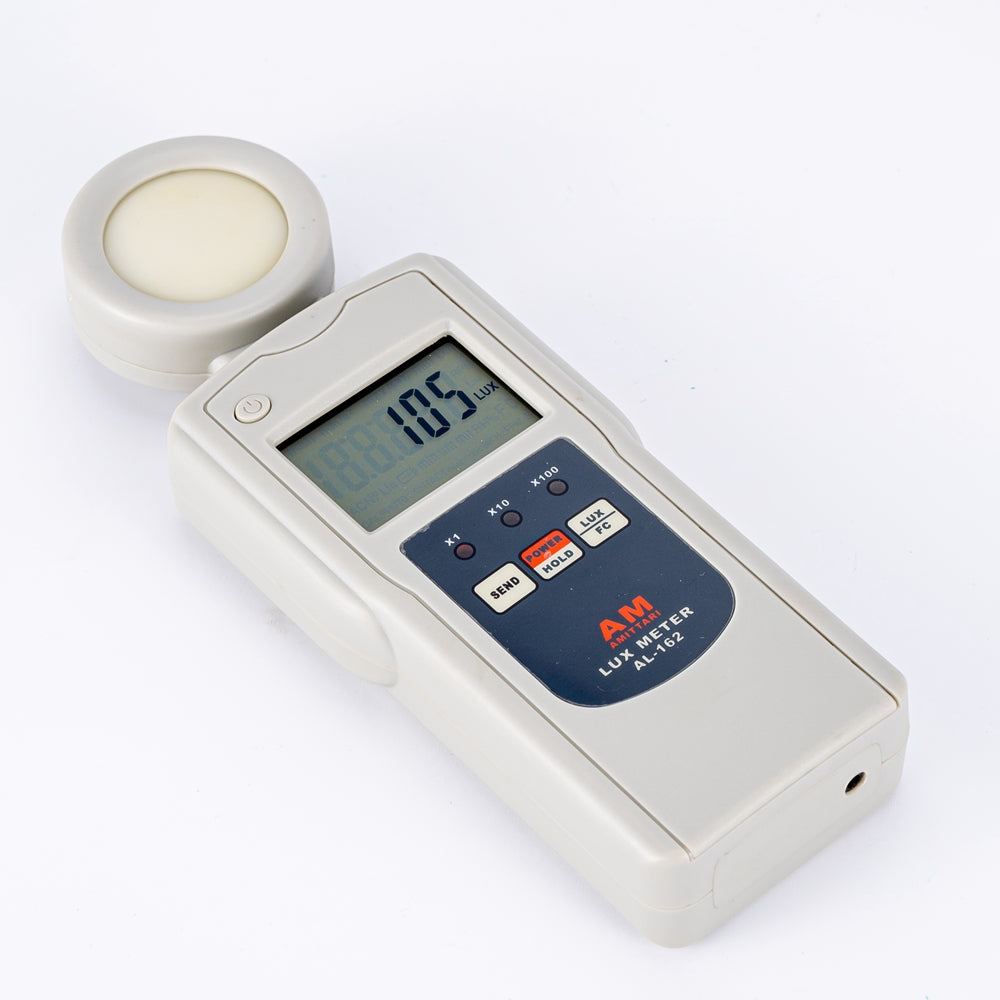

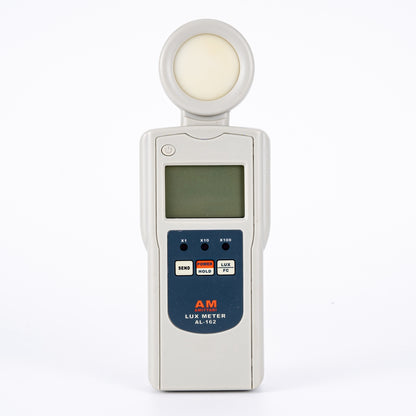

Lux Meter AL-162

Description

The TOMLIN Lux Meter (Model AL-162) is a highly specialized instrument for measuring luminosity and brightness, ideal for a wide range of applications. Whether for electro-optical sources, research, teaching, metallurgy, building industry inspections, agriculture research, or illumination control, this device delivers precise and reliable readings in diverse environments.

Features

• Backlight Display: Ensures clear visibility of measurements, even in low-light environments.
• Buzzer Sound Reminder: Provides an audible alert when a reading is complete.
• Maximum Value Hold Function: Displays and retains the highest recorded measurement for easy reference.
• Manual/Auto Power Off: Offers options to conserve battery life with manual or automatic shutdown.
• Low Battery Indicator: Alerts the user when battery power is running low, avoiding interruptions.
• Real-Time Measurement Transmission: Allows real-time data transmission for enhanced usability.
• Computer Connection: Enables data transfer and analysis through a computer connection.

Specifications

• Display: Digital Backlight LCD
• Measuring Units: Lux / FC (Foot Candle)

Measurement Ranges and Resolutions:

• X1 Position:
  • Range: 0~4,999 Lux
  • Resolution: 1 Lux
• X10 Position:
  • Range: 5,000~49,999 Lux
  • Resolution: 10 Lux
• X100 Position:
  • Range: 50,000~500,000 Lux
  • Resolution: 100 Lux
• Foot Candle (FC):
  • Range: 0~4,650 FC
  • Resolution: 1 FC

Accuracy: ±5%n + 5d

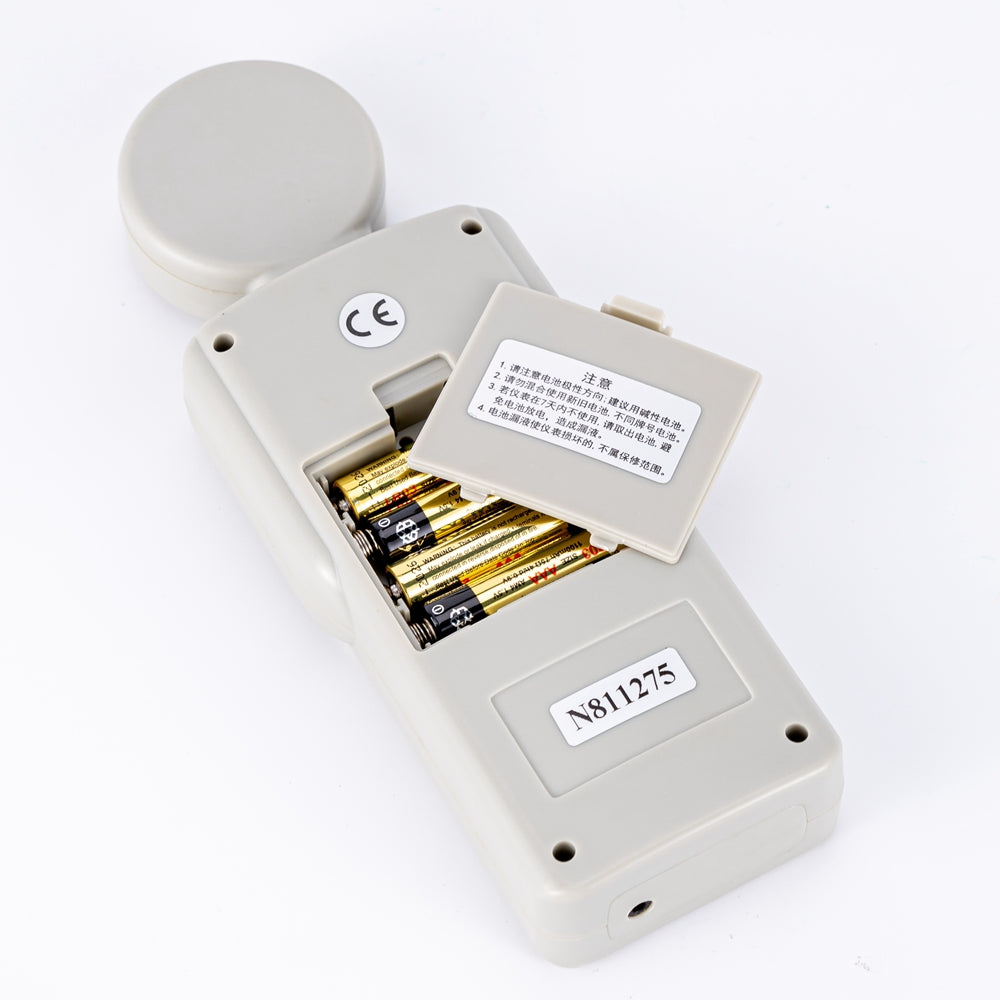

• Power Supply: 4 x 1.5V AAA UM-4 Batteries
• Dimensions: 196 x 70 x 31 mm (7.7 x 2.8 x 1.2")
• Weight (Including Batteries): 200 g (7.05 oz)

Standard Accessories

• Main Unit

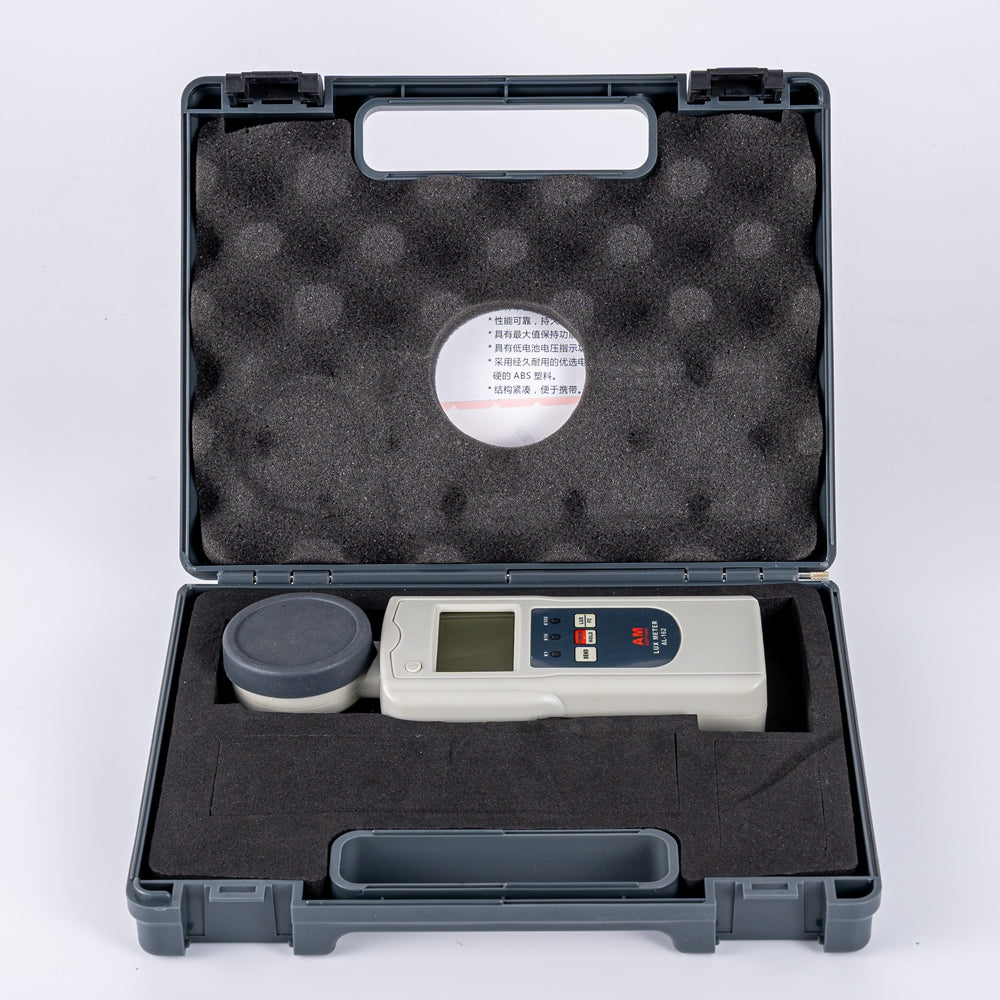

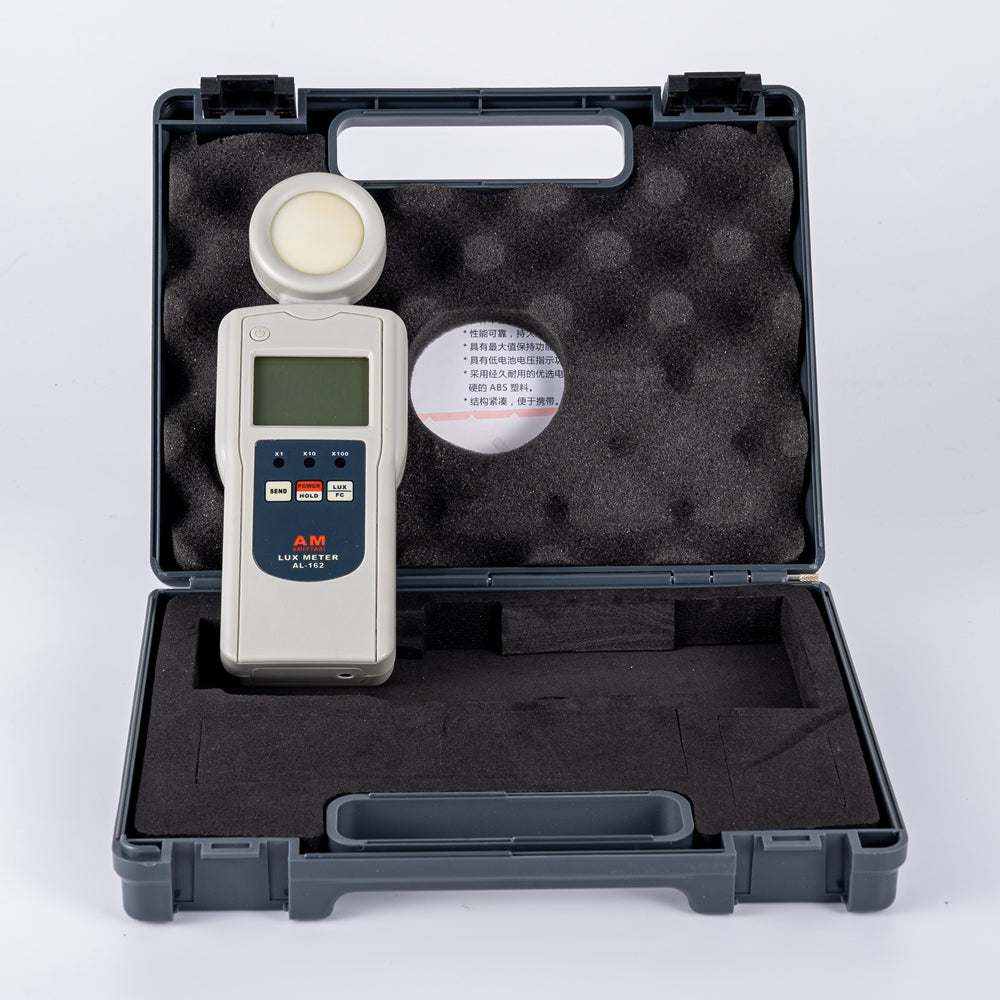

• Carrying Case
• Operation Manual

Optional Accessories

• USB Cable & Software (available separately)
• Bluetooth Adapter & Software (available separately)

Alternative Names

• Digital Lux Meter
• Brightness and Illumination Tester
• Light Meter


Downloads

PDF Specification Sheet - Download
