Magnetic Flaw Detector 220S

Product Description

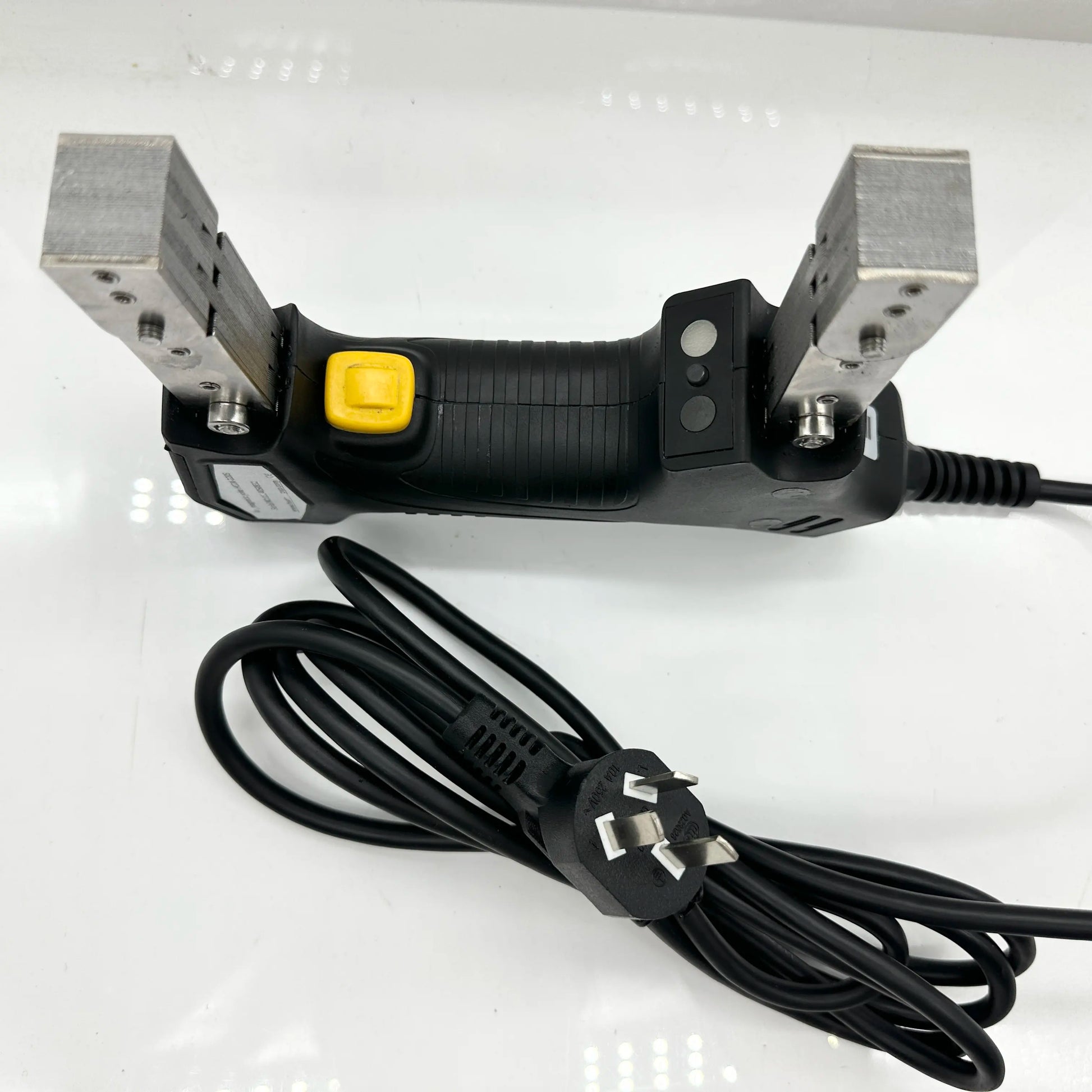

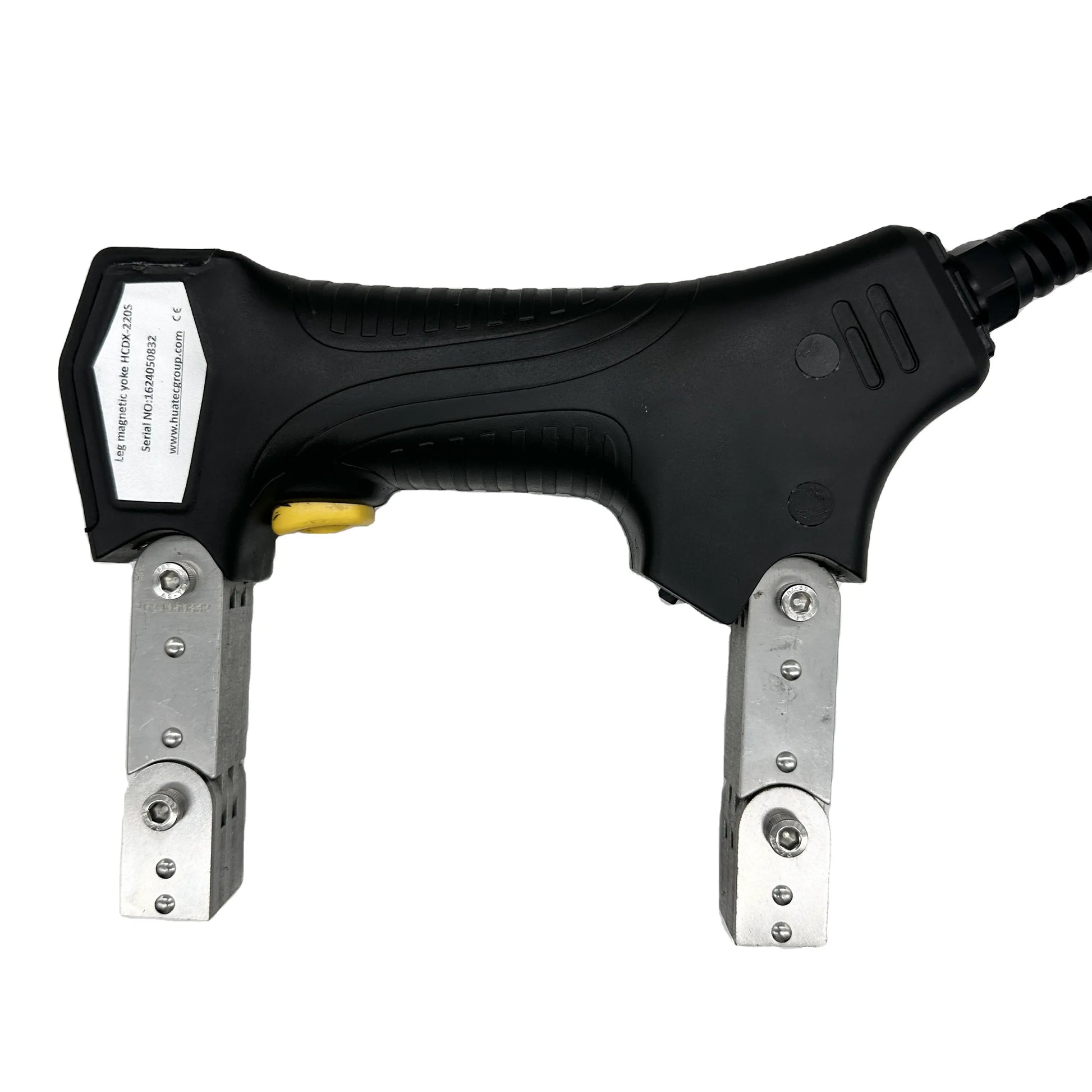

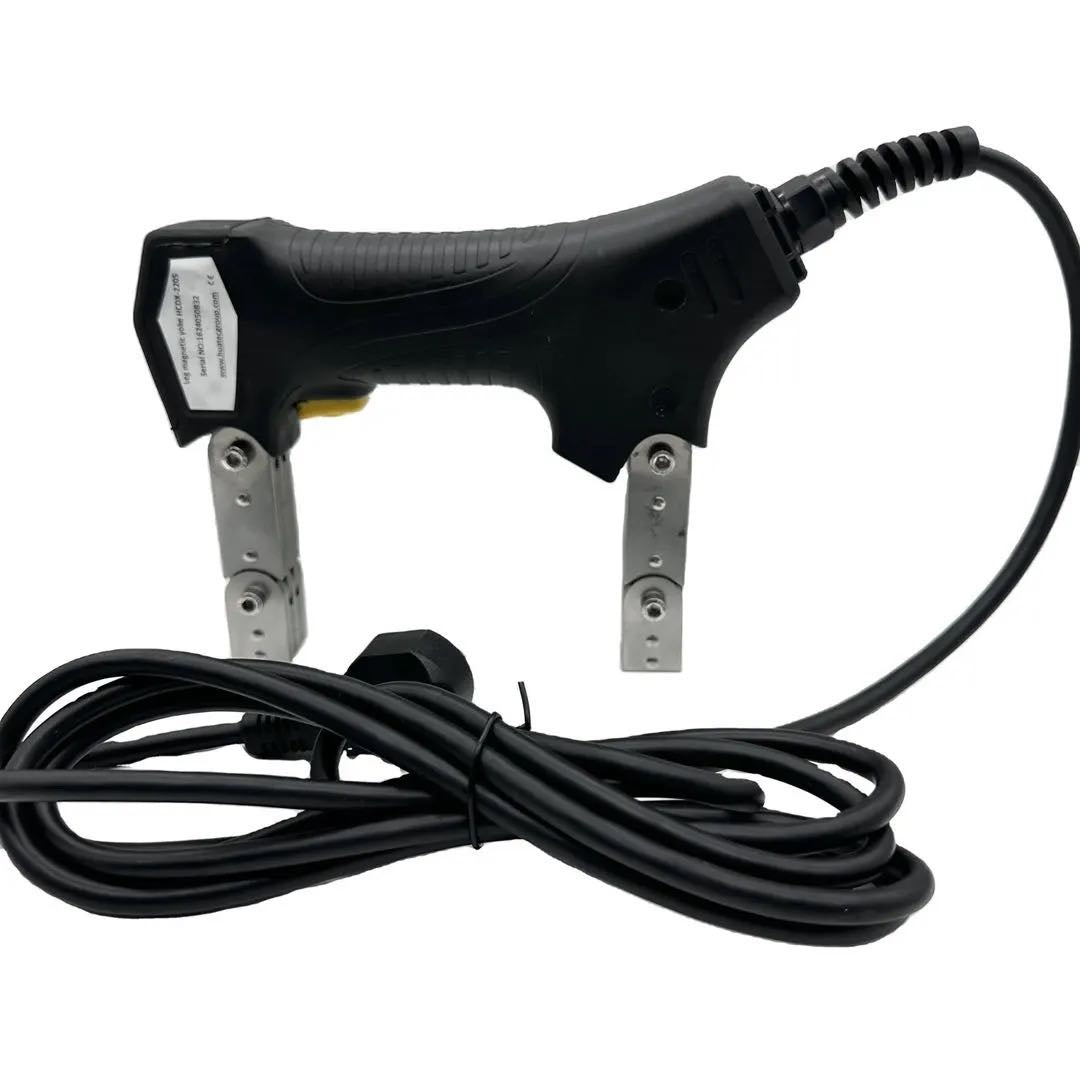

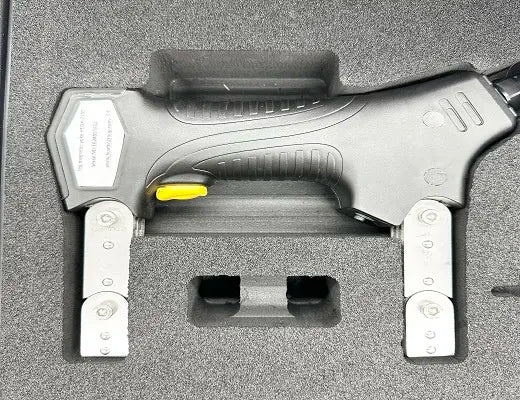

The Handy Magnetic Flaw Detector 220S is a portable and reliable inspection tool designed for magnetic particle testing. Its durable ABS and metal construction ensures long-lasting performance, while its built-in light source enhances visibility during inspections. This device is ideal for identifying surface and near-surface defects in ferromagnetic materials, making it a valuable tool for industrial inspections in various sectors.

Key Features

• Portable Design: Compact and easy to use with built-in light for enhanced visibility.
• Robust Construction: Sealed ABS and metal casing for durability and reliability.
• Waveform: Utilizes AC magnetization for accurate detection.
• Lifting Force: AC lifting force ≥ 68.6N (7kg) for efficient testing.

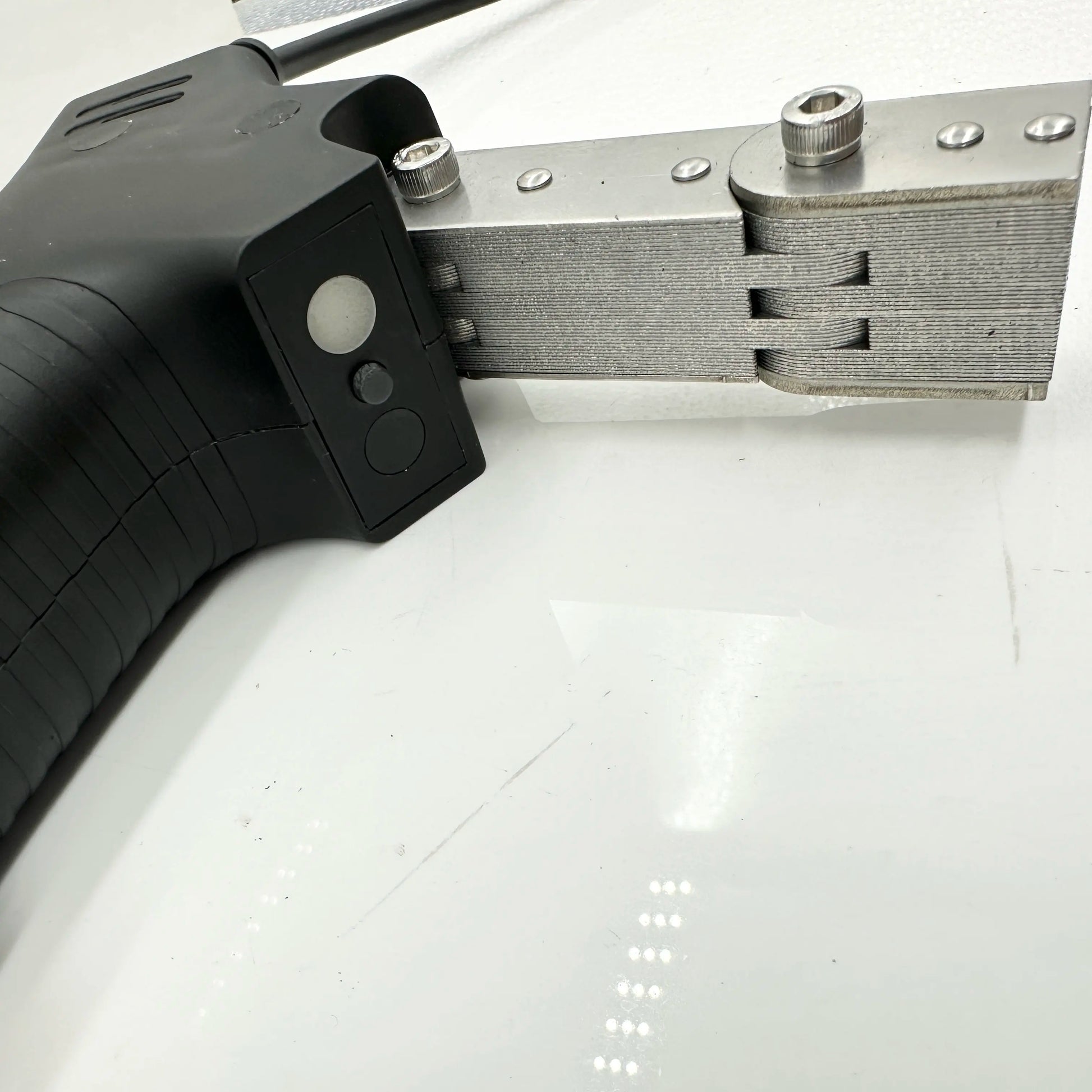

• Light Source: Built-in white light with illuminance ≥ 2000 Lux for detailed inspections.
• Operational Standards: Adheres to ASME BPVC, ASTM E709, ASTM E1444, ASTM E3024, and ISO 9934 standards.
• Temperature Range: Operates in temperatures between -10°C and +40°C.
• Duty Cycle: 5 minutes on, 1 minute off for optimal performance and durability.

Specifications

• Type: MT Yoke Magnetization Detection.
• Sensitivity: Designed for precise defect detection.
• Electrical Requirements:
  • AC110-115V 50/60Hz
  • AC220-230V 50/60Hz
  • AC240V 50/60Hz
• Probe Volume: 200mm x 48mm x 158mm.
• Working Temperature: -10°C to +40°C.
• Standards Compliance:
  • ASME BPVC
  • ASTM E709
  • ASTM E1444
  • ASTM E3024
  • ISO 9934 3

Applications

• Inspection of welds, castings, and ferromagnetic materials.
• Suitable for industrial quality control and maintenance operations.

Warranty and Support

• Warranty: 12 months.

Downloads

Data Sheet Link
