Magnetic Yoke Flaw Detector Kit Model-I

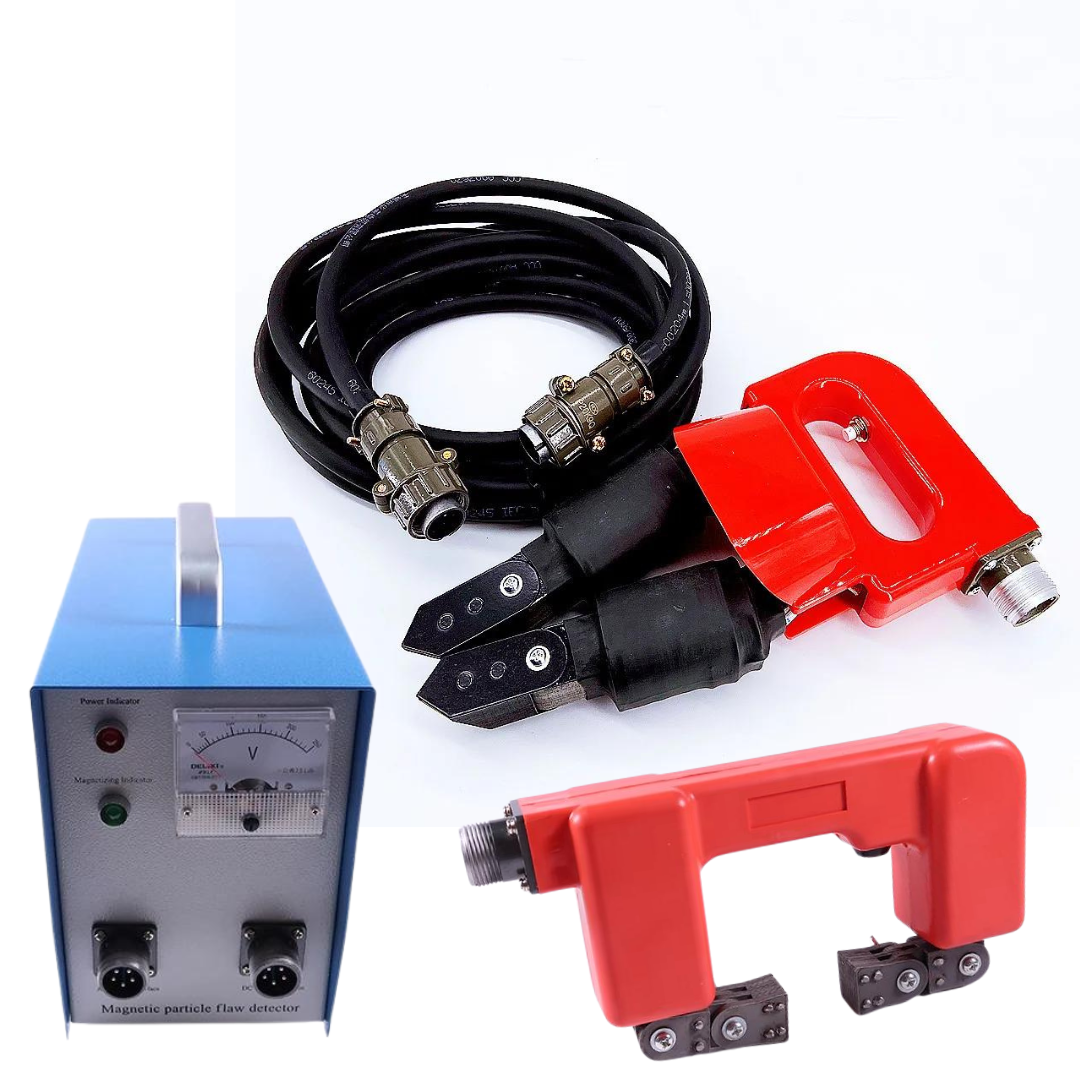

Magnetic Yoke Flaw Detector Set TCDX-I (Probes A & D)

Configuration: Comes standard with Probe type A and D

Function and Features:

• A specialized instrument for small, portable nondestructive testing, designed to magnetize the workpiece to reveal cracks.
• Stable, reliable performance with convenient operation.
• This product generates a magnetic field directly in the workpiece using a coil wound around the probe.
• Features a compact design, lightweight, substantial lifting force, and adjustable joint.
• Optional probes are available to cater to specific user requirements.
• Outputs low-voltage electricity, suitable for environments where high-voltage detectors are prohibited.

Application Fields:

• Ideal for defect detection in oil fields, shipbuilding, automotive industries, mining, machinery, medical equipment, aviation, and internal combustion engine parts.
• Appropriate for inspection of welds, flat steel, pressure vessels, pipelines, shafts, and complex-shaped parts.

Technical Specification:

• Input voltage: AC 220V±10%
• Output voltage: AC 36V
• Output current: >10A
• Lifting capacity: >5kg
• Duty cycle: 50%
• Sensitivity Type: A-type1# (specimens show clearly)
• Overall dimensions: 230×160×56120mm (length x height x width)
• Weight: 5kg

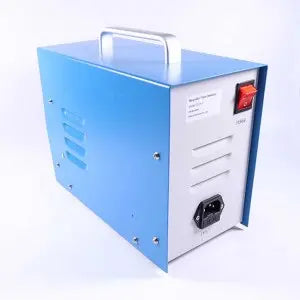

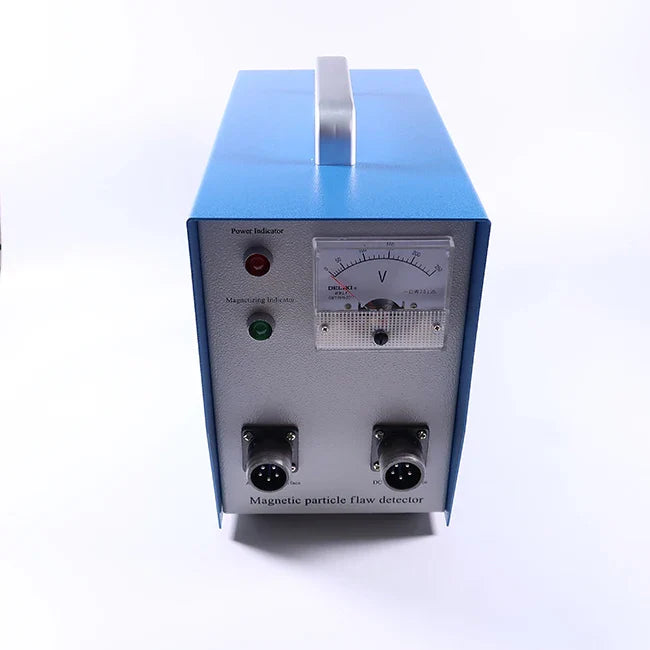

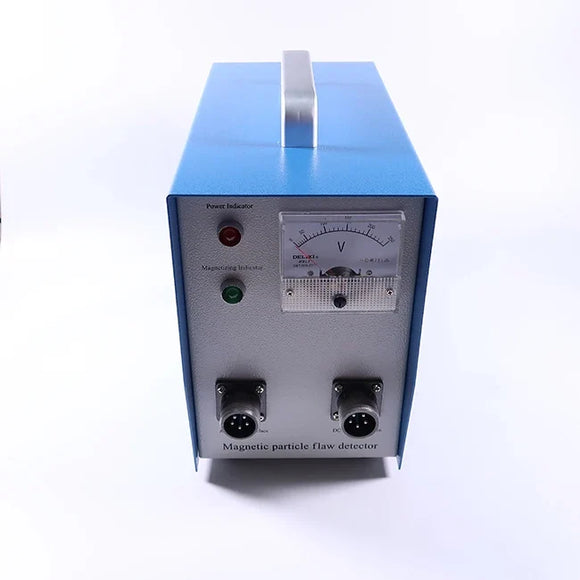

• Standard configuration includes: Main machine, A-type magnetic yoke, power line, cable, packing list, manual, and certificate.

Features of the Optional Probes:

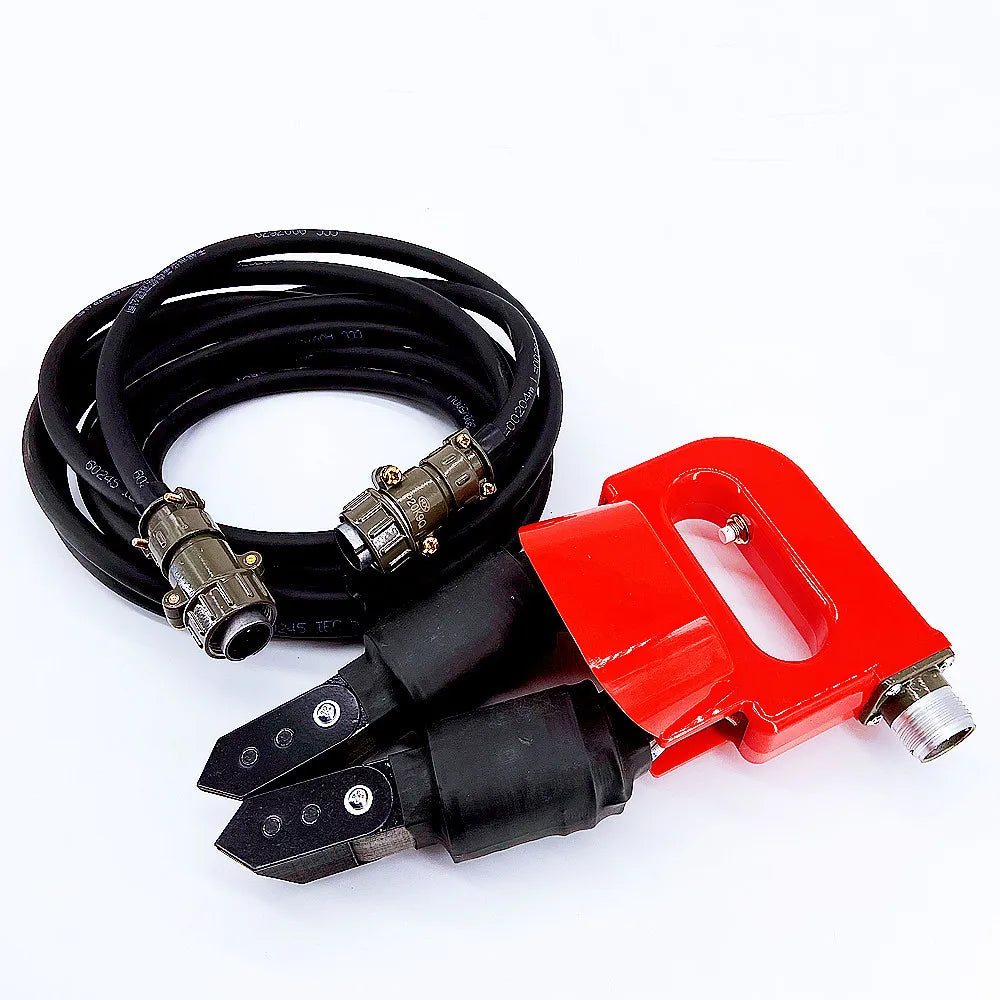

• A-type probe: U-shaped magnetic yoke weld probe with a turning joint slope magnetic head, equipped with a work light. It is especially suitable for special-shaped and intricately shaped workpieces. Probe distance: 20-160mm; lifting power: AC?5kg, DC?18kg. Equipped with an electromagnetic yoke fillet weld flaw detector, these probes are adjustable with a wide usage range.
• D-type probe: Electromagnetic yoke probe with multiple movable joints, offering strong magnetization. Probe distance: 60-220mm; lifting power: AC?6kg, DC?20kg. The probe is known for its high permeability and strong magnetization.
• E-type probe: Crossed yoke probes or rotating magnetic field probes perform magnetic detection in one operation. Walking wheels and a work light significantly speed up defect detection. Probe distance: 110mm; lifting power: AC?8kg. Equipped with a rotating magnetic field detector.
• O-type probe: Also known as an annular probe, with an inner diameter of 150mm and a center magnetic field ?180Oe. Equipped with an annular defect detector, it is designed using a strong magnetic field generated by an electrified coil, suitable for sectional detection and demagnetization of complex workpieces like mandrels, pipelines, and bolts.

Downloads

PDF Specification Sheet -"https://cdn.shopify.com/s/files/1/0623/8299/7695/files/ITS_MT_Flaw_Detector_Of_Magnetic_Particle_Testing.pdf?v=1718507915" rel="noopener" target="_blank">Download Here
