Motorized Ultrasonic Hardness Tester with Leeb Probe SU-400M

Motorized Ultrasonic Hardness Tester with Leeb Probe SU-400M

$13,330.00
$13,330.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Product Description

Portable Universal Dynasonic Hardness Tester SU-400M

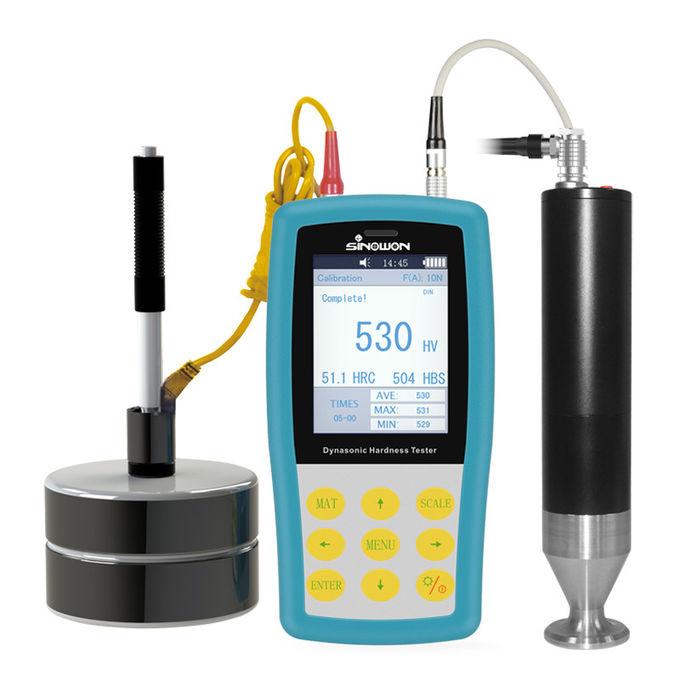

Universal Portable Hardness Tester Dynasonic SU-400M CE Certified 0



Brief Introduction:

●  SU-400 Dynasonic Hardness Tester is a universal portable durometer with twin—testing-method. It applies twin-method about state ultrasonic contact impedance: UCI and dynamic rebound: Leeb to make hardness testing in one instrument, it solves the dilemma that Leeb method can not test the hardness of plating and coating (in UCI), and UCI method can not test the coarse crystal material in the casting industry (in Leeb).

●  SU-400 can not only work with the UCI motorized and manual probes, but also work with the Leeb impact probe, it is universal to test the hardness of material with the fine crystal structure or coarse crystal structure in the metal industry.

●  SU-400 UCI probe system is perfect to measure hardness testing about the coating and plating, which can measure the hardness of chrome, copper plating, carburized layer and Nitriding layer effectively.

●  SU-400 dynamic Leeb probe system is suitable to measure hardness of coarse material, such as, casting and forging.

●  SU-400 is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution to test hardness of finished products, such as, the mold, gear, shaft, rod, screw, rails, etc.

●  SU-400 conforms the standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017, GB/T 17394.



Features:

●  One instrument two applications—Support ultrasonic probe and Leeb impact device.

●  Metal shell—Metallic texture, shield electromagnetic interference effectively, improve instrument stability.

●  Color screen display—Display the current measurement value, accumulative measurement value, Max, Min and Ave value.

●  Bluetooth transferring—Support wireless Bluetooth print and data transferring.

●  Mass storage—Save 1000 groups data.

●  Calibration access—Save 20 groups calibration data without doing calibration for the same material over and over.



Specifications:



Commodity Dynasonic Hardness Tester
Model SU-400M
Code# 882-151M
Ultrasonic Probe Manual Probe HP-1K,HP-2K,HP-5K,HP-10K and Motorized ProbeMP-300,MP-500,MP-800,MP-1000
Impact Devices Standard delivery: D(optional DC,DL,D+15,C, G)
Hardness Scale HL, HV, HB, HRC, HRB, HRA, HS, etc.
Measuring Range

HV:50～1599; HRC:20～68; HB:76～650；

HRB:41～105; HLD:170～960；
Measuring Accuracy HV: ±3%HV; HRC: ±1.5HRC; HB: ±3%HB; HL: ±8HL
Resolution 0.1HR, 1HV, 1HB, 1HLD,0.1HS
Result Display Measurement value, Max, Min, Ave, single mode, batch mode, etc.
Data Storage 1000 group test results and 20 group calibration data
Data Transfer Bluetooth
Continuous Working Period 10h (turn off the back light)
Operating Environment Temperature: -10℃~50℃; Humidity: 30%~80%
Operating Voltage 4.2V
Charge Mode USB
Dimension 160*80*31mm
Weight ≤500g(probe not included)




Ultrasonic Hardness Tester Manual Probe

Universal Portable Hardness Tester Dynasonic SU-400M CE Certified 1

Features:



●  Introduced latest ultrasonic sensor technology

●  Obtain accurate hardness value without auxiliary devices

●  Support 360° quick measuring

●  Excellent human engineering design easy to hold

●  Suitable dimension and weight of probe is convenient to control

●  Quick and accurate measuring for edge and fixed position of specimen

●  Micro indentation, Non-Destructive for specimen



Manual Probe Specifications:



Probe Type HP-1K HP-2K HP-5K HP-10K
Code# 882-311 882-321 882-331 882-341
Remark Optional Standard Optional Optional
Loading force 10N 20N 50N 98N
Diameter 21mm 21mm 21mm 21mm
Length 154mm 154mm 154mm 154mm
Oscillating Rod Diameter 2.4mm 2.4mm 3mm 3mm
Roughness of measuring surface Ra<3.2um Ra<5um Ra<10um Ra<15um
Min weight of test material 0.3kg 0.3kg 0.3kg 0.3kg
Min thickness of test material 2mm 2mm 2mm 2mm

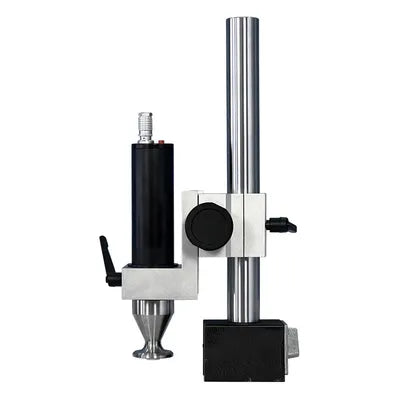

Ultrasonic Hardness Tester Motorized Probe:

Universal Portable Hardness Tester Dynasonic SU-400M CE Certified 2



Features:



●  Introduced latest ultrasonic sensor technology

●  Obtain accurate hardness value without auxiliary devices

●  Excellent human engineering design easy to hold

●  Quick and accurate measuring for edge and fixed position of specimen

●  Micro indentation, no destructive for specimen

●  Motorized control, one key fast measuring

●  Eliminate hand shake error by manual probe, higher accuracy and repeatability

●  More suitable for thin pieces, coating layer hardness





Motorized Probe Specifications:



Probe Type MP-300 MP-500 MP-800 MP-1000 MP-2000
Code# 882-221 882-231 882-241 882-251 882-261
Remark Optional Optional Optional Optional Optional
Loading force 3N 5N 8N 10N 20N
Diameter 46mm 46mm 46mm 46mm 46mm
Length 200mm 200mm 200mm 200mm 200mm
Oscillating Rod Diameter 3.7mm 3.7mm 3.7mm 3.7mm 3.7mm
Min weight of test material 0.3kg 0.3kg 0.3kg 0.3kg 0.3kg
Min thickness of test material 2mm 2mm 2mm 2mm 2mm



Portable Universal Dynasonic Hardness Tester Application:



●  Hardness measurement of flange edge and gear root stamping, mold, sheet, surface hardened tooth and gear groove, and taper part;

●  Hardness measurement of axis , thin-wall pipe and container;

●  Hardness measurement of wheels and turbine rotor;

●  Hardness measurement of bit blade;

●  Hardness measurement of welding parts;

●  Measurement of certain aperture depth deep dent, convex mark greater radian, irregular plane;

●  Hardness measurement of most ferrous metal ,nonferrous metals and other alloys in industrial production.

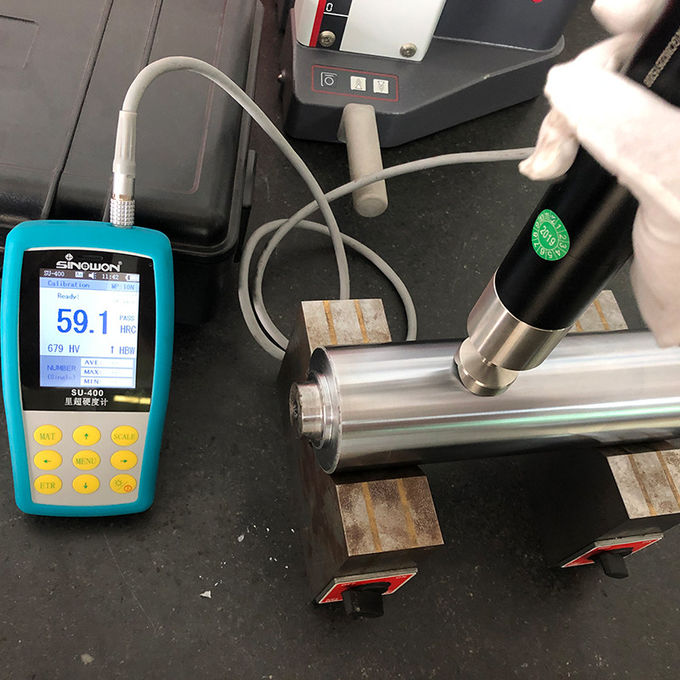

Universal Portable Hardness Tester Dynasonic SU-400M CE Certified 3Universal Portable Hardness Tester Dynasonic SU-400M CE Certified 4

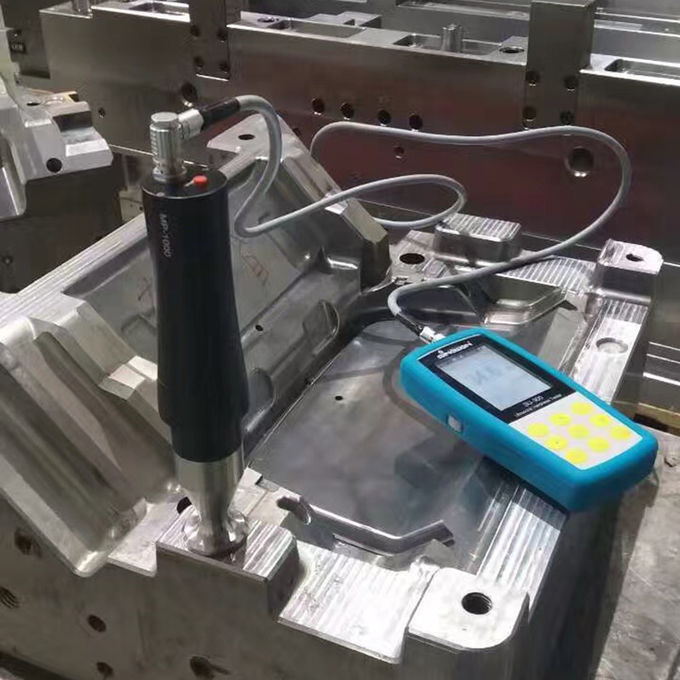

Universal Portable Hardness Tester Dynasonic SU-400M CE Certified 5

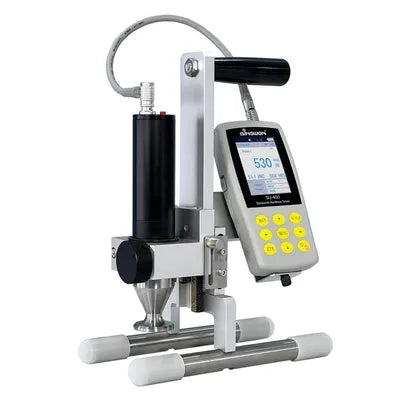

Universal Portable Hardness Tester Dynasonic SU-400M CE Certified 6

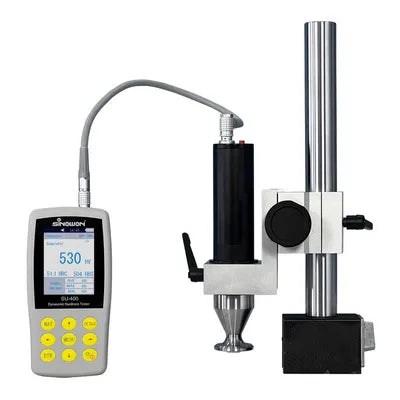

Universal Portable Hardness Tester Dynasonic SU-400M CE Certified 7
