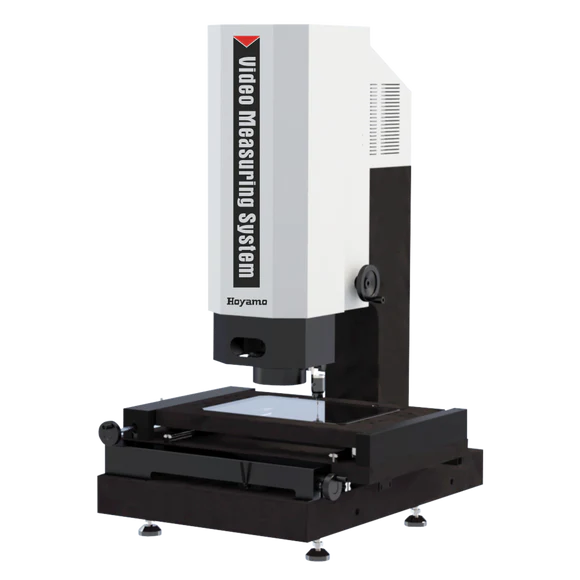

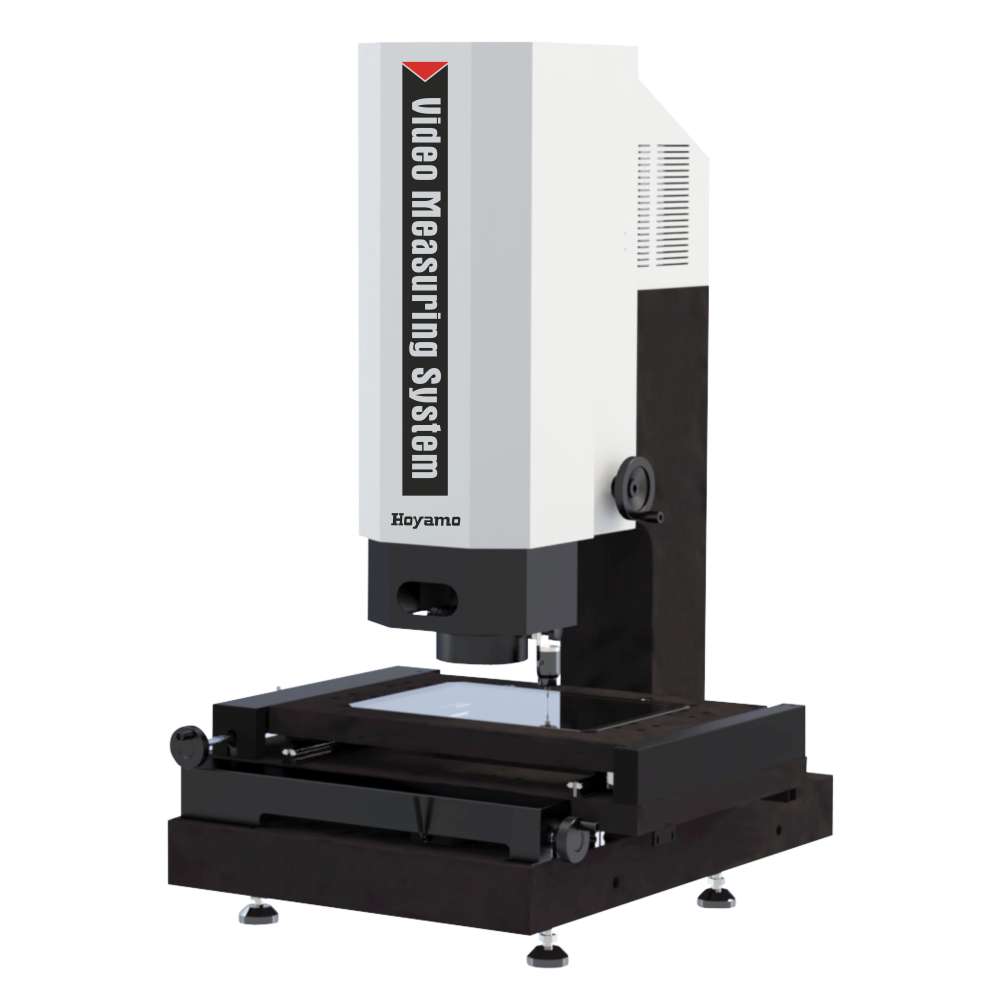

Manual Video Measuring System VMS-3020
Manual Video Measuring System VMS-3020
Couldn't load pickup availability
Product Description:
Boost Efficiency and Accuracy with the VMS-3020 Manual Video Measuring System
Elevate your factory’s quality control with the VMS-3020 Manual Video Measuring System—a dependable and precise solution for dimensional inspection. Designed with a solid granite base and cutting-edge optics, this machine delivers consistent, micron-level measurements to meet the highest industry standards.
Core Features:
-
Granite Base & Column: Provides maximum stability and vibration resistance for long-term accuracy.
-
High-Precision Movement: Toothless polished rod with fast-lock system ensures return error stays within 2μm.
-
Accurate Measurement System: Optical ruler and precision worktable deliver accuracy of ≤3.0+L/200μm.
-
Advanced Optical Performance: Equipped with a high-resolution color digital camera and a zoom lens for distortion-free imaging.
-
Smart LED Lighting System: 4-ring, 8-area programmable LED surface illumination and contour parallel lighting, with an intelligent brightness control module.
-
Integrated Measurement Software: Powered by iMeasuring Vision software to support advanced 2D and 2.5D measurements.
-
Expandable Capabilities: Optional contact probe and 3D measurement software allow full 3D inspection. Autofocus module available for semi-automatic operation.
Specification
|
Model |
VMS-3020 |
|
Marble Workbench |
(505*350)mm |
|
Glass Workbench |
(356*248)mm |
|
X/Y axis Travel |
(300*200)mm |
|
Z axis travel |
High-precision linear guide, effective travel 200mm |
|
X/Y/Z aixs resolution |
0.5um |
|
Pedestal and Uprights |
High Precision Granite |
|
Measurement Accuracy* |
XY axis: ≤3.0+L/200(um)；Zais：≤5+L/200(um) |
|
Repart Accuracy |
2um |
|
Illumination System(Software Adjustment) |
Surface 4 rings and 8 zones infinitely adjustable LED cold Illumination |
|
Contour LED Parallel Illumination |
|
|
Optional Coaxial Light |
|
|
Digital Camera |
1/3"/1.3Mpixel High Resolution Digital Camera |
|
Zoom Lens |
6.5X High-Resolution Zoom lens; |
|
Optical Magnification: 0.7X~4.5X times; Video Magnification: 26X~172X(21.5” Monitor) |
|
|
Measuring Software |
iMeasuring |
|
Operation System |
Support WIN 10/11-32/64 Operating System |
|
Language |
English, Simplified Chinese, Traditional Chinese, Optional other language versions |
|
Working Environment |
Temperature 20℃±2℃, temperature change <1℃/Hr; Humidity 30%~80%RH; Vibration <0.02g's, ≤15Hz. |
|
Power Supply |
AC220V/50Hz; 110V/60Hz |
|
Dimension(WxDxH) |
(740*634*1075)mm |
|
Gross/Net Weight |
275/208Kg |
Variations
|
Product Category |
Manual Video Measuring System |
Semi-auto Video Measuring System |
|||
|
Sensor Configuration |
2D |
2.5D |
3D |
2.5D |
3D |
|
Commodity |
2D Video Measuring System |
2.5D Video Measuring System |
3D Contact & Video Measuring System |
2.5D SemiautomaticVideo Measuring System |
3D Semiautomatic Contact & Video Measuring System |
|
Product Picture |
|
|
|
|
|
|
Model |
VMS-3020 |
VMS-3020A |
VMS-3020B |
VMS-3020C |
VMS-3020D |
|
Type |
------ |
A |
B |
C |
D |
|
Significance |
Optical Zoom-lens Sensor |
Optical Zoom-lens Sensor |
Zoom-lens Sensor and Contact Probe Sensor |
Zoom-lens Sensor and Z- axis Autofocus Function |
Zoom-lens Sensor, Contact Probe Sensor and Autofocus Function |
|
Z-axis Auto-focus |
Without |
Without |
Without |
With |
With |
|
Contact Probe |
Without |
Without |
With |
Without |
With |
|
Software |
iMeasuring2.0 |
iMeasuring2.1 |
iMeasuring3.1 |
iMeasuring2.2 |
iMeasuring3.1 |
|
Operation |
Manual |
Manual |
Manual |
Semi-auto |
Semi-auto |
|
Model |
Code# |
Model |
Code# |
Model |
Code# |
Model |
Code# |
|
VMS-2015 |
525-020E |
VMS-2515 |
525-020F |
VMS-3020 |
525-020G |
VMS-4030 |
525-020H |
|
VMS-2015A |
525-120E |
VMS-2515 |
525-120F |
VMS-3020A |
525-120G |
VMS-4030A |
525-120H |
|
VMS-2015B |
525-220E |
VMS-2515 |
525-220F |
VMS-3020B |
525-220G |
VMS-4030B |
525-220H |
|
VMS-2015C |
525-320E |
VMS-2515 |
525-320F |
VMS-3020C |
525-320G |
VMS-4030C |
525-320H |
|
VMS-2015D |
525-420E |
VMS-2515 |
525-420F |
VMS-3020D |
525-420G |
VMS-4030D |
525-420H |
|
Travel mm |
Model |
Code# |
X Axis Travel mm |
Y Axis Travel mm |
Z Axis Standard Travel mm |
Z-axis Maximum Customized Travel mm |
|
100x100x100 |
VMS-1010 |
525-020C |
100 |
100 |
100 |
------ |
|
150x100x100 |
VMS-1510 |
525-020D |
150 |
100 |
100 |
------ |
|
200x150x200 |
VMS-2015 |
525-020E |
200 |
150 |
200 |
300 |
|
250x150x200 |
VMS-2515 |
525-020G |
250 |
150 |
200 |
300 |
|
300x200x200 |
VMS-3020 |
525-020G |
300 |
200 |
200 |
400 |
|
400x300x200 |
VMS-4030 |
525-020H |
400 |
300 |
200 |
400 |
|
500x400x200 |
VMS-5040 |
525-020J |
500 |
400 |
200 |
400 |
|
600x500x200 |
VMS-6050 |
525-020K |
600 |
500 |
200 |
400 |
