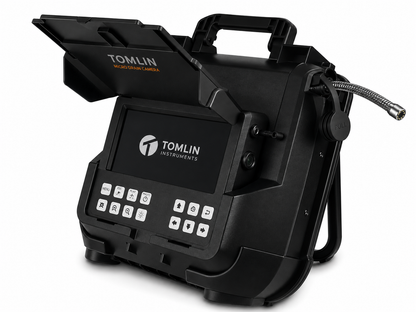

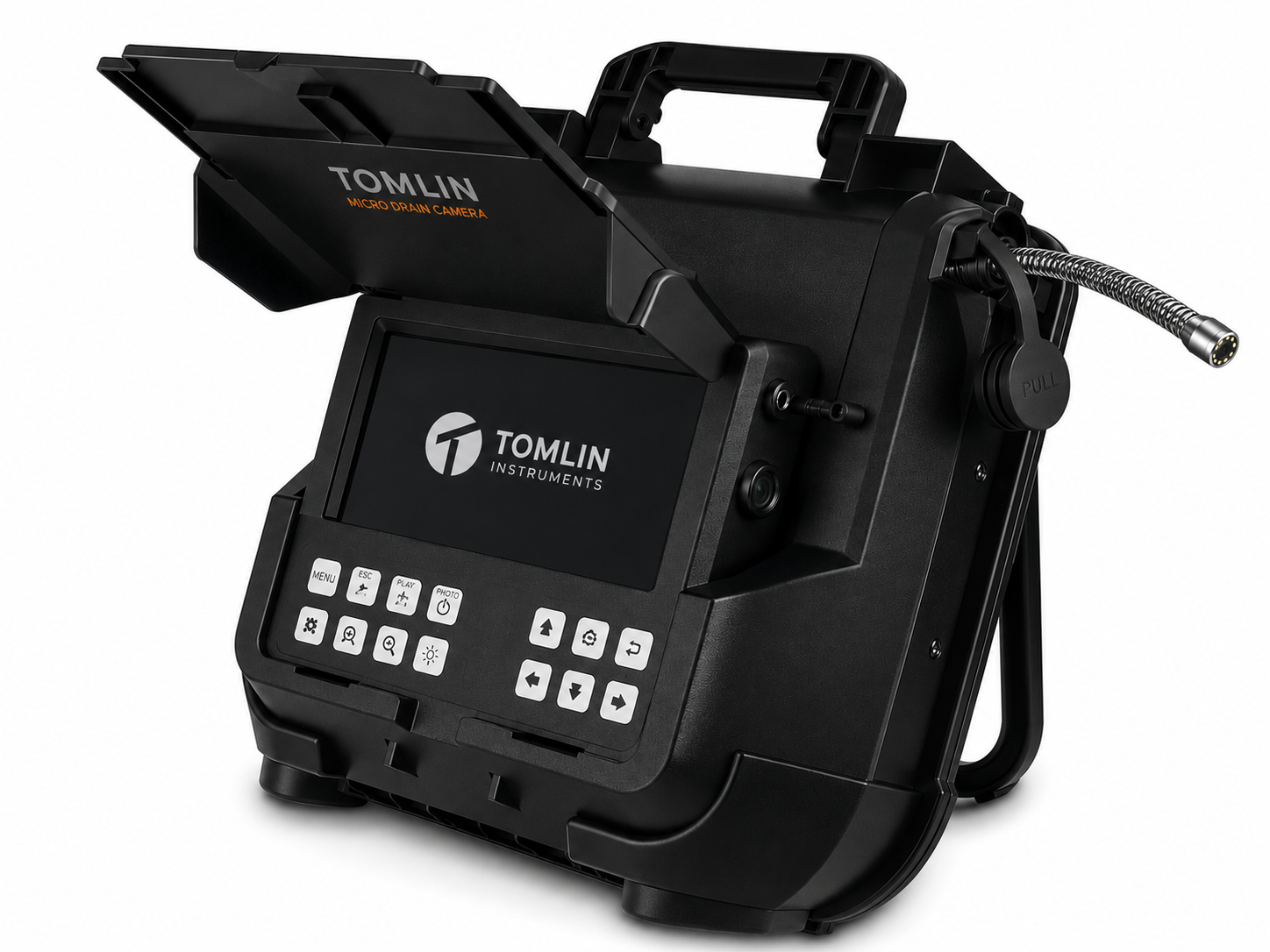

Tomlin Micro Drain Camera – TC-V8-20

Product Description

The Tomlin TC-V8-20 is a professional micro drain inspection camera designed for inspecting small diameter drains, conduits and service pipes from 25mm to 75mm in diameter.

Featuring a compact 20mm HD waterproof camera head, 8-inch HD IPS LCD monitor, and 30m fibreglass push rod, the TC-MD-08-30 provides excellent image quality and manoeuvrability for residential plumbing, maintenance and service applications.

Its lightweight all-in-one design allows plumbers and maintenance technicians to quickly diagnose blockages, inspect pipe condition and record inspection footage without bulky equipment.

---

Key Features

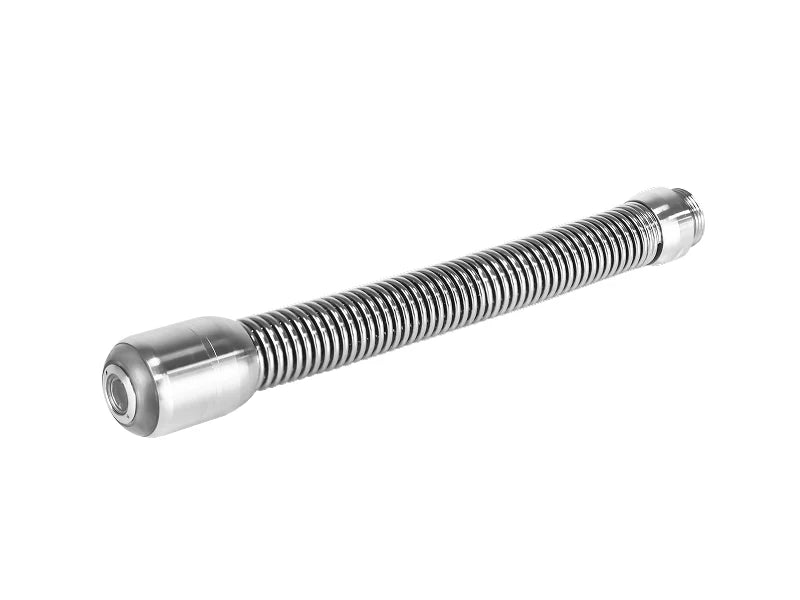

• 20mm HD waterproof camera head (Forward View)

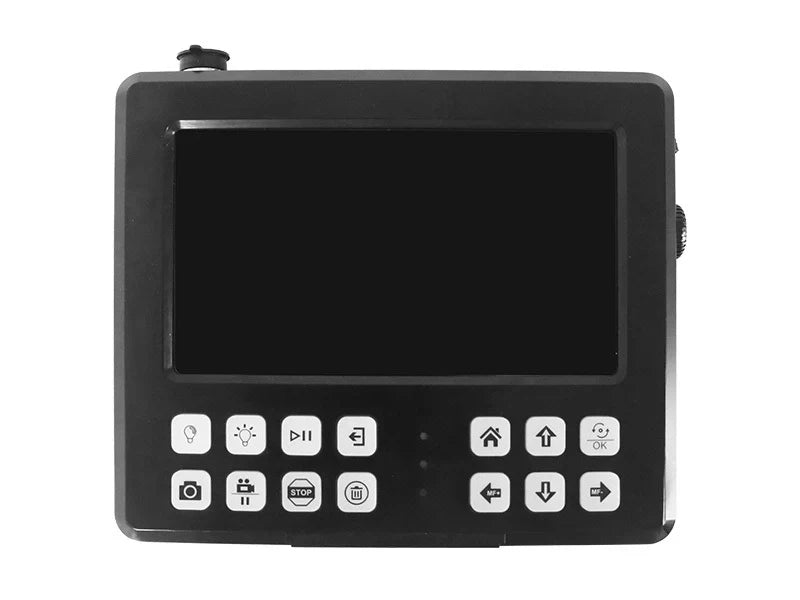

• 8" HD IPS LCD monitor

• Suitable for 25–75mm pipe diameters

• 30m fibreglass push rod

• 1080P HD camera

• MP4 video, photo and audio recording

• Digital metre counter

• Removable 6800mAh Li-ion battery

• Stainless steel camera housing

• IP68 waterproof camera head

---

Technical Specifications

Camera Head

---

Display & Recording

---

Cable & Reel

---

Power

---

General

---

Applications

• Residential drain inspections

• Kitchen and bathroom waste pipes

• Stormwater drains

• Electrical conduits

• HVAC duct inspections

• Building maintenance

• Preventative maintenance

• General plumbing diagnostics

---

Typical Users

• Plumbing contractors

• Drain cleaning specialists

• Building maintenance technicians

• Property maintenance companies

• Facility managers

• Home inspectors

• Service technicians

---

Benefits

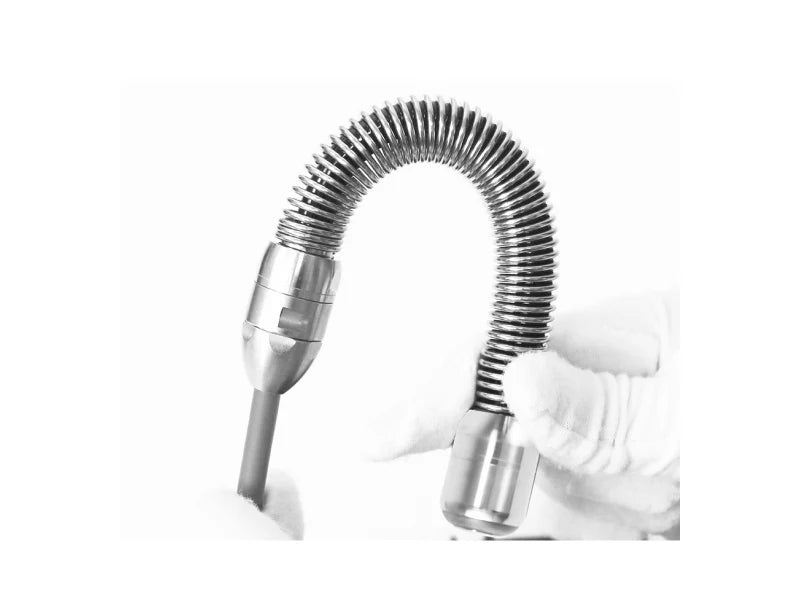

Compact 20mm Camera Head

The slim camera head is designed for navigating smaller pipework while providing clear HD inspection images.

Professional HD Recording

Capture high-definition video, photographs and audio recordings for maintenance records and customer reporting.

Portable All-in-One System

Compact integrated design allows quick deployment on site and easy transport between jobs.

Accurate Fault Location

The digital metre counter displays cable distance, making it easier to identify the exact location of defects.

Rugged Industrial Construction

Stainless steel camera housing and IP68 waterproof rating provide durability in demanding inspection environments.

---

What's Included

• Tomlin TC-V8-20 Inspection Camera

• 20mm HD Camera Head

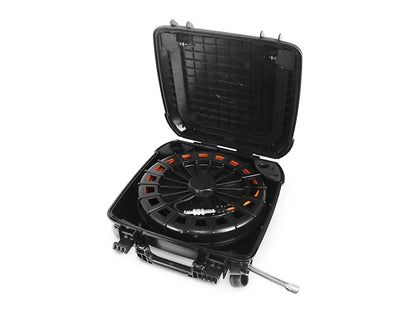

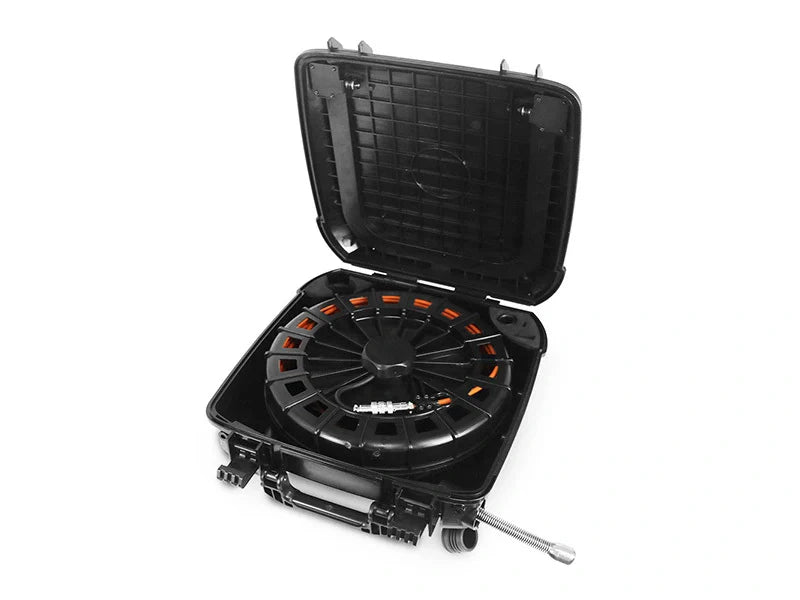

• 30m Fibreglass Push Rod Reel

• 8" HD IPS LCD Control Unit

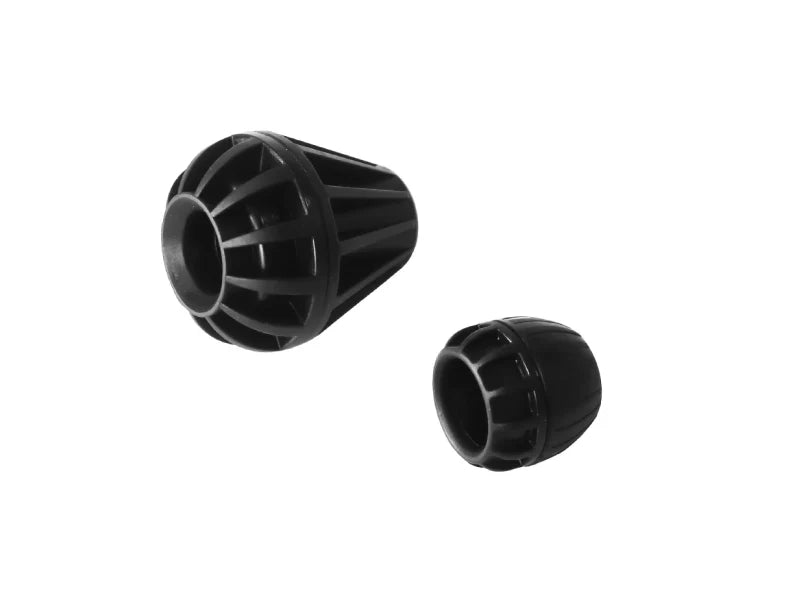

• Camera skids (30mm & 50mm)



• Rechargeable 6800mAh Battery

• Battery Charger

• User Manual

---

Optional Accessories

• Replacement battery

• Spare camera head


• Cleaning kit

• Additional push rod accessories

---

Why Choose the TC-V8-20?

The TC-V8-20 is the most compact inspection camera in the Tomlin range and is purpose-built for plumbers and maintenance professionals working with smaller drainage systems. Its lightweight all-in-one design, HD recording capability and slim 20mm camera head make it ideal for everyday service work where portability and reliability are essential.



Help Me Choose

Product Family	Tomlin Part No.	Camera Head	Typical Pipe Size	Cable Lengths	Screen	Self Levelling	Sonde	Best For
Micro Drain Camera	TC-V8-20	20mm Forward View	25–75mm	30m	8"	No	No	Household drains, sinks, showers and small waste pipes
Self-Levelling Pipe Inspection Camera Mini	TC-V9-23	23mm Self Levelling	30–150mm	30–40m	9"	Yes	Yes	Residential and commercial drain inspections
Self-Levelling Pipe Inspection Camera	TC-V13-WS29	29mm Self-Levelling	50–200mm	40-50m	13"	Yes	Yes	Professional drain inspections requiring an upright image
Heavy Duty Sewer Camera	TC-V13-3240AHD	40mm Self-Levelling	100–400mm	60–150m	13"	Yes	Yes	Main sewer lines, municipal infrastructure and civil contractors
Pan Tilt Sewer Camera	TC-V13-3250PTF	33mm or 50mm Pan & Tilt	75–1000mm+	60–150m	13"	No	Yes	Large diameter pipelines requiring full directional viewing
Dual View Sewer Camera	TC-V13-3245DU	45mm Dual View	100–600mm	60–150m	13"	No	Yes	Sewer condition surveys, junctions and lateral inspections
Advanced Multi-Camera Inspection System (SL)	TC-V13-DR23SL/17	23mm Self-Levelling + 17mm Camera	25–150mm	30m + 50m	13"	Yes	Yes	One system for domestic and commercial inspections
Advanced Multi-Camera Inspection System (SLPT)	TC-V13-DR33/23SL	23mm Self-Levelling + 33mm Pan & Tilt	20–1000mm+	30m + 50m	13"	Mixed	Yes	Complete inspection solution from household drains to large sewers
