Microsecond Timer

Product Description:

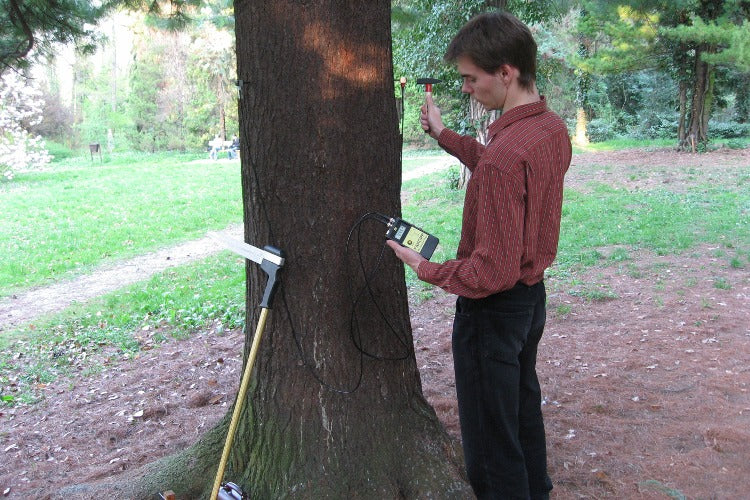

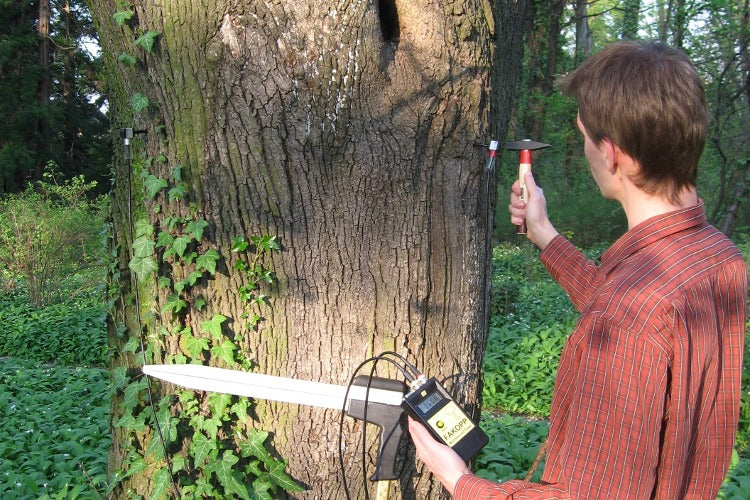

The Microsecond Timer is designed to measure the transit time in microseconds, providing highly accurate detection of larger decays and holes in trees. It is an incredibly fast device, capable of measuring up to 100 trees in a single day.

Product Features:

• Measures transit time in microseconds.
• High-speed measurements, capable of handling up to 100 trees per day.

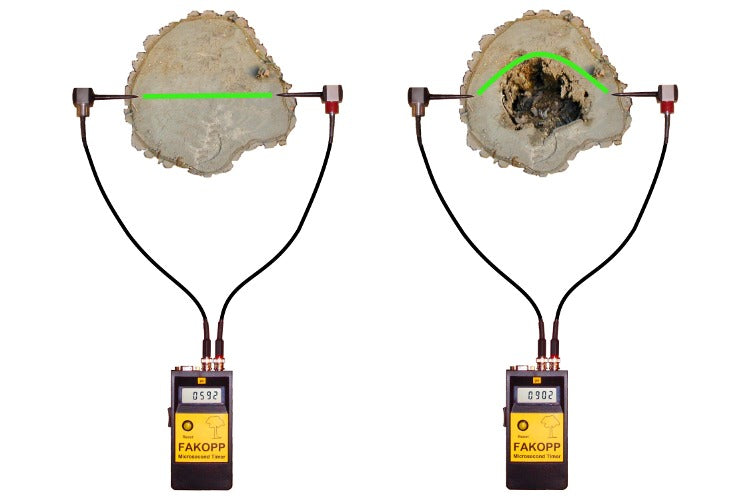

• Effective in detecting significant decays and cavities.

Technical Specifications:

• Time Required for One Measurement: Less than 1 minute*
• Time Measurement Error: ± 3 microseconds
• Size: 45 x 82 x 150 mm**
• Weight: 347 g
• Battery: Standard rechargeable 9V
• Power Consumption: 320 mW
• Device Box: Plastic, not water-resistant

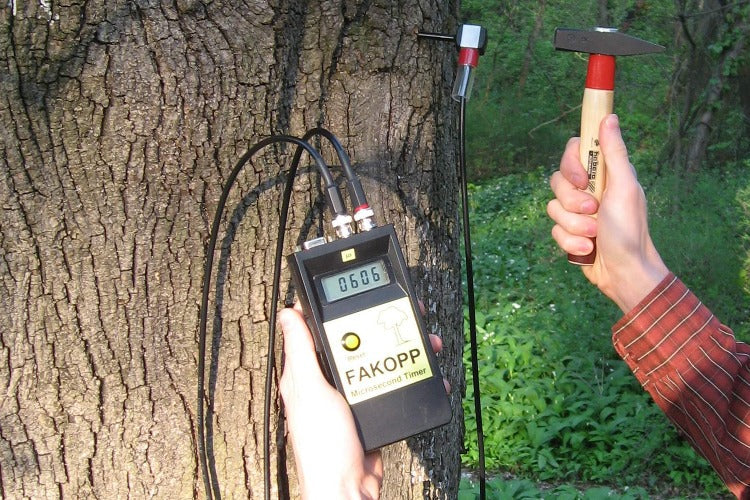

• Screen: 4-digit LCD screen
• Sensors: SD02 piezo sensor
• Sensor Connectors: BNC
• RS232:
• Baud Rate: 2400 bps
• Data Format: ASCII
• Connector: DIL 9, male
• Operating Temperature Range: 0-40 °C

*Including mounting and removing both sensors

**Without sensors

Package Contents:

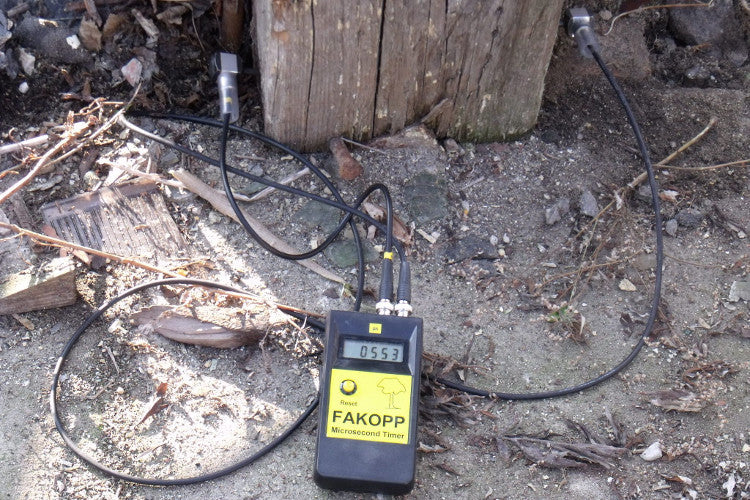

• Microsecond Timer box

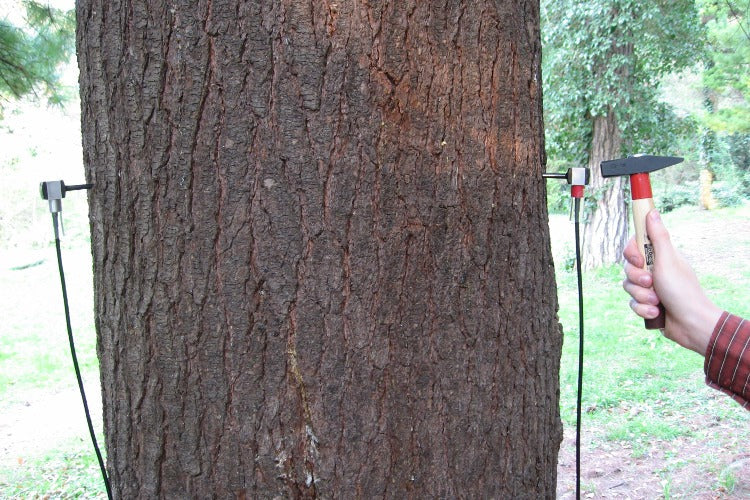

• Two SD02 sensors with integrated cables and BNC connectors
• Hammers: 100 g steel and rubber
• Leather case
• Aluminum reference bar (44 cm long)
• User's manual
• Rechargeable batteries
• Battery charger
• USB-to-RS232 cable for PC connectivity (no RS232 port needed on the PC side)
• PC software for raw data acquisition and storage
