Product Overview

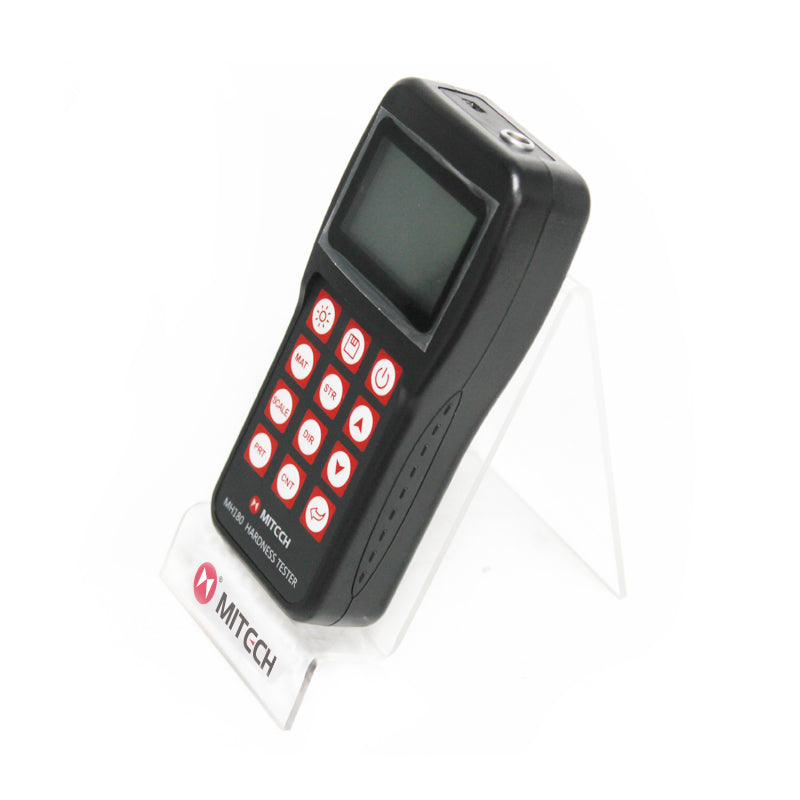

The Mitech MH180 Portable Leeb Hardness Tester is a lightweight, compact, and cost-effective tool for on-site hardness testing of a wide range of metallic materials. Based on the Leeb hardness principle, it provides fast and reliable results with automatic conversion between hardness scales including Leeb (HL), Brinell (HB), Rockwell (HRC/HRB), and Vickers (HV).
Its high-contrast LCD display, stable performance, and durable build make the MH180 an excellent choice for regular industrial use, failure analysis, and production quality control — offering great value without compromising reliability.
Key Features
-
Hardness Conversion: Supports HL, HB, HRB, HRC, and HV
-
Compact & Lightweight: Designed for easy transport and field testing
-
High-Contrast Segment LCD: For clear readability in any light
-
Quick Impact Testing: Based on rebound velocity measurement
-
Reliable Performance: Stable output with repeatable accuracy
-
Affordable & Practical: Ideal for general-purpose industrial hardness testing
Applications
-
Die cavities and precision molds
-
Steam generators and pressure vessels
-
Bearings, shafts, and engine parts
-
On-site testing of permanently assembled components
-
Large-scale metallic workpieces
-
Inventory material identification and failure analysis
Specifications
| Working Voltage | 3V(two AA size, alkaline batteries) |
| Power supply | Two ordinary AA batterie |
| Measuring range | （170～960）HLD |
| Impact direction | vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify |
| Error | D,±6 HLD |
| Repeatability | D,6 HLD |
| Material | Steel and cast steel, Cold work tool steel, Stainless steel, Grey cast iron, Nodular cast iron, Cast alu |
| Hardness Scale | HL、HB、HRB、HRC、HRA、HV、HS |
| Impact energy | D----11mJ |
| Impact weight | D----5.5g/7.2g |
| Impact ball hardness | D----1600HV |
| Impact ball diameter | D----3mm |
| Impact ball material | D----Tungsten carbide |
| Sample surface roughness | D----1.6μm；C----0.4μm |
| Min depth of harness layer | D----≥0.8mm；C----≥0.2mm |
| Display | High-contrast Segment LCD |
| Storage | 100 measurement series.(Relative to average times 32～1) |
| Calibration | Single-point calibration |
| Data printing | Thermal printing on site |
| Power consumption | Low-power design |
| Standby period | About 100h（without backlight） |
| Communication port | USB1.1 |
| Working language | English |
| Shell material | ABS plastic |
| Dimensions | 150mm×74mm×32 mm |
| Weight | 4.0KG |
| PC software | None |
Downloads
PDF Specification Sheet - Download Here
