Ultrasonic Thickness Gauge MT190

Ultrasonic Thickness Gauge MT190

$1,370.00
$1,370.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

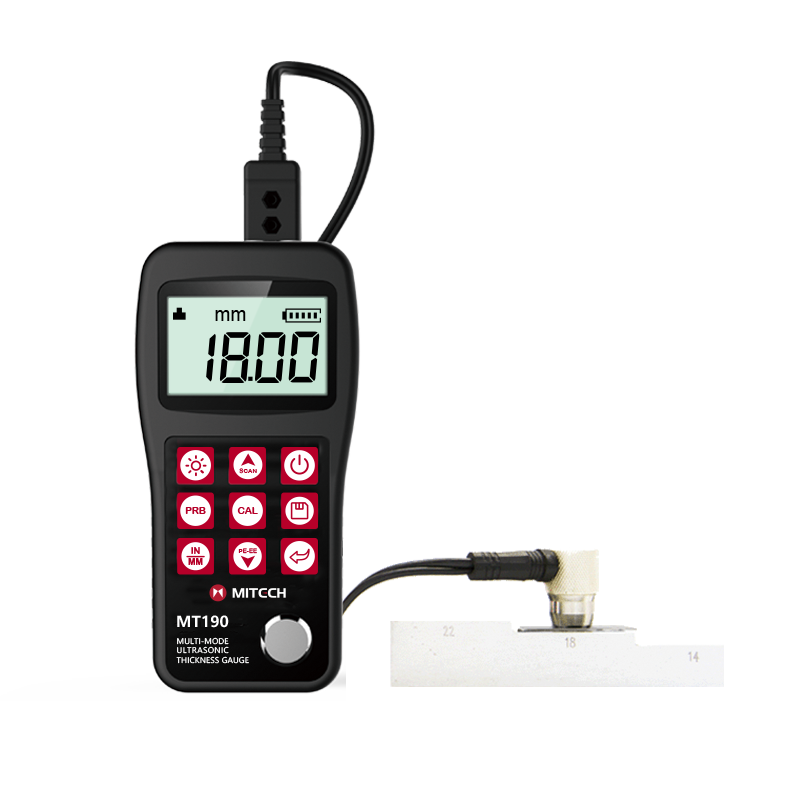

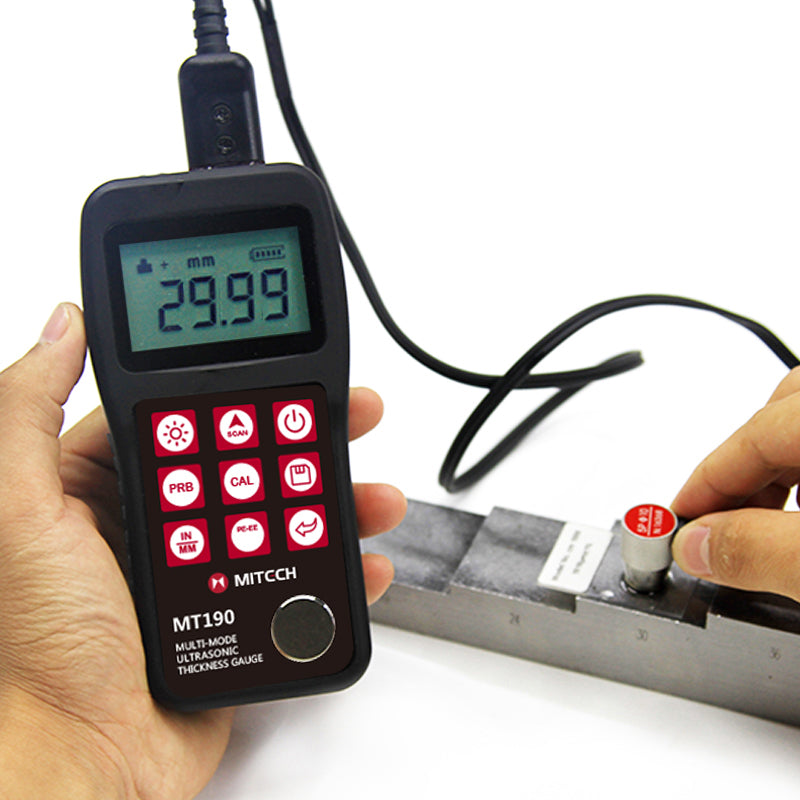

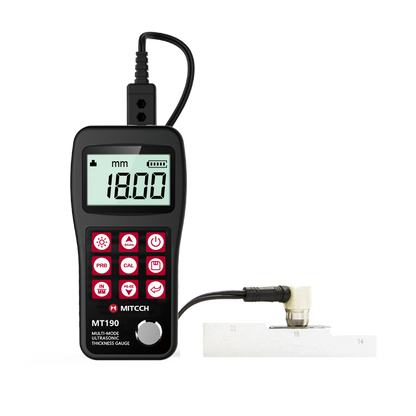

The Mitech MT190 Ultrasonic Thickness Gauge is a high-performance, multi-mode device designed for precise thickness measurement across a wide range of materials. Utilizing ultrasonic pulse technology, it delivers accurate readings even through coatings — making it ideal for evaluating corroded, coated, or hard-to-access surfaces.

Key Features

  • Multi-Mode Operation: Supports both Pulse-Echo and Echo-Echo modes

  • Through-Coating Measurement: No need to remove paint or coatings

  • Wide Material Compatibility: Works with metals, plastics, ceramics, glass, and more

  • Fast Measurement Speeds: Up to 16 readings per second in Scan Mode

  • Smart Calibration Functions: Includes Probe Zero, Sound Velocity, and Two-Point Calibration

  • User-Friendly Display: Shows coupling status, battery level, and supports metric/imperial units

  • Durable Design: Operates in harsh environments from -20℃ to +60℃

Applications

Ideal for:

  • Pipeline and pressure vessel corrosion monitoring

  • Manufacturing quality control

  • Maintenance of coated or composite materials

  • Aviation, shipbuilding, metallurgy, and chemical industries

Specifications

Measuring Range 0.65-600mm( P-E), 3-60mm (E-E)
Working Frequency (2.5-7）MHZ
Probe Diameter Standard Probe P5EE is 10mm, Probe N05 is10MM、Probe N07 is 6MM、Probe HT5 is12MM、Probe N02 is12MM
Min. Pipe Diameter Φ15mm×2.0mm
Resolution 0.1/0.01mm
Accuracy ±（0.5%Thickness+0.01）mm
Display 4.5 digits LCD with EL backlight
Single /Scan Mode Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode
Probe Calibration Zero Calibration, Two-Point Calibration
Velocity Range 1000-9999m/s
Unit Metric/Imperial unit selectable
Language English
Memory up to 20 files (up to 99 values for each file) of stored values

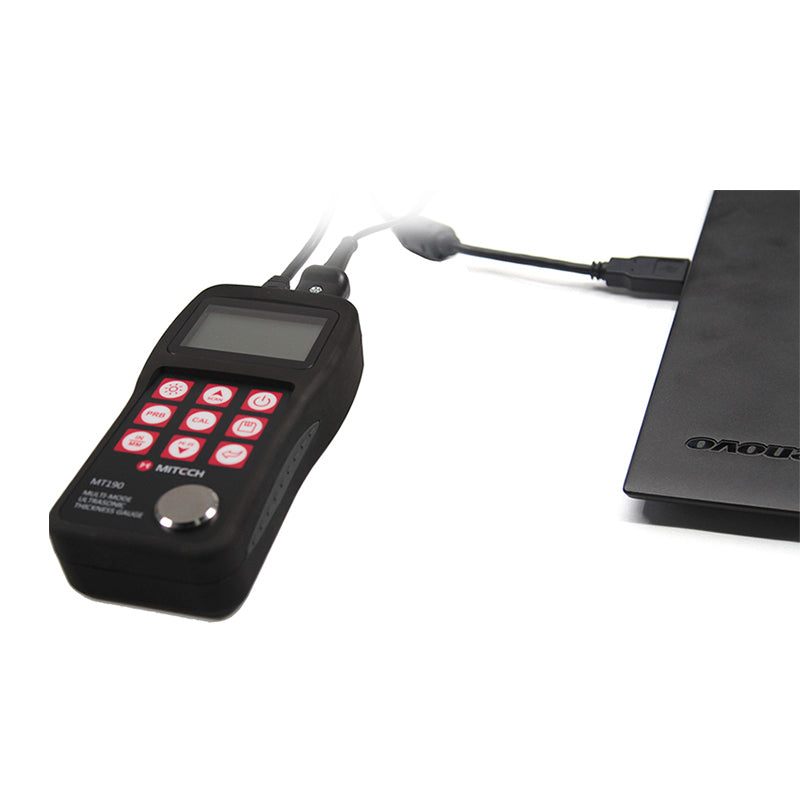

Communication Port USB
Data Printing Yes
Power supply Two “AA” size, 1.5 Volt alkaline batteries
Lower Power Consumption Yes
Working Hours 100h (EL backlight off).
Operating Temperature -20℃-+60℃
Relative Humidity ≤90％
Appearance ABS Plastic
Outline 150mm×74mm×32 mm
Gross Weight 1.5 KG
PC Datapro Software Yes
Speech Function No

Optional Accessories

  • Probe N05 (5MHz)

  • Probe N07 (7MHz)

  • Probe N02 (2.5MHz)

  • HT5 High-Temperature Probe

  • High-Temperature Couplant

  • USB Cable

  • DataPro Software

Downloads

PDF Specification Sheet -Download Here
