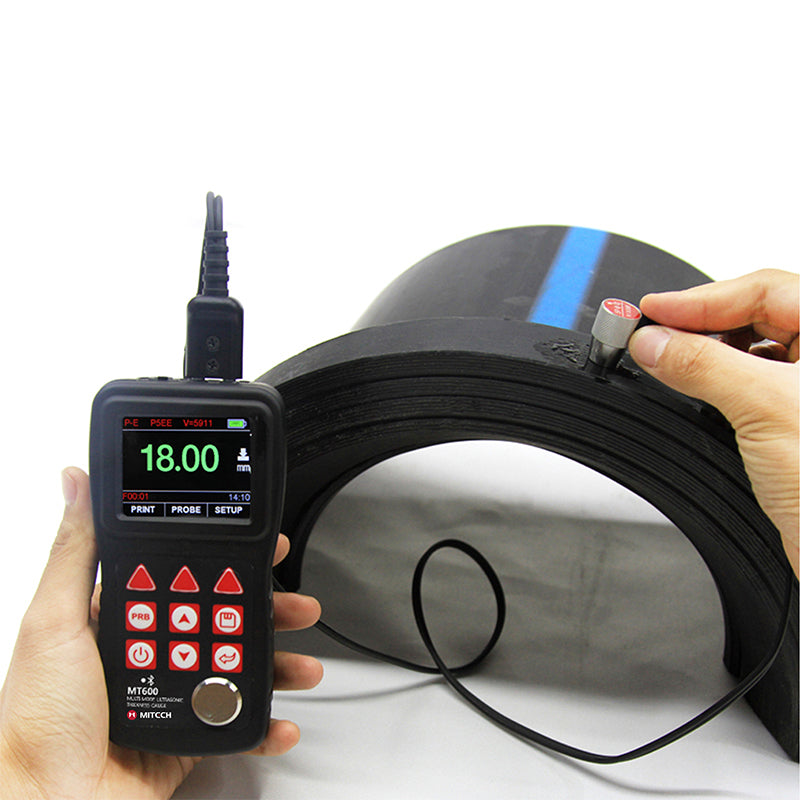

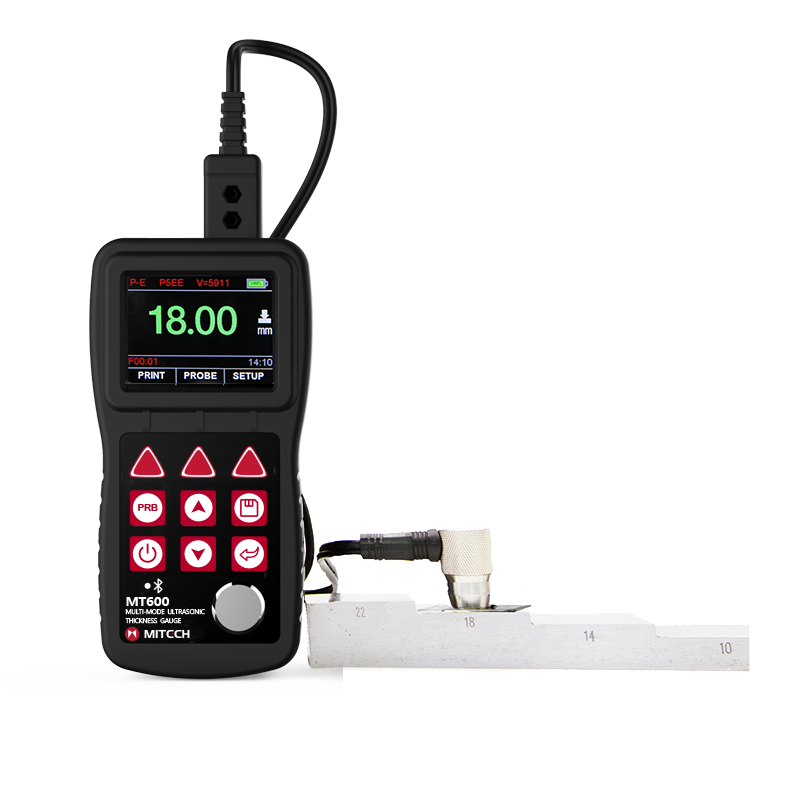

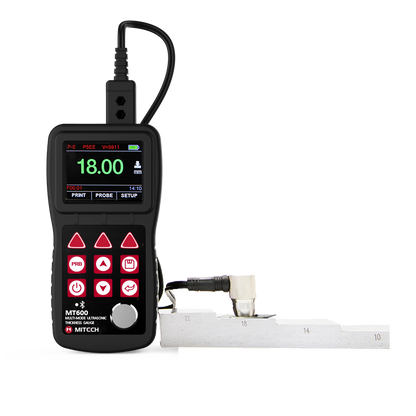

Ultrasonic Thickness Gauge MT600

Product Overview

The MT600 Ultrasonic Thickness Gauge is an advanced, multi-mode measuring instrument designed to deliver precision, versatility, and durability. With a high-resolution color TFT display, IP65-rated protection, and Bluetooth connectivity, the MT600 is engineered for demanding industrial environments — from petroleum and shipbuilding to aerospace and metallurgy.

It supports through-coating measurement, allowing accurate wall thickness testing without removing surface paint or coating. Features like voice prompts, auto alarm, and a memory capacity of up to 100 groups of readings make it user-friendly and production-ready.

Key Features

• Multi-Mode Functionality: Pulse-Echo (P-E) and Echo-Echo (E-E) modes

• Through-Coating Measurement: No need to strip paint or coatings

• Wide Measuring Range:

  • P-E Mode: 0.65–600 mm (in steel)

  • E-E Mode: 2.5–100 mm

• High-Resolution Display: 320×240 color TFT LCD with adjustable backlight

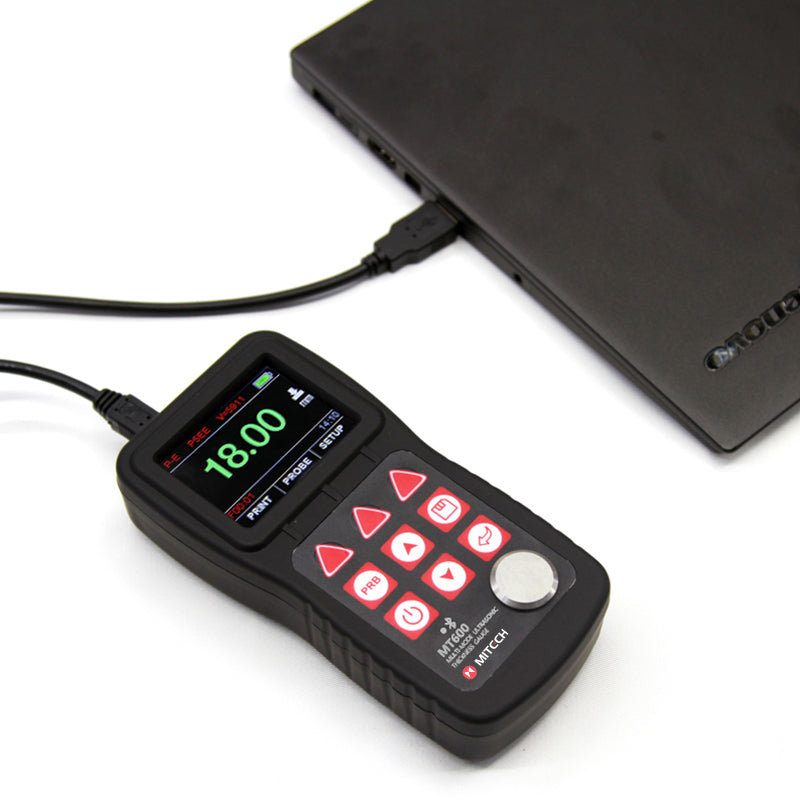

• Bluetooth & USB Connectivity: Wireless data export and USB 2.0 interface

• Data Storage: Save up to 100 groups, 100 records per group

• Auto Alarm & Voice Broadcast: Smart alerts for efficient testing

• IP65 Protection: Resistant to dust, oil, and harsh field environments

• Power Efficiency: Runs over 100 hours on two AA batteries

Applications

• Corrosion monitoring in pipelines, tanks, and pressure vessels

• Testing in aerospace, metallurgy, shipbuilding, and petrochemical industries

• Precision measurement for metal sheets, machined parts, and coated surfaces

Specifications

Optional Accessories

• Probe N05 (5MHz)

• Probe N07 (7MHz)

• Probe N02 (2.5MHz)

• HT5 High-Temperature Probe

• High-Temperature Couplant

• USB Cable

• DataPro Software

Downloads

PDF Specification Sheet -"Download Here

Brand: Mitech
