Digital Magnetic Flaw Detector MT-1B

Product Description:

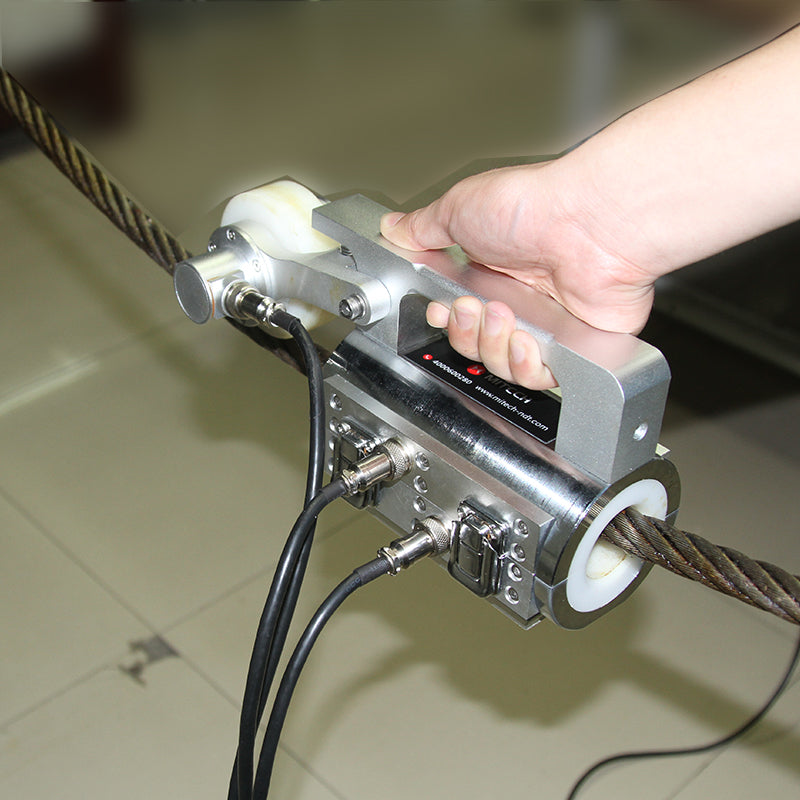

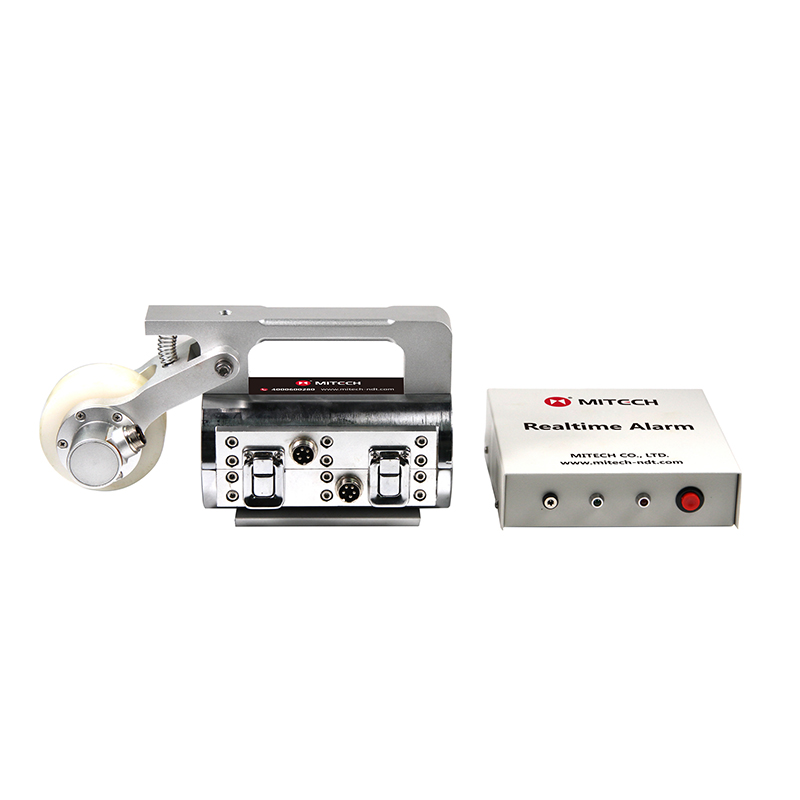

The MRT10-S Magnetic Wire Rope Tester is an advanced non-destructive testing (NDT) device developed by MITECH CO., LTD, designed for real-time inspection of internal and external defects in wire ropes. Utilizing the magnetic flux leakage (MFL) method, it detects broken wires, corrosion, wear, cross-sectional loss, and metal fatigue without dismantling the rope.

Ideal for industries such as mining, hoisting, elevators, offshore drilling, port machinery, and cableway systems, the MRT10-S ensures safety and maintenance compliance by delivering accurate and repeatable defect analysis. With configurable sensors for different rope diameters, onboard data logging, and live alarm feedback, it is the complete solution for professional wire rope condition monitoring.

Key Features:

• Advanced Magnetic Flux Leakage (MFL) Technology
  Detects internal and external flaws including broken wires, corrosion, and wear.

• Wide Diameter Coverage
  Supports rope diameters from Φ1.5 mm to 300 mm with interchangeable sensor modules.

• High Accuracy & Repeatability
  Broken wire qualitative accuracy up to 99.99% with ±0.055% error sensitivity.

• Real-Time Alarm & Display

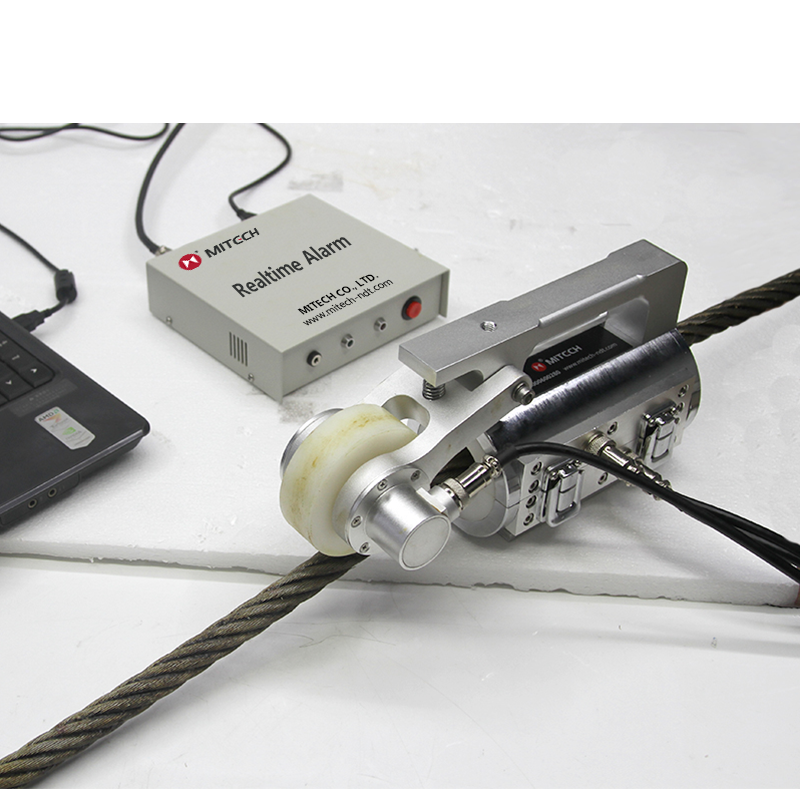

  Audible and visual alerts for immediate detection; real-time waveform and defect tracking.

• Digital Data Output

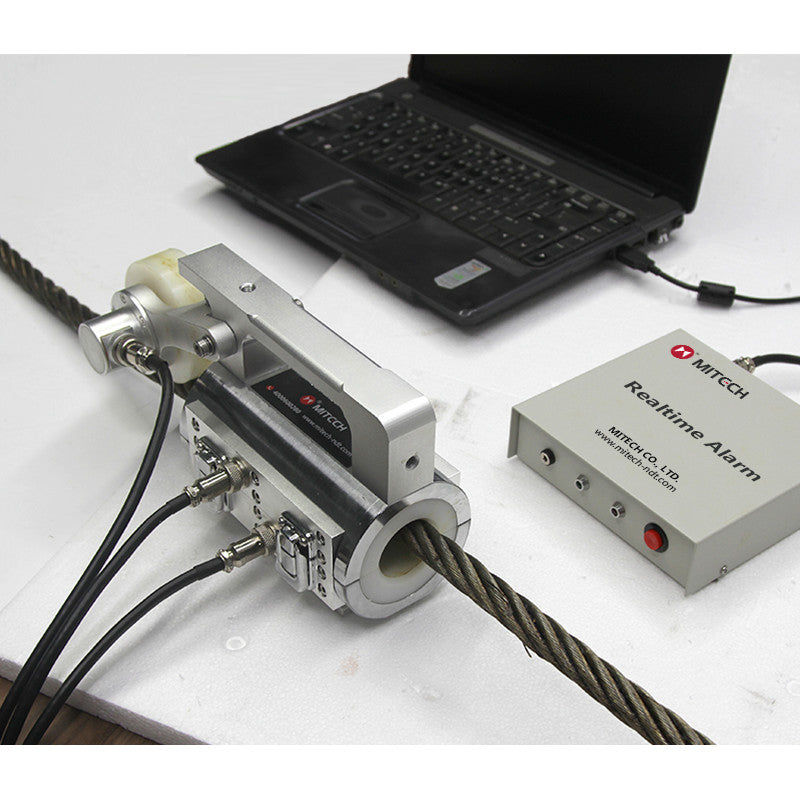

  USB or RS232 interface to PC for automated reporting and further analysis.

• Automatic or Manual Evaluation
  Analyze results on-screen or export reports (Word format) for inspection records.

• Complies with ASTM1571 Standards
  Certified and calibrated to international NDT standards.

• Rugged & Portable Design
  Operates in harsh conditions from −20 °C to +50 °C with compact sensor units.

Technical Specifications:

Downloads

PDF Specification Sheet - Download Here
