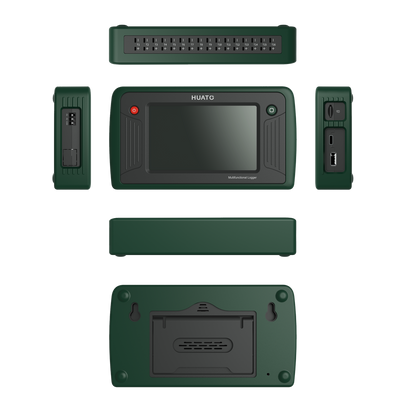

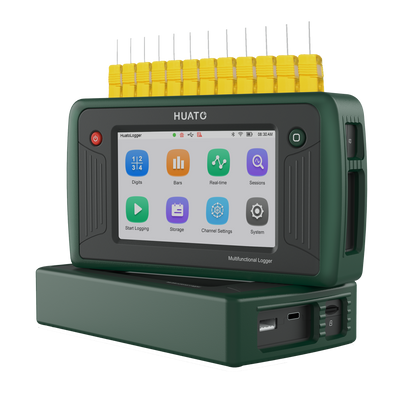

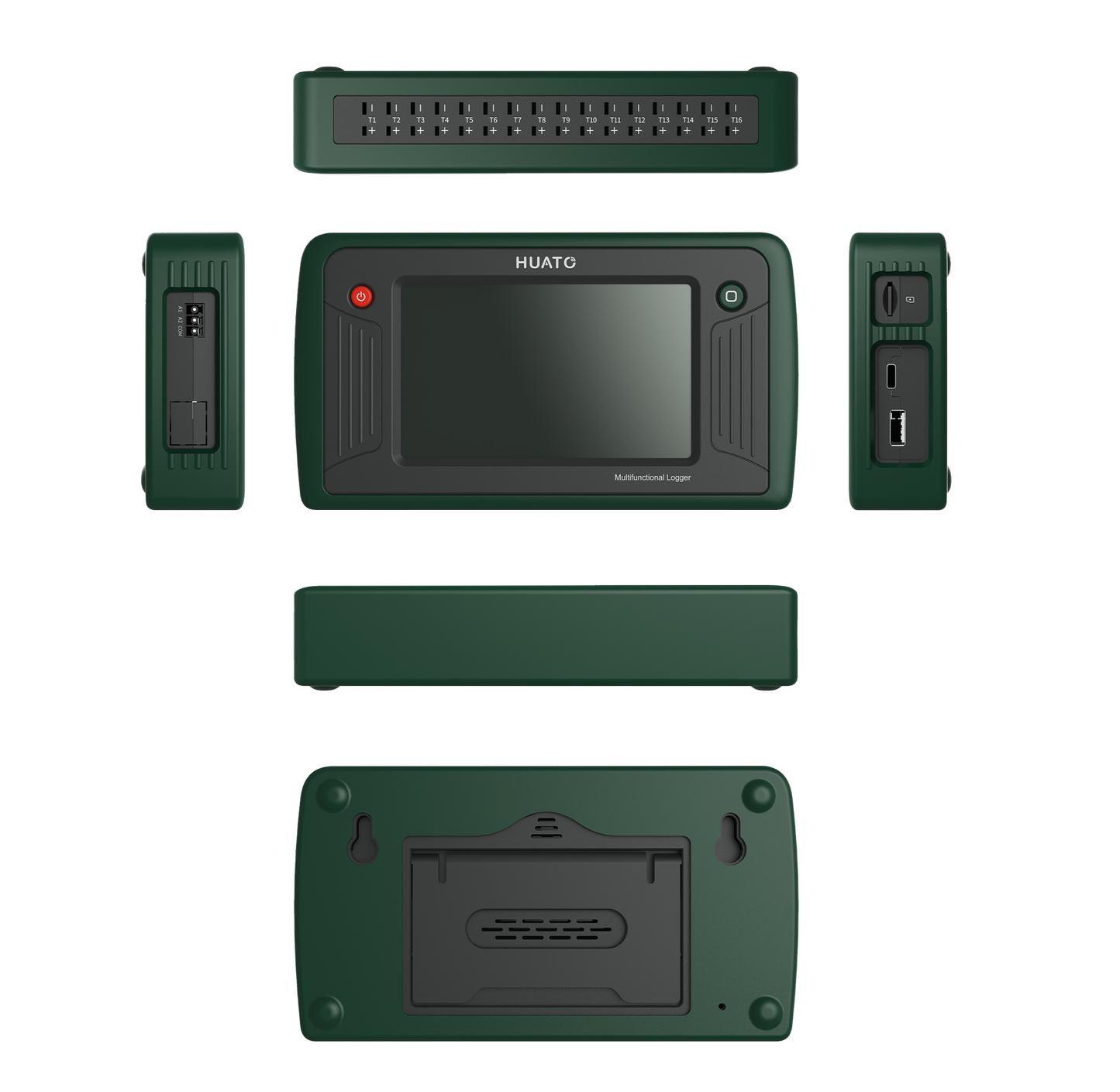

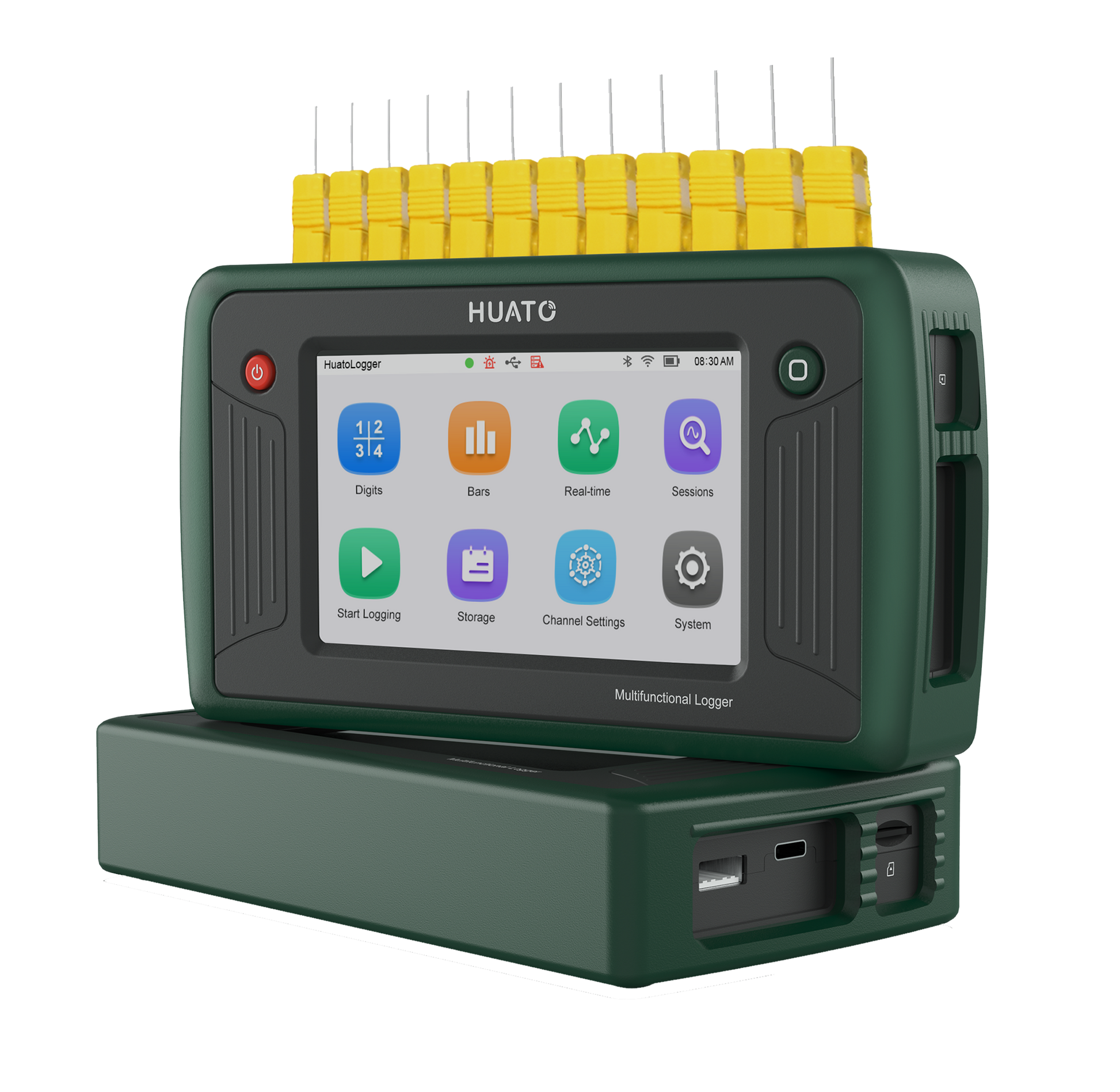

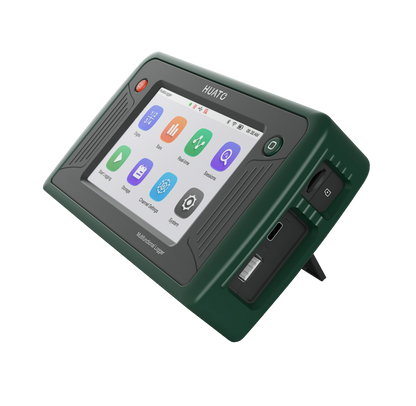

Multi-Channel Thermocouple Data Logger S1500 Series

Product Description

The S1500 Series Portable Multi-Channel Thermocouple Data Logger is a powerful and intelligent temperature monitoring solution that supports up to 16 channels and multiple thermocouple types simultaneously. Designed for industrial applications, it allows real-time data viewing on the device’s 5-inch touchscreen as well as through a web browser via RJ45 LAN.

With high-speed sampling (as fast as 1 second), massive storage capacity, and versatile data export options (USB flash drive, SD card, or Ethernet), the S1500 provides reliable, efficient, and flexible data logging for a wide range of industries.

Key Features

• Multi-Channel Input: Available in 8, 12, and 16-channel models

• Supports Multiple Thermocouple Types: K, J, E, T, R, S, N, B, C

• Wide Temperature Range: -270°C to 1820°C (depending on thermocouple type)

• High-Speed Sampling: Up to 1-second intervals

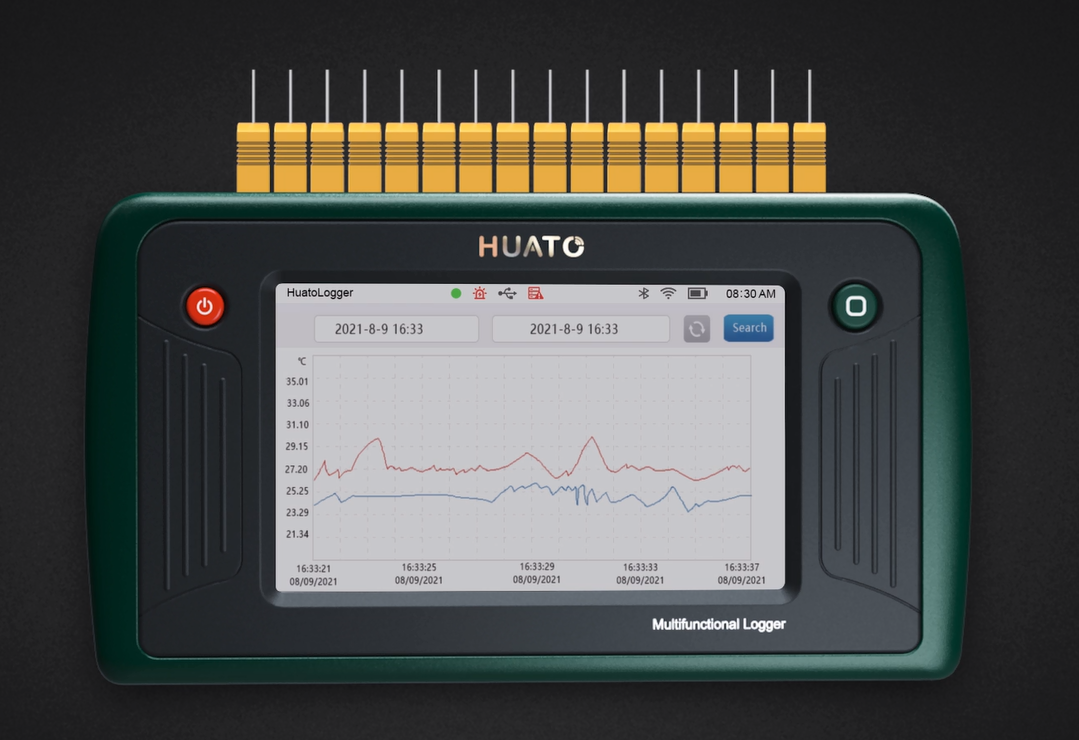

• Real-Time & Historical Data Curves: Directly view trends on-screen or via LAN web page

• Large Storage Capacity: Up to 10 million records (8-channel model)

• Flexible Data Export: USB flash drive & SD card support

• RJ45 Ethernet Connectivity: Real-time online monitoring, fast data transfer

• Rechargeable 5000mAh Battery: Long-lasting portable performance

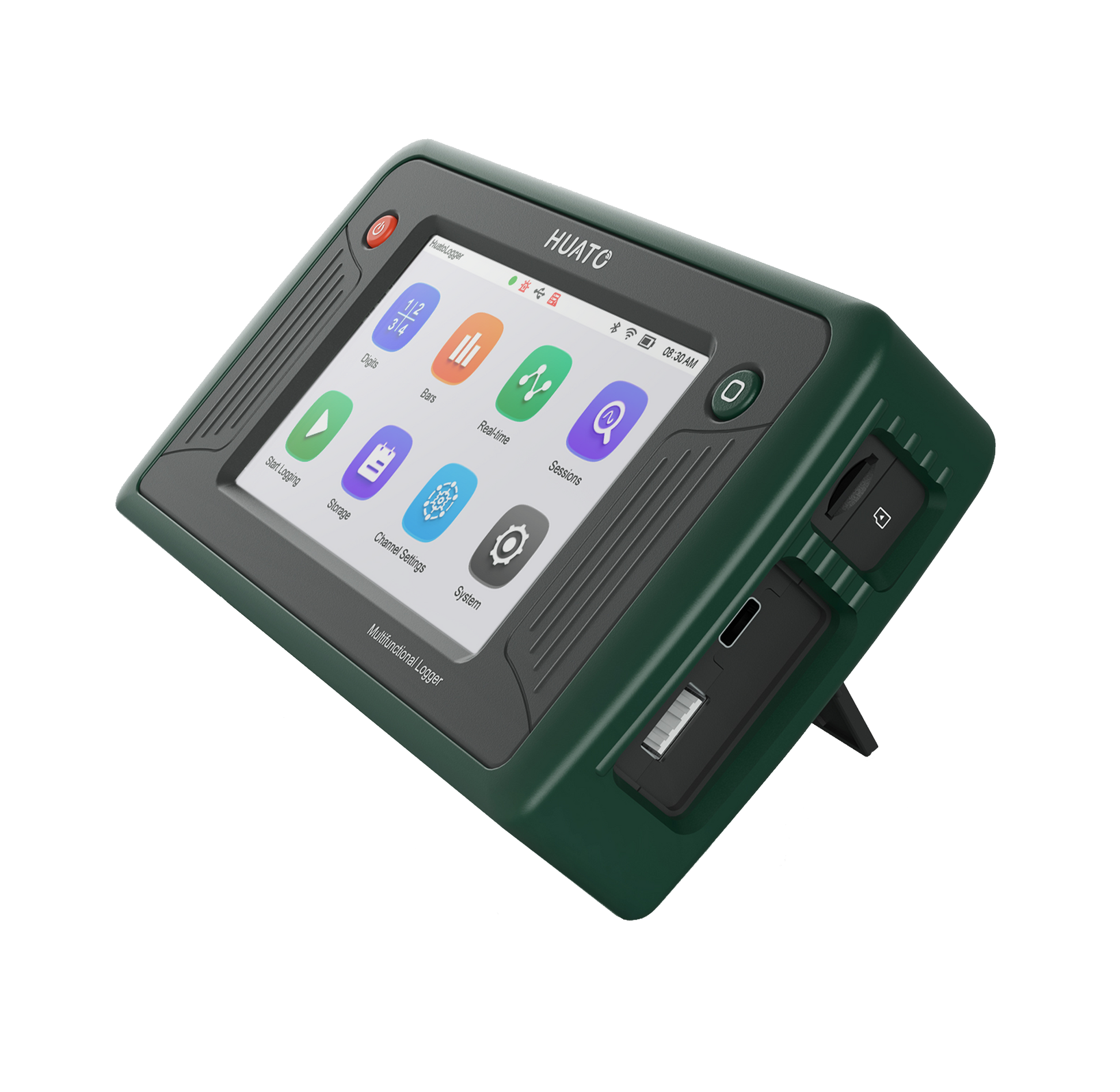

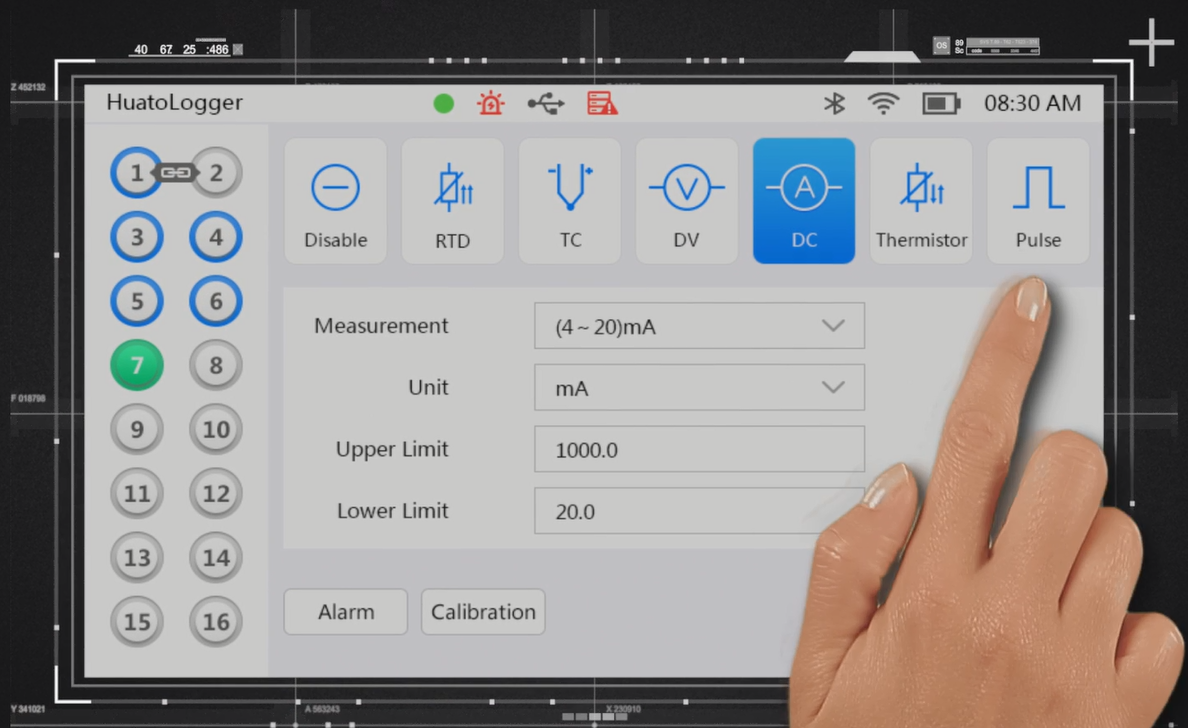

• 5-inch Capacitive Touchscreen: 800 × 480 resolution, user-friendly interface

Model Options

• S1508T – 8 Channels thermocouple input

• S1512T – 12 Channels thermocouple input

• S1516T – 16 Channels thermocouple input

Technical Specifications

Thermocouple Input Ranges & Accuracy

• K: -270 ~ 1370°C | ±0.5°C

• J: -200 ~ 760°C | ±0.5°C

• E: -270 ~ 978°C | ±0.5°C

• T: -270 ~ 400°C | ±0.5°C

• R/S: -50 ~ 1760°C | ±2°C

• N: -270 ~ 1300°C | ±0.5°C

• B: 50 ~ 1820°C | ±2°C

• C: 0 ~ 2320°C | 425°C以下 ±4.5°C, 425–2320°C ±1.0%

Applications

The S1500 Series is widely used in:

• Industrial workshops & process monitoring

• Automobile manufacturing & testing

• Semiconductor & electronics industries

• Electrical equipment testing

• IoT-based monitoring systems
