Multi Channel Vibration Meter

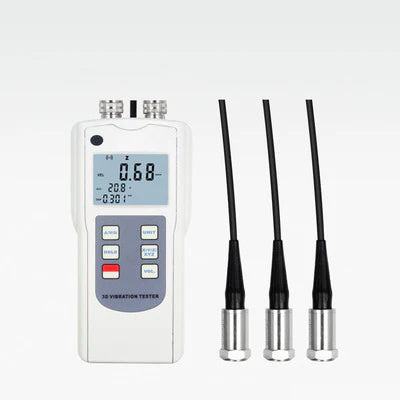

Amittari 2-Channel and 3-Channel Vibration Testers (Models: AV-160D-2, AV-160D-3)

Product Description

The Amittari AV-160D-2 and AV-160D-3 Vibration Testers are high-quality instruments designed for on-site mechanical vibration measurements in rotating machinery. These testers help detect mechanical imbalances, misalignments, and other faults to ensure equipment quality, monitor operational time, and collect data for predictive maintenance. Built to comply with ISO 2954 standards, they feature high-quality piezoelectric transducers for accurate and repeatable results, making them ideal for use in quality control and maintenance.

Product Features

• Complies with ISO 2954 standards for detecting mechanical faults in rotating machines.
• Ideal for on-site vibration measurement of rotating machinery, used for quality control and predictive maintenance.
• Equipped with high-quality accelerometers for precise and repeatable measurements.
• Wide frequency range (10Hz~10kHz) in acceleration mode.
• Automatic power-off function to conserve battery life.
• AV-160D-2: Displays two parameters simultaneously for 2-position measurement or 1-position measurement with three different parameters (velocity, acceleration, displacement).
• AV-160D-3: Displays three parameters simultaneously for 3-position measurement or 1-position measurement with three different parameters (velocity, acceleration, displacement).

Product Parameters

• Model: AV-160D-2, AV-160D-3
• Sensor: 2 Piezoelectric Transducers (AV-160D-2), 3 Piezoelectric Transducers (AV-160D-3)
• Measurement Range:
  • Acceleration: 0.1~400.0 m/s²; 0.3~1312 ft/s²; 0~40 g
  • Velocity: 0.01~400.0 mm/s (RMS); 0.004~16.00 inch/s
  • Displacement: 0.001~4.000 mm (Peak-Peak); 0.04~160.0 mil
• Frequency Range:
  • Acceleration: 10Hz~10kHz
  • Velocity: 10Hz~1kHz
  • Displacement: 10Hz~1kHz
• Accuracy: ±5% of reading + 2 digits
• Operating Conditions:
  • Temperature: 0~50°C
  • Humidity: <90%RH
• Power Supply: 4 x 1.5V AAA Um-4 batteries
• Size (Main Unit): 140 x 70 x 31mm
• Weight (Main Unit): 130g (4.59 oz) without batteries

Product Accessories

• Standard Accessories:
  • Main Unit
  • Magnetic suction seat
  • Stinger probe (cone)
  • Stinger probe (ball)
  • Piezoelectric sensor
  • Carrying case
  • Operation manual
• Optional Accessories:
  • Headphones
  • USB data output
  • RS-232 data output
  • Bluetooth™ data output

Buying Guide

When choosing a model of the Amittari instrument, the standard delivery includes all the necessary accessories. However, you can also select additional optional accessories based on your specific needs. The following are the optional accessory bundles available:

• Standard Accessories + USB data output
• Standard Accessories + RS-232 data output
• Standard Accessories + Bluetooth™ data output

Downloads

PDF Specification Sheet - Download Here
