Multifunction Moisture Analyzer PCE-MA 100

Multifunction Moisture Analyzer PCE-MA 100

Regular price $3,360.00
Regular price Sale price $3,360.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

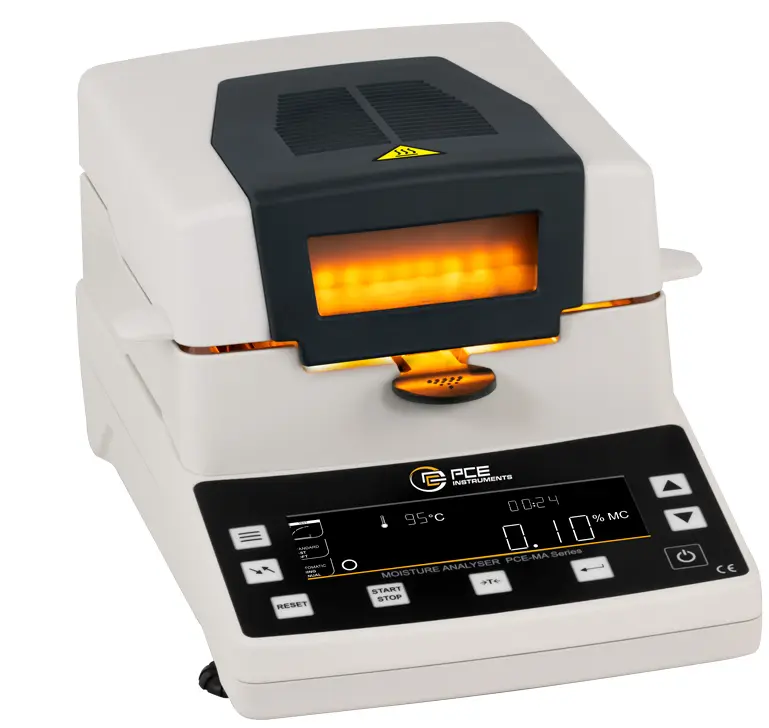

PCE-MA 100 Moisture Analyzer
Oven-drying moisture balance for weighing and halogen-heating samples to determine moisture content

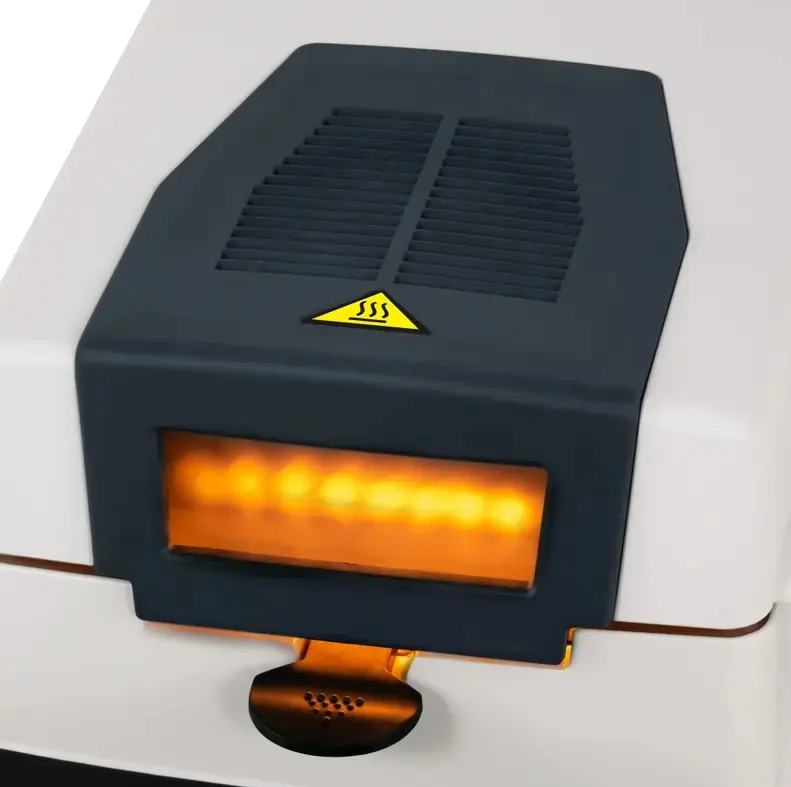

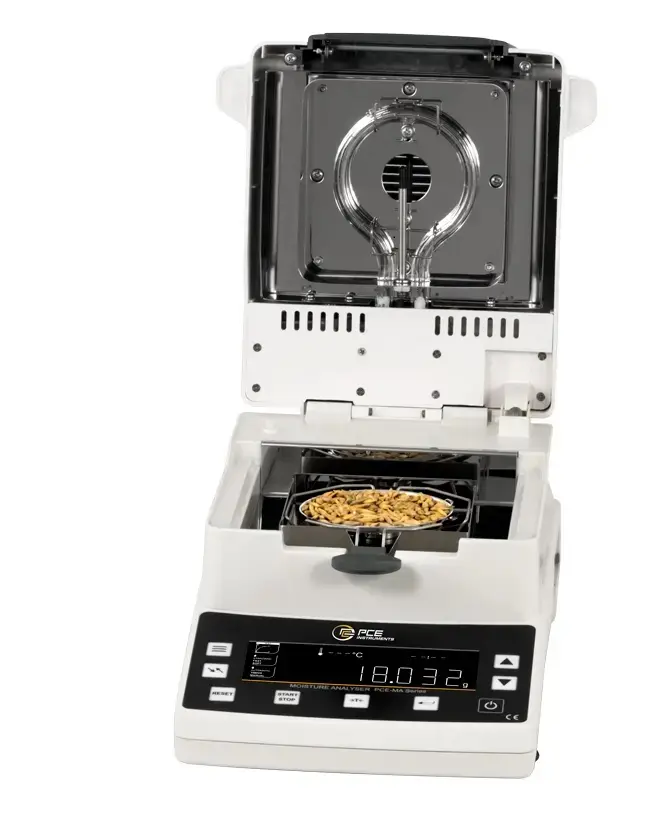

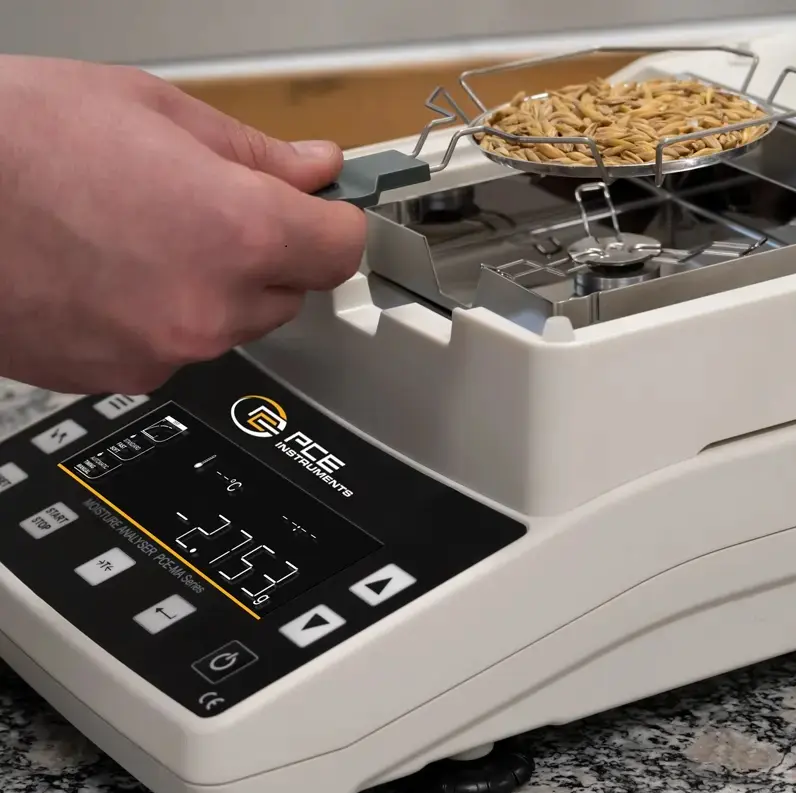

PCE-MA 100 is an oven-drying moisture analyzer for weighing and heating material samples to determine moisture content. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the moisture analyzer or moisture balance dries the sample to be weighed, and then calculates the moisture content from the weight difference. The moisture analyzer can determine the smallest weight differences thanks to a readout, readability or resolution of 1 mg / 0.001 g / 0.01 %. The results are displayed on the large, easy-to-read LCD screen.

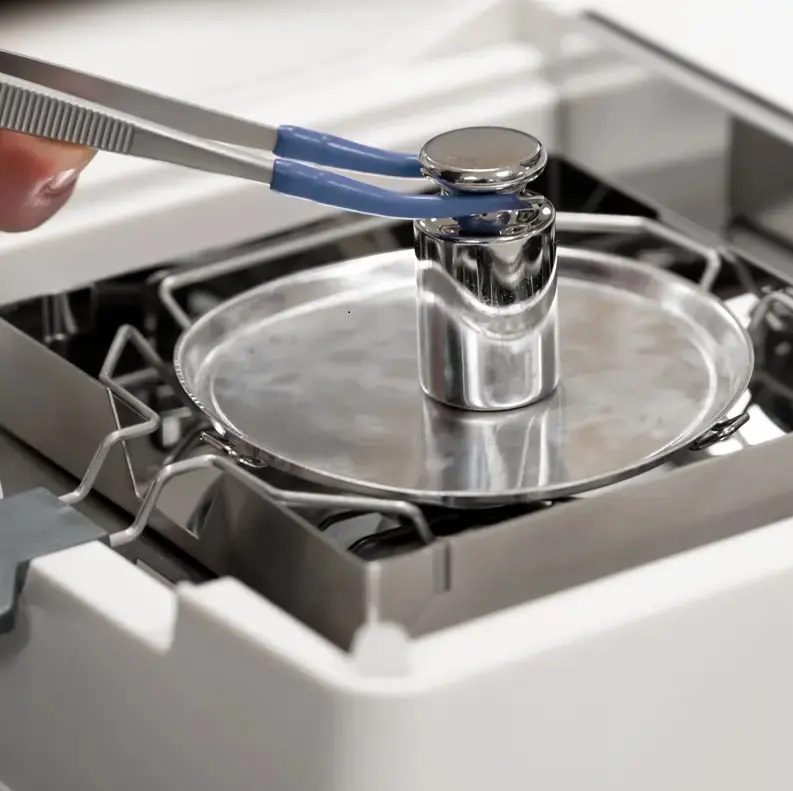

Up to 15 different drying programs can be stored in the memory of the moisture analyzer. Accordingly, the moisture analyzer is suitable for determining the moisture content of everything from food, biomass, pellets, pastes, animal feed, nuts, seeds, beans, lentils and legumes to soil, sand, ceramic clay, resin and brick materials. With the included 100 g weight, the moisture analyzer can be calibrated quickly and easily at any time.


Highlights

- Testing or weighing sample capacity: 110 g
- Readout, readability or resolution: 1 mg / 0.001 g / 0.01 %
- Halogen-heated oven or chamber for moisture determination
- RS-232 interface
- Memory for up to 15 drying programs
- Adjustable drying temperature and time
- Easy to use
- Calibration function for readjustment
- 100 g calibration weight included

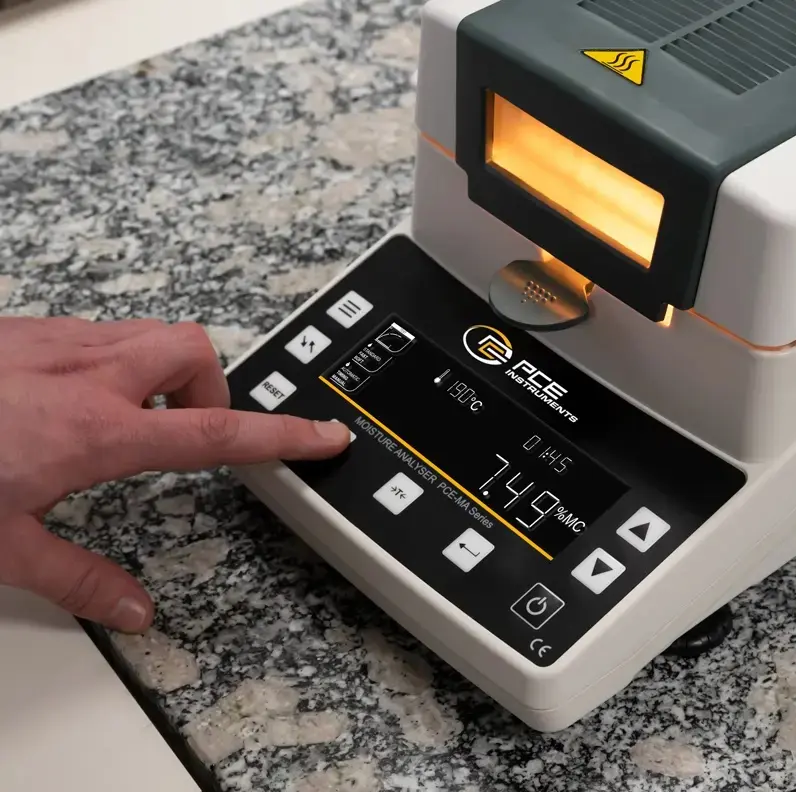

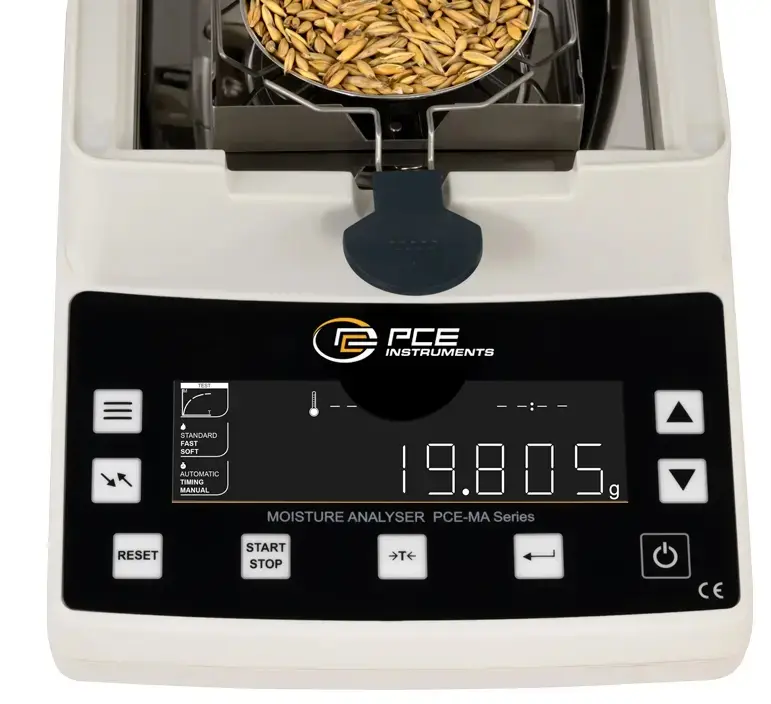

- Large LCD screen with nine membrane keys




Specification


Testing or weighing sample capacity 110 g
Readout, readability or resolution 1 mg / 0.001 g / 0.01 %

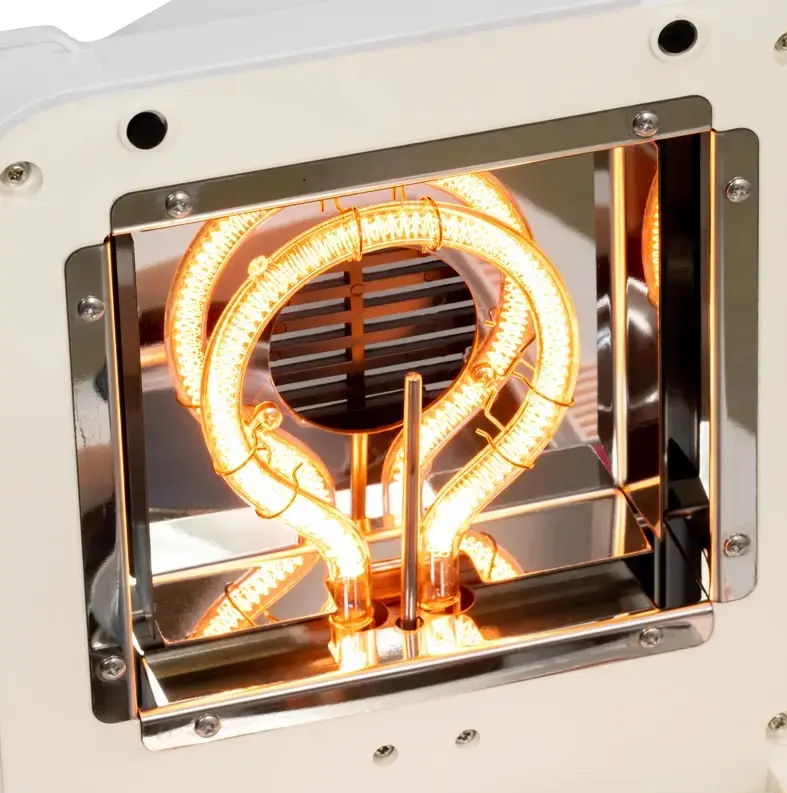

Heating element Halogen lamp
Temperature range +40 ... +199 °C
Heating time 1 ... 99 min. adjustable
Moisture content measurement range 0 ... 100 %
Memory 15 drying programs

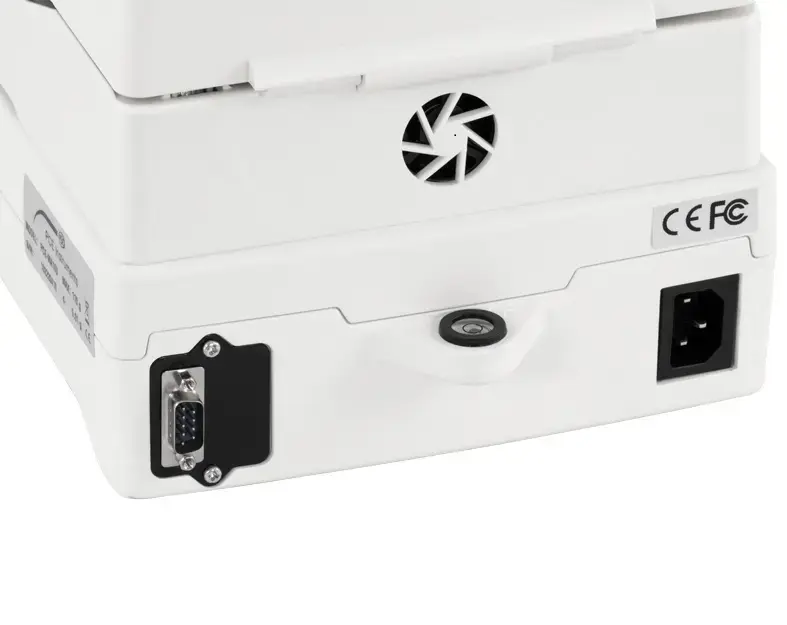

Interface RS-232 port
Display LCD, 9 membrane keys
Power supply 220 V / 50 Hz or 110 v / 60 Hz
Dimensions 200 x 180 x 380 mm / 7.87 x 7.09 x 14.96"
Weight Approx. 4.4 kg / 9.71 lbs

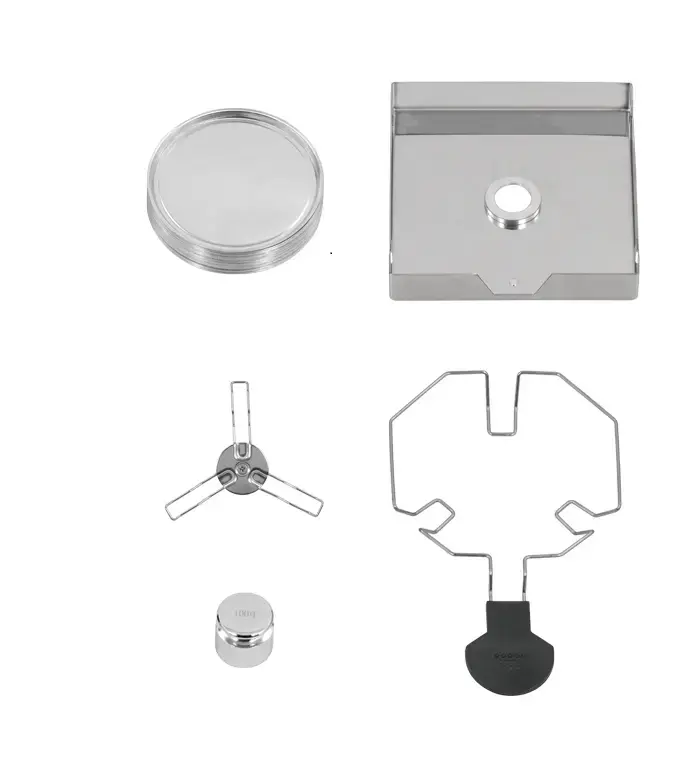

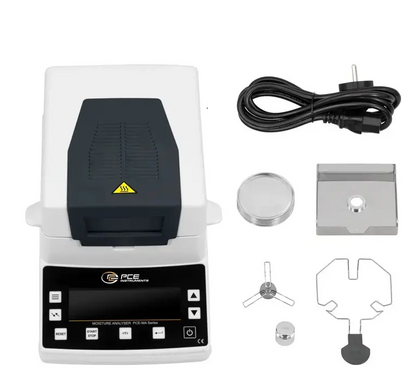

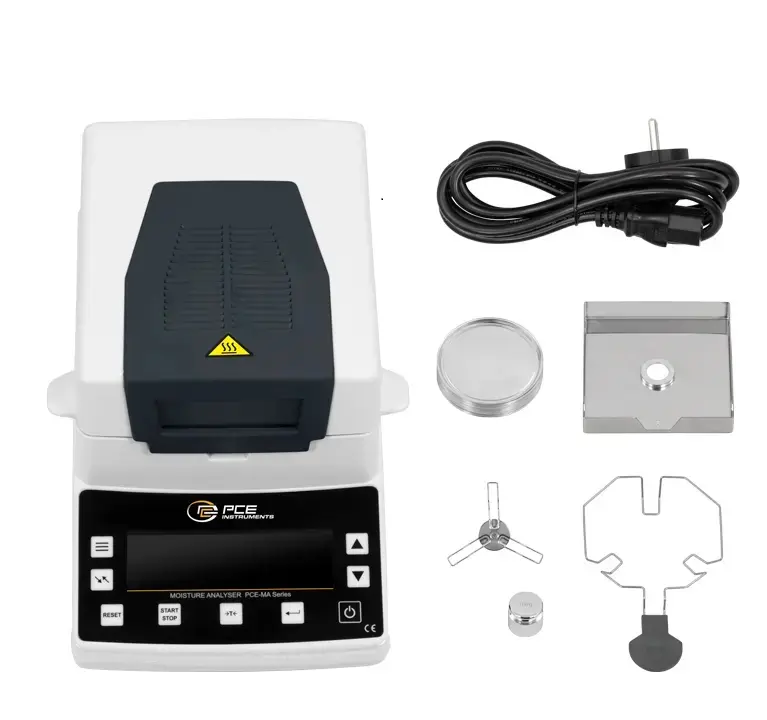

Delivery Scope

1 x PCE-MA 100 moisture analyzer
1 x wind protection shield
1 x sample pans
1 x power supply cord
1 x sample cup holder / handle
1 x 100 g weight in plastic box
1 x user manual
