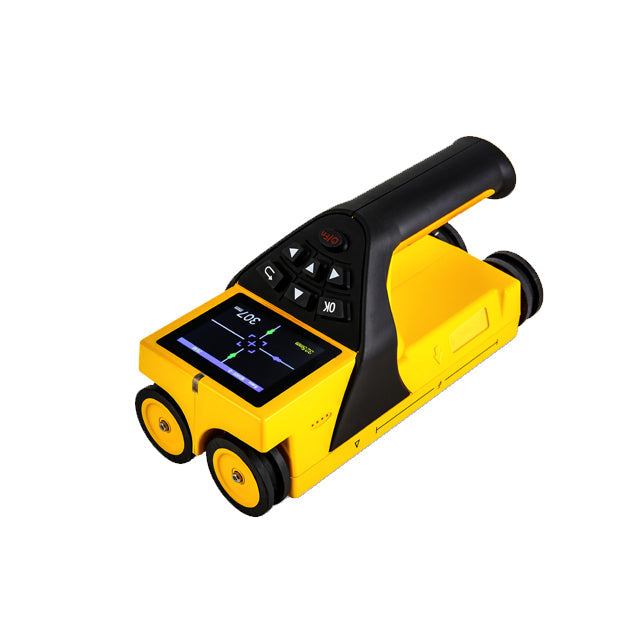

Concrete Thickness Gauge ZD-410

Concrete Thickness Gauge ZD-410

$3,100.00
$3,100.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Product Description

Overview
The ZD-410 and ZD-41 Concrete Thickness Gauges are designed for non-destructive measurement of concrete structures and other non-ferromagnetic materials. Ideal for inspecting cast-in-situ concrete slabs, walls, beams, columns, wood, and ceramics, these instruments offer precise thickness detection with a high-sensitivity receiving system and a mini receiver probe.

With user-friendly operation, a high-resolution display, and large data storage, these tools provide reliable real-time thickness readings and allow easy data transfer via USB for advanced analysis.

Key Features

  • High-sensitivity receiving system and mini probe for accurate detection

  • No need for coupling agents during measurement

  • Supports ordinary and compensated thickness inspection

  • Real-time display of test values

  • Stores up to 200,000 measurement points

  • USB data export to PC

  • Supports external probes for extended applications

  • Rechargeable lithium battery with long standby time

  • Easy-to-use interface with backlit display

Model Comparison

Specification ZD-41 ZD-410
Test thickness range (mm) 20–999 20–450
Measurement modes Ordinary + Compensated Ordinary only
Accuracy (mm) ±1 (20–200 mm) ±1 (20–200 mm)
±2 (201–450 mm) ±2 (201–450 mm)
±3 (451–600 mm) —
±6 (601–999 mm) —
Data storage 200,000 measuring points —
Display resolution 320×240 pixels 320×240 pixels
Data communication USB USB
Main unit battery life >26 hours >26 hours
Probe battery life >24 hours >24 hours

Physical Specifications

Component ZD-41 ZD-410
Main Unit 219×92×106 mm, 700 g Same
Launch Probe Ø100×110 mm, 700 g Same
Telescopic Rod Ø28–470 mm (1.5 m) + 0.5 m ext 400 g

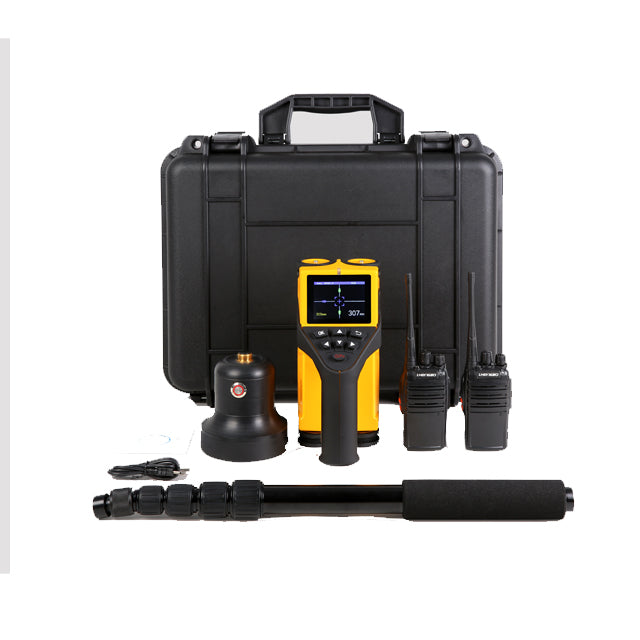

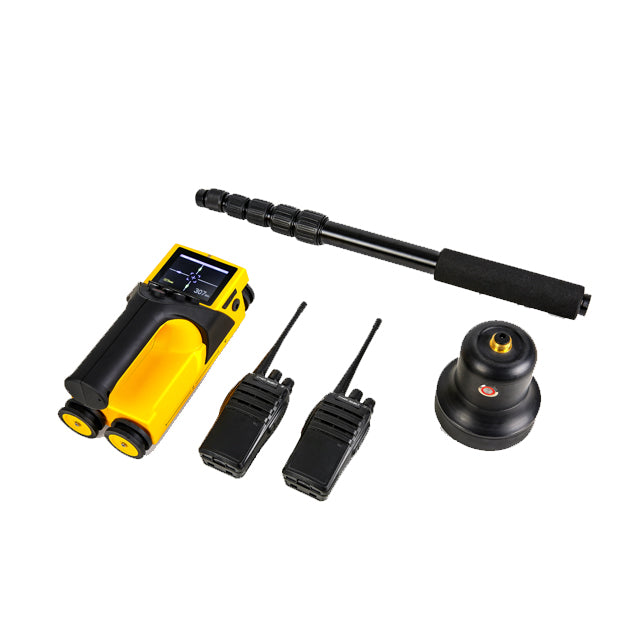

Standard Delivery Includes

  • Main Unit

  • Probe

  • USB Probe

  • Extension Rod

  • Charger

  • CD Software

  • User Manual

  • Carrying Case

  • Wireless Interphones

Downloads

PDF Data Sheet Link
