Optical Universal Hardness Tester Series – DigiRock BRV6

Optical Universal Hardness Tester Series – DigiRock BRV6

$76,050.00
$76,050.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

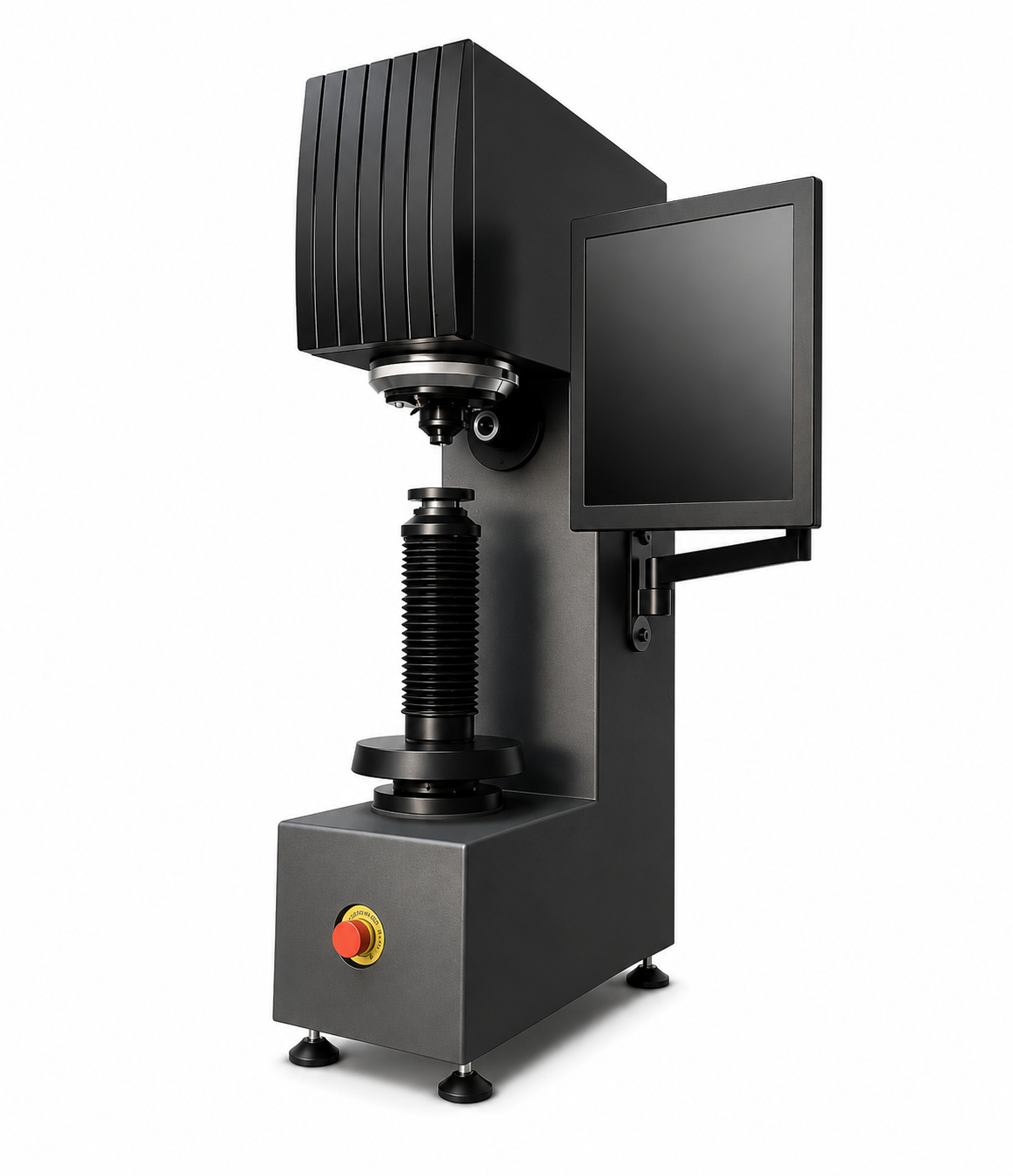

The DigiRock BRV6 Optical Universal Hardness Tester Series is a premium multi-scale hardness testing platform designed for advanced laboratories, research facilities, aerospace applications, metallurgical analysis, and high-precision industrial quality control.

Combining Rockwell, Superficial Rockwell, Brinell, Vickers, and Knoop hardness testing within a fully integrated optical measurement system, the BRV6 series delivers advanced automation, high-resolution optical analysis, digital image processing, and intelligent workflow management.

The series is available in both manual optical and fully automatic optical configurations, allowing users to select the appropriate level of automation for laboratory environments, research applications, and advanced production quality systems.

Built around a high-definition optical measurement platform with integrated software analysis, the DigiRock BRV6 series provides exceptional repeatability, operator consistency, and automated hardness analysis capabilities for demanding material testing applications.

Features

  • Optical universal hardness tester system
  • Supports Rockwell, Superficial, Brinell, Vickers and Knoop testing
  • Integrated HD optical measurement system
  • High-resolution industrial touch screen
  • Advanced image analysis software
  • Available in manual optical and automatic optical configurations
  • Closed-loop force feedback system
  • Automated hardness analysis workflow
  • High precision optical measurement
  • Advanced data storage and reporting
  • Industrial laboratory suitable
  • ASTM, ISO and JIS compliant

Variants

Model Type Main Difference
DigiRock BRV6M Optical Universal Hardness Tester Manual optical measurement workflow
DigiRock BRV6F Automatic Optical Universal Hardness Tester Fully automatic optical measurement system

Specifications

Specification DigiRock BRV6M / BRV6F
Measurement Methods Rockwell / Superficial / Brinell / Vickers / Knoop
Display Type Industrial Optical Touch Screen
Loading System Closed-Loop Load Cell
Operation Type Optical Manual / Optical Automatic
Optical System 5MP Camera + Optical Zoom
Data Storage Advanced Optical Data Storage
Data Output Integrated Optical Software
Integrated Software Optical Measurement Software
Test Force Control Closed-Loop Force Feedback
Max Specimen Height 300mm
Throat Depth 150mm
Typical Applications Research laboratories and advanced material analysis
Main Differentiator Optical measurement and automation
Standards ASTM / ISO / JIS

Delivery Scope

  • DigiRock BRV6 Universal Hardness Tester
  • Optical Measurement System
  • Camera System
  • Standard Indenters
  • Test Blocks
  • Measuring Microscope
  • Software Package
  • USB/Data Accessories
  • Power Cable
  • User Manual

Industries Used In

  • Aerospace
  • Automotive
  • Research Laboratories
  • Universities
  • Metallurgical Laboratories
  • Heat Treatment
  • Steel Processing
  • Advanced Manufacturing
  • Industrial Quality Control
  • Toolmaking
  • Research & Development
  • Material Science Laboratories

Downloads

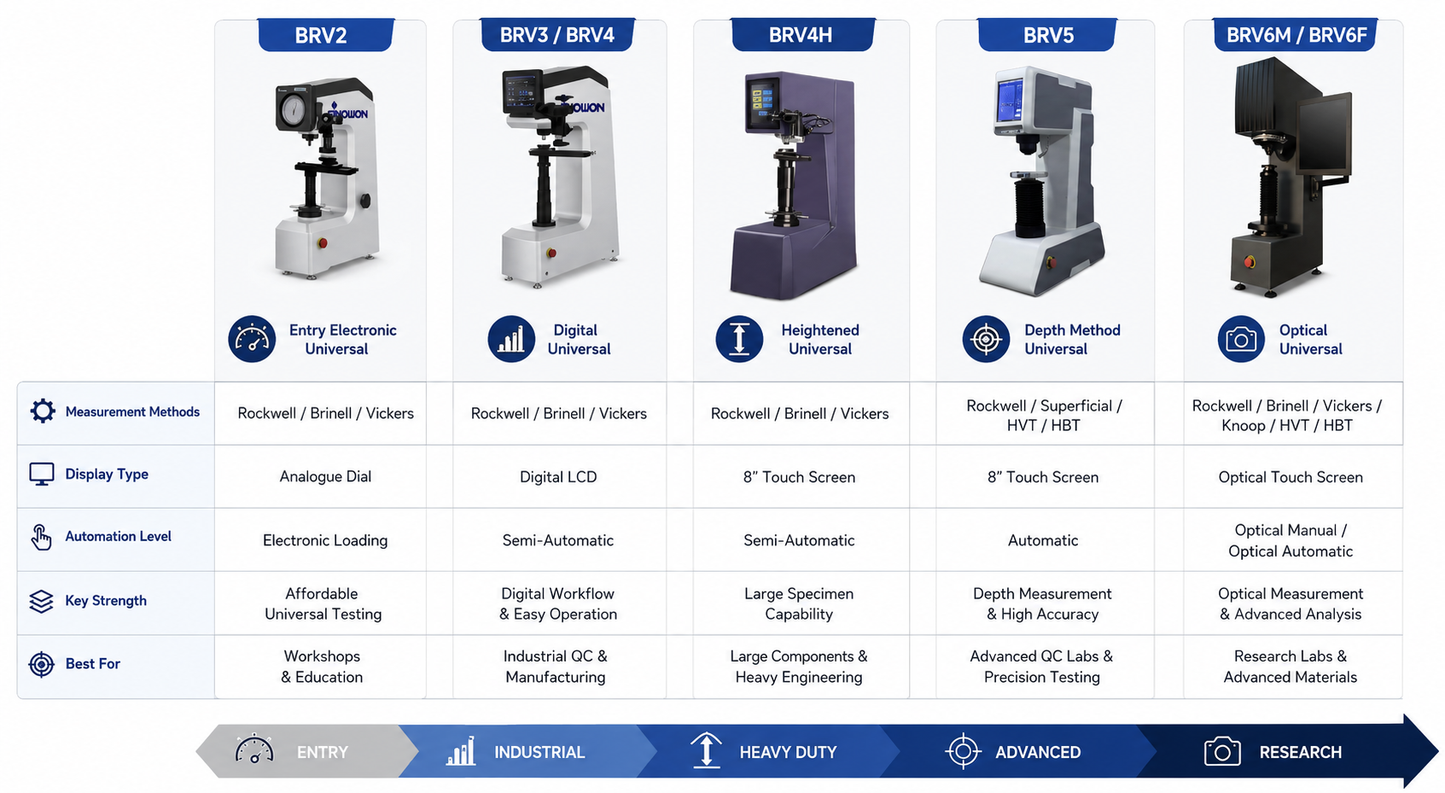

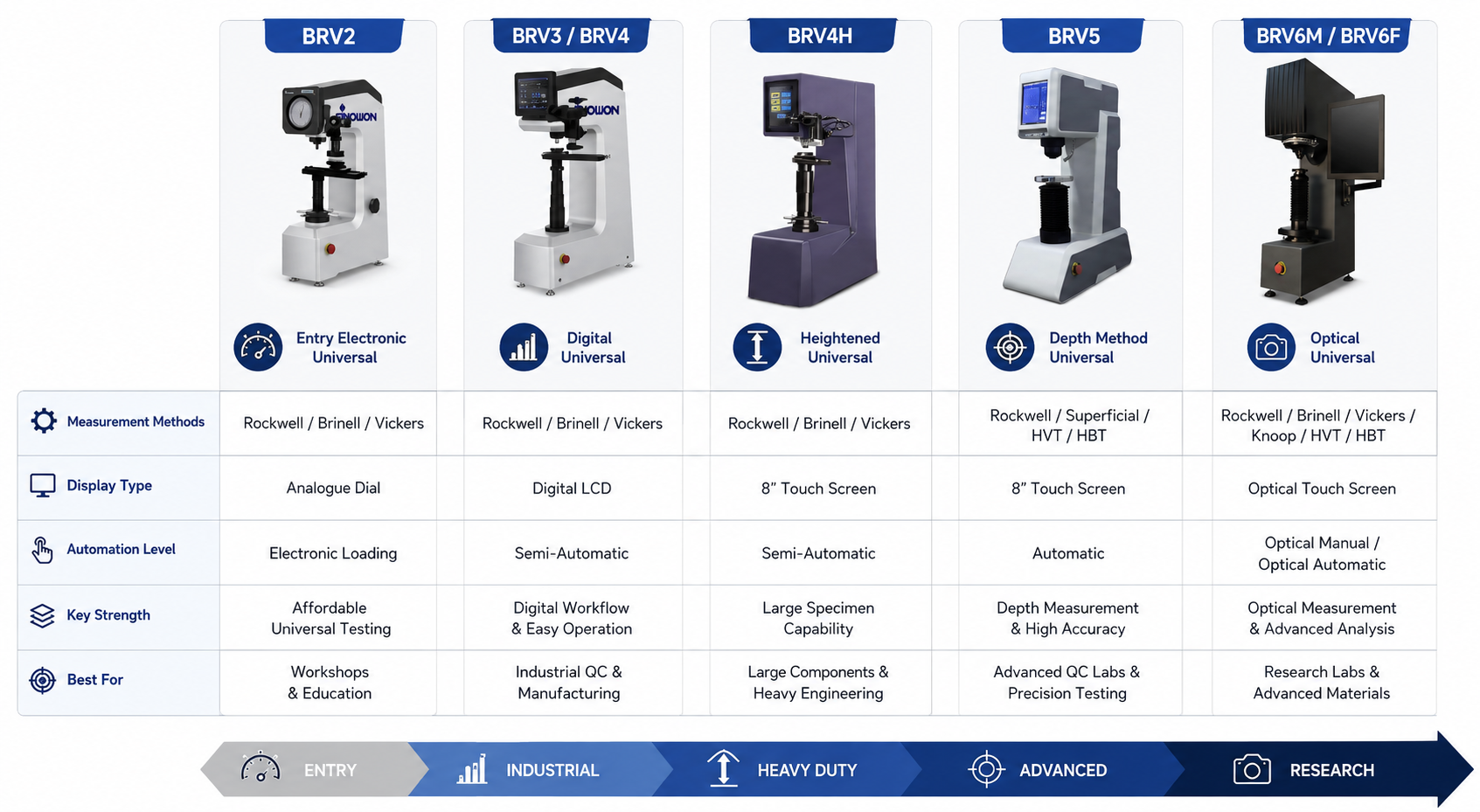

Compare the Universal Range

Universal Hardness Tester Range Comparison Table

Series Positioning Measurement Capability Display Type Automation Level Best For Variants
BRV2 Entry-Level Universal Rockwell / Brinell / Vickers Analogue Gauge Electronic Loading Workshops, education and basic QC BRV2
BRV3 Digital Touch Screen Universal Rockwell / Brinell / Vickers Touch Screen Display Semi-Automatic Industrial QC and manufacturing BRV3
BRV4H Large Component Universal Rockwell / Brinell / Vickers Industrial Touch Screen Semi-Automatic Large components and heavy engineering BRV4H
BRV5 Advanced Universal Advanced Multi-Scale Testing Industrial Touch Screen Closed-Loop Automatic Advanced laboratories and precision testing BRV5
BRV6 Series Optical Measurement Universal Optical Multi-Scale Testing HD Optical Touch Screen Optical Manual / Optical Automatic Research laboratories and advanced material analysis BRV6M / BRV6F

Universal Hardness Tester Range Specification Table

Specification BRV2 BRV3 BRV4H BRV5 BRV6M / BRV6F
Product Position Entry-Level Universal Digital Touch Screen Universal Large Component Universal Advanced Universal Optical Measurement Universal
Measurement Methods Rockwell / Brinell / Vickers Rockwell / Brinell / Vickers Rockwell / Brinell / Vickers Rockwell / Superficial / Vickers / Brinell Rockwell / Superficial / Brinell / Vickers / Knoop
Display Type Analogue Gauge Touch Screen Display 8" Industrial Touch Screen 8" Industrial Touch Screen Industrial Optical Touch Screen
Loading System Electronic Automatic Automatic Closed-Loop Closed-Loop Force Feedback Closed-Loop Load Cell
Operation Type Electronic Manual Semi-Automatic Semi-Automatic Automatic Optical Manual / Optical Automatic
Resolution 0.5HR 0.1HR Digital High Resolution 0.02μm Sounding Resolution Optical Digital Resolution
Data Storage No Yes Yes Advanced Data Storage Advanced Optical Data Storage
Data Output No USB Output USB / RS232 USB / LAN / WiFi / Bluetooth Integrated Optical Software
Integrated Software No Basic Digital Functions Built-In Printer & Digital Functions HD SPIRIT Software Optical Measurement Software
Optical System Basic Microscope Digital Measuring Eyepiece Microscope 25x / 50x / 100x Digital Depth Method 5MP Camera + Optical Zoom
Test Force Control Electronic Motor Automatic Closed-Loop Closed-Loop Force Feedback Closed-Loop Force Feedback
Max Specimen Height 175mm 240mm 280mm 300mm 300mm
Throat Depth 165mm 170mm 200mm 200mm 150mm
Typical Applications Workshops & Education Industrial QC Large Components Advanced QC Laboratories Research & Advanced Laboratories
Main Differentiator Affordable Universal Testing Digital Touch Screen Workflow Large Specimen Capability Depth Method & Automation Optical Measurement & Automation
Standards ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS ASTM / ISO / JIS
