Grain & Seed Moisture Meter PCE-GMM 15
Grain & Seed Moisture Meter PCE-GMM 15
Couldn't load pickup availability
Description

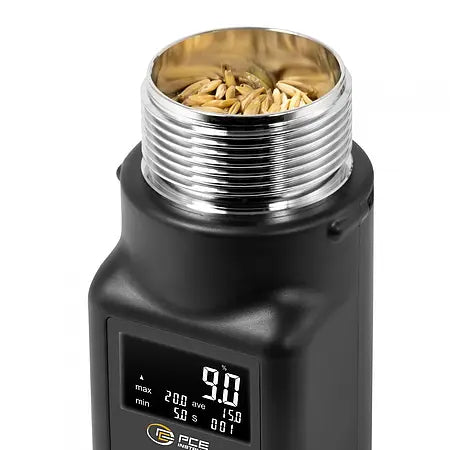

Our portable Moisture Meter was developed to determine the moisture content of 25 different types of seed quickly, easily and precisely. The measuring range is typically between 3% and 80% moisture, depending on the type of grain, with a resolution of 0.1% and an accuracy of ±0.5%. The required sample quantity is approx. 90 ml, which allows quick and uncomplicated use directly on site. The Moisture Meter works on a capacitive basis and utilizes the compression of the sample caused by filling and sealing to increase the measuring accuracy.
The device has an alarm function for individually adjustable upper and lower limits, a display of minimum and maximum values and a function for calculating the average value. It also offers a data storage function for up to 240 measured values, a user-friendly keypad and automatic temperature compensation.
Thanks to the described compression, the Moisture Meter provides reliable measured values for checking storage and processing maturity. The grain moisture analyzer is suitable for professional applications where accurate moisture determination of grain is required.
Highlights
Specification
| Absolute moisture | |
| Measurement range up to | 3 ... 80 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% for standardized grain types, ±1% for <10%, ±1.5% for >10% |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Temperature compensation | automatic |
| Display type | LCD |
| Display size | 2 Inch |
| Storage medium | Internal memory |
| Storage capacity | 240 Measurements |
| Measured medium | Wheat, Rays, Maize, Soy beans, Paddy rice, Rice, Barley, Oats, Sorghum/Milo, Buckwheat, Peas, Rapeseed, Mustard seed, Sunflower seeds, Sugar beet seed, Coffee, Green coffee, Cocoa beans, Linseed, Lenses, Peanuts shelled, Rye grass (Together), Cocksfoot (seed), Clover, white seed, Red clover, Lucerne seed, Cabbage seeds, Beans |
| Automatic power-off | 10 min |
| Alarm modes | Below limit: 0 ... 80% Upper limit: 0 ... 80% |
| Menu language | English, English (GB) |
| Protection class (device) | IP52 |

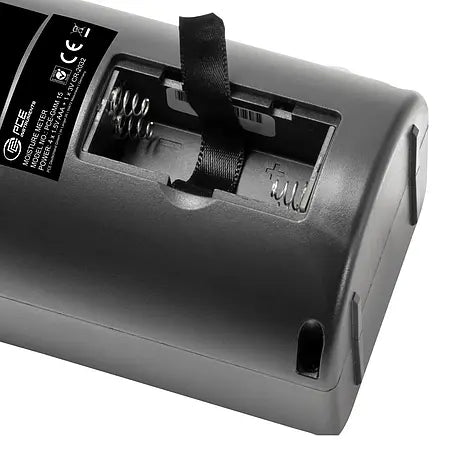

| (Rechargeable) battery | 4 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 60 °C , 5 ... 90 % RH |
| Storage conditions | 0 ... 60 °C , 5 ... 90 % RH |
| Dimensions ( L x W x H ) | 76 x 73 x 166 mm |
| Weight | 434 g |

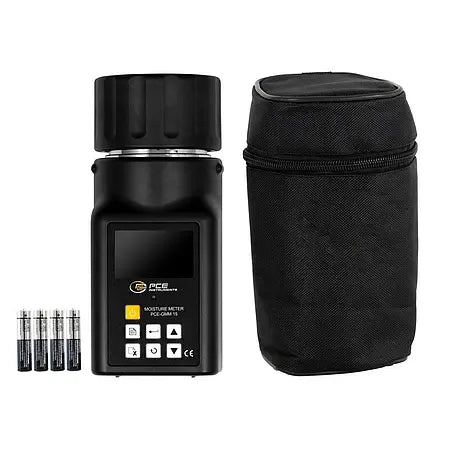

Delivery Scope
