Coating Thickness Gauge PCE-CT 27FN
Coating Thickness Gauge PCE-CT 27FN
Couldn't load pickup availability
DESCRIPTION

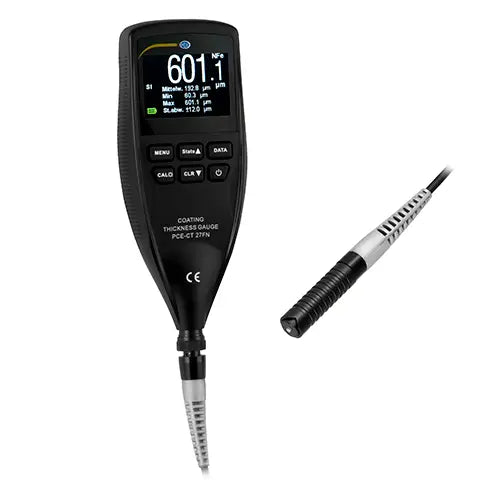

PCE-CT 27FN Thickness Gauge

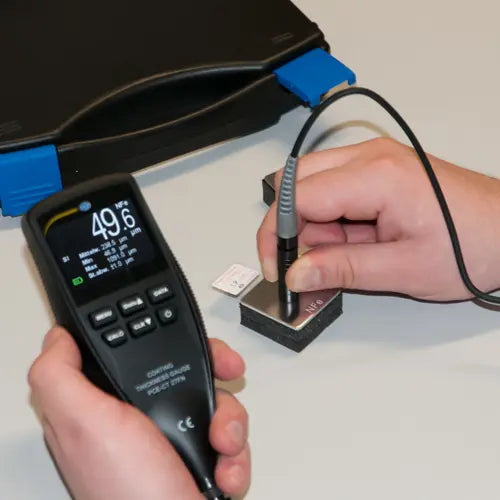

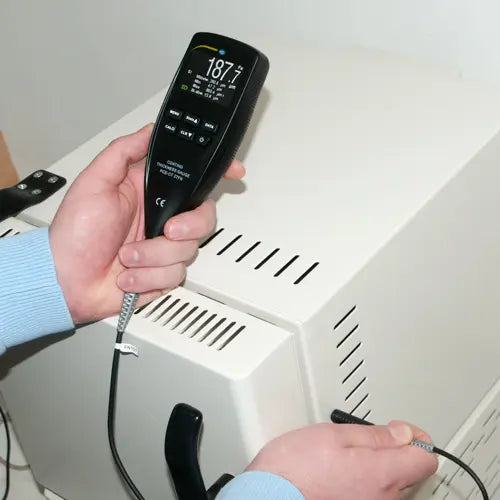

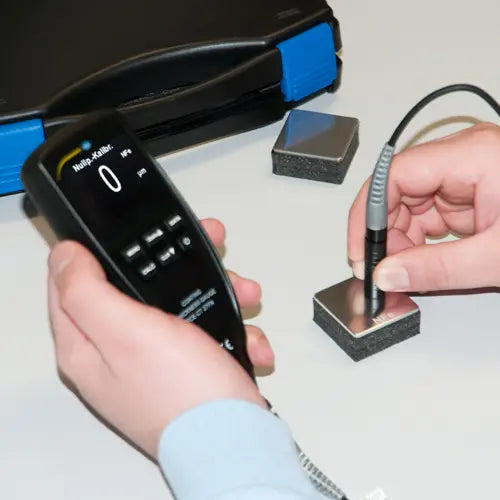

PCE-CT 27FN is a Thickness Gauge that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Thickness Gauge is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.
HIGHLIGHTS
- Includes a set of calibration standards for ferrous and non-ferrous metals
- supplied with a set of plastic shims or foils
- incl. ISO Calibration Certificate
SPECIFICATION
| Technical specifications | |
| Measuring range | 0 ... 1250 µm / 0 ... 50 mils |
| Accuracy | ±(2 % + 2 µm) / ±(2 % + 0.1 mils) |
| Resolution | 0.1 µm / 0.1 mil |
| Operating temperatures | -10° C... +50° C / +14° F ... +122° F |
| Power | 2 x 1.5 V batteries |
| Dimensions | 166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in |
| Weight | 0.180 kg / 0.40 lb |
DELIVERY SCOPE

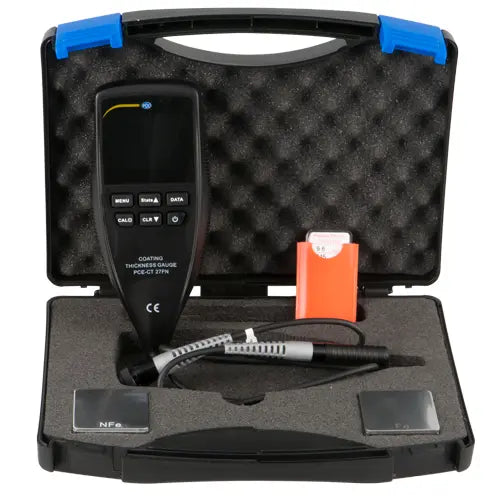

Delivery contents
1 x PCE-CT 27FN Thickness Gauge
1 x set of calibration standards

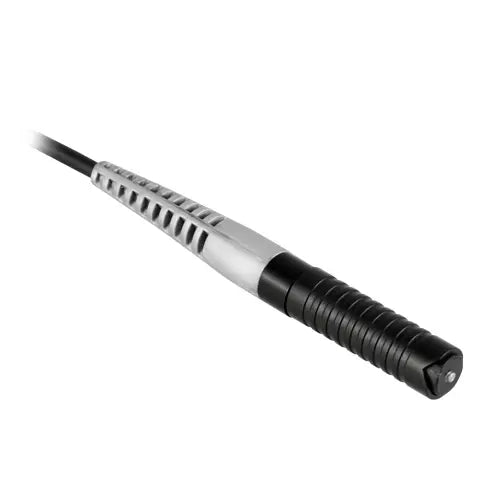

1 x probe with 1 m / 3.28 ft long cable

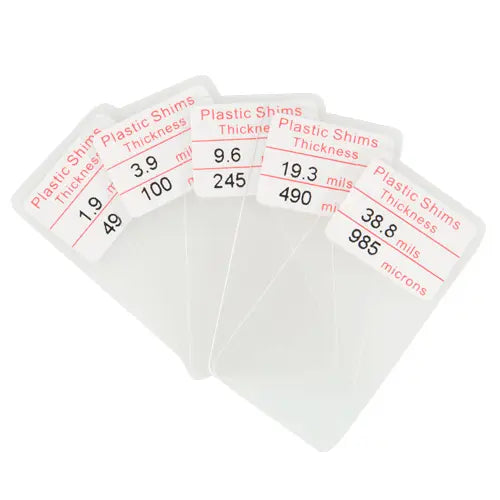

1 x set of plastic shims
1 x carrying case
2 x 1.5 V batteries
1 x user manual

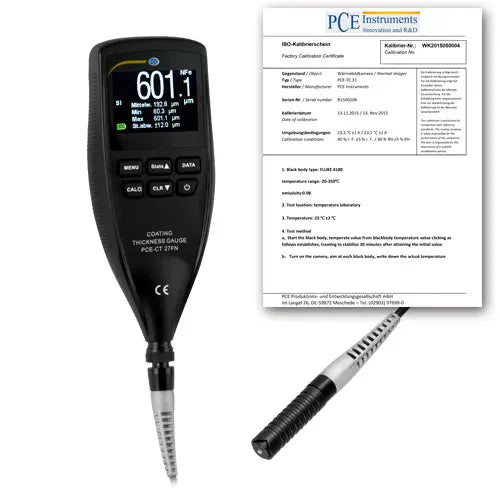

1 x ISO calibration certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
