33mm Pan & Tilt Pipe Inspection Camera 50m – TC-V13-33PTF

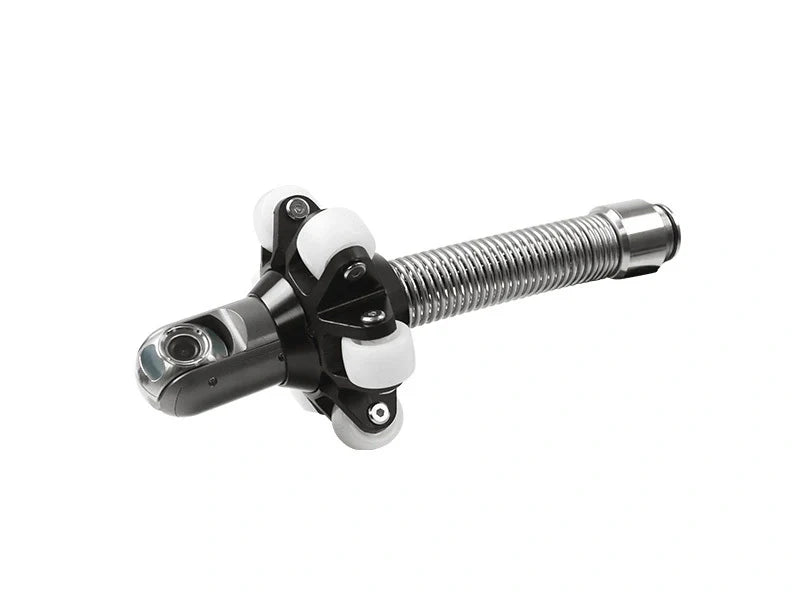

The Tomlin TC-V13-33PTF is a professional pan and tilt pipe inspection camera engineered for detailed CCTV inspections of sewer, stormwater and industrial pipelines. Featuring a 33mm HD pan and tilt camera head with 360° continuous pan, 180° tilt and an integrated 512Hz sonde, the system enables operators to inspect the entire circumference of a pipeline while accurately locating the camera head from above ground.

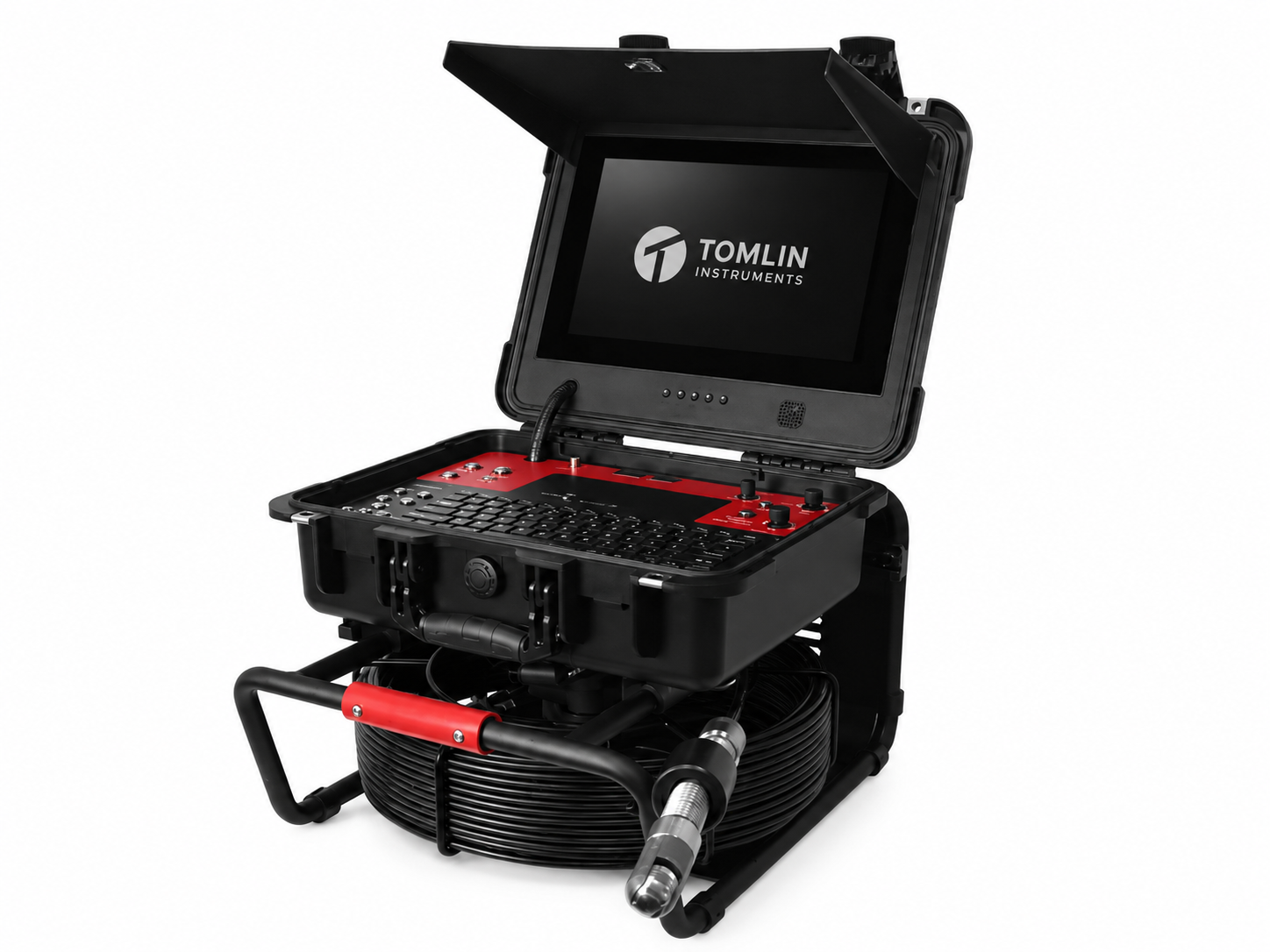

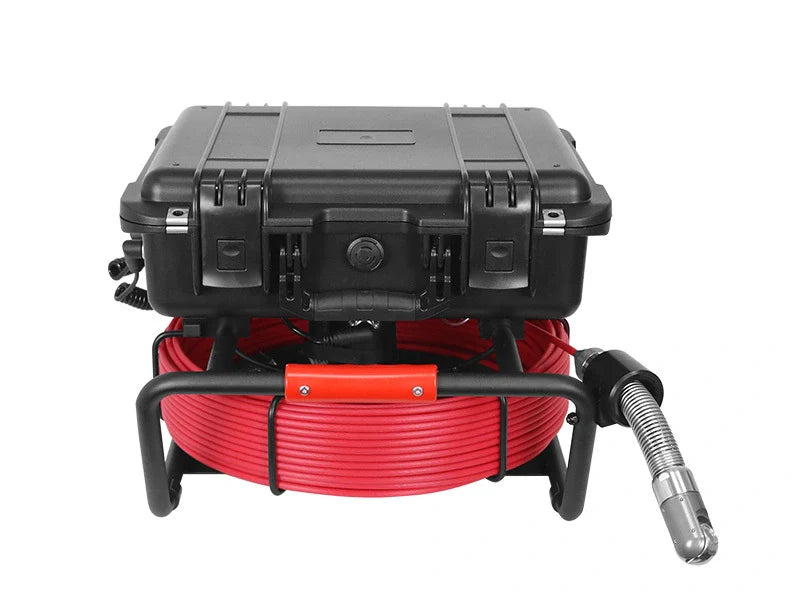

The system combines a 13-inch HD IPS DVR monitor, manual focus adjustment, USB wireless keyboard, digital metre counter and a 50m heavy-duty fibreglass push rod cable, delivering outstanding image control and professional reporting capabilities for medium and large diameter pipeline inspections.

---

Key Features

• 33mm HD pan and tilt camera head
• 360° continuous pan rotation
• 180° tilt movement
• Integrated 512Hz sonde
• Manual focus adjustment
• 13" HD IPS LCD monitor
• 50m fibreglass push rod cable
• HD video, photo and audio recording
• USB wireless keyboard
• Digital metre counter
• Image zoom and reduction
• IP68 waterproof camera head

---

Technical Specifications

Camera System

Specification	Details
Camera Head Diameter	33mm
Camera Length	72mm (235mm Overall with Spring)
Camera Type	Pan & Tilt
Pan Rotation	360° Continuous
Tilt	180°
Camera Sensor	1/3" CMOS 2.0MP
Resolution	Full HD 1080P
Viewing Angle	120°
Focus	Manual
Waterproof Rating	IP68
Camera Housing	Stainless Steel
Lens Protection	Sapphire Glass
LED Lighting	6 Adjustable High-Intensity LEDs
Sonde	Built-in 512Hz

---

Display & Recording

Specification	Details

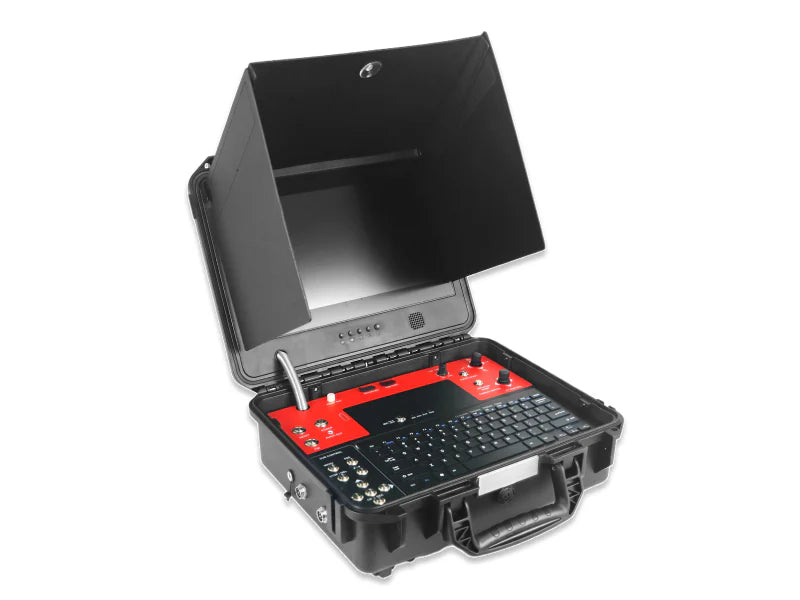

Monitor	13" HD IPS LCD
Display Resolution	1280 × 720
Video Recording	HD DVR (MP4)
Photo Capture	Yes
Audio Recording	Yes
Wireless Keyboard	USB
Digital Metre Counter	Yes
Manual Focus Control	Joystick
Pan & Tilt Control	Joystick
Image Zoom	Yes
Battery	8800mAh Rechargeable Li-ion

---

Cable & Reel

Specification	Details
Push Rod Material	Fibreglass
Cable Diameter	7mm
Cable Length	50m
Digital Depth Counter	Metres / Feet

---

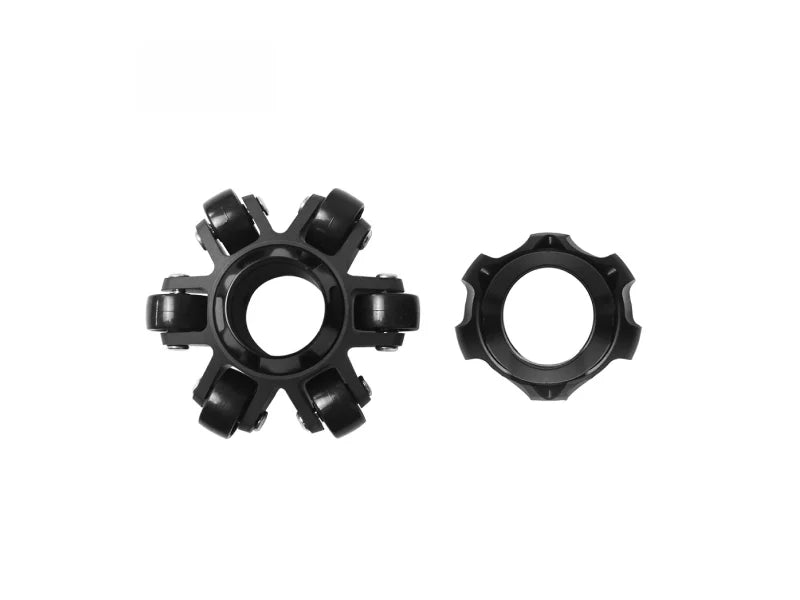

Camera Skids

Specification	Details
Small Skid	65mm
Large Skid	105mm

---

Power

Specification	Details
Battery	8800mAh Rechargeable Li-ion
Operating Voltage	12V

---

Applications

• Sewer CCTV inspections
• Stormwater pipeline inspections
• Municipal asset inspections
• Industrial pipeline maintenance
• Commercial drainage surveys
• Pipeline condition assessments
• Pre-rehabilitation inspections
• Water authority infrastructure inspections

---

Benefits

Complete Internal Pipe Inspection

The 360° pan and 180° tilt camera enables operators to inspect the full circumference of a pipeline, including joints, laterals and defects, without repositioning the push rod.

Accurate Camera Location

The integrated 512Hz sonde allows the camera head to be accurately located from above ground using a compatible pipe locator.

Manual Focus Control

Adjust focus during inspections to obtain sharp images across varying pipe diameters and inspection distances.

Professional Reporting

Capture HD video, photographs and audio recordings for customer reports, maintenance records and asset management.

Built for Daily Commercial Use

The rugged control unit, heavy-duty cable reel and industrial-grade camera head are designed for demanding field environments.

---

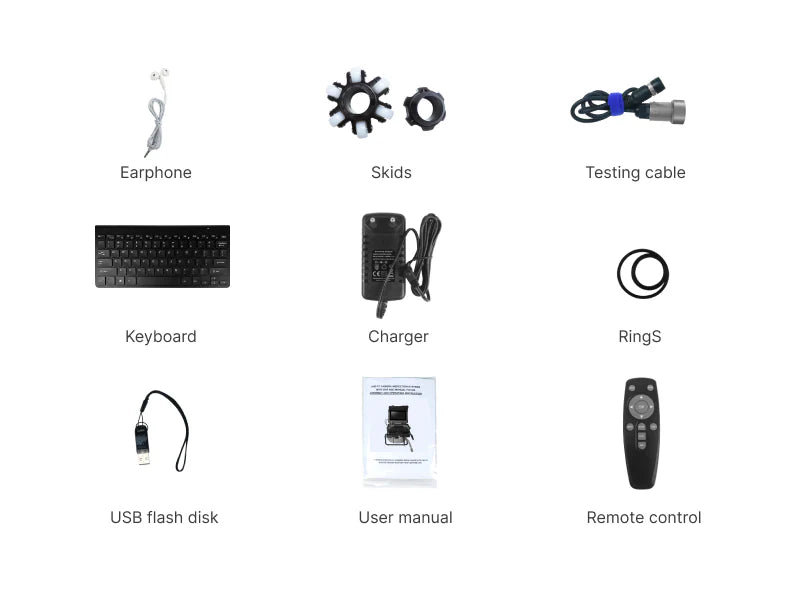

Delivery Scope

• TC-V13-33PTF Inspection System
• 33mm Pan & Tilt Camera Head
• Built-in 512Hz Sonde
• 13" HD IPS DVR Control Unit
• 50m Fibreglass Push Rod Cable
• Heavy-Duty Cable Reel
• USB Wireless Keyboard
• 8800mAh Rechargeable Li-ion Battery
• Battery Charger
• 65mm Camera Skid
• 105mm Camera Skid
• User Manual

---

Optional Accessories

• 512Hz Pipe Locator Receiver
• Spare Battery
• Additional Camera Skids
• Replacement Push Rod Cable
• Carry Bag
• Service & Maintenance Kit

---

Why Choose the TC-V13-33PTF Series?

The TC-V13-33PTF is designed for inspections where complete pipeline visibility is essential. Unlike conventional self-levelling cameras, the pan and tilt camera allows operators to inspect the full pipe circumference, examine joints, laterals and defects in detail, and accurately locate the camera head using the integrated 512Hz sonde. It is an ideal solution for professional CCTV surveys, municipal infrastructure inspections and detailed pipeline condition assessments.

---

Product Highlights

• 33mm Pan & Tilt Camera
• 360° Continuous Pan Rotation
• 180° Tilt Movement
• Built-in 512Hz Sonde
• Manual Focus Control
• Full HD 1080P Recording
• 13" HD IPS Monitor
• 50m Fibreglass Push Rod
• Digital Metre Counter
• IP68 Waterproof Camera

---

Industries Used In

• Plumbing
• Drainage Contractors
• Municipal Infrastructure
• Water Authorities
• Civil Construction
• Pipeline Rehabilitation
• Utilities Maintenance
• CCTV Asset Inspection

```

Help Me Choose

Product Family	Tomlin Part No.	Camera Head	Typical Pipe Size	Cable Lengths	Screen	Self Levelling	Sonde	Best For
Micro Drain Camera	TC-V8-20	20mm Forward View	25–75mm	30m	8"	No	No	Household drains, sinks, showers and small waste pipes
Self-Levelling Pipe Inspection Camera Mini	TC-V9-23	23mm Self Levelling	30–150mm	30–40m	9"	Yes	Yes	Residential and commercial drain inspections
Self-Levelling Pipe Inspection Camera	TC-V13-WS29	29mm Self-Levelling	50–200mm	40-50m	13"	Yes	Yes	Professional drain inspections requiring an upright image
Heavy Duty Sewer Camera	TC-V13-3240AHD	40mm Self-Levelling	100–400mm	60–150m	13"	Yes	Yes	Main sewer lines, municipal infrastructure and civil contractors
Pan Tilt Sewer Camera	TC-V13-3250PTF	33mm or 50mm Pan & Tilt	75–1000mm+	60–150m	13"	No	Yes	Large diameter pipelines requiring full directional viewing
Dual View Sewer Camera	TC-V13-3245DU	45mm Dual View	100–600mm	60–150m	13"	No	Yes	Sewer condition surveys, junctions and lateral inspections
Advanced Multi-Camera Inspection System (SL)	TC-V13-DR23SL/17	23mm Self-Levelling + 17mm Camera	25–150mm	30m + 50m	13"	Yes	Yes	One system for domestic and commercial inspections
Advanced Multi-Camera Inspection System (SLPT)	TC-V13-DR33/23SL	23mm Self-Levelling + 33mm Pan & Tilt	20–1000mm+	30m + 50m	13"	Mixed	Yes	Complete inspection solution from household drains to large sewers
