50mm Pan & Tilt Sewer Inspection Camera 60m–150m – TC-V13-3250PTF

Description

The TC-V13-3250PTF is a professional pan and tilt sewer inspection camera designed for detailed inspections of large diameter drains, sewer mains, stormwater pipelines and industrial pipework. Featuring a 50mm HD pan & tilt camera head with manual focus, the system provides full 360° endless pan and 180° tilt control, allowing operators to inspect the entire circumference of a pipeline without repositioning the camera.

Available with 60m, 100m or 150m heavy-duty fibreglass push rod cable options, the TC-PT-13 series is ideal for plumbing contractors, councils, utility companies and pipeline inspection specialists requiring long-distance inspections and precise fault identification.

Key Features

• 50mm HD Pan & Tilt camera head
• Continuous 360° pan and 180° tilt control
• Manual focus adjustment for close and long-range inspections
• 13" HD IPS sunlight-readable monitor
• Full HD video, image and audio recording
• 60m, 100m or 150m cable options
• Heavy-duty 9mm or 11mm fibreglass push rod cable
• Digital metre counter with metre/feet display
• Wireless USB keyboard for report annotation
• Sapphire glass camera lens
• Adjustable high-intensity LED lighting
• Rechargeable 8800mAh Li-ion battery
• Optional stainless steel work platform
• IP68 waterproof camera head

Specifications

Applications

The TC-V13-3250PTF is designed for demanding inspection applications including:

• Municipal sewer inspections
• Stormwater drainage systems
• Large commercial pipework
• Industrial process pipelines
• Civil construction projects
• Water authority maintenance
• Asset condition assessments
• Pre- and post-rehabilitation inspections

Typical Users

• CCTV Pipe Inspection Contractors
• Plumbing Companies
• Municipal Councils
• Water Utilities
• Civil Contractors
• Infrastructure Maintenance Teams
• Drainage Specialists
• Industrial Maintenance Engineers

Benefits

360° Pan & 180° Tilt Inspection

Inspect the entire internal circumference of the pipe without moving the push rod, making defect identification faster and more accurate.

Manual Focus Control

Adjust focus in real time for sharp images from close-up defects to long-distance inspections.

Long-Distance Capability

Available with cable lengths up to 150 metres, allowing inspection of long sewer and stormwater runs.

HD Recording

Capture high-definition video, still images and audio for professional reporting and customer documentation.

Rugged Industrial Design

Built for daily field use with a robust control unit, heavy-duty reel and IP68 waterproof camera head.

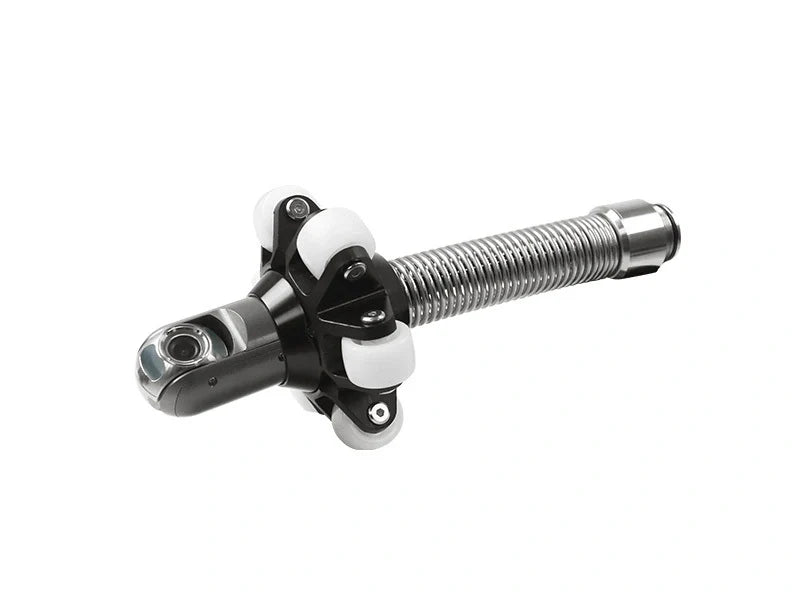

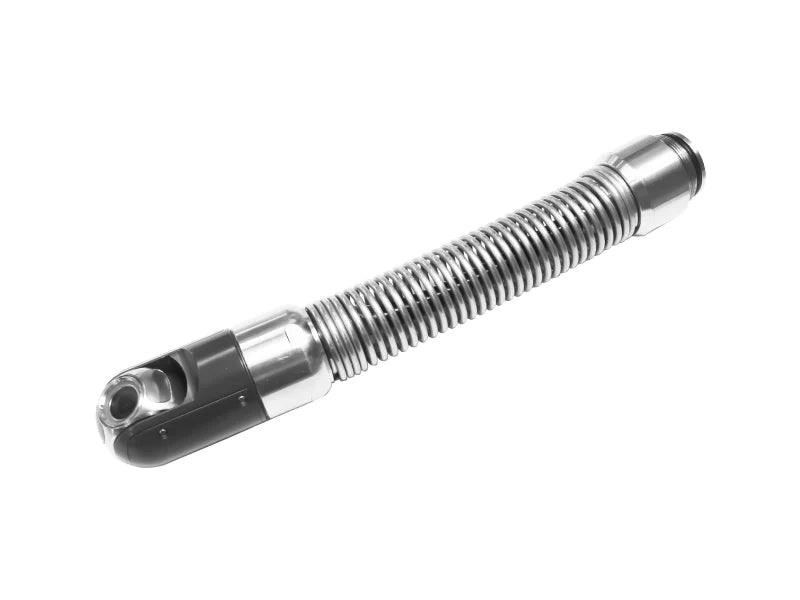

Camera Head

• 50mm HD Pan & Tilt Camera
• 1/3" CMOS 2MP Image Sensor
• 1080P HD Resolution
• Continuous 360° Pan
• 180° Tilt
• Manual Focus
• 120° Viewing Angle
• Sapphire Glass Lens Window
• Adjustable 6 LED Lighting
• IP68 Waterproof (10 Bar)
• Automatic Lens Position Reset

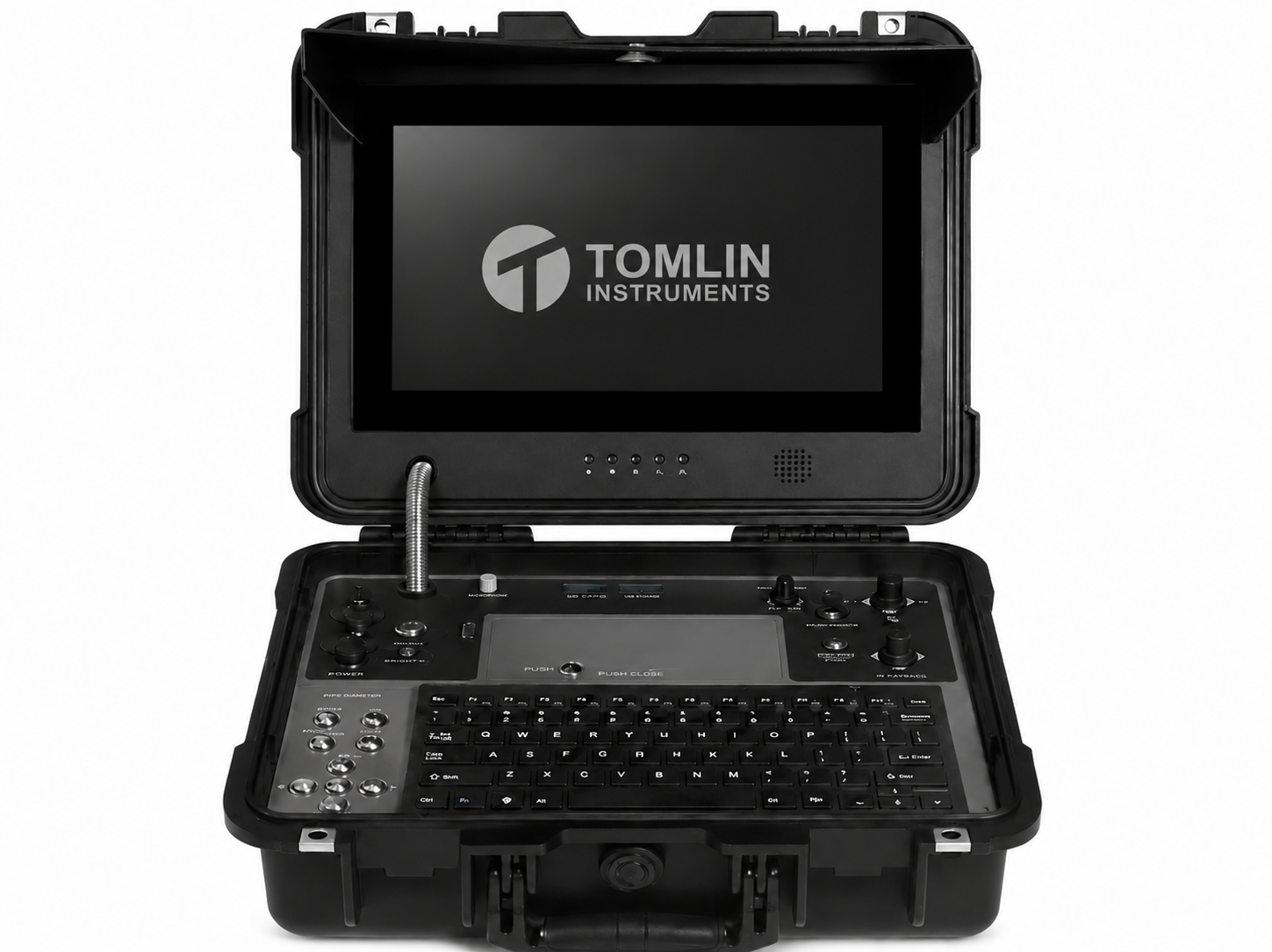

Control Unit

• 13" HD IPS LCD Monitor
• HD DVR Recording
• Photo Capture
• Audio Recording
• USB Recording
• Wireless USB Keyboard
• Digital Metre Counter
• 16× Image Magnification
• LED Brightness Control
• Pan & Tilt Joystick Controls
• Manual Focus Joystick
• 8800mAh Rechargeable Battery

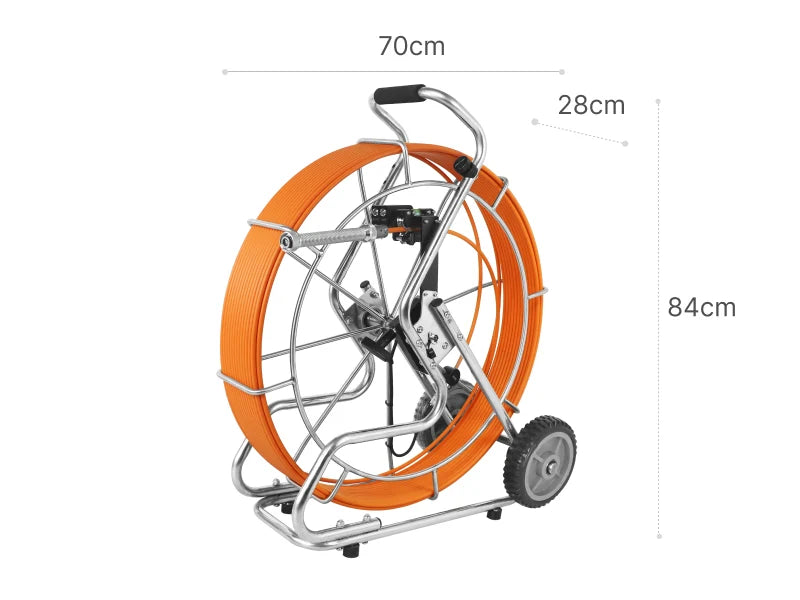

Cable Reel

• Heavy-duty stainless steel reel
• Fibreglass push rod cable
• 9mm or 11mm cable diameter
• Available in 60m, 100m or 150m
• Digital distance counter
• Large transport wheels
• Optional stainless steel work platform

Available Models

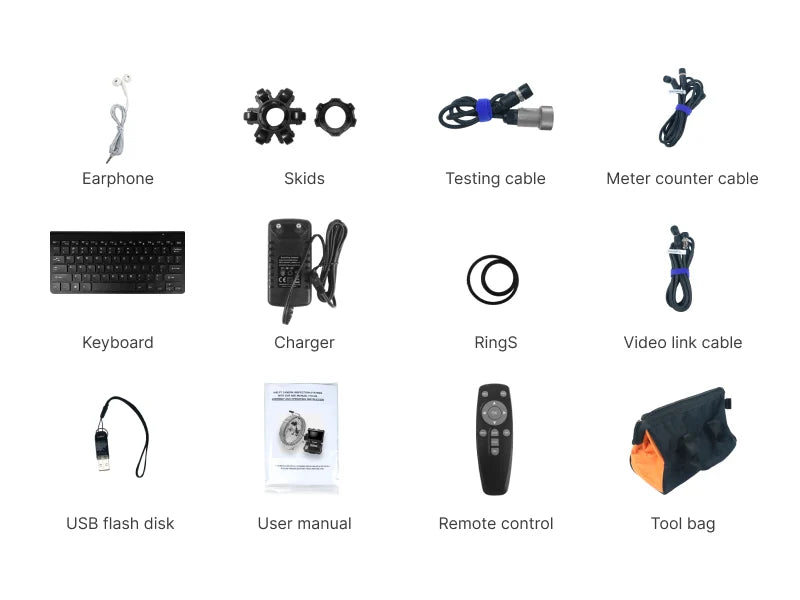

What's Included

• TC-PT Pan & Tilt Control Unit
• 50mm HD Pan & Tilt Camera Head
• Cable Reel (selected length)
• Wireless USB Keyboard
• Battery Charger
• USB Storage Device
• Camera Skid Set (85mm, 155mm & 220mm)
• User Manual
• Carrying Accessories

Optional Accessories

• 512Hz Sonde & Locator System
• Stainless Steel Reel Work Platform
• Heavy-Duty Camera Transport Dolly
• Additional Camera Skids
• Replacement Battery Pack
• USB Storage Devices

Why Choose This Model?

The TC-V13-3250PTF Series is the ideal choice when standard self-levelling cameras cannot provide sufficient inspection detail. With full pan and tilt control, manual focus and long-distance cable options, it enables operators to thoroughly inspect joints, laterals, cracks and structural defects in larger diameter pipelines.

Perfect for professional contractors and municipal asset inspection programs requiring maximum inspection capability without the cost of a crawler system.
