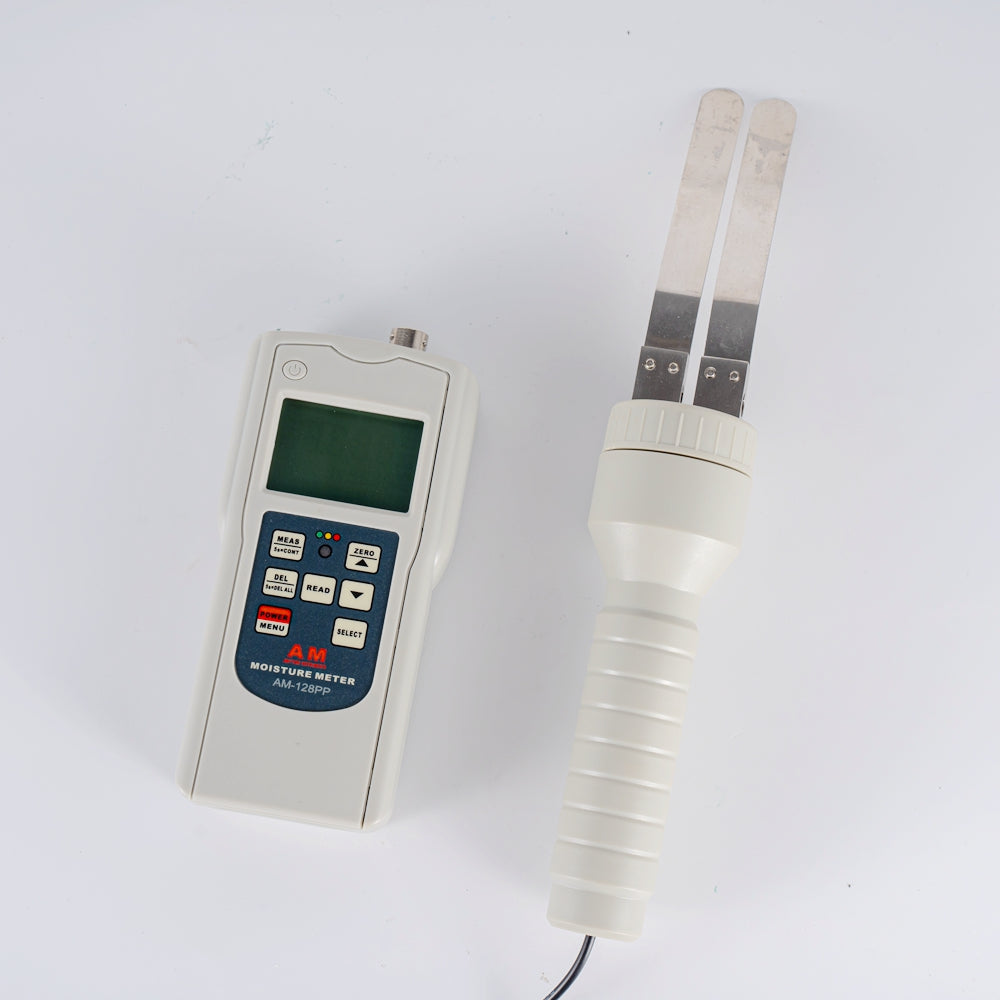

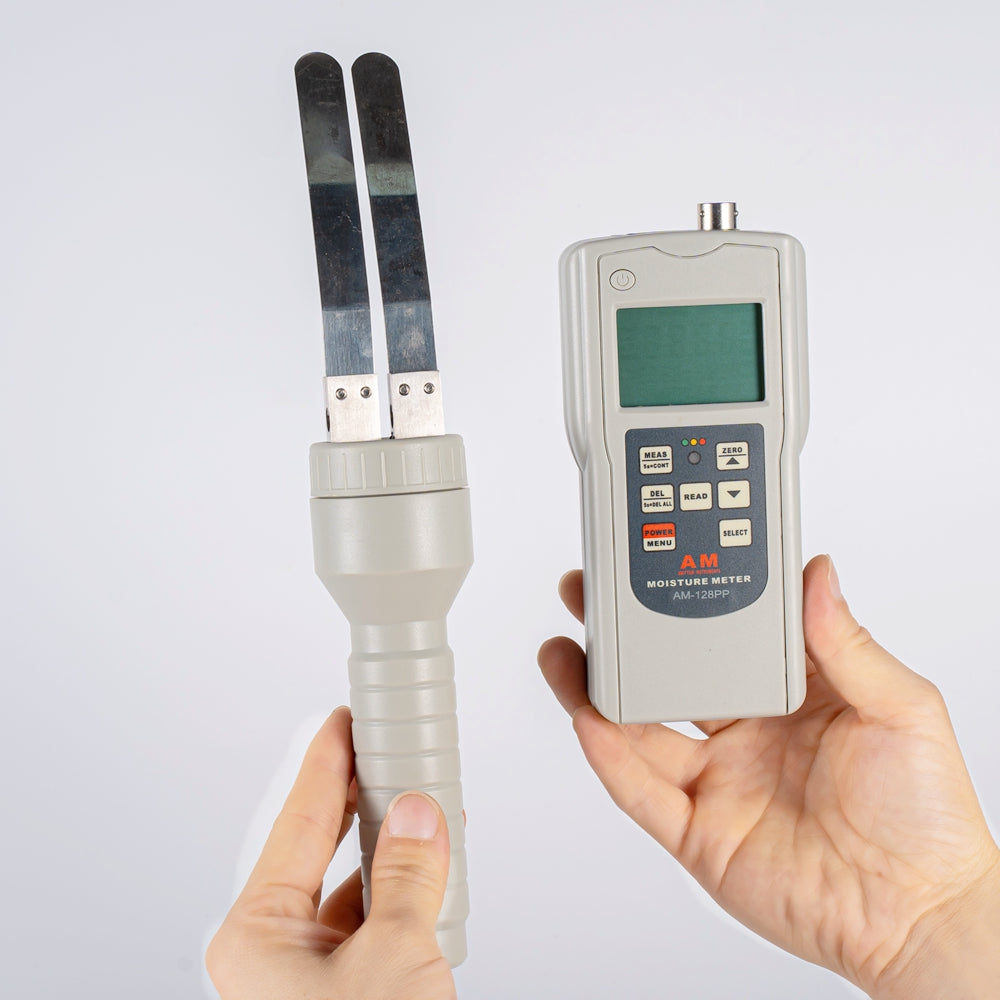

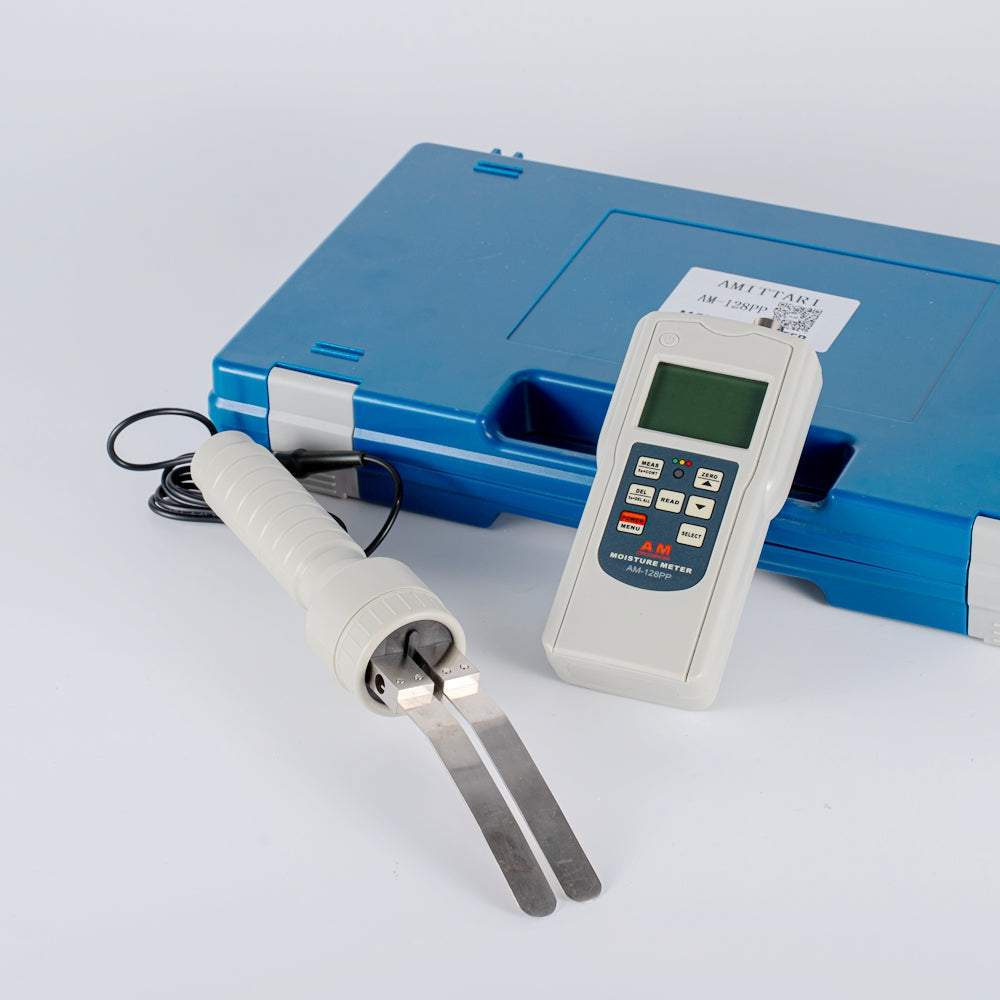

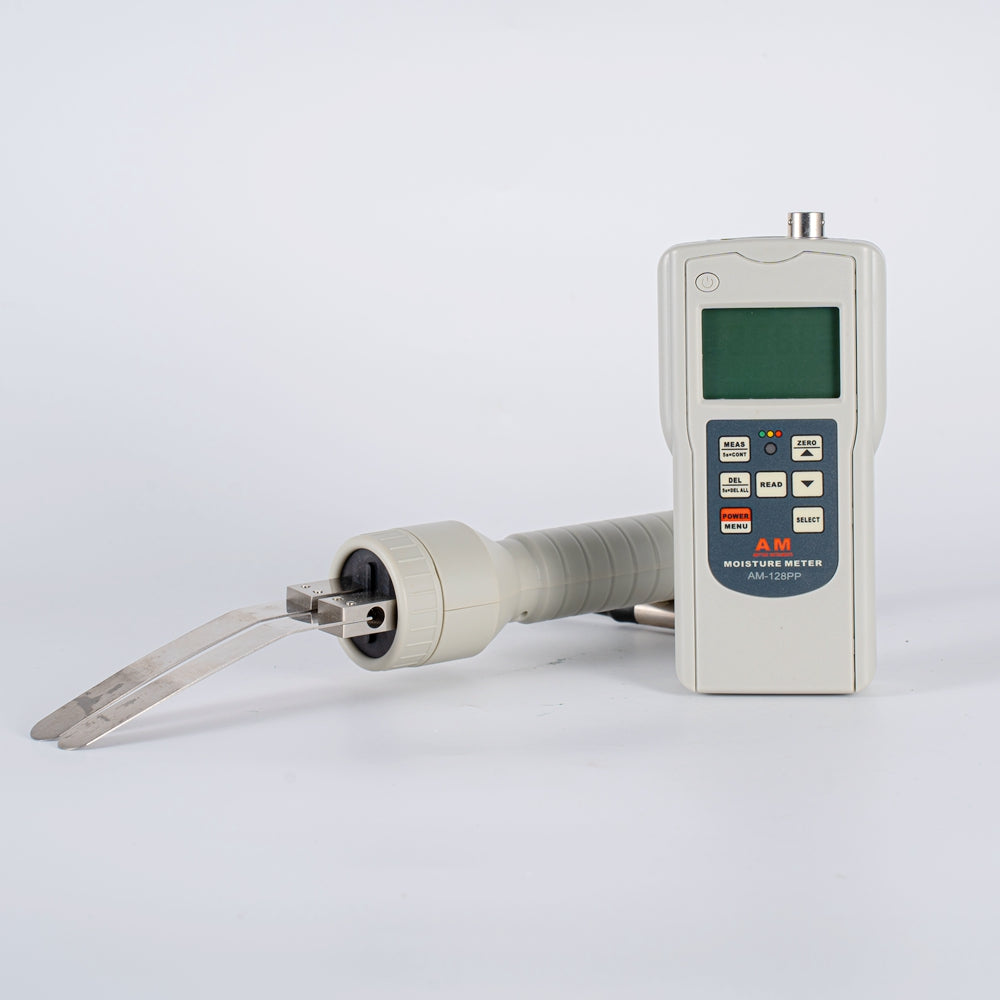

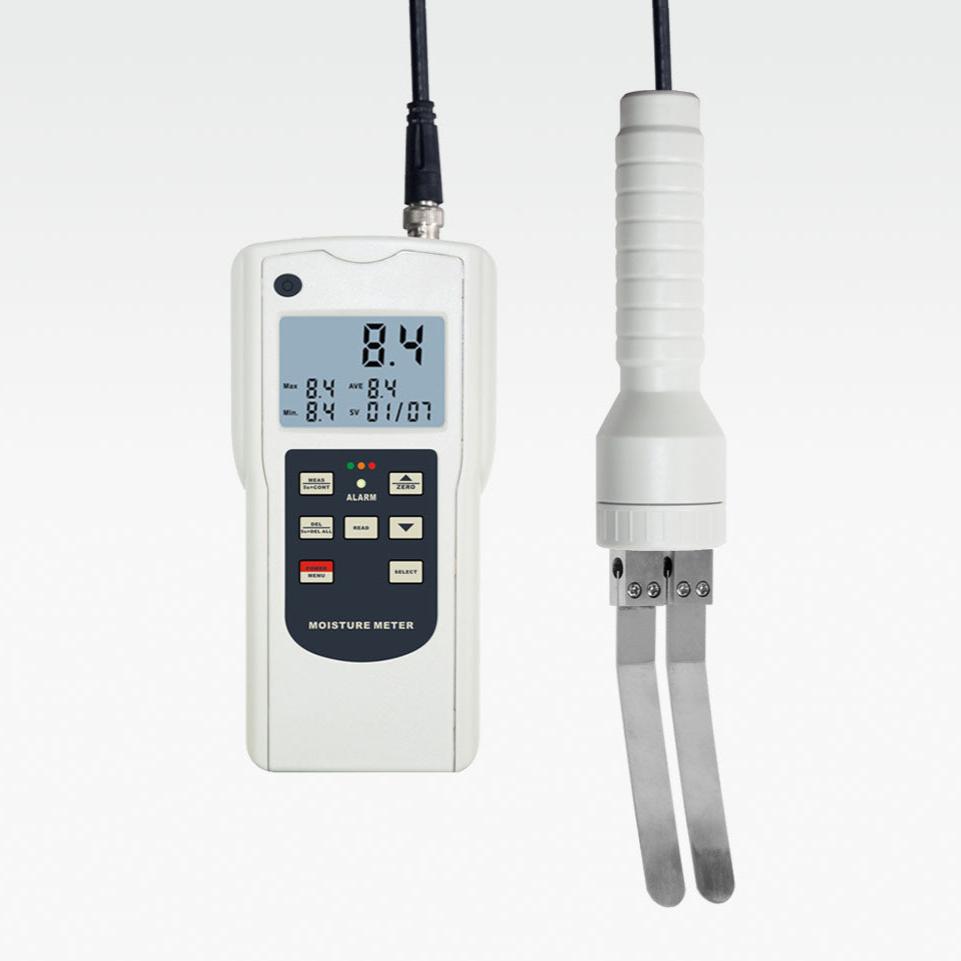

Paper Moisture Meter – Model AM-128PP

Description

The TOMLIN Paper Moisture Meter is a specialized instrument for measuring the moisture content of paper and other fibrous materials. It ensures quality control during paper production and other processes where accurate moisture measurement is critical.

Features

• Measurement Type: Contact measurement via electrical conductivity.
• Memory Function: Stores up to 240 groups of readings, including Mean, Max, and Min calculations.
• Industrial Applications: Ideal for paper mills and quality control facilities.

Specifications

• Measurement Range: 0–80%
• Accuracy: ±(0.5%n+1)
• Display: LCD with color-coded LED indicators (Green: Safe, Yellow: Borderline, Red: Damp)

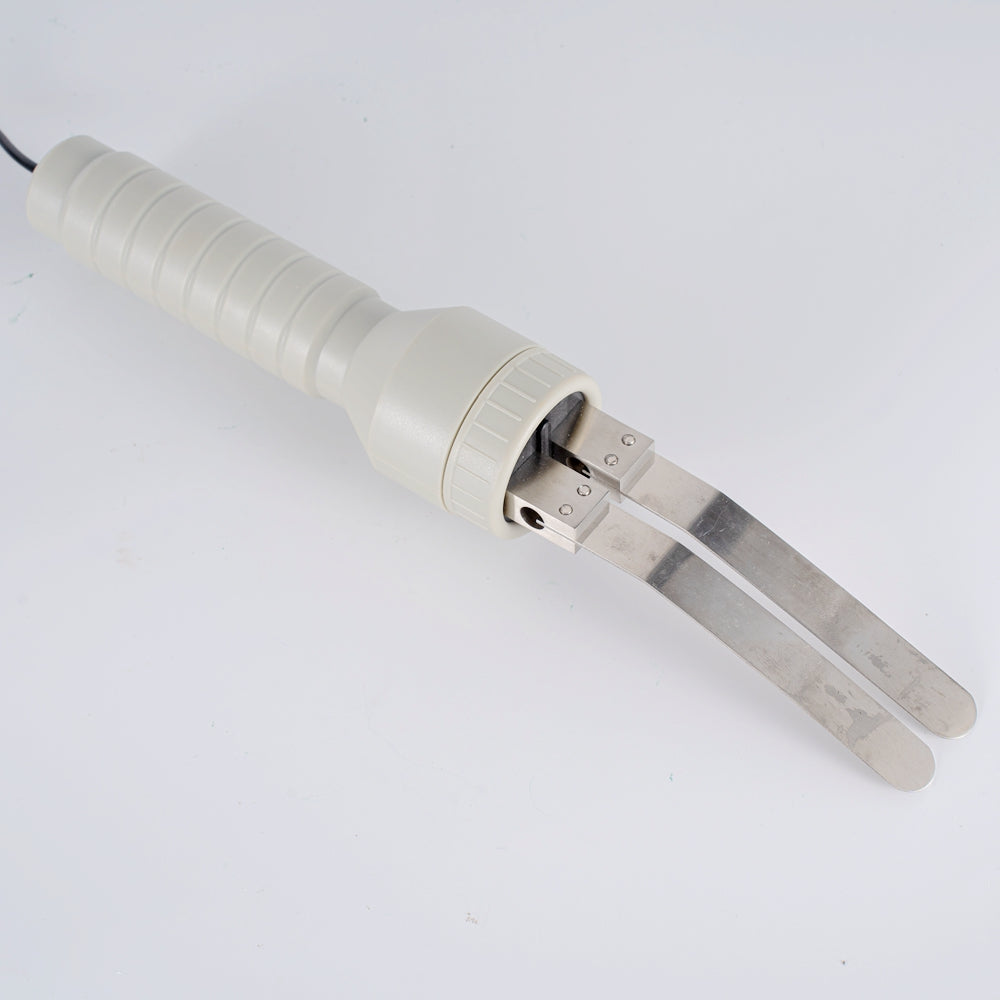

• Sensor Size: Electrode Probe (265 x 44 x 44 mm)

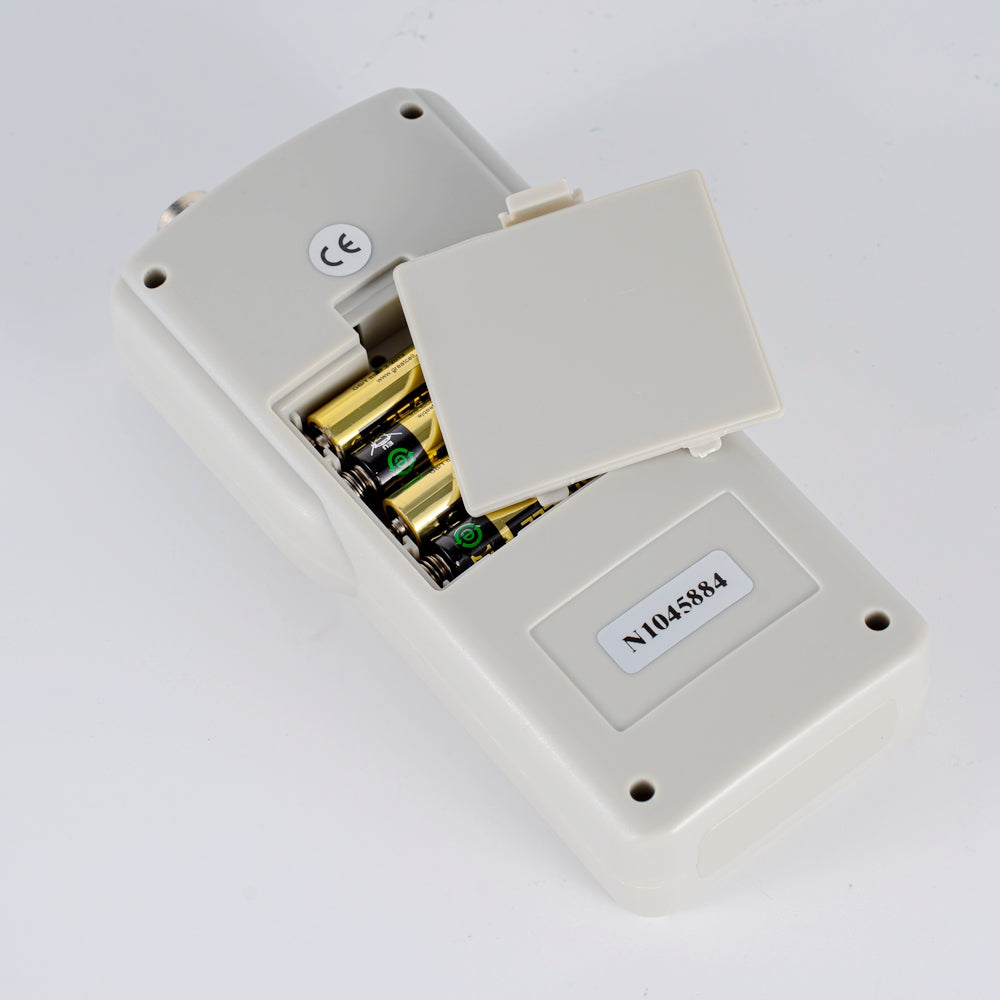

• Power Supply: 4 x 1.5V AAA UM-4 Battery
• Weight: 295 g (10.41 oz)

Standard Accessories

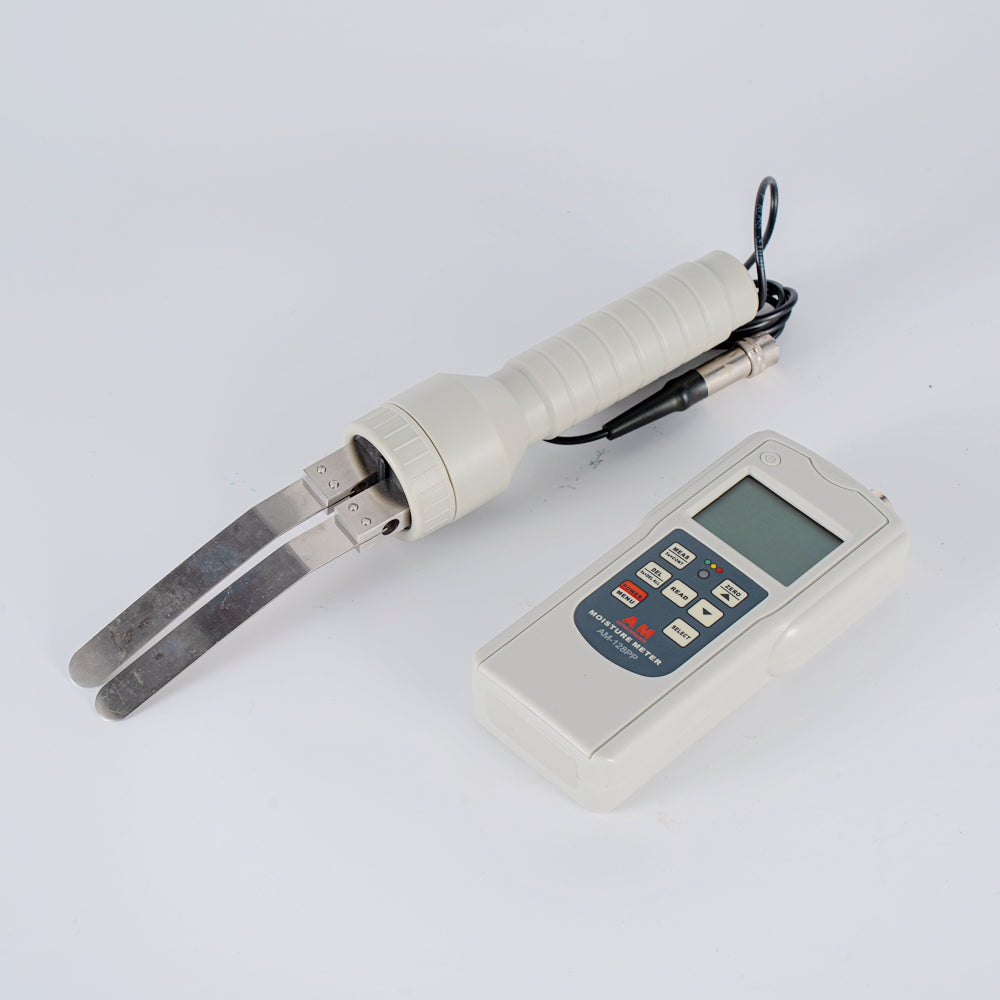

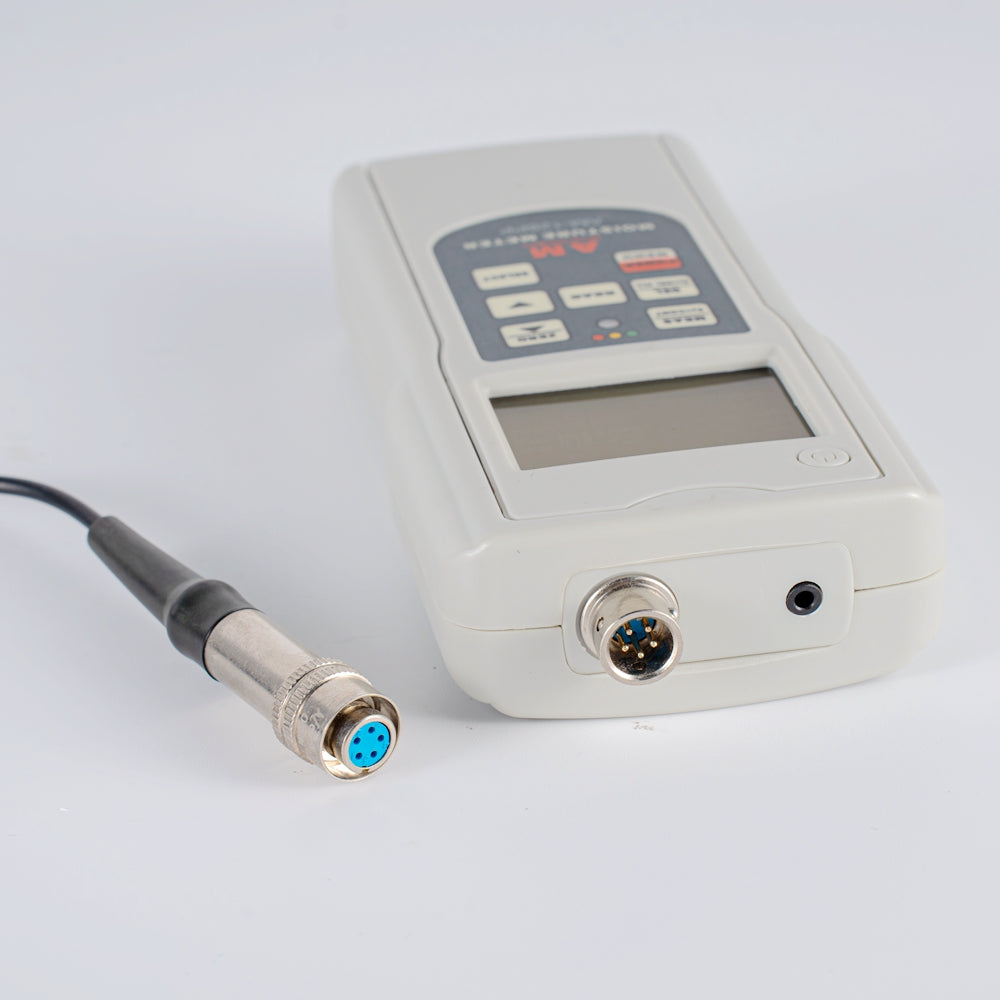

• Electrode Probe

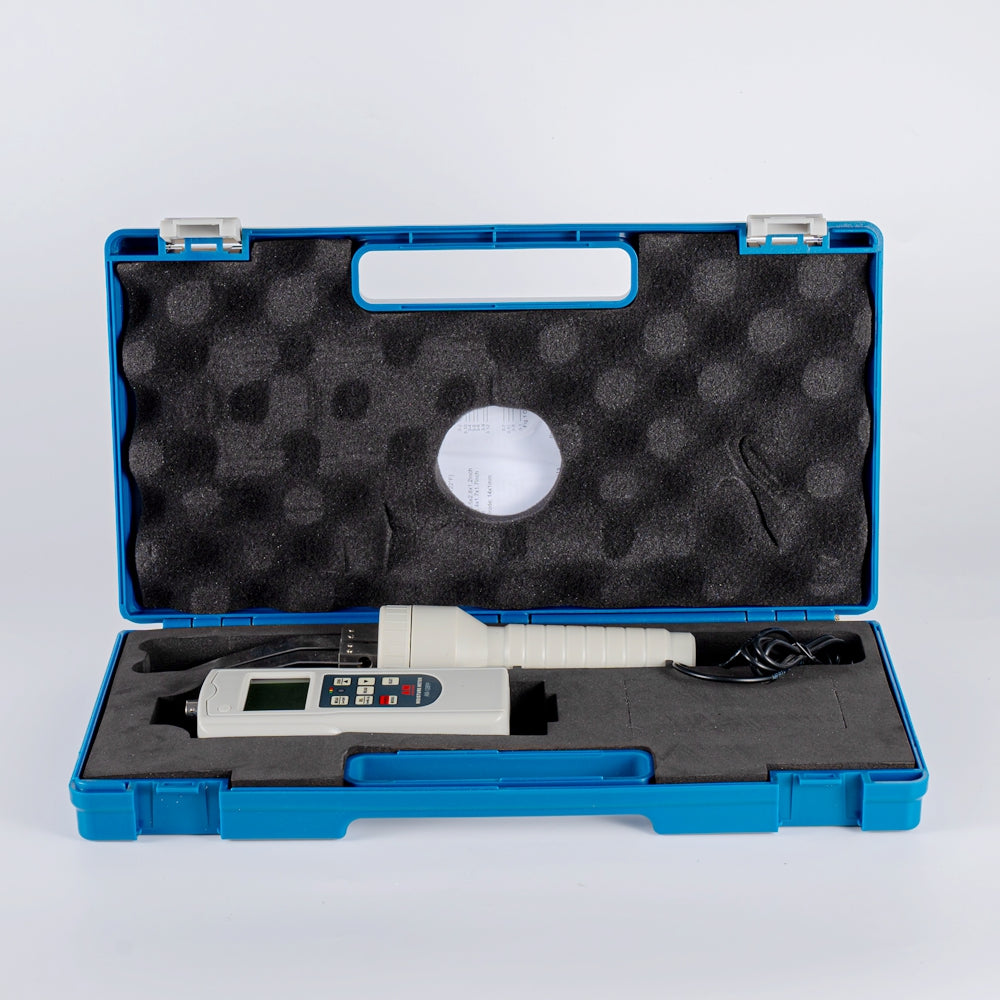

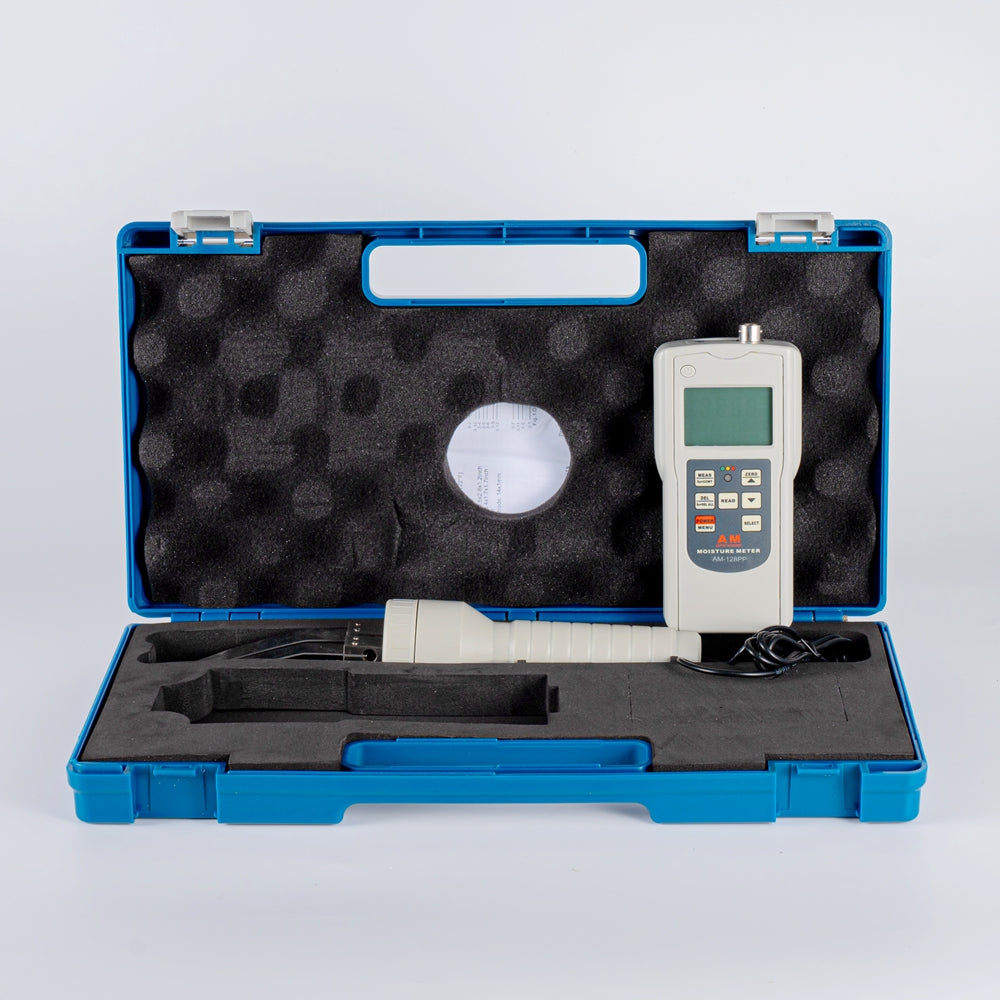

• Carrying Case
• Operation Manual

Alternative Names

• Paper Moisture Tester
• TOMLIN AM-128PP Moisture Detector
• Contact-Type Paper Moisture Meter

Downloads

PDF Specification Sheet - Download Here
