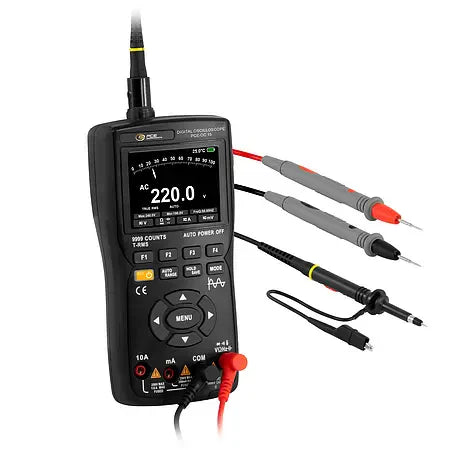

Oscilloscope Multimeter PCE-OC 15

Oscilloscope Multimeter PCE-OC 15

$480.00
$480.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Oscilloscope / integrated multimeter / voltage / current / frequency / resistance / temperature / capacitance / diode test / continuity test

The Oscilloscope was developed for practical and mobile use and can be used universally thanks to its diverse measurement functions. Our Oscilloscope reliably measures voltage, current, frequency, resistance, temperature, capacitance and offers a diode and continuity test. The MODE key makes it easy to switch between Oscilloscope and Oscilloscope mode. With a bandwidth of 10 MHz and a fast sampling rate of 48 MSa/s, it ensures precise and quick data acquisition.

The device supports the storage of waveform data which can be exported as images and transferred to a PC. An LED backlight with adjustable brightness and power-off time as well as multifunctional keys make operation easier for the user. With a rechargeable battery via the C-type interface and a long standby time, the Oscilloscope multimeter is ideal for long working hours, while the measured values are updated three times per second to always provide up-to-date data. The hand-held Oscilloscope multimeter is an ideal companion for service technicians on site or in any electrical workshop.


Highlights

- multimeter with oscilloscope functions
- bandwidth 10 MHz
- sampling rate up to 48 MSa/s
- LC display with 4 brightness levels
- auto measurement range selection
- USB-C interface

Specification

Direct voltage DC
Measurement range up to 0 ... 9,999 mV
Resolution 0,001 mV
Accuracy ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to 10 ... 99,99 mV
Resolution 0,01 mV
Accuracy ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to 100 ... 999,9 mV
Resolution 0,1 mV
Accuracy ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to 1 ... 9,999 V
Resolution 0,001 V
Accuracy ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to 10 ... 99,99 V
Resolution 0,01 V
Accuracy ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to 100 ... 999,9 V
Resolution 0,1 V
Accuracy ±(0.5 % of Rd +3 digits)
Direct current DC
Measurement range up to 0 ... 9999 µA
Resolution 1 µA
Accuracy ±(0.8 % of Rd +3 digits)
Direct current DC
Measurement range up to 10 ... 99,99 mA
Resolution 0,01 mA
Accuracy ±(0.8 % of Rd +3 digits)
Direct current DC
Measurement range up to 100 ... 999,9 mA
Resolution 0,1 mA
Accuracy ±(1 % of Rd +3 digits)
Direct current DC
Measurement range up to 1 ... 9,999 A
Resolution 0,001 A
Accuracy ±(1 % of Rd +3 digits)
Capacity
Measurement range up to 0 ... 9,999 nF
Resolution 0,001 nF
Accuracy ±(5 % of Rd +20 digits)
Capacity
Measurement range up to 10 ... 99,99 nF
Resolution 0,01 nF
Accuracy ±(2 % of Rd +5 digits)
Capacity
Measurement range up to 100 ... 999,9 nF
Resolution 0,1 nF
Accuracy ±(2 % of Rd +5 digits)
Capacity
Measurement range up to 1 ... 9,999 µF
Resolution 0,001 µF
Accuracy ±(2 % of Rd +5 digits)
Capacity
Measurement range up to 10 ... 99,99 µF
Resolution 0,01 µF
Accuracy ±(2 % of Rd +5 digits)
Capacity
Measurement range up to 100 ... 999,9 µF
Resolution 0,1 µF
Accuracy ±(5 % of Rd +5 digits)
Capacity
Measurement range up to 1 ... 9,999 mF
Resolution 0,001 mF
Accuracy ±(5 % of Rd +5 digits)
Capacity
Measurement range up to 10 ... 99,99 mF
Resolution 0,01 mF
Accuracy ±(5 % of Rd +5 digits)
AC voltage
Measurement range up to 0 ... 9,999 mV
Resolution 0,001 mV
Accuracy ±(1 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
AC voltage
Measurement range up to 10 ... 99,99 mV
Resolution 0,01 mV
Accuracy ±(1 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
AC voltage
Measurement range up to 100 ... 999,9 mV
Resolution 0,1 mV
Accuracy ±(1 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
AC voltage
Measurement range up to 1 ... 9,999 V
Resolution 0,001 V
Accuracy ±(1 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
AC voltage
Measurement range up to 10 ... 99,99 V
Resolution 0,01 V
Accuracy ±(1 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
AC voltage
Measurement range up to 100 ... 750 V
Resolution 0,1 V
Accuracy ±(1 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
Alternating current AC
Measurement range up to 0 ... 9999 µA
Resolution 1 µA
Accuracy ±(1 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
Alternating current AC
Measurement range up to 10 ... 99,99 mA
Resolution 0,01 mA
Accuracy ±(1 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
Alternating current AC
Measurement range up to 100 ... 999,9 mA
Resolution 0,1 mA
Accuracy ±(1.2 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
Alternating current AC
Measurement range up to 1 ... 9,999 A
Resolution 0,001 A
Accuracy ±(1.2 % of Rd +3 digits)
Frequency range 40 ... 1000 Hz
Resistance
Measurement range up to 0 ... 99,99 Ω
Resolution 0,01 Ω
Accuracy ±(1 % of Rd +3 digits)
Resistance
Measurement range up to 100 ... 999,9 Ω
Resolution 0,1 Ω
Accuracy ±(0.5 % of Rd +3 digits)
Resistance
Measurement range up to 1000 Ω ... 9,999 kΩ
Resolution 0,001 kΩ
Accuracy ±(0.5 % of Rd +3 digits)
Resistance
Measurement range up to 10 ... 99,99 kΩ
Resolution 0,01 kΩ
Accuracy ±(0.5 % of Rd +3 digits)
Resistance
Measurement range up to 100 ... 999,9 kΩ
Resolution 0,1 kΩ
Accuracy ±(0.5 % of Rd +3 digits)
Resistance
Measurement range up to 1000 kΩ ... 9,999 M Ω
Resolution 0,001 mΩ
Accuracy ±(1.5 % of Rd +3 digits)
Resistance
Measurement range up to 10 ... 99,99 M Ω
Resolution 0,01 mΩ
Accuracy ±(3 % of Rd +5 digits)
Frequency
Measurement range up to 0 ... 99,99 Hz
Resolution 0,01 Hz
Accuracy ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to 100 ... 999,9 Hz
Resolution 0,1 Hz
Accuracy ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to 1000 Hz ... 9,999 kHz
Resolution 0,001 kHz
Accuracy ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to 10 ... 99,99 kHz
Resolution 0,01 kHz
Accuracy ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to 100 ... 999,9 kHz
Resolution 0,1 kHz
Accuracy ±(0.1 % of Rd +2 digits)
Temperature
Measurement range up to -20 ... +1000 °C
Resolution 1 °C
Accuracy ±(2.5 % of Rd +5 digits)
Temperature
Measurement range up to -4 ... +1832 °F
Resolution 1 °F
Accuracy ±(2.5 % of Rd +5 digits)
Oscilloscope specifications
Number of channels 1
Measuring functions Period, Frequency, Peak-peak, MAX, MIN, RMS value
Sampling rate 48 MSa/s
Input impedance 1 M Ω
Probe factors X1, X10
Max. input voltage 150 V
Adjustable sampling rate 1.5 Sa/s ... 48 MSa/s
Time base 100 ns/div ... 20 s/div
Accuracy 20 ppm
Vertical sensitivity 20 mV/div ... 10 V/div
Rise time 10 ns
DC gain accuracy ±3 %
General technical data
Display type LCD
Display size 2,76 Inch
Measuring rate 3 Hz
Storage medium Internal memory
Storage capacity 15 MB
Memory information Screenshot on keystroke

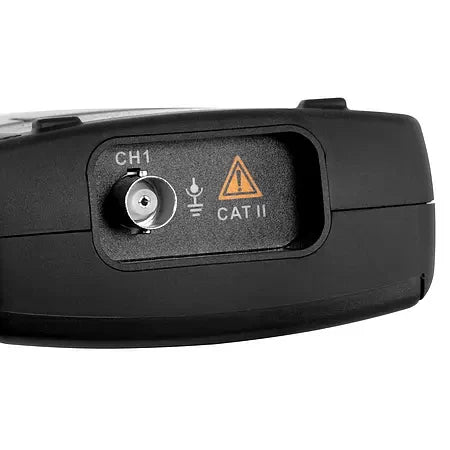

Interface USB-C, BNC
Automatic power-off from...to 15 ... 120 min.
Automatic power-off can be deactivated Yes
Safety standard CAT III 600 V, CAT II 1000 V
Fuse(s) Microfuse 10 A
Trigger input Mode: auto, normal, single
Edge: rising, falling
Menu language English, Chinese, English (GB)
Protection class (device) IP20
Power supply 100 ... 240 V AC | 50/60 Hz
Weight 352 g
Operating conditions 0 ... 40 °C , 0 ... 75 % RH
Storage conditions -20 ... 60 °C , 0 ... 80 % RH
(Rechargeable) battery 1 x 3,7 V 18650 , lithium
Capacity 2000 mAh
Dimensions ( L x W x H ) 175 x 90 x 40 mm

Delivery Scope

1 x Oscilloscope PCE-OC 15
1 x set of test leads
1 x Oscilloscope probe
1 x temperature sensor
1 x USB-C cable
1 x user manual
1 x probe accessories
