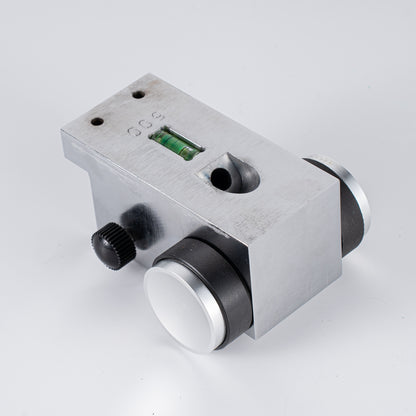

Pencil Hardness Tester AS-120P

Pencil Hardness Tester AS-120P

Regular price $220.00
Regular price Sale price $220.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

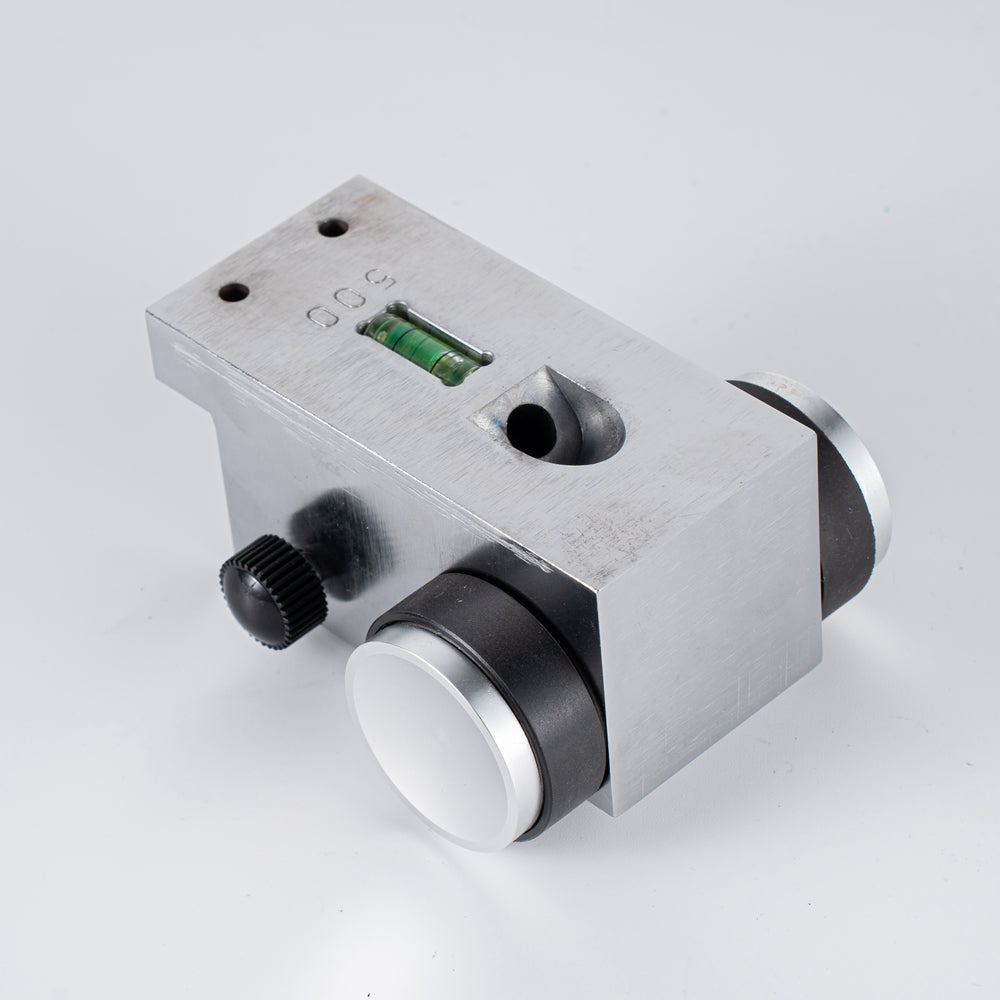

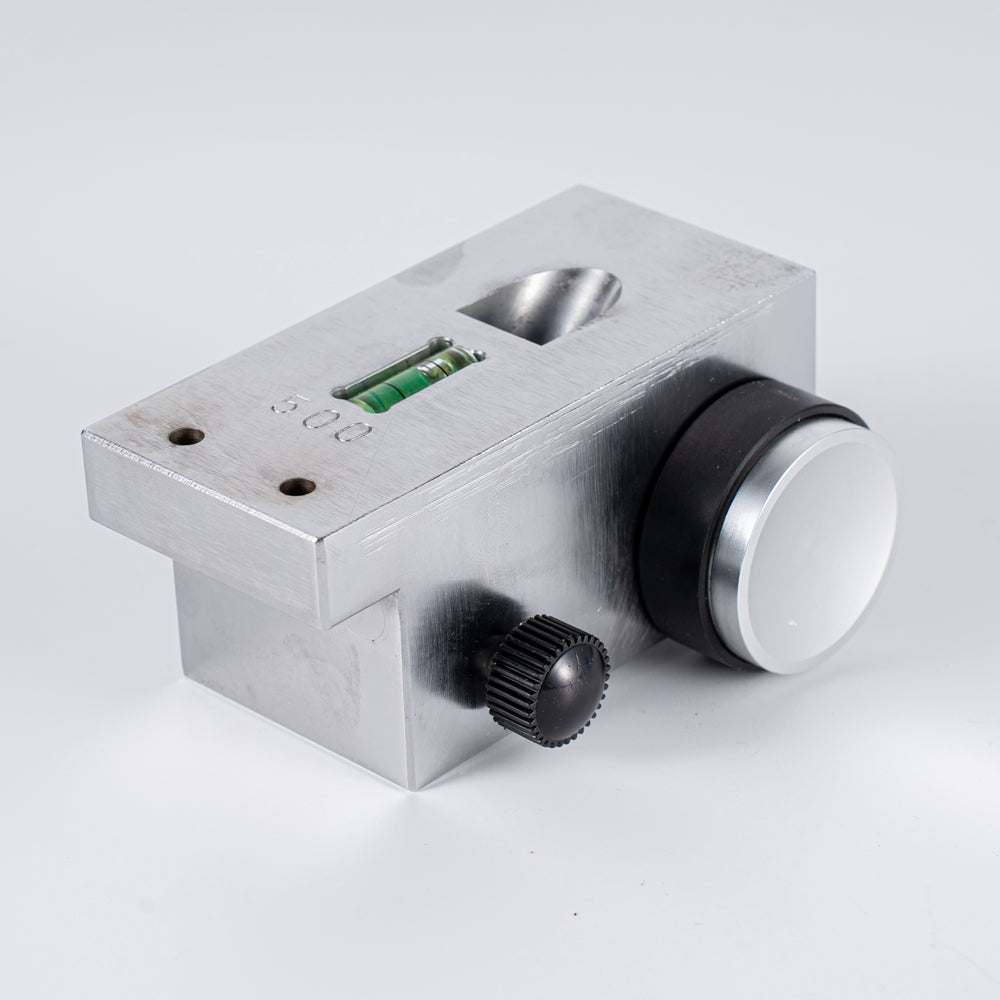

The TOMLIN Pencil Hardness Tester is a simple and effective instrument for evaluating the hardness of various coatings. By applying a pencil lead at a specific angle and pressure, this method determines the coating's resistance based on the trace left behind. It ensures that coatings meet industry-specific hardness standards, making it an essential tool for quality assessments across various industries.


Features

  • Industry Standards Compliance: Adheres to GB/T 6739-96, ASTM D3363-00, and GB/T 1727-92 standards.
  • Simple and Effective Method: Utilizes pre-sharpened pencils of varying hardness levels, applied consistently to evaluate coating hardness.

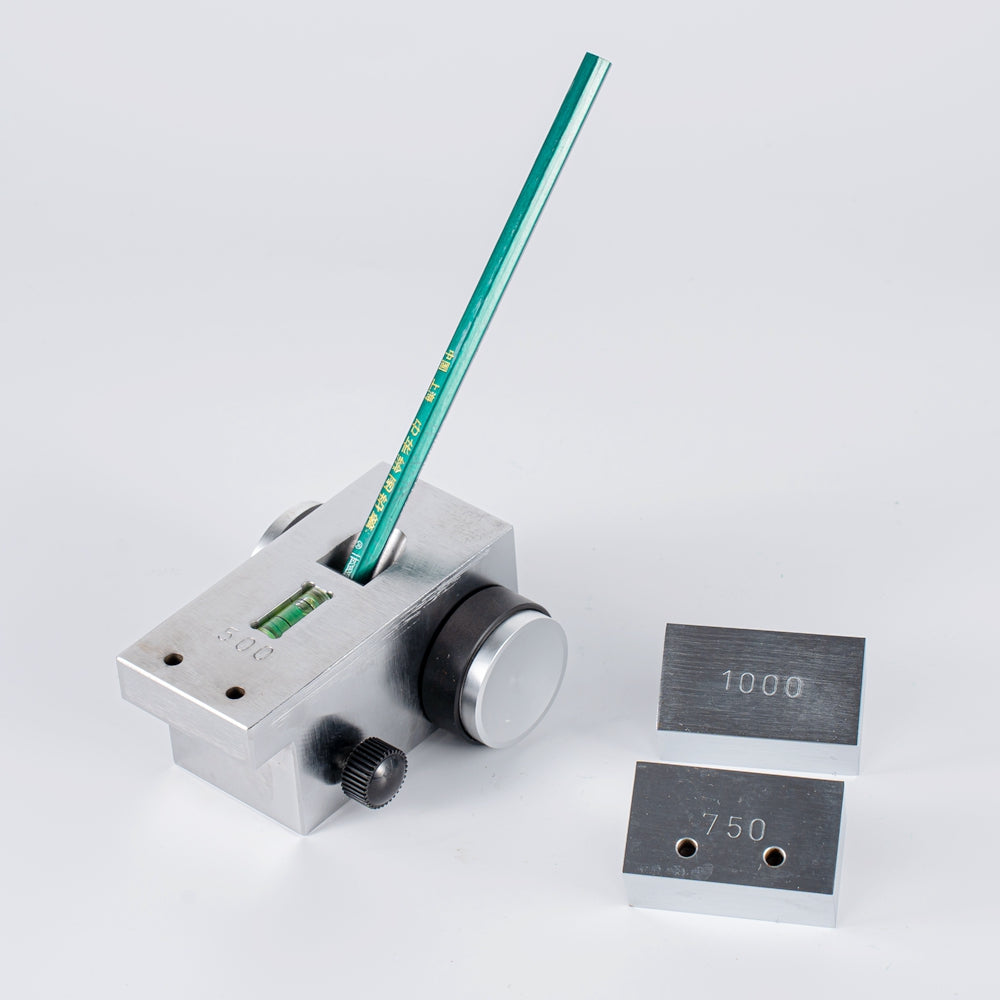

  • Adjustable Weights: Provides flexibility with load weights of 1000 g, 750 g, and 500 g for versatile testing requirements.

Pencil Hardness Selection
The hardness of the pencil determines the trace left on the coating. A series of pencils, ranging from 6H (hardest) to 6B (softest), allows comprehensive assessment of coating resistance.

Hardness Grades:
6H, 5H, 4H, 3H, 2H, H, HB, B, 2B, 3B, 4B, 5B, 6B


Specifications

  • Load Weight: 1000 g / 750 g / 500 g

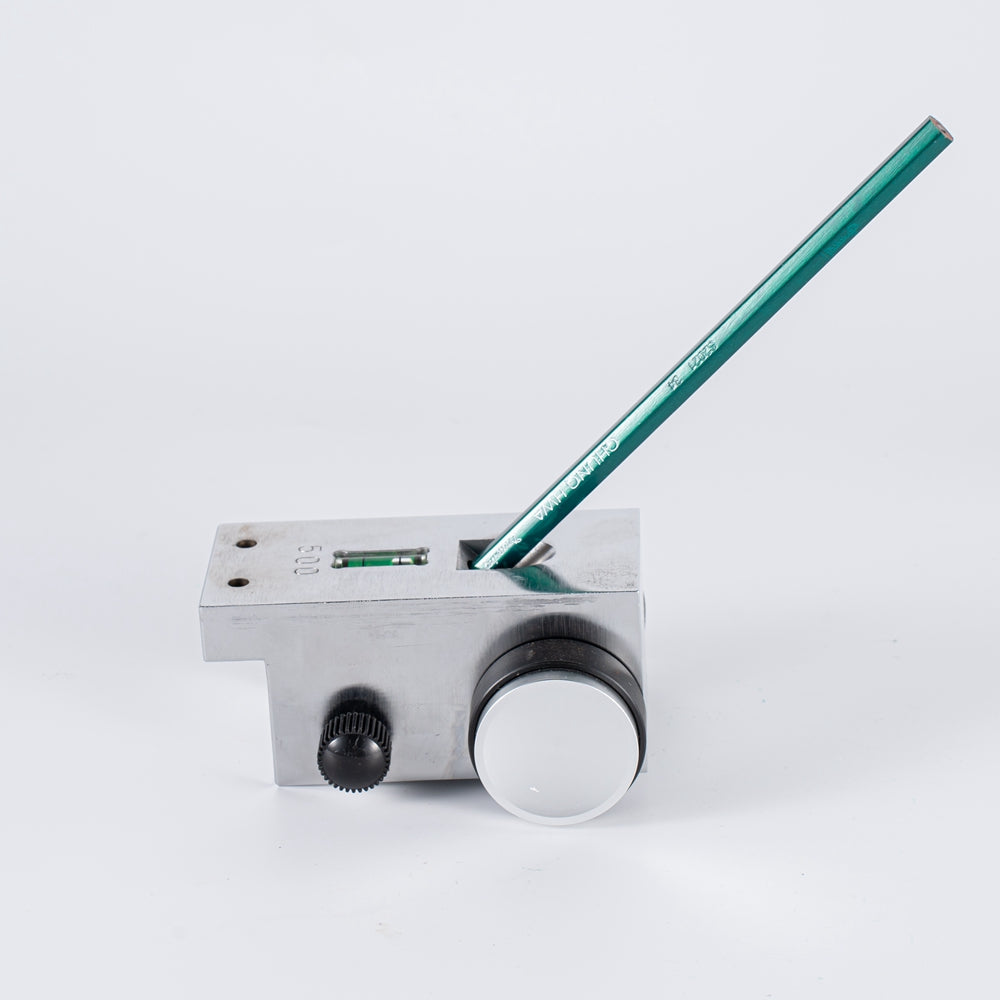

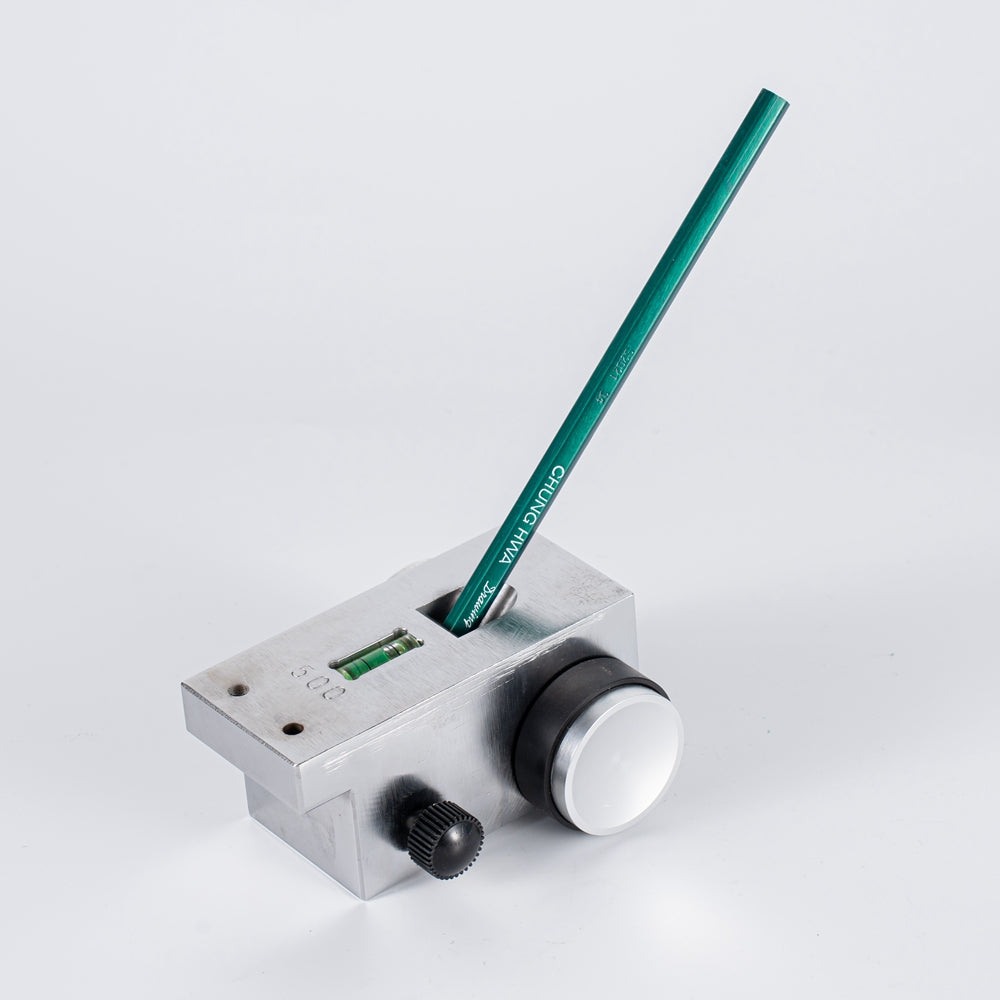

  • Measurement Angle: 45° (between the pencil and measured surface)

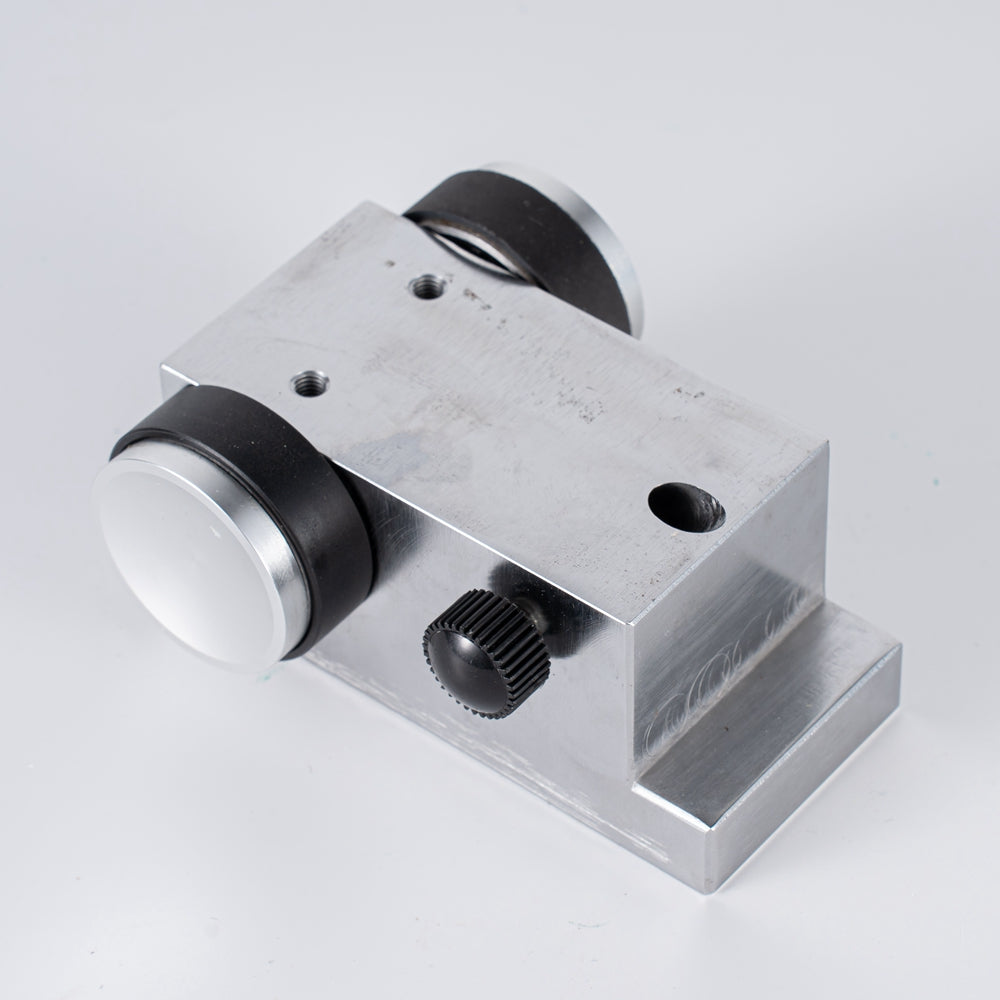

  • Three Touch Points: Two wheels and a pencil core for stable measurements
  • Scratch Speed: Approximately 1 mm/s

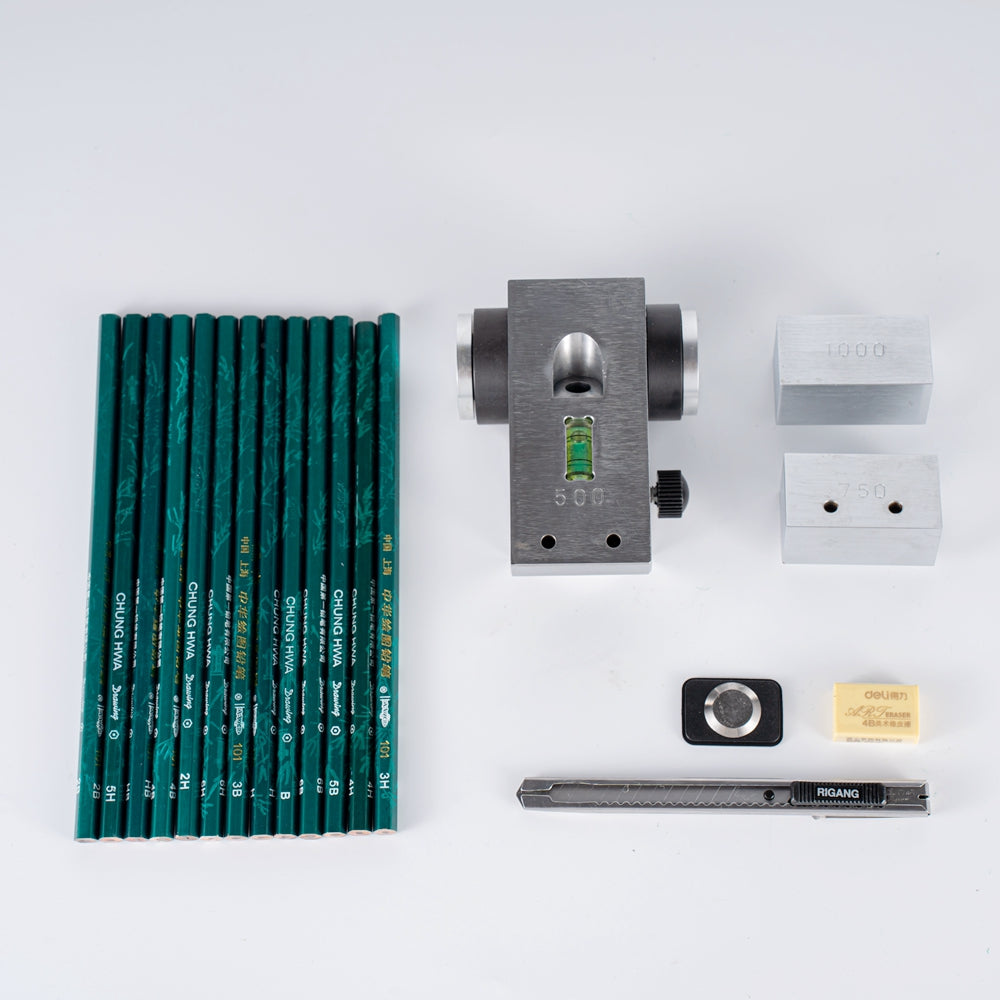

Accessories
Standard Accessories:

  • Pencil Hardness Tester
  • Load Weights (1000 g, 750 g)
  • Pencils (6B to 6H)
  • Eraser
  • Knife
  • Horizontal Pad Block
  • Sandpaper
  • Main Unit
  • 2 Pins
  • 2 Standard Blocks
  • Pin Length Calibration Block
  • Screwdriver
  • Spanner
  • Operation Manual

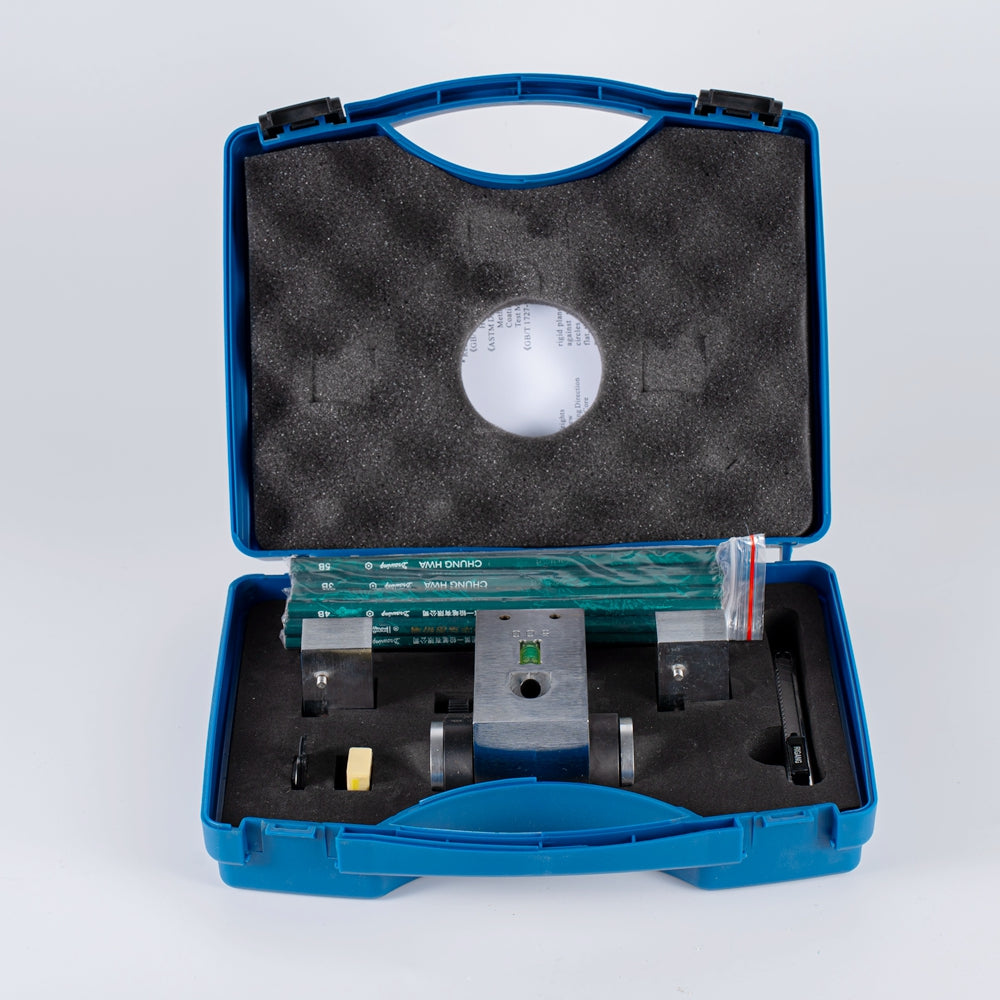

  • Carrying Case

Alternative Names

  • Coating Hardness Tester
  • Surface Scratch Tester
  • Paint Hardness Evaluator
  • Industrial Pencil Hardness Test Device
  • Digital Coating Hardness Gauge
Downloads

PDF Specification Sheet - Download Here
