20-40m Pipe & Drain Inspection Camera & 512Hz Sonde Receiver – V9-23

Description

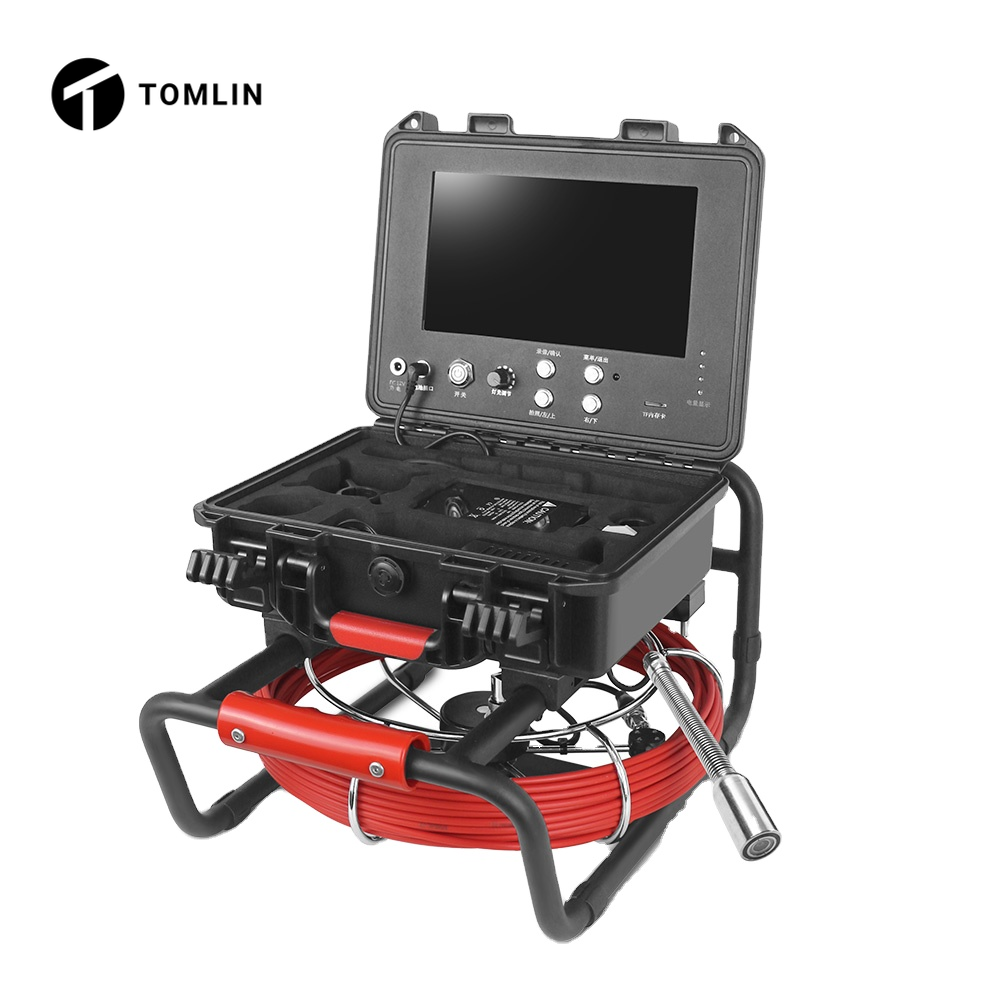

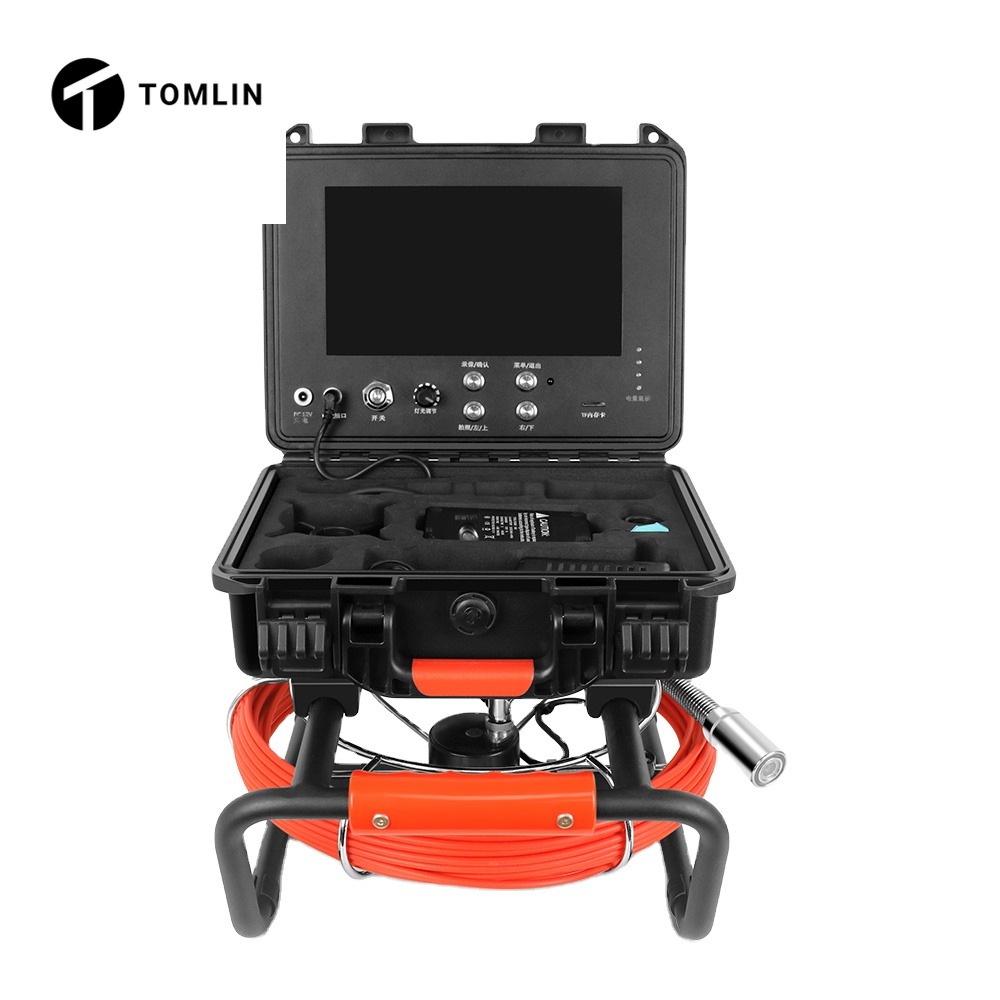

The 23mm Portable Sewer Video Inspection Camera (Model V9-23) is a compact and professional-grade pipe inspection system designed for clear and efficient internal pipeline diagnostics. Equipped with a durable 23mm waterproof camera head and a 9-inch HD IPS LCD screen, this system delivers high-resolution visuals for accurate inspection of drains, sewer lines, and underground pipes.

With built-in DVR functionality for video recording, audio capture, and photography, this inspection camera allows technicians to document findings directly on-site. The integrated 4400mAh rechargeable battery ensures reliable performance during field operations, while the fiberglass push rod cable (20m–40m options) provides flexibility and durability for long-distance inspections.

Ideal for plumbing professionals, contractors, and maintenance teams, the V9-23 offers portability, ease of use, and dependable performance in demanding environments.

Features

• 23mm HD waterproof camera head (IP68 rated)

• 9-inch HD IPS LCD monitor for clear image display

• 1080P DVR recording with audio and photo capture

• Built-in 4400mAh rechargeable Li-ion battery

• 120° wide viewing angle

• 12 adjustable high-intensity LED lights

• Durable fiberglass push rod cable (20m–40m options)

• Detachable pin-type connector for easy maintenance

• Sapphire glass lens window with stainless steel housing

• Portable, compact, and easy-to-carry design

Specifications

Model: V9-23
Screen Size: 9-inch HD IPS LCD

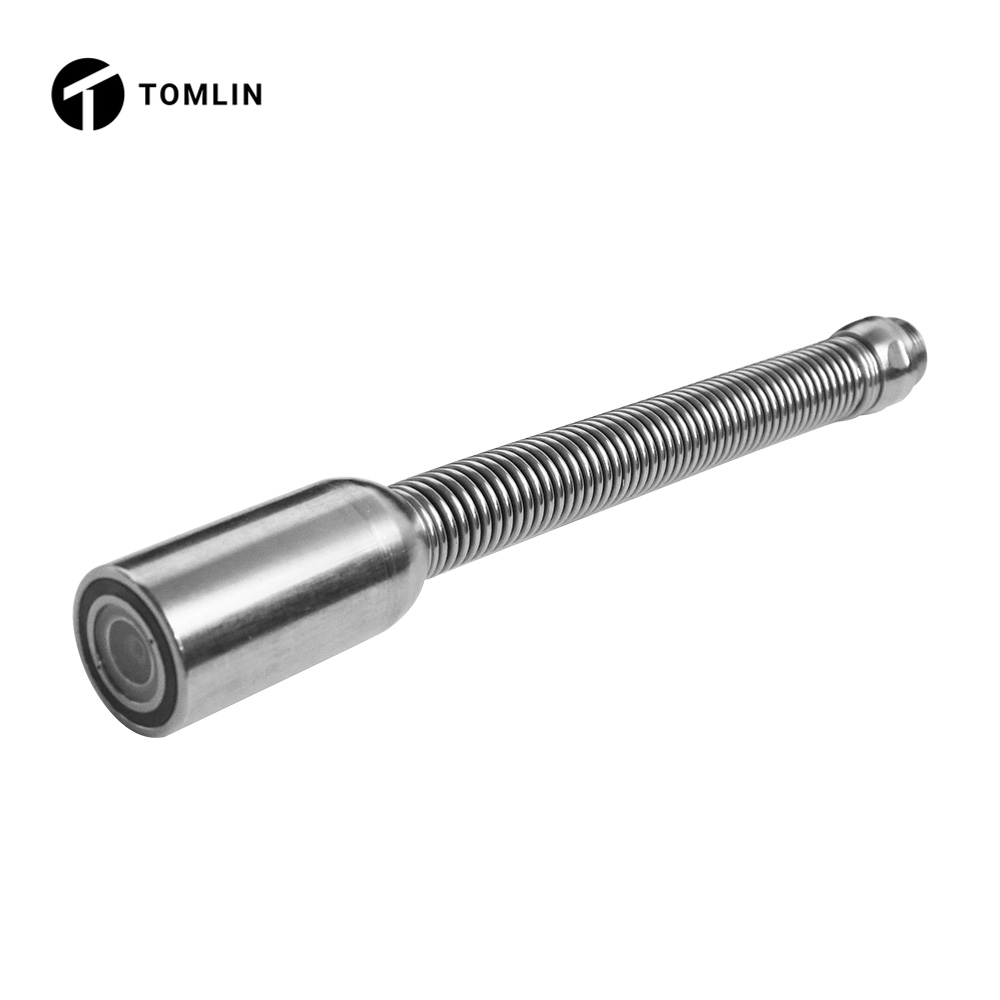

Camera Head

• Size: 23 × 53mm

• Sensor: 1/3" CMOS

• Resolution: 1.3MP

• Viewing Angle: 120°

• Waterproof Rating: IP68

• Lighting: 12 adjustable high-brightness LEDs

• Material: Sapphire glass lens window & stainless steel housing

• Connector Type: Detachable pin-type connection

DVR Control Unit

• Video Format: 1080P

• Functions: Video recording, audio recording, photography

• Battery Capacity: 4400mAh rechargeable Li-ion

• Battery Level Indicator: Yes

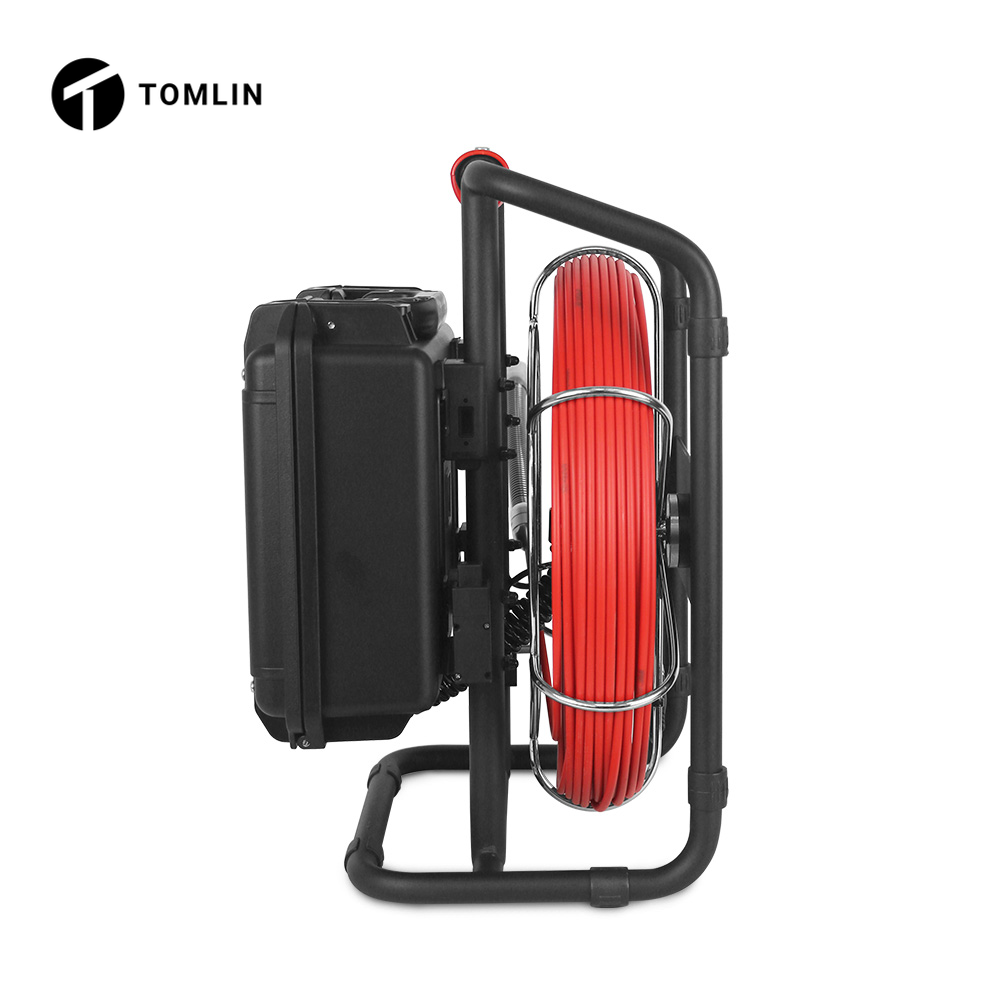

Cable Reel

• Cable Material: Fiberglass push rod

• Cable Diameter: 5.2mm

• Cable Length Options: 20m / 30m / 40m

• Reel Diameter: 32cm

Delivery Scope

• 1 × 23mm IP68 Camera Head

• 1 × 9-inch DVR Control Unit

• 1 × Fiberglass Cable Reel (length as selected)

• 1 × 4400mAh Rechargeable Li-ion Battery (built-in)

• 1 × Charging Adapter

• User Manual

Industries Used In

• Plumbing and drain cleaning services

• Sewer and wastewater inspection

• Municipal pipeline maintenance

• Underground cable and pipe detection

• Property maintenance and facility management

• Construction and infrastructure inspection

• Industrial pipeline diagnostics
