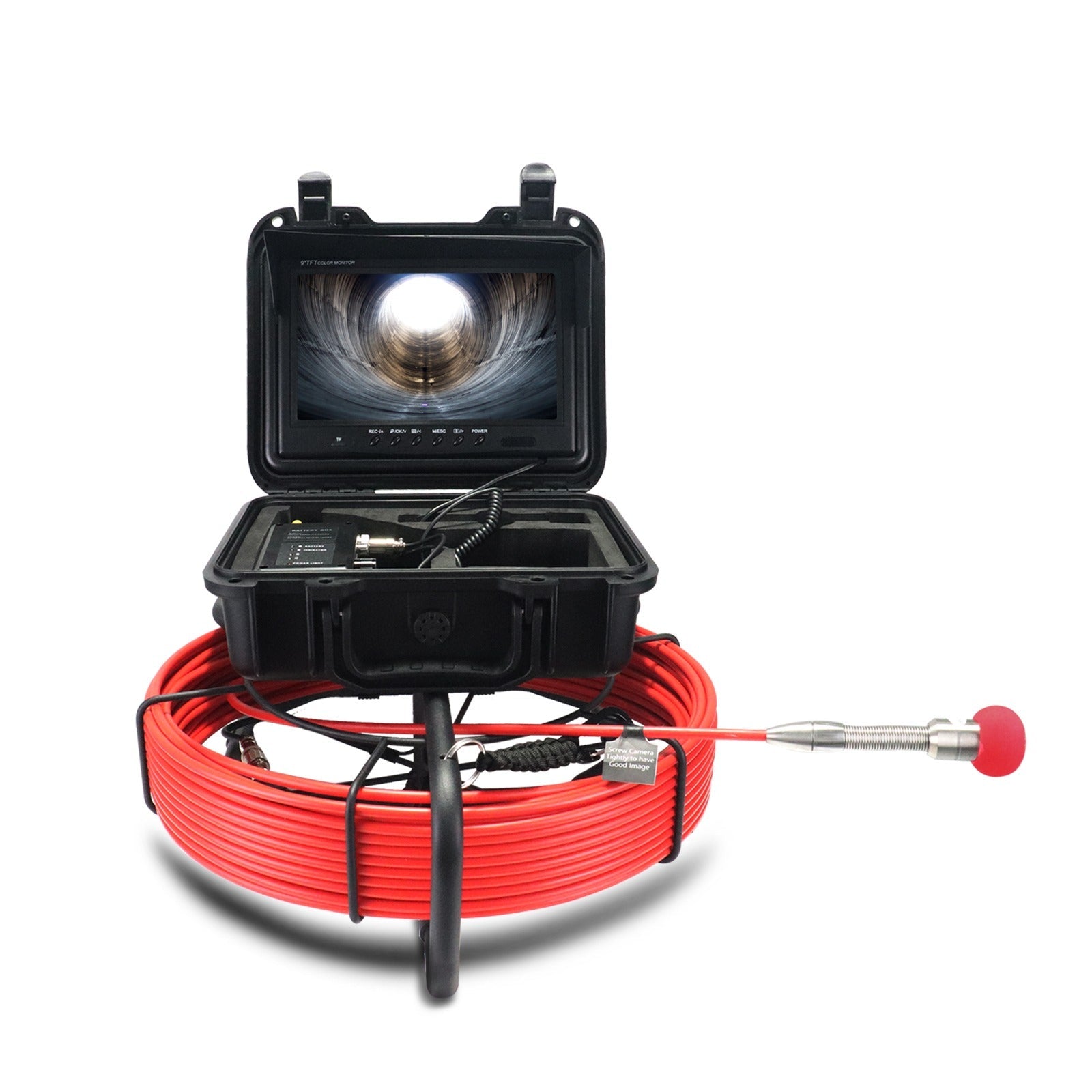

Pipe Inspection Endoscope CR110-9DX7

Product Description

Professional Pipe, Drain & Sewer Inspection System
The CR110-9DX7 Pipe Inspection Camera is designed for precision inspections in challenging and dark environments. Featuring a 23mm stainless steel camera head, sapphire glass lens, and IP68 waterproof rating, it easily navigates pipelines, drains, tanks, and other confined spaces to detect cracks, corrosion, blockages, and other defects.

Ideal for municipal, industrial, and residential applications including plumbing, gas and petroleum pipelines, telecommunications, and disaster search & rescue.

Key Features

• High-Resolution Camera: 23mm x 120mm camera head with 1/3-inch CMOS sensor and 1000TVL resolution (720p or 1080p optional).

• Durable Construction: High-strength stainless steel 304 with sapphire glass lens for scratch resistance.

• Wide View: 120° field of view with 12 adjustable white LED lights for clear imaging.

• Long Cable Reach: 50m or 100m 7mm diameter for flexibility and strength.

• Large Display: 9-inch LCD monitor with 1024×600 resolution and multiple language options.

• DVR Recording (Optional): Capture video in MPEG2/MPEG4 and images in JPEG/JPG, with TF card support up to 32GB.

• Rechargeable Power: 11V 5100mAh lithium battery with approx. 5 hours runtime.

• Weatherproof Performance: IP68 waterproof grade, suitable for temperatures from -20°C to 60°C.

Technical Specifications

Camera

• Size: 23mm x 120mm

• Material: Stainless steel 304

• Lens: Sapphire glass

• Sensor: 1/3-inch CMOS

• Sharpness: 1000TVL (720p or 1080p optional)

• View Angle: 120°

• Lighting: 12 adjustable white LEDs

• Cable Length: 50m or 100m

• Waterproof: IP68

• Operating Temp: -20°C to 60°C

Monitor

• Size: 9" digital LCD screen

• Resolution: 1024×600

• Display Ratio: 16:9

• Languages: English, Chinese, Japanese, German, French, Spanish, Portuguese, Italian, Russian, and more

DVR (Optional)

• Formats: MPEG2/MPEG4 (video), JPEG/JPG (photo)

• Resolution: 720×576 (optional high resolution)

• Storage: TF card up to 32GB

Power

• Adapter: AC 90–240V input, DC 12.6V output

• Battery: 11V 5100mAh lithium battery

• Charge Time: 4–6 hours

• Runtime: ~5 hours

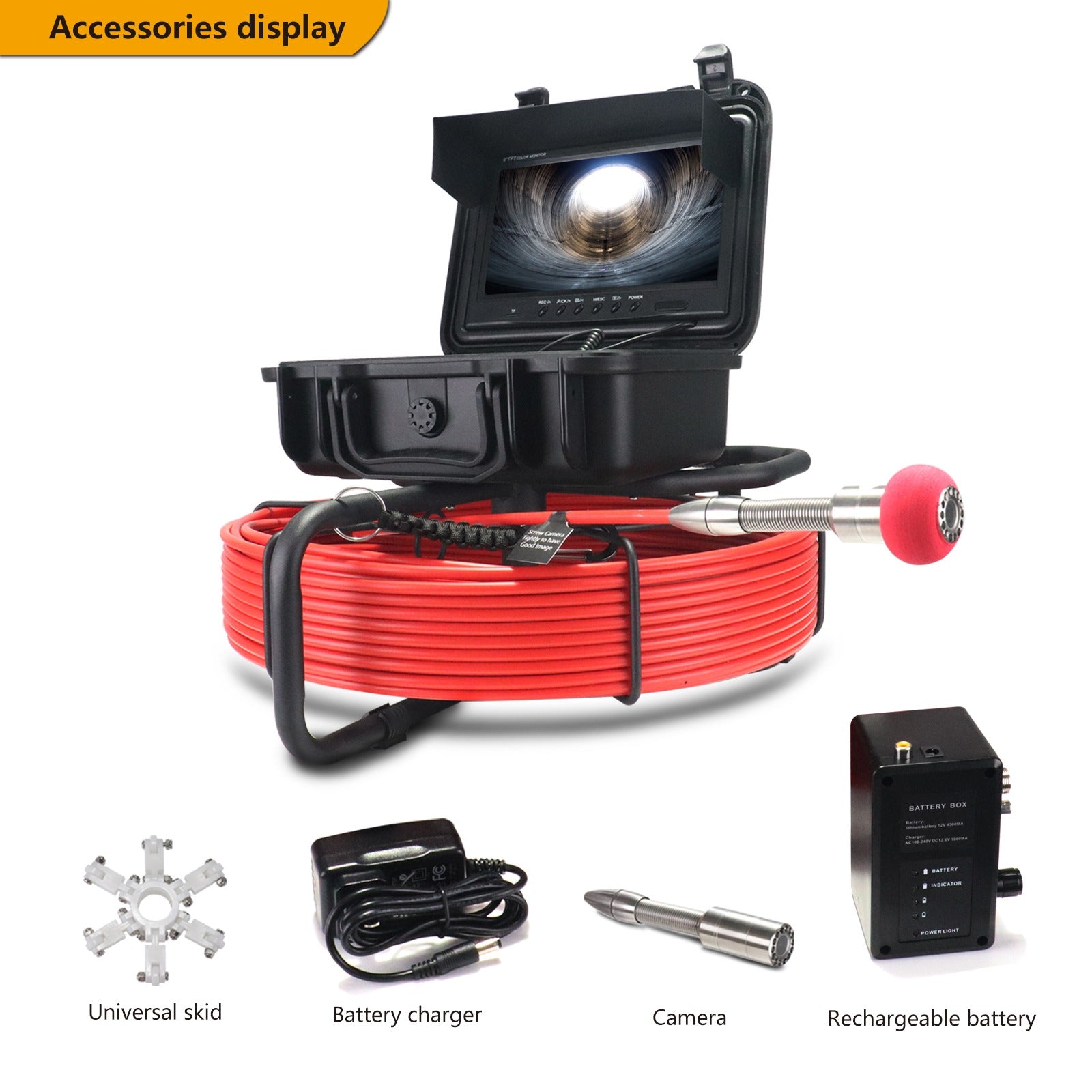

Package Includes

1. Cable wheel (length as requested)

2. HD waterproof camera head

3. Built-in lithium battery (11V, 5100mAh)

4. 12V charger

5. 9" LCD monitor

6. ABS engineering plastic case

7. Connecting cable

8. Built-in sunshade

9. Centering device

10. User manual

Downloads

Data Sheet Link
