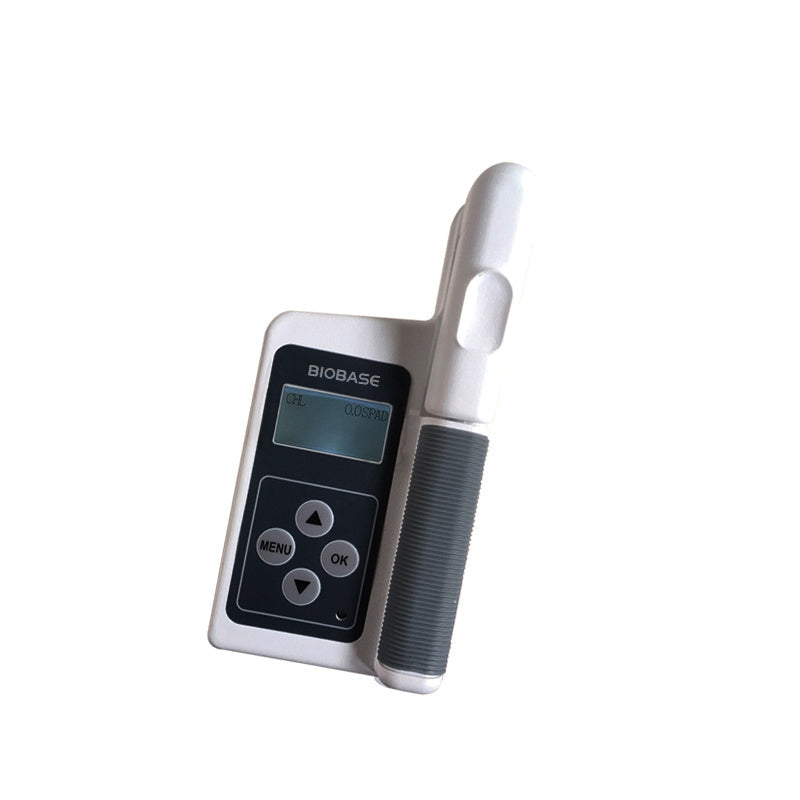

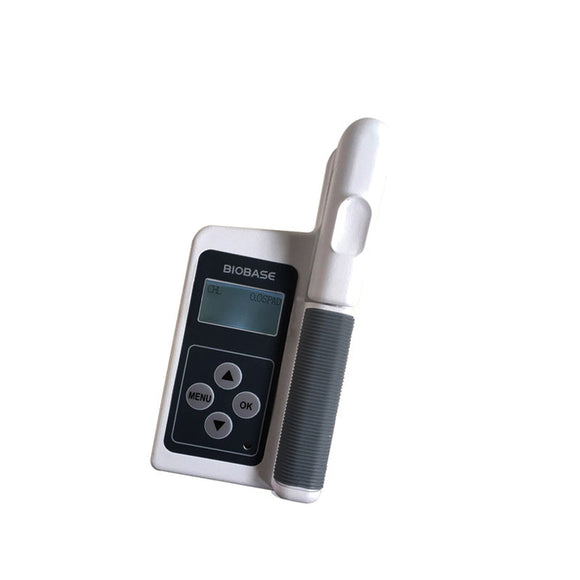

Portable Chlorophyll Meter

Chlorophyll Meter Display Chlorophyll Leaf Temperature Calculate Standard Fertilizer Export Data to Computer

Features:

• Allows entry of plant name, standard nitrogen content, and utilization, enabling direct calculation of standard fertilizer.
• Simultaneous display of chlorophyll content and leaf temperature on the same screen, with concurrent storage capabilities.
• USB interface for connection to a computer, facilitating export of measured data for management and analysis of plant nutrients.

Specification

• Model: CM-B
• Measuring Area: 2mm * 2mm
• Measuring Mode: 2-wavelength concentration difference of optical methods
• Sensors: Silicon semiconductor photodiode
• Display Mode:
  • Measuring value: 3 digits liquid crystal display
  • Measuring times: 2 digits liquid crystal display
• Min Measuring Interval: < 3s
• Measuring Range: 0.0-99.9 SPAD, -10~99.9°C
• Accuracy: ±1.0 SPAD; ±0.5°C
• Repeatability: ±0.3 SPAD; ±0.2°C
• Power Supply: 4.2V - 2000mAh rechargeable Li battery
• Memory Capacity: 30Kb, with automatic calculation and display of the average
• Packing Size (W*D*H): 270*210*140mm
• Gross Weight: 1.0kg

Downloads

PDF Specification - Download Here
