Portable Multi Gas Detector LEL, CO, HS2, O2 BX616

Portable Multi Gas Detector LEL, CO, HS2, O2 BX616

$880.00
$880.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

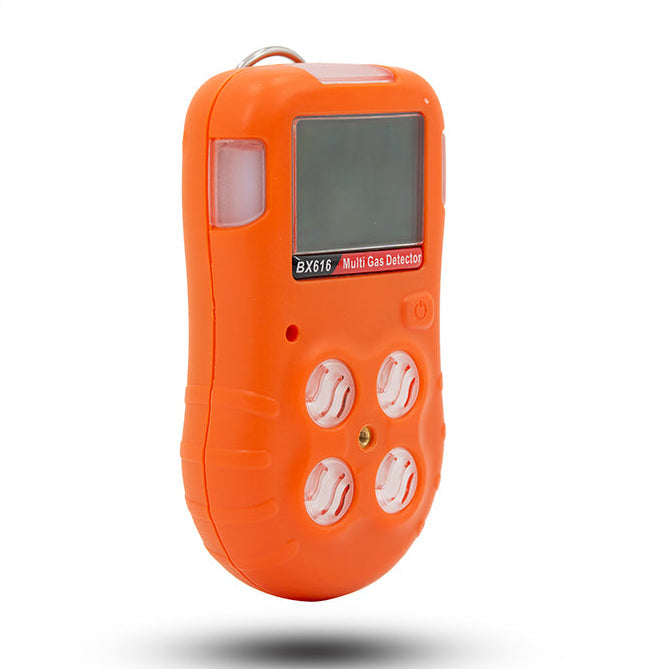

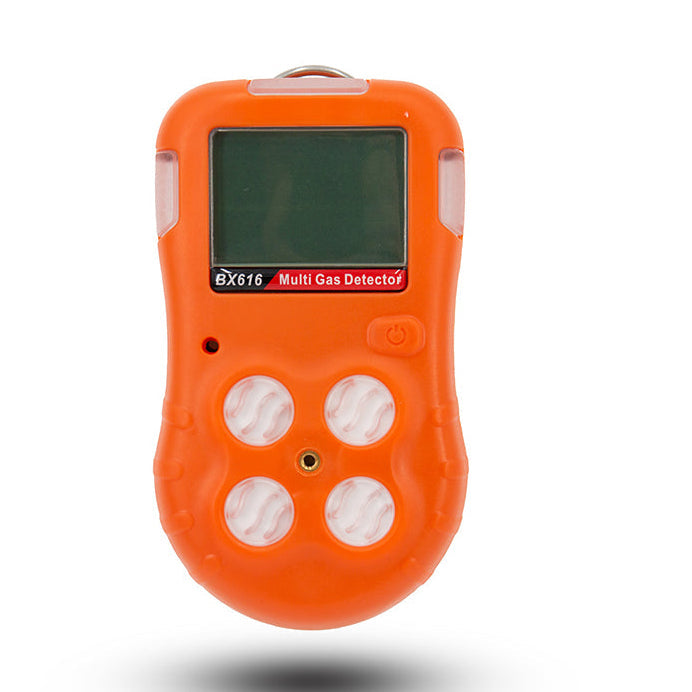

BX616 Portable Multi-gas Detector

BX616 is a united gas detector measuring four (4) major gases, which result the most of the industrial accidents, to protect the disasters caused by the O2 deficiency, toxic gas poisoning and combustible gas explosion. It measures continuously four gases O2, CO, H2S and combustible gas (CH4), and displays their concentrations. Once the risk occurs, it also raises the alarm (visual, audible and vibrative).

Features
Small size and light-weight
Simple operation with only 1 button
Adjustable alarm levels and span calibration value
STEL and TWA alarm for toxic gases
Self protection for combustible gas sensor against high concentration
Battery low voltage alert
Confidence beep
Self-test after power on
Self-diagonstic and self-correction function
Specification
Measuring gas
O2
CO
H2S
Combustible
Measuring range
0-25%VOL
0-500ppm
0-100ppm
0-100%LEL
Sensor type
Electrochemical
Electrochemical
Electrochemical
Catalytic
Measuring type
Diffuse naturally
Response time
T90<30s
Display
LCD screen
Audible
≥85dB at 1m
Alarm method
Visual, audible and vibrative signals
Battery
DC3.7V 1800mAh Lithium battery
Operating time
≥8h per charge (Charging time: 4-6h)
Event log
100,000 events
Working temperature
Toxic gases: -20℃～50℃ Combustible: -40℃～70℃
Working humidity
<95%RH (no condensation)
Housing
Rubber enclosure
Standard accessories
Operation manual, calibration cap, charger, screwdriver
Dimension & weight
120×68×30mm, about 220g
Ex grade
II 2G Ex ia IIC T4 Ga or II 2G Ex db ia IIC T4 Gb
Ingress protection
IP66
Download
Data Sheet Link
