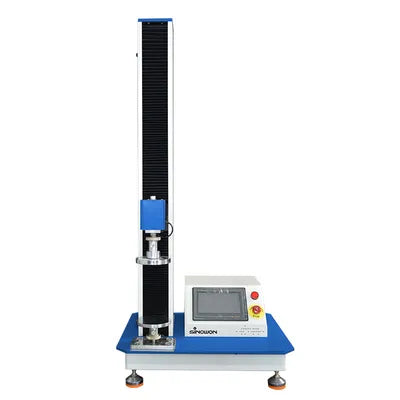

Tensile Compression Testing Machine | Precision Universal Tester SL-8170/SL-1170

Tensile Compression Testing Machine | Precision Universal Tester SL-8170/SL-1170

$5,665.00
$5,665.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

SL-8170/SL-1170 Tensile Compression Testing Machine



1 - 500mm/Min Precision Tensile Compression Testing Machine SL-8170 For Industries 0

Product Introduction:

  • Suitable for industries such as hardware, rubber and plastic, paper products, color printing and packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wires and electronics. Can conduct tests on various materials, semi-finished products, and finished products in the forms of tension, compression, bending, bending, shearing, tearing, peeling, etc;
  • Elegant exterior design - a dynamic base with advanced spray molding treatment;
  • Precision transmission mechanism - using high-precision, clearance free ball screws and timely gauge belts as the guarantee of transmission system accuracy;
  • Advanced control methods - microcomputer or computer data acquisition and motion control;
  • Ultra high testing accuracy - better than level 1 force measurement accuracy, 1/200000 force value resolution, and deformation measurement resolution up to 0.0001mm.

Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.

Specifications:



Model SL-8170 SL-8170B
Capacity 2,5,10,20,50,100,200,500kg, optional
Display Power and Extension Display
Force measurement accuracy Better than ±1.0%
Force resolution 1/10, 000
Effective force measurement range 1~100%F.S
Accuracy of deformation indication Better than ±1.0%
Test speed range 1～500mm/min, optional
Test maximum stroke 1000mm, excluding grips
Effective experimental space Front and back 120mm, right and left∝
Power unit switching Kgf, gf, N, kN, Ibf
Stress unit switching MPa, kPa, kgf/cm2, Ibf/in2
Transformation unit switching Mm, cm, in
Stop method Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection
Pointing method Manual point selection and pre-set point selection (20 points) function during the test process
PC Linked N/A Yes
Standard items 1 pair of standard fixtures, 1 micro printer, 1 equipment power cord, 1 operation manual, 1 product qualification certificate, and 1 product warranty card 1 pair of standard fixtures, 1 micro printer, 1 set of software and data cables, 1 equipment power cable, 1 operation manual, 1 product qualification certificate, and 1 product warranty card
Dimension 570*470*1200mm
Weight Around 55kg
Motor Step motor
Power 1PH, AC220V, 50/60Hz, 10A or customized



Optional:

  • Additional 1m Heighten Single
    Column Additional
  • Additional 1m Heighten Double
    Column Additional
  • Additional Consumable Sensors (1-500kgf/ 1000-2000kgf/ 5000-10000kgf
  • External Computer
