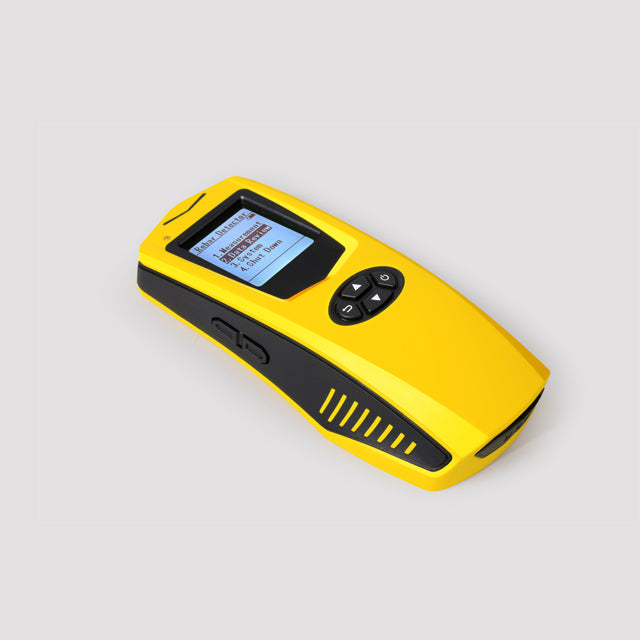

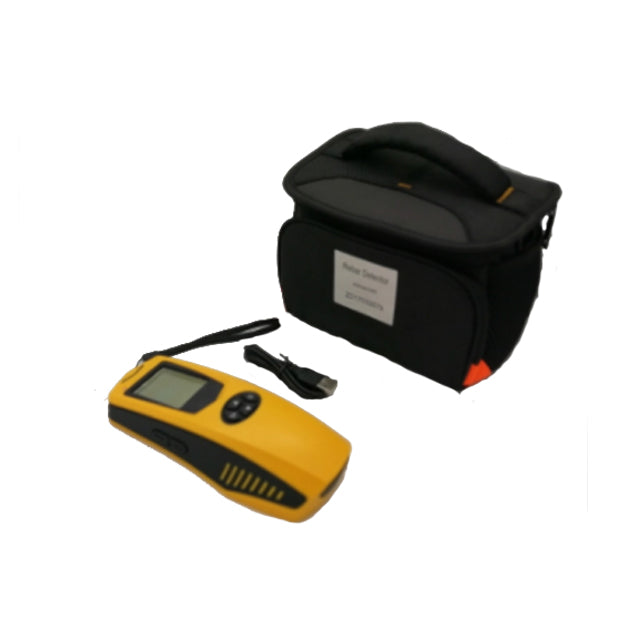

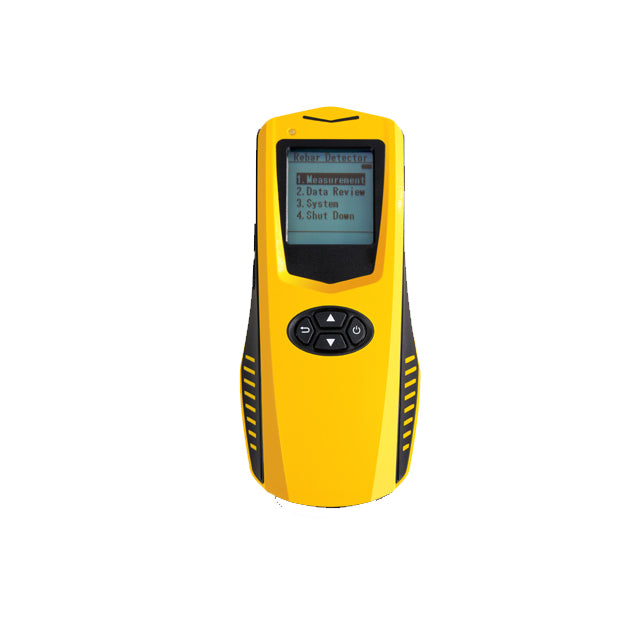

Rebar Scanner TEM-620XH

Product Description

Overview
The TEM-620XH Rebar Scanner is a professional-grade instrument designed to detect and measure the position, diameter, and depth of steel reinforcement bars in concrete structures. With a wide scanning range and high accuracy, it supports structural inspection, quality assurance, and site assessment for construction, renovation, and safety evaluations.

This compact, portable device supports USB data transfer, features a clear display interface, and complies with the JGJ measurement standard, making it ideal for use on active job sites and in quality control labs.

Key Features

• Detects the location, direction, and diameter of rebar in concrete

• Measures cover thickness with high accuracy up to 100 mm

• Supports JGJ-compliant structural testing

• Fast USB data export for documentation and reporting

• Automatic power-off function for energy efficiency

• Easy-to-use handheld design for on-site use

• Suitable for structural evaluation, renovation, and embedded object detection

Technical Specifications

Application Scenarios

• Locating rebar before coring, drilling, or cutting concrete

• Inspecting concrete for construction quality control

• Detecting rebar in walls, floors, columns, and slabs

• Verifying structural reinforcement during renovation or retrofitting

• Mapping electric cables and metal conduits inside concrete structures

• Measuring rebar in old structures prior to fixture installation (e.g., air conditioning or furniture mounting)

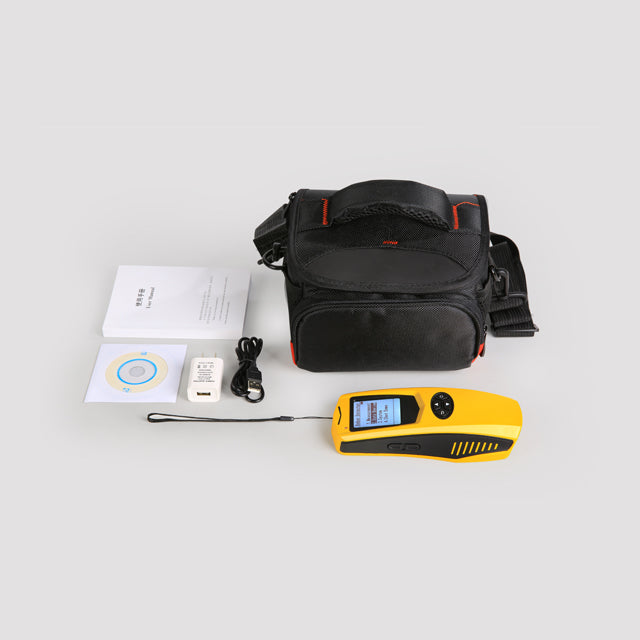

Standard Delivery Includes

• Main Unit (TEM-620XH)

• USB Cable

• Charging Adapter

• Carrying Bag

• User Manual

Downloads

PDF Data Sheet Link
